OEM DN15 1/2" DN20 3/4"/ DN25 1" Adjustable Water Pressure Reducing Regulator Valve 1.6MPa | 100% New & Ori + Warranty
Tidak dapat memuatkan ketersediaan pengambilan
Features:

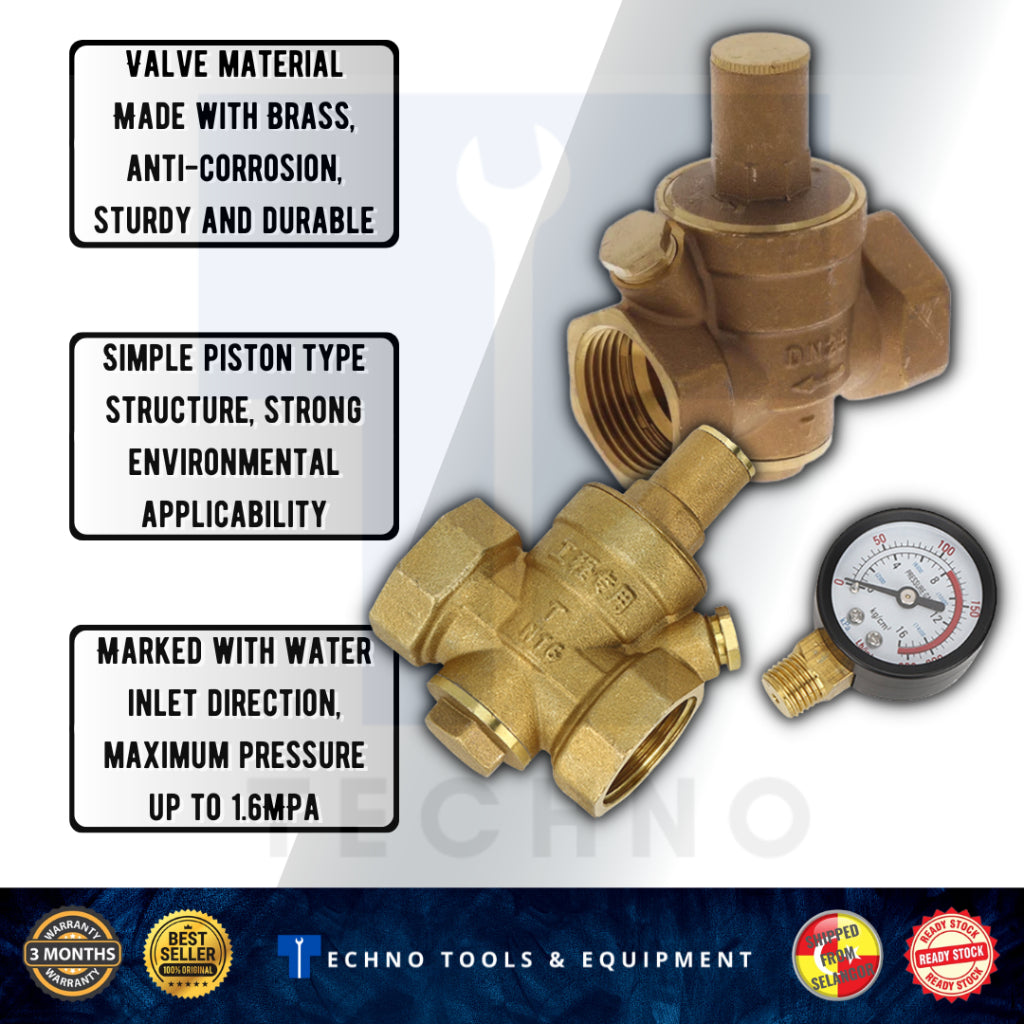

1. Brass valve body, anti-corrosion, sturdy and durable.
2. Simple piston type structure, strong environmental applicability.
3. No bypass pipe required, saving a lot of space and pipe cost.
4. Valve body is marked with water inlet direction, maximum pressure up to 1.6MPa.
5. You can adjust the pressure adjustment knob on the top as required.
Apply to: Hydraulic instability, water flow too fast, water purifiers, solar energy, gas heater and faucet.
Valve working principle can be simply understood as the entrance pressure and outlet pressure = spring force, through the control valve closure flow inside the opening of the size to control the pressure at the outlet, the water through the opening, closure and fluid resistance is small, the pressure loss is small, the outlet pressure is greater, and vice versa outlet pressure is smaller.
Specification:

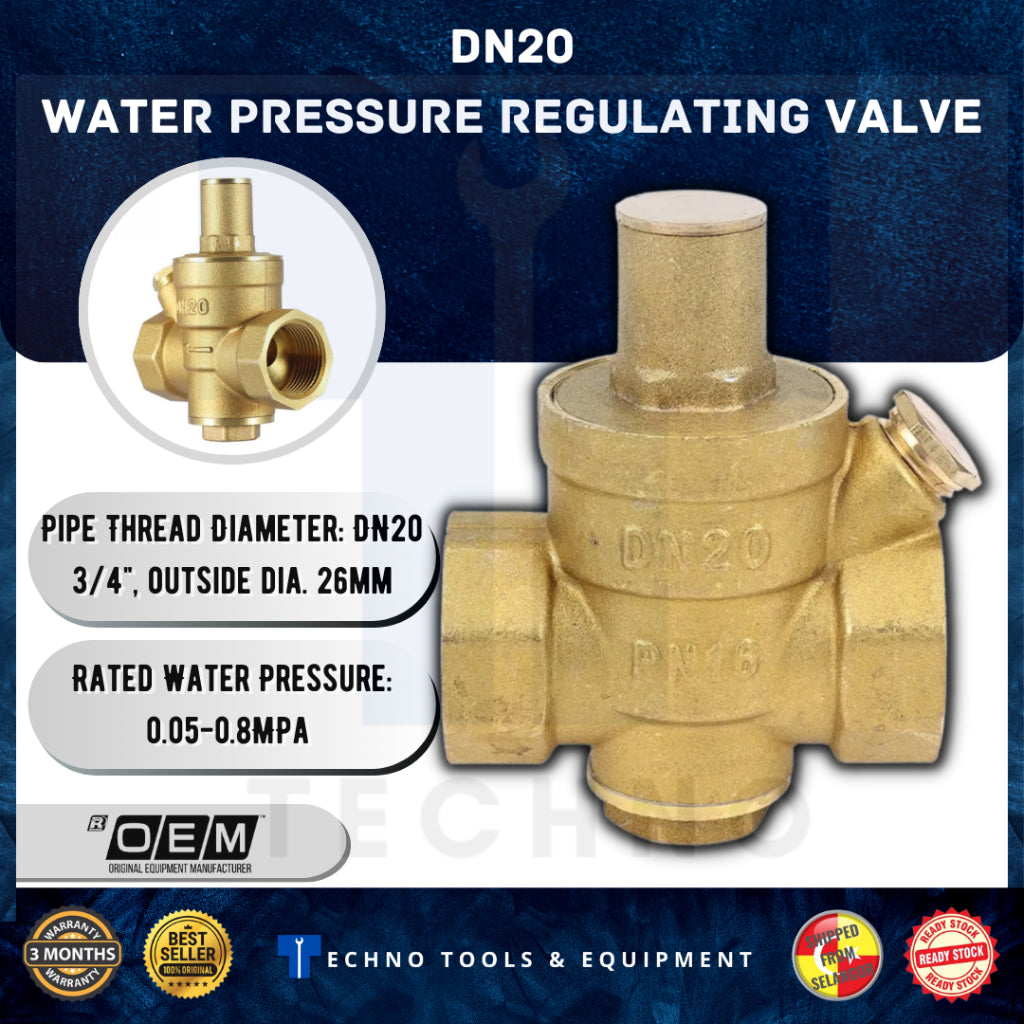

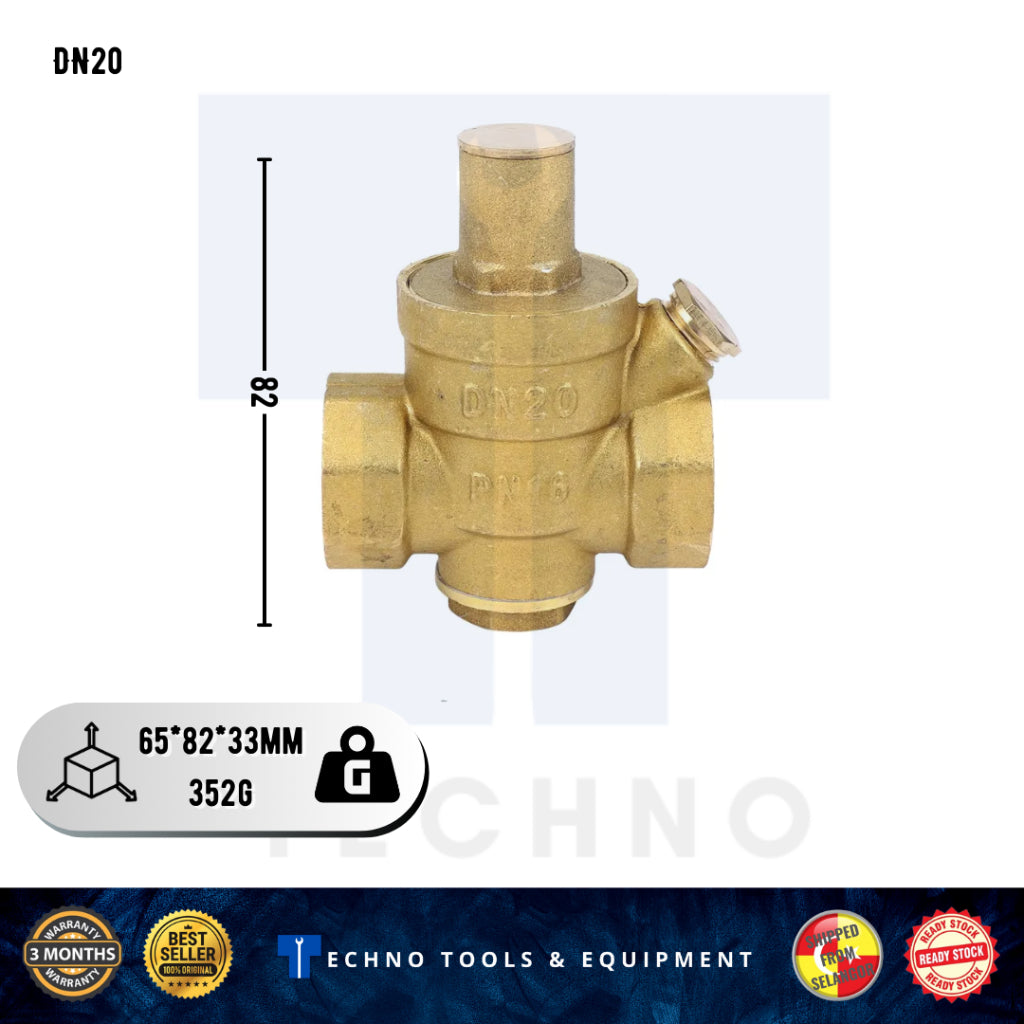

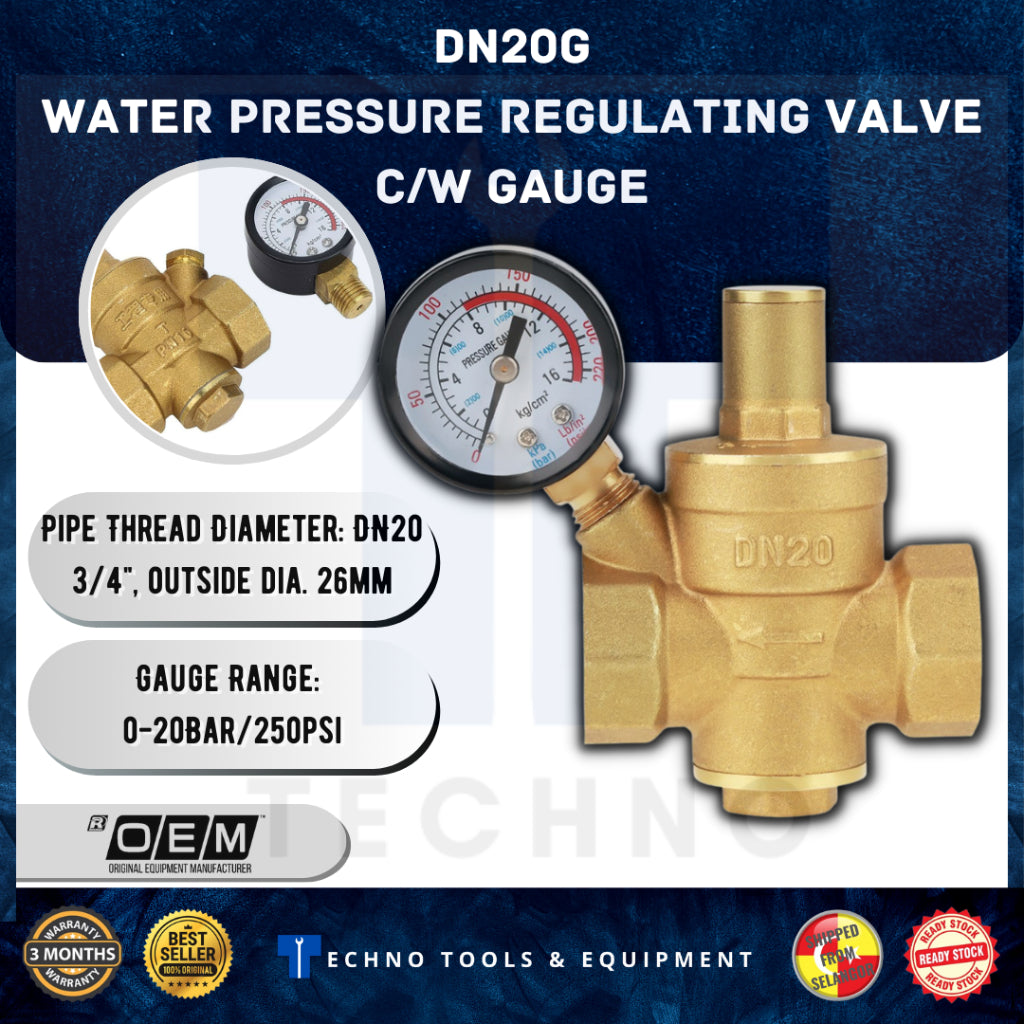

DN20
Valve material: Brass
Pipe Thread Diameter: DN20 3/4"
Rated Water Pressure: 0.05-0.8MPa (7.25-116psi)
Feed Water Pressure: Max. 1.6MPa/232psi
Size (L*H): 65*82mm / 2.56*3.23in
Weight: Approx. 352g/12.4oz

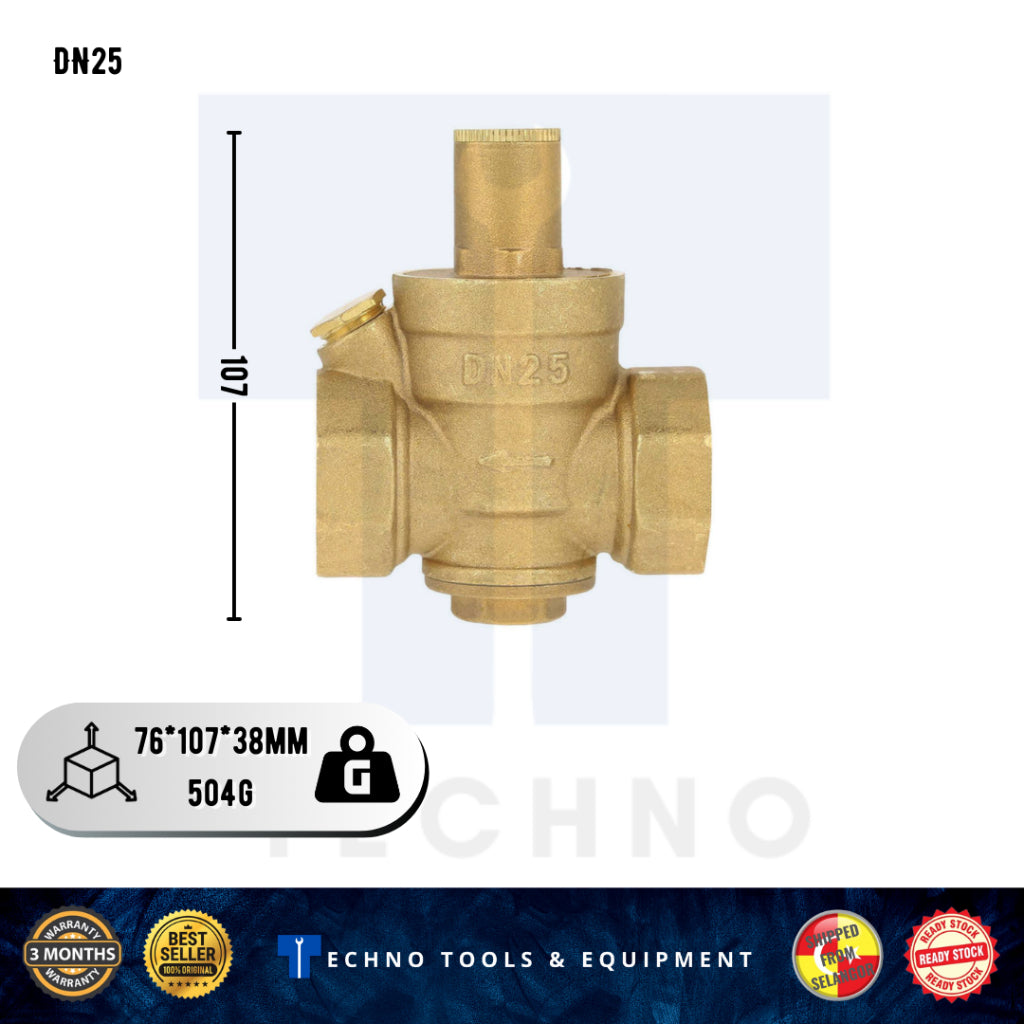

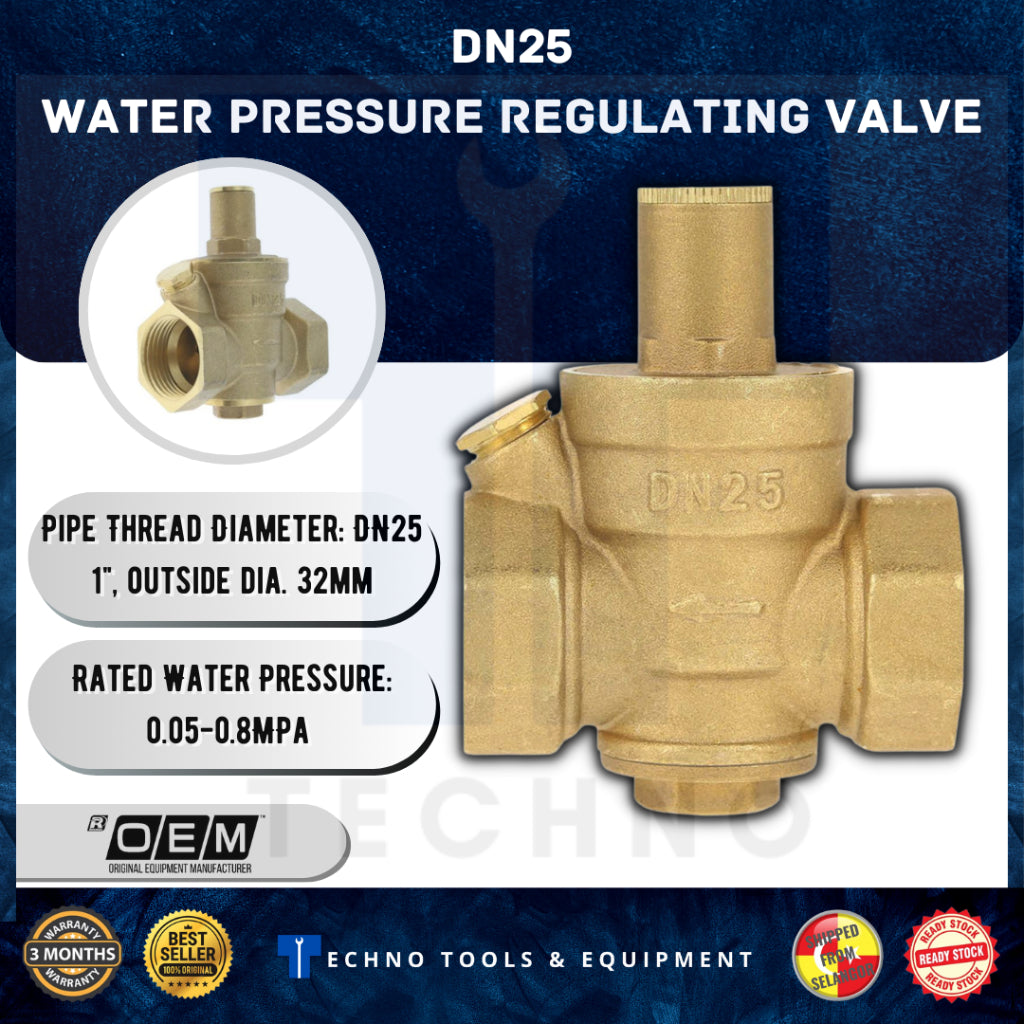

DN25
Valve material: Brass
Pipe Thread Diameter: DN25 1"
Rated Water Pressure: 0.05-0.8MPa (7.25-116psi)
Feed Water Pressure: Max. 1.6MPa/232psi
Size (L*H): 76*107mm / 2.99*4.21in
Weight: Approx. 504g
Package List:
1 * Brass Pressure Reducing Valve

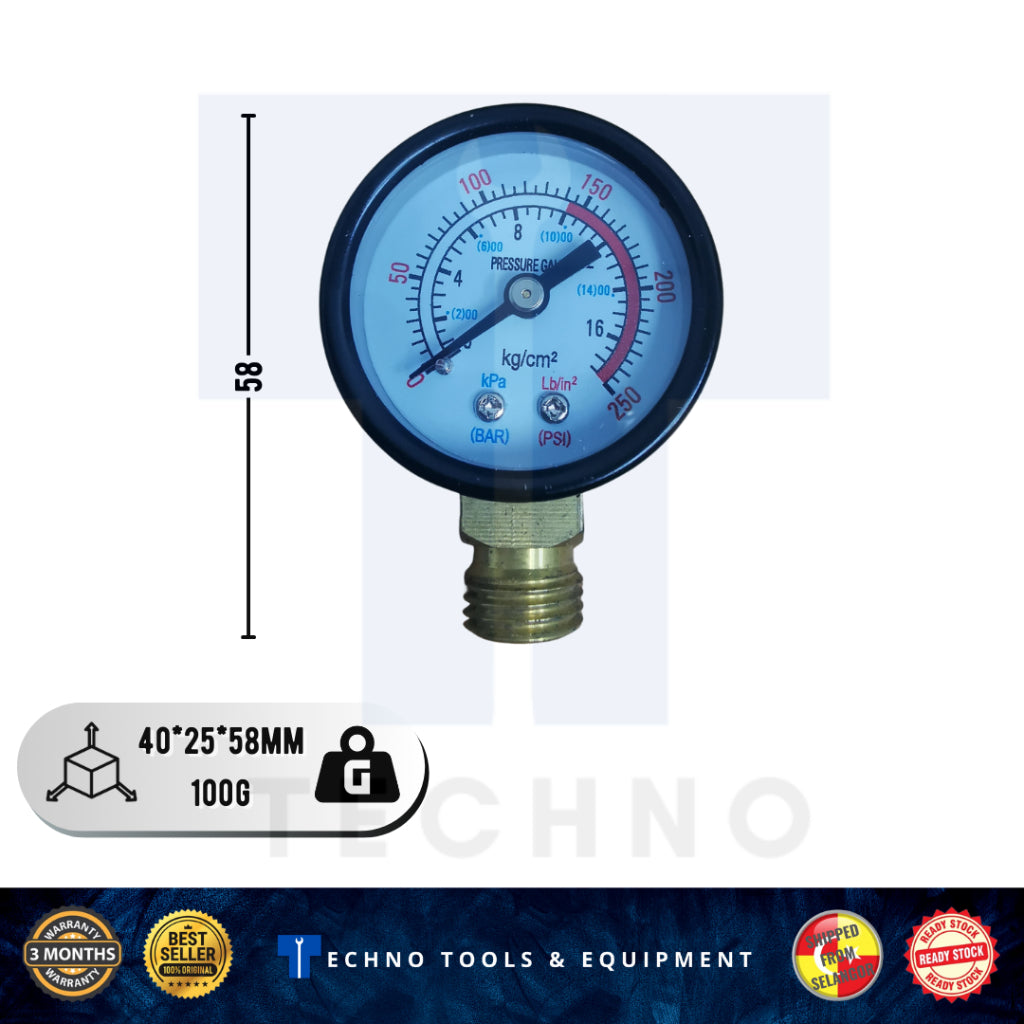

**Option 1* Pressure Gauge

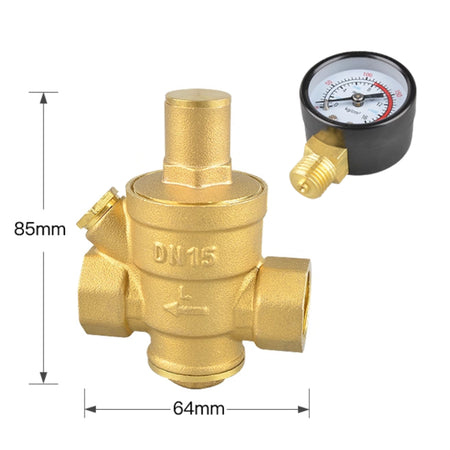

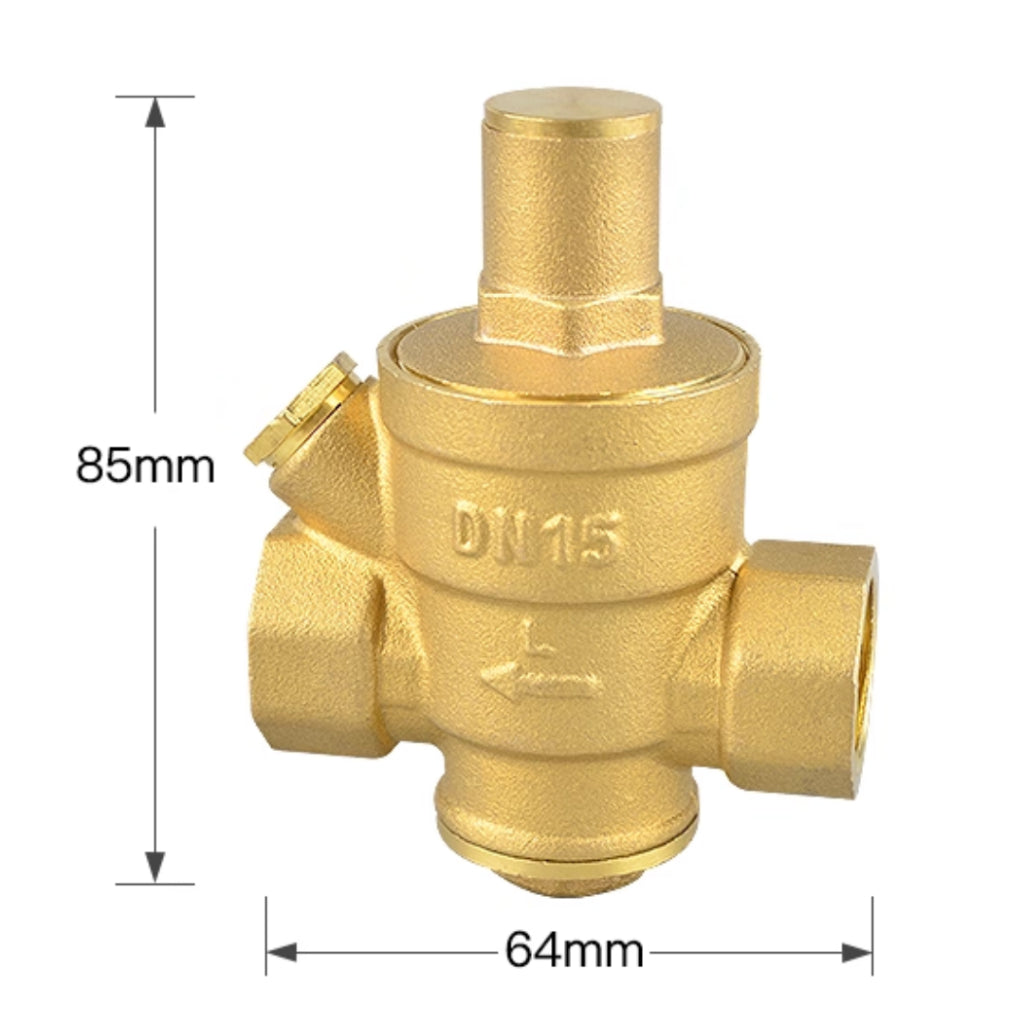

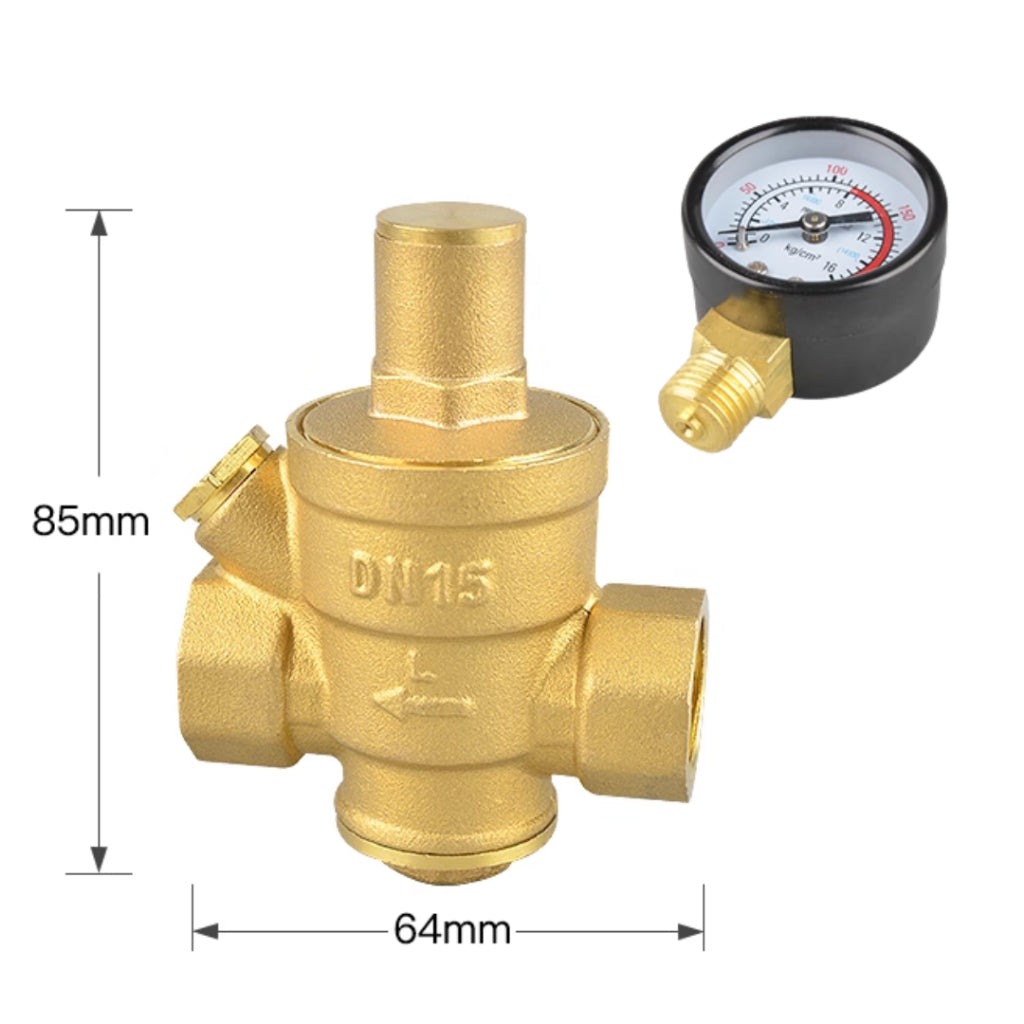

DN15
Valve material: Brass
Pipe Thread Diameter: DN15 1/2"
Rated Water Pressure: 0.05-0.8MPa (7.25-116psi)
Feed Water Pressure: Max. 1.6MPa/232psiss
Size (L*H): 64 * 85mm
Weight: Approx. 300g
