20Ton Hydraulic Puller Set c/w Hand Pump - 100% New & Original
Tidak dapat memuatkan ketersediaan pengambilan

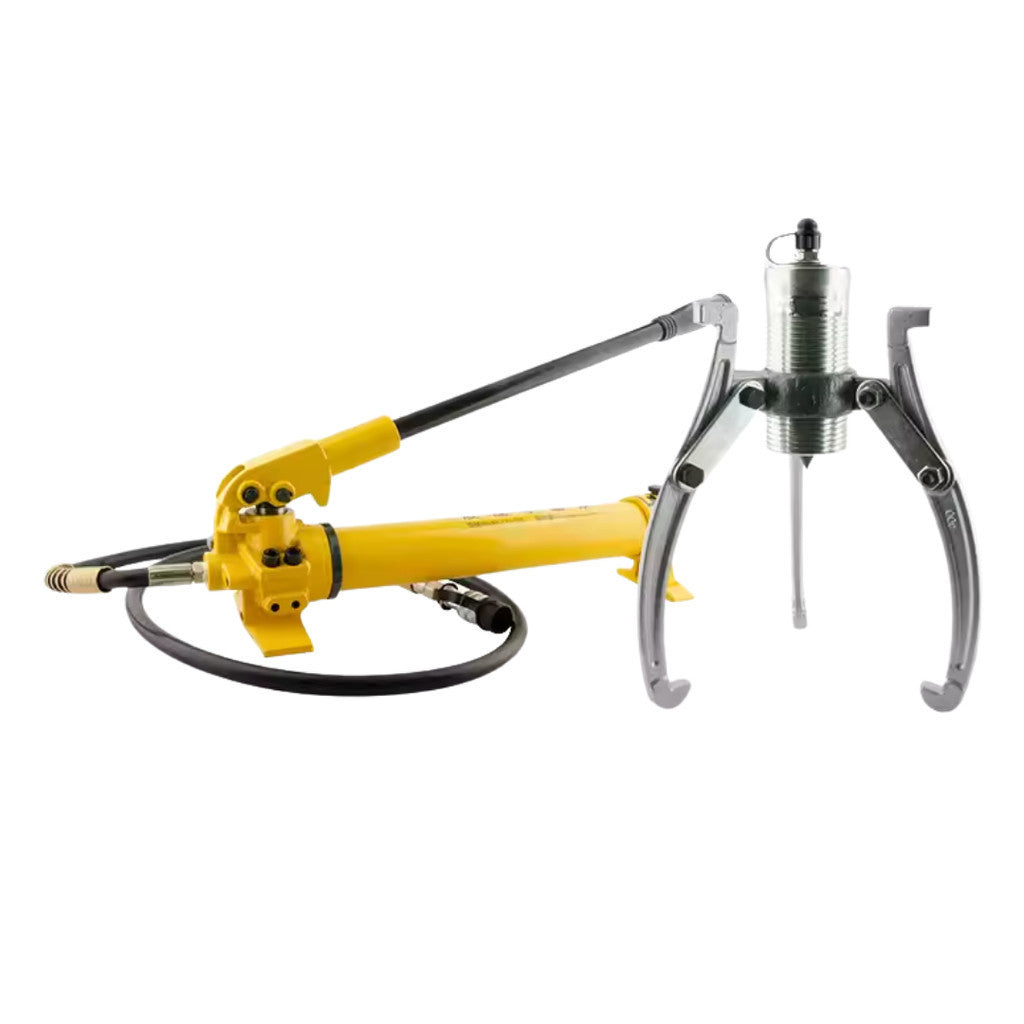

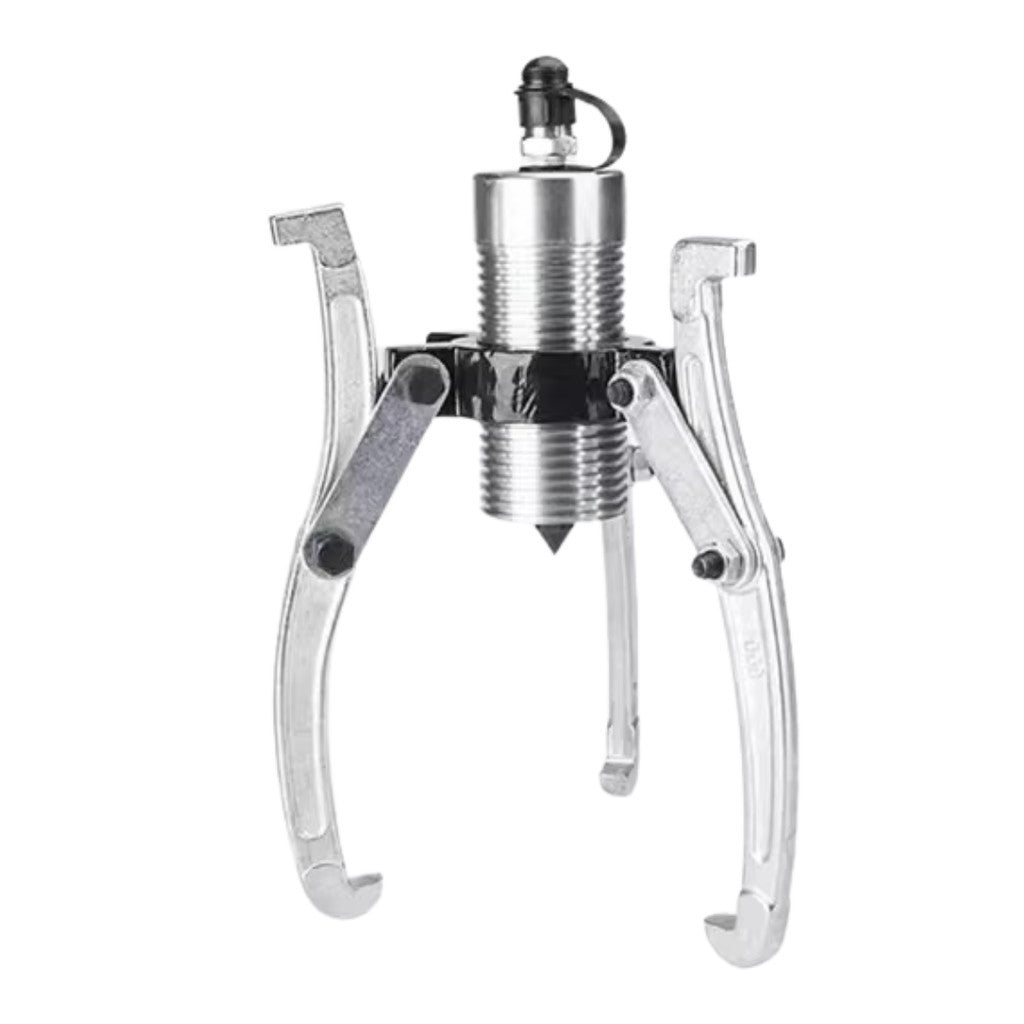

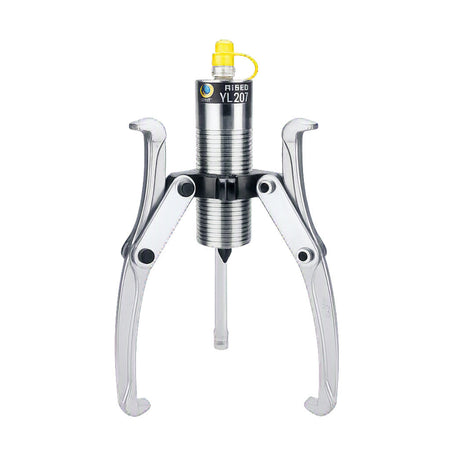

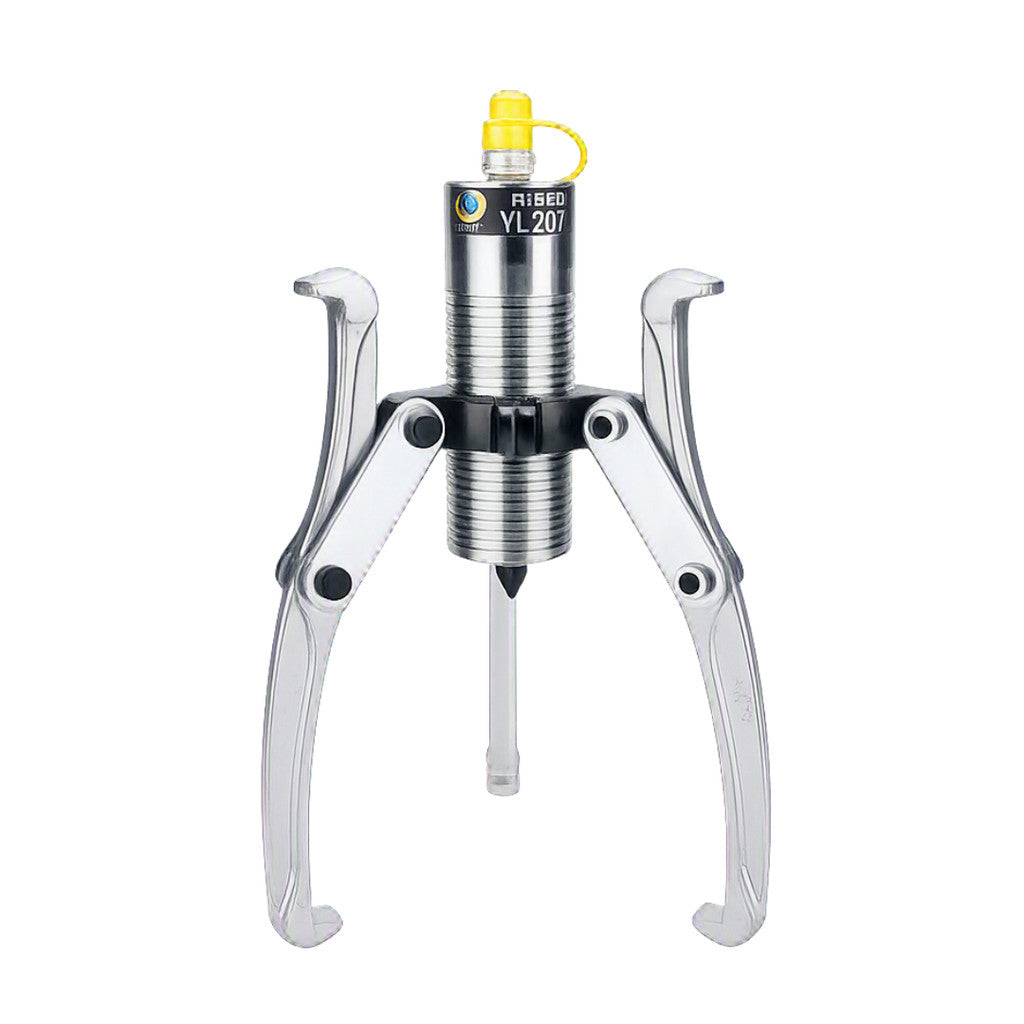

20 Ton Hydraulic puller set c/w Hand Pump CP-700
OB‑YL‑20T‑CP700 Hydraulic Puller Set — 20‑ton force, adjustable 2/3 jaws, 100–350mm spread, 50mm stroke, durable design with CP‑700 hand pump included.
DESCRIPTIONS:
Capacity : 20 Ton
Spread : 350mm
Max Reach : 200mm
Stroke : 60mm
Puller weight : 14.5kg
Features
1) More convenient to use and saves labour, especially in confined work spaces.
2) Special heat treatment of push rod for durability and long life.
3) 3 jaw or 2 jaw can change as you need.
4) The height of jaw can be adjusted.
5) The new type of hydraulic gear puller wheel tool adopted for easy operation.
6) Traditional ordinary pull wheel leading to great effort needed.
7) Freely rotate. Upon the centre point from pull wheel to piston, the centre point to be pulled is easily met.

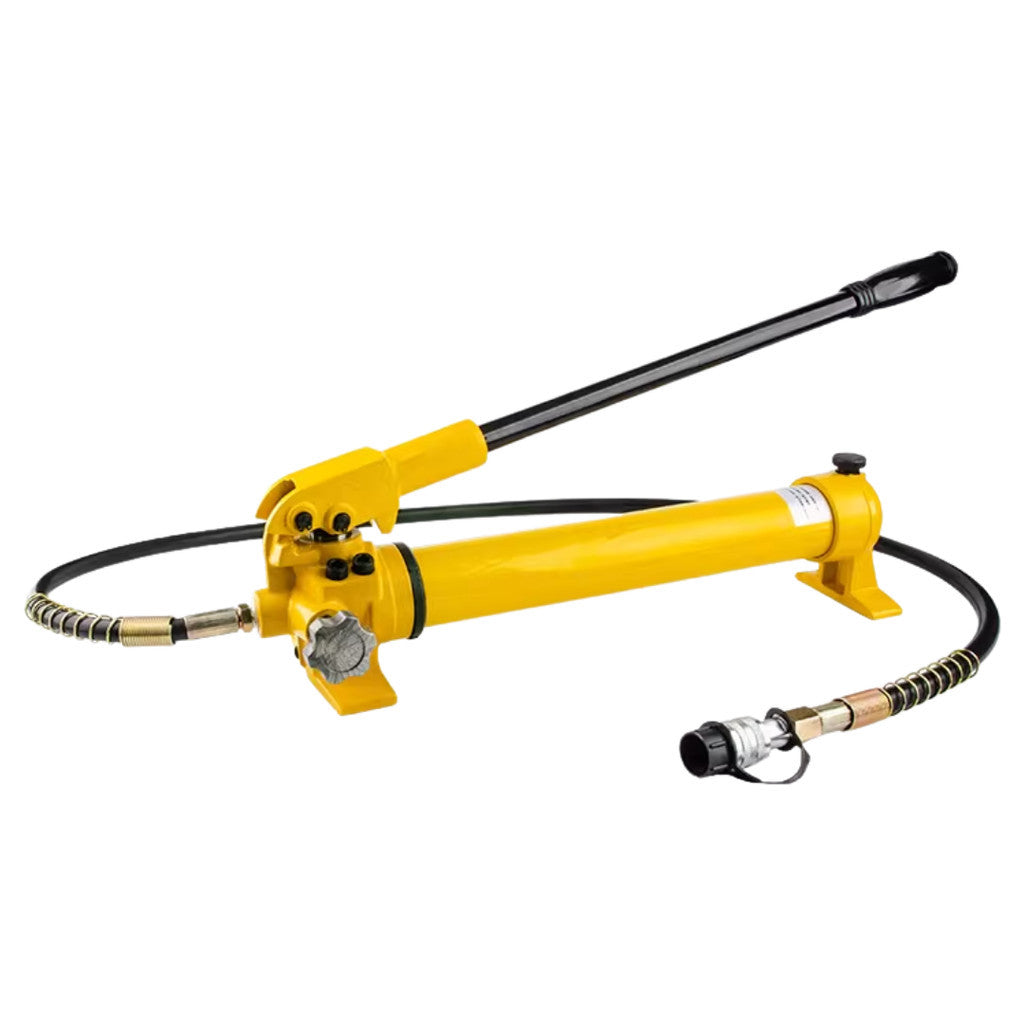

2-Speed Hydraulic Hand Pump
c/w 1.8m/6 feet hydraulic hose with quick coupler
Fast, easy and simple to operate.
Compact design makes this a perfect choice for use on construction sites and maintenance jobs
Model: OB-CP-700
Rated pressure: 700 bar / 10000psi
Oil flow per stroke: 13.8cc (low pressure) / 2.8cc (high pressure)
Oil capacity: 900cc
Weight: 12kg
Size: 490 × 200 × 110mm
Weight: 30kg
OB-YL hydraulic puller set comparison: 20T vs 30T vs 50T vs 100T
| Model | YL-20T (this model) | YL-30T | YL-50T | YL-100T |
|---|---|---|---|---|
| Pulling force | 20 ton | 30 ton | 50 ton | 100 ton |
| Max spread | 350mm | 150–400mm | 500mm | 600mm |
| Reach | 200mm | – | – | 300mm |
| Stroke | 60mm | 60mm | 60mm | 60mm |
| Puller weight | 14.5kg | 21kg | 27kg | ~50kg |
| Pump | CP-700 included | CP-700 included | CP-700 included | Use with CP-800 |
| Best for | Small to medium bearings, gears and pulleys | Industrial machinery and large vehicles | Large industrial machinery | Very large bearings, gears and wheels |
| Warranty period | 3 Months Warranty |
|---|---|
| Coverage | Manufacturing defects in materials and workmanship for 3 months from the date of purchase, covering the pump, body, cylinder and operating mechanism. |
| Not covered | Seals and O-rings worn through normal use; oil leakage caused by overloading or contaminated oil; dies, blades, cutting heads and other wear parts; hoses and couplers; normal wear and tear; cosmetic damage; damage from drops, impact, misuse or use beyond the rated capacity. |
| Warranty void if | The product has been modified, opened or repaired by unauthorised persons, used beyond its rated tonnage or pressure, or proof of purchase cannot be shown. |
Contact Techno Tools via WhatsApp or sales@techno.com.my with your invoice number and photos or a video of the defect. Return the unit complete with all accessories. Defective units or parts will be repaired or replaced after inspection.
