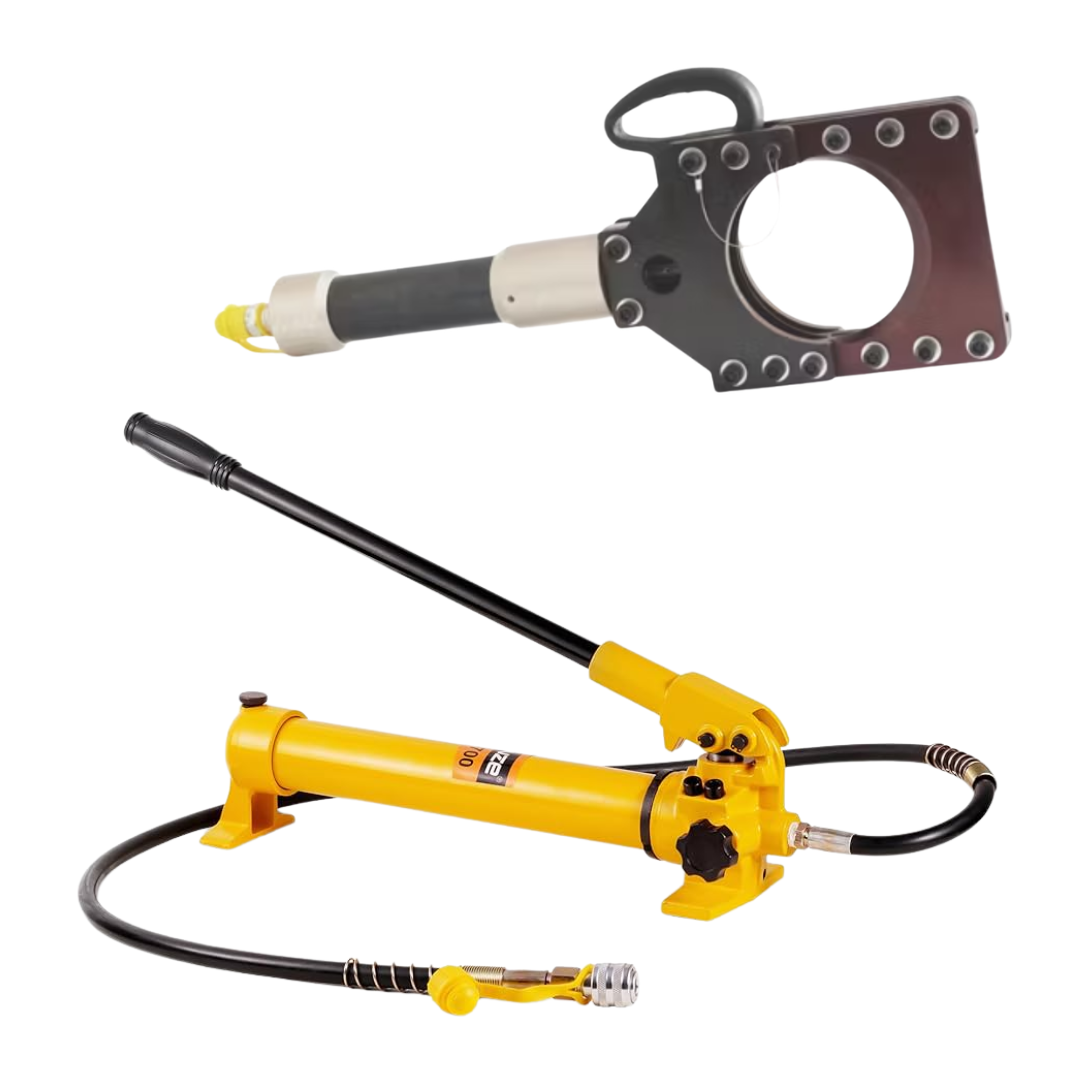

CPC-132H 12Ton Split Design Hydraulic Cable Cutting Tool for Cu-Al Armored Cable Cutter With CP-700 Hydraulic Hand Pump
Tidak dapat memuatkan ketersediaan pengambilan
CPC-132H 12Ton Split Design Hydraulic Cable Cutting Tool for Cu-Al Armored Cable Cutter With CP-700 Hydraulic Hand Pump
Features of CPC-132H 12 Ton Split Design Hydraulic Cable Cutting Tool
- Lock pin type cutter head, blades can be replaced easily.
- Carry handle for easy shift in job sites.
- More safety with remote operation.
- Operated by hydraulic pump with rated pressure 700 bar.
- Spring steel blades, the blades are quenched and it is high strength and durable
-
No oil leakage of precision oil cylinder, it is easy to cut off with powerful strength
- Easy to connect with pumps by quick connectors, both manual and electric hydraulic pumps can be used
Features of CP-700 Hydraulic Hand Pump
- 2-Speed operation for quicker hydraulic pressure build-up
- High-pressure output up to 700 bar / 10,000 psi
- Includes 1.8m (6 ft) hydraulic hose with quick coupler for easy connection
- Compact & portable design suitable for tight workspaces
- Smooth manual operation for reliable, stable control
- Ideal for jacks, cylinders, presses, and industrial tools

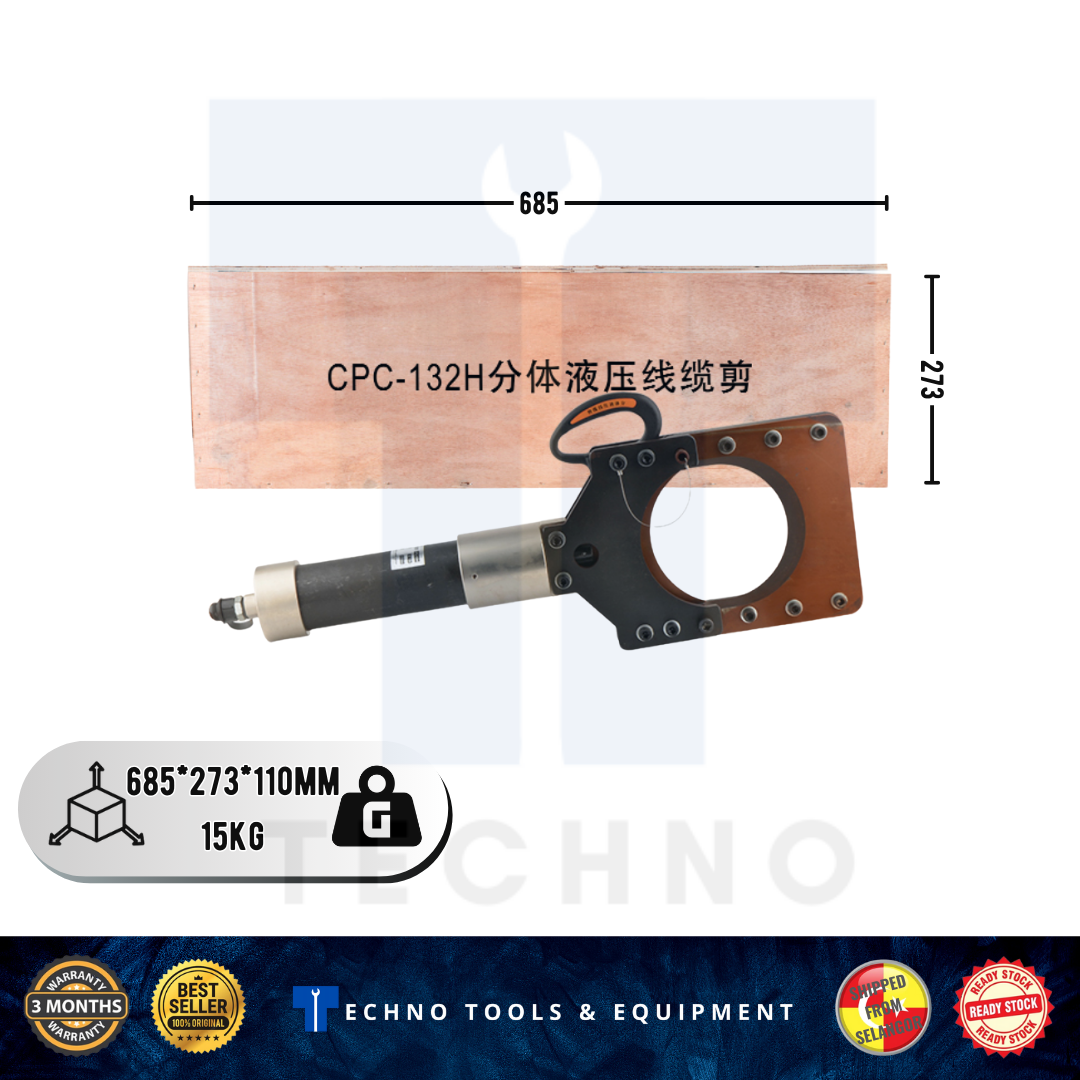

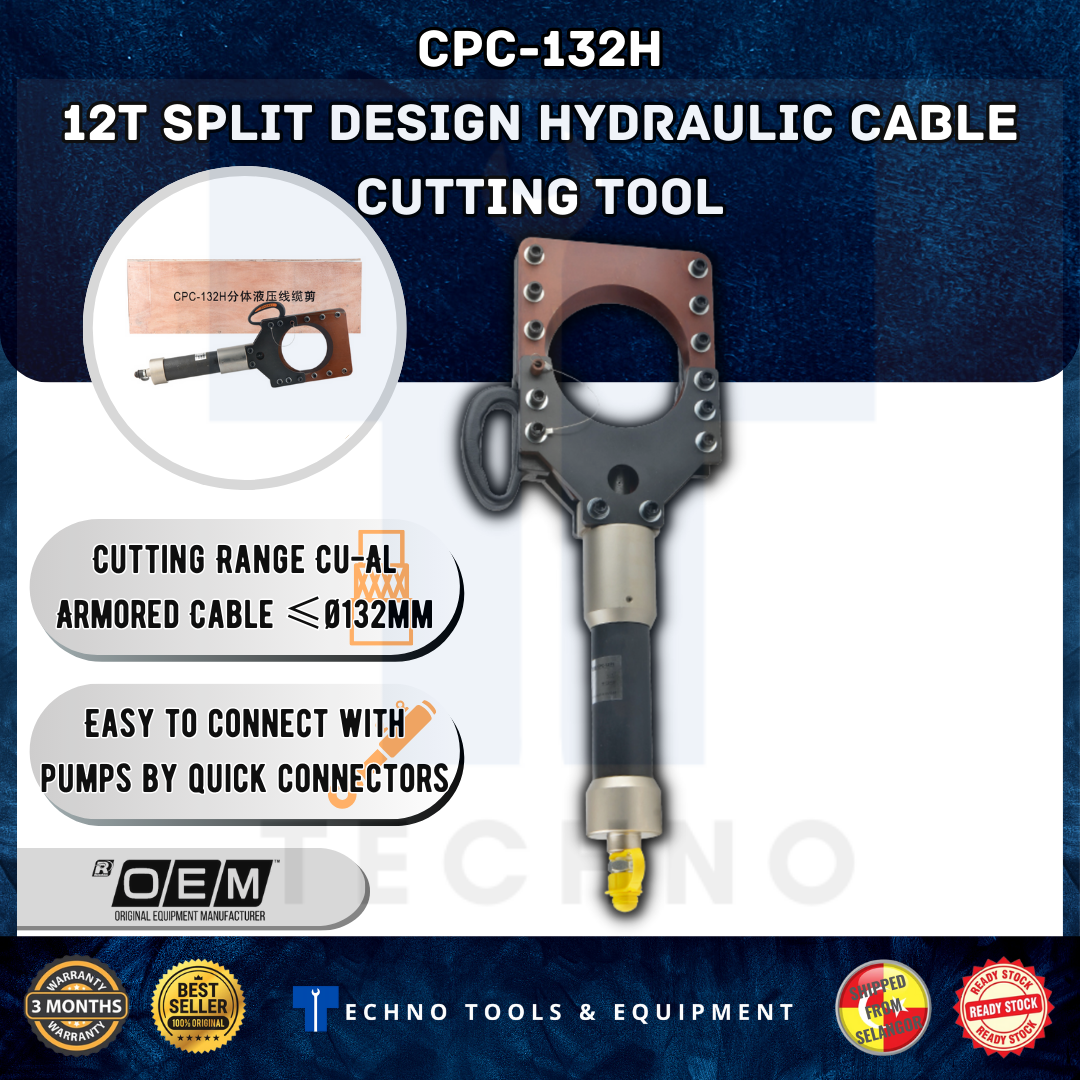

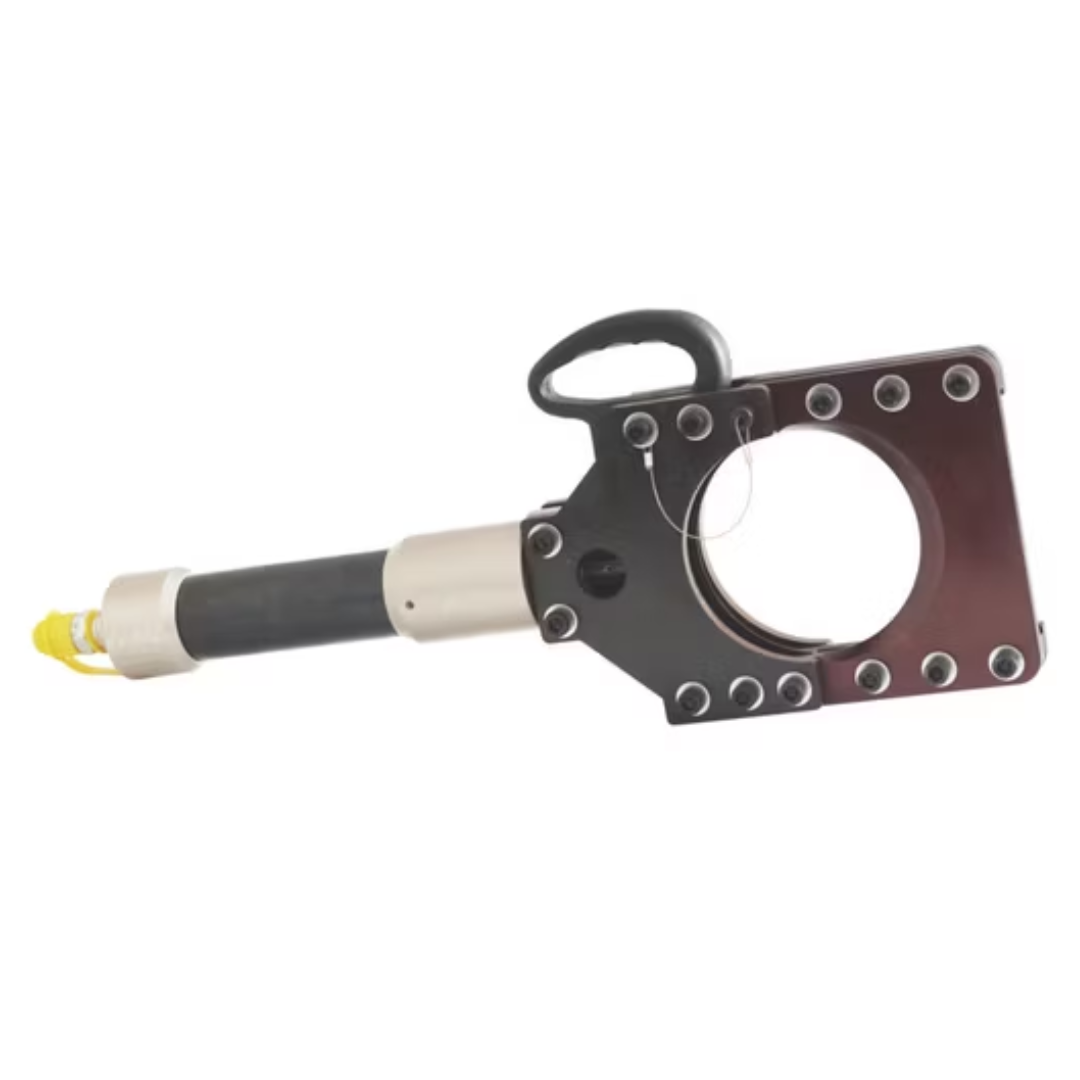

Specifications of CPC-132H
- Cutting Range Cu-Al Armored Cable ≤ø132mm
- Weight 15kg
- Max Force 12 Ton
- Shipping Carton 685*273*110mm

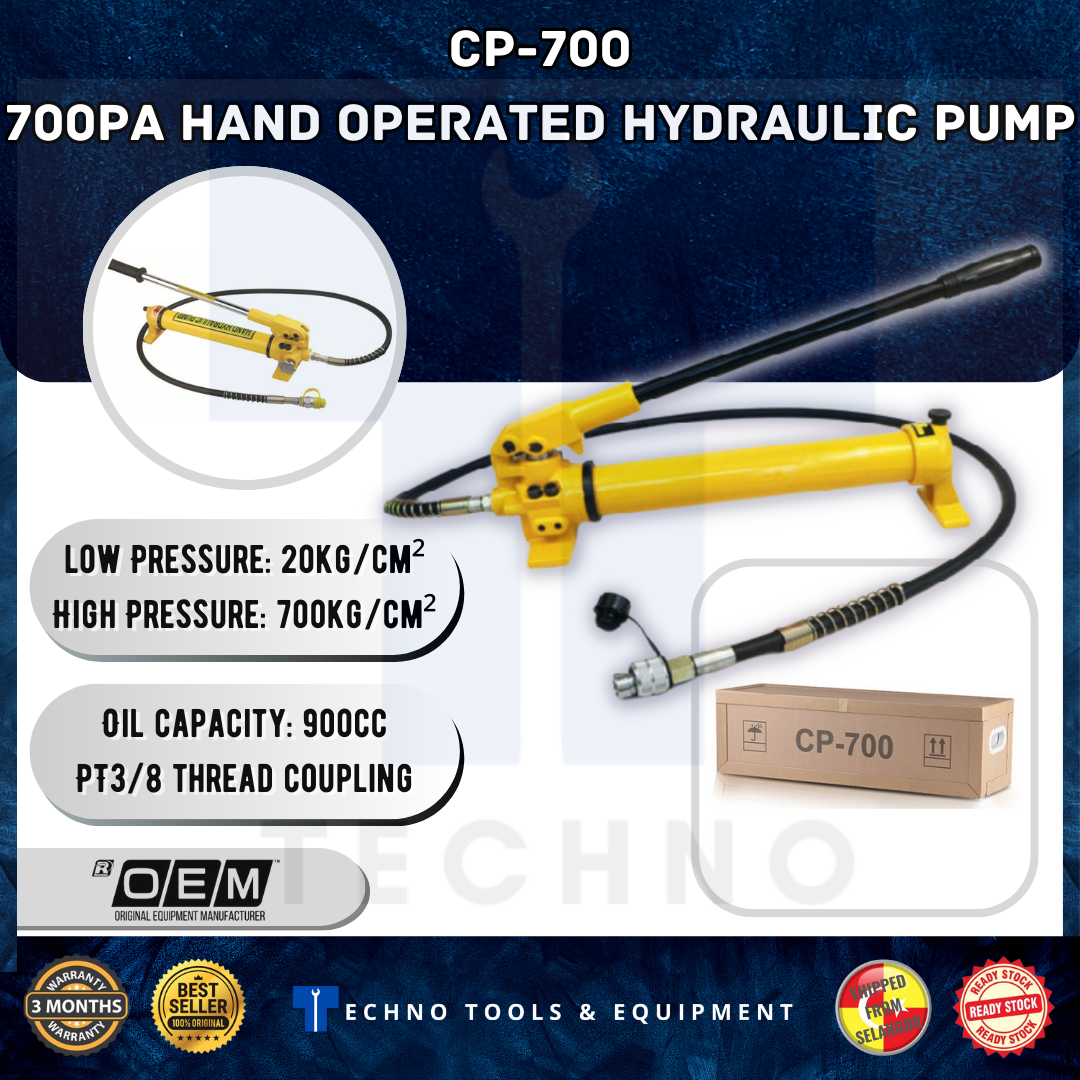

Specifications of CP-700 Hydraulic Hand Pump
-
Model: OB-CP-700
-
Rated Pressure: 700 bar / 10,000 psi
-
Oil Flow per Stroke:
-
13.8 cc (Low Pressure)
-
2.8 cc (High Pressure)
-
-
Oil Capacity: 900 cc
-
Weight: 12 kg
-

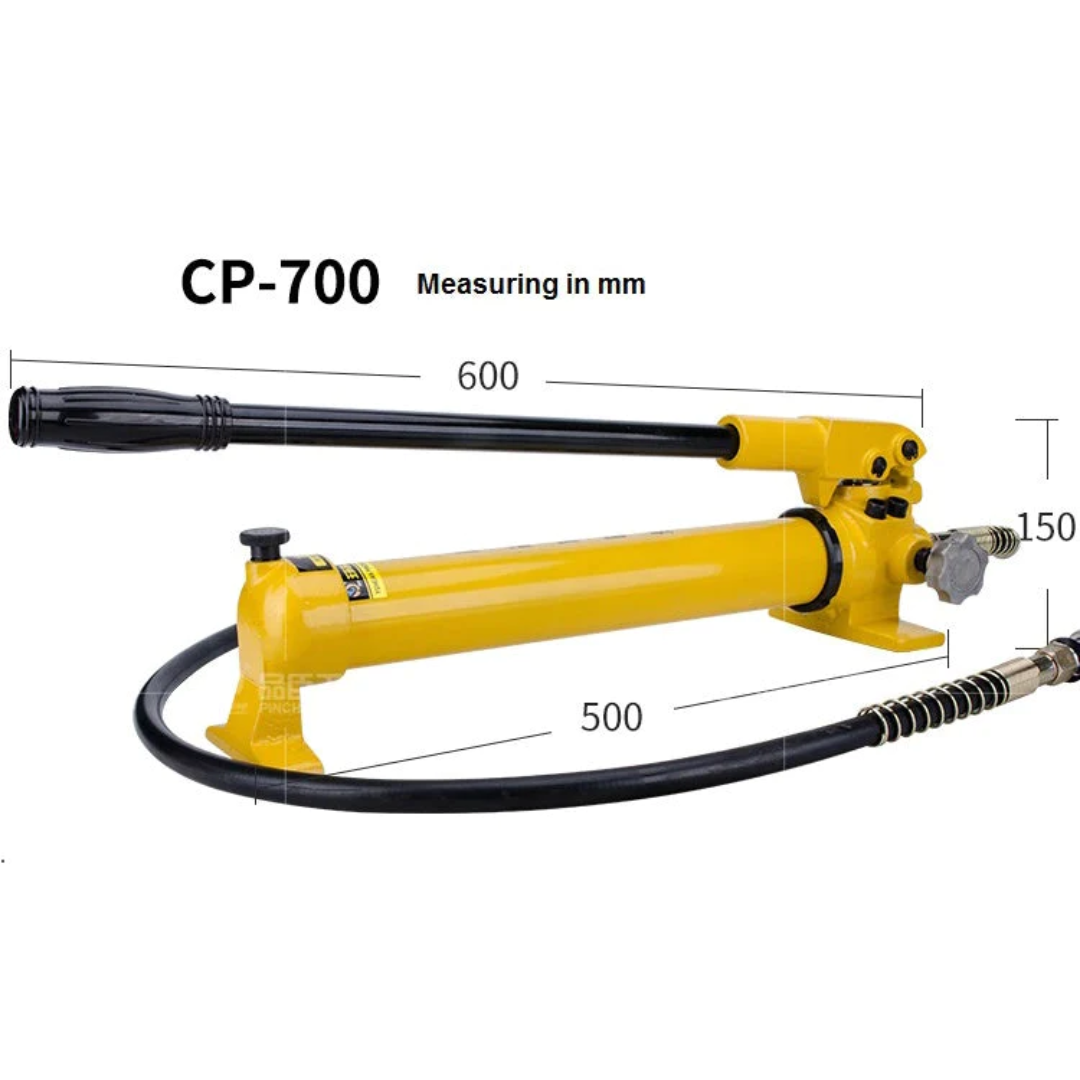

Product Size: 510 mm × 140 mm × 150 mm
-
Packing Size: 550 × 17 × 17 cm
-
Certification: ISO 9001:2008, CE Standard
Warranty Terms
3 Month Limited Warranty covering manufacturing defects only.
Warranty does not cover wear-and-tear, misuse, overloading, or damage caused by improper handling.
Claims require proof of purchase and clear photos/videos of the issue.
FAQs
1. What is the cutting capacity of the CPC-132H?
-
It can cut armored cables up to Ø132 mm in diameter.
-
Suitable for both copper (Cu) and aluminum (Al) armored cables.
2. How much force does it deliver?
-
The CPC-132H provides 12–15 tons of cutting force, depending on the pump used.
3. What pump is recommended?
-
The CP-700 hydraulic hand pump is commonly paired with this cutter.
-
Operates at 700 bar / 10,000 psi, ensuring consistent performance.
4. Is it portable?
-
Yes, despite its size, it is designed for on-site operations.
-
Weight: ~15.7–16 kg with a compact packing dimension of 670 × 290 × 110 mm.
5. What comes in the package?
-
Wooden box for storage
-
Cutter head (CPC-132H)
-
Instruction manual
-
Quality certificate
| Warranty period | 3 Months Warranty |
|---|---|
| Coverage | Manufacturing defects in materials and workmanship for 3 months from the date of purchase, covering the pump, body, cylinder and operating mechanism. |
| Not covered | Seals and O-rings worn through normal use; oil leakage caused by overloading or contaminated oil; dies, blades, cutting heads and other wear parts; hoses and couplers; normal wear and tear; cosmetic damage; damage from drops, impact, misuse or use beyond the rated capacity. |
| Warranty void if | The product has been modified, opened or repaired by unauthorised persons, used beyond its rated tonnage or pressure, or proof of purchase cannot be shown. |
Contact Techno Tools via WhatsApp or sales@techno.com.my with your invoice number and photos or a video of the defect. Return the unit complete with all accessories. Defective units or parts will be repaired or replaced after inspection.
