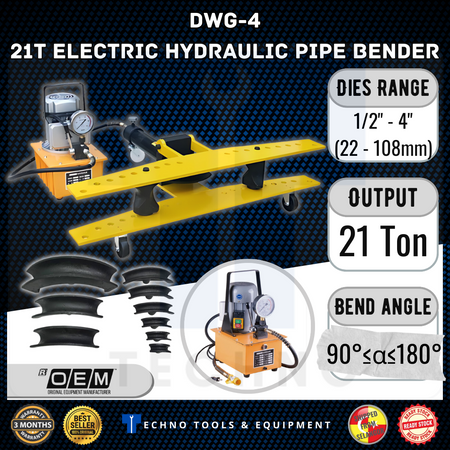

Electric Hydraulic Pipe Bender DWG-4 1/2"-4" 21T

SKU: DWG-4
RM5,300.00
-4% RM5,500.00 RM5,300.00
  • Visa
  • Mastercard
  • Touch n Go
  • FPX
  • Boost
  • ShopeePay
  • GrabPay
  • PayPal
  • Union Pay
  • Maybank
  • Google Pay
Techno Tools's Services
Techno Tools & Equipment's provide same day delivery

PRE-ORDER 30 DAYS

The pipe bender is suitable for bending welding steel tube which has low pressure to deliver liquid in cold situation. It is also suitable for bending common water pipe; carbon steel pipe and thick-wall conduit tube. It is not suitable for bending the steel pipe with different diameter and colored metal pipe. The machine can be used in building, petrol, mines and shipbuilding industry.


Max Working Pressure: 63 MPa
Bend Angle: 90°≤α≤180° (π/2≤α<π rad)

Bending Pipe Size: 1/2"-4"
Pipe Wall Thickness: 2.75-6mm
Output: 21T
Stroke 420mm
Bending Dies: 9 (22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm)
Motor Rated Power: 750W
Machine Weight / Shipping Weight: 129KG / 151KG
Pump Weight: 19KG / 22KG
Oil Hose Length: 2m
Dimensions: 118*46*25cm


Features
· The molds are made of ductile iron
High strength, good toughness and plasticity, higher strength than ordinary gray cast iron
· Bend pipe interface
Thickened design with smooth edges and joints with curved nozzles
· Adjustment column
Adjust the bending amplitude of the bent object
· The maximum bending angle of the whole system is 90°
Unable to bend non-metallic pipe, unable to bend square pipe




Procedure:
1. Turn the switch tightly in a clockwise direction.
2. Loosen the bolt.
3. Add lubrication to the mould and the pipe.
4. Choosing the corresponding mould based on size of the pipe, set mould on the top of actuating rod. Then insert the rocker into the nether molding board. Put the pipe, turn on two rockers and make the groove point to the mould.
5. Turn back the upper mounding board; shake the handle of pump to make the mould press the pipe, bending the pipe until the angle is shaped.
6.  After  bending, release  the  switch by rotating at anti-clockwise direction.  The  actuating  rod  would  be  back automatically. Open the upper molding board, get out the pipe.
