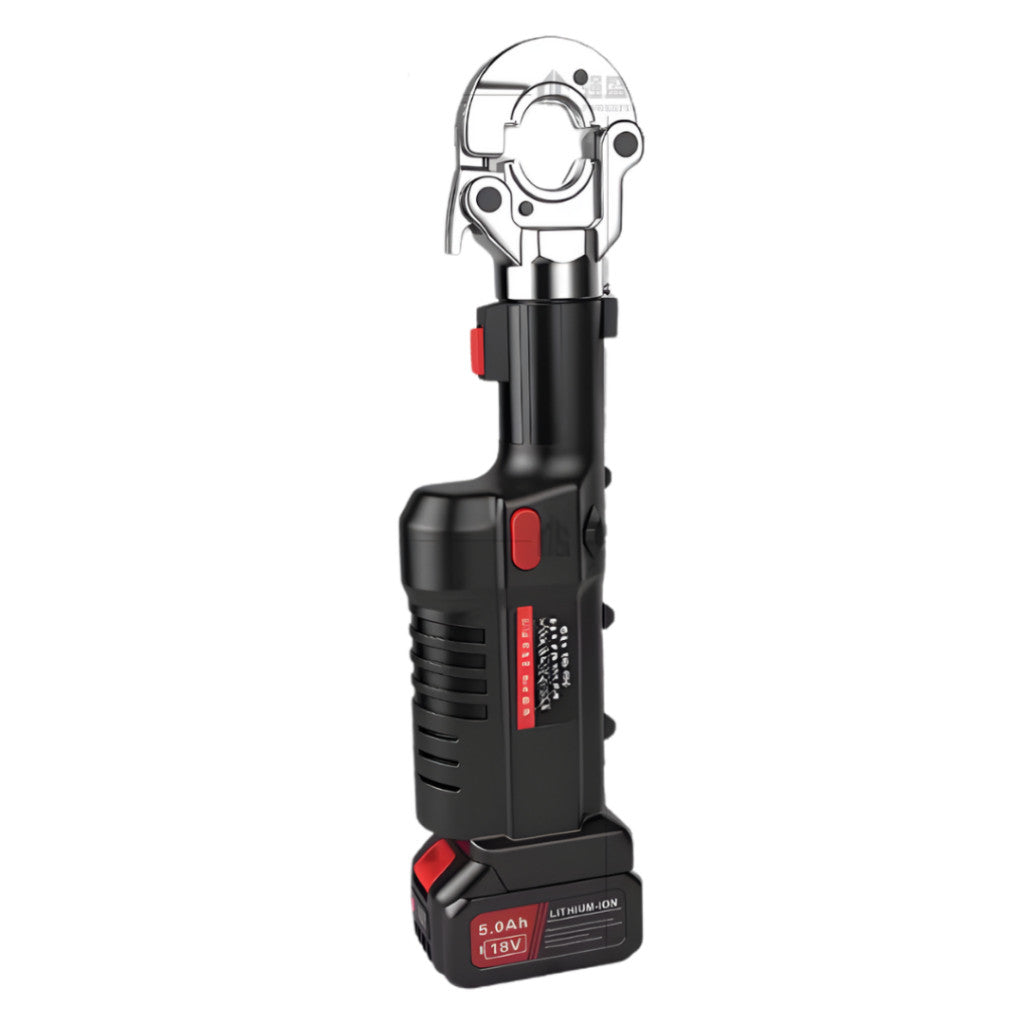

ES-300 60kN Battery Powered Crimping Tool

Features of ES-300 Battery Powered Crimping Tool

Imported Motor: High-performance motor for reliable operation

Portable Design: Battery-powered for field use, no external power needed

Wide Compatibility: Supports a broad range of cable sizes and materials

Rechargeable Electric Crimping Tool - Instant Crimping with Powerful Force

Overhead Work Made Easy - Tool body weighs only 5 kg, upgraded imported motor delivers 50% higher efficiency than standard crimping tools

High-Capacity Lithium Battery - 5.0Ah ultra-large battery, strong battery endurance for high work efficiency

Smart Digital Control - Real-time monitoring system that tracks battery level, temperature, usage count, and other data

Fully Upgraded Motor - Copper wire thickened by 30% with enhanced copper winding for better performance

Intelligent Protection System - Smart chip with real-time monitoring and temperature sensing

Triple-layer protection extends tool lifespan by up to 7×

360° Free Rotation - Hydraulic head rotates freely with no blind spots, smoother and more precise operation

Durable Power Button - Tested for long-term durability, it supports over 99,999+ activations

Ventilation & Heat Dissipation - Special ventilation design enables rapid cooling and prevents overheating during extended use

High-Performance Battery - Comes with two 18V high-performance batteries and one charger. It gives long-lasting power for continuous operation

Specifications of ES-300 60kN Battery Powered Crimping Tool

Stroke:17mm

Output Force 60kN

Crimping Range-

Copper: up to 300 mm²

Aluminum: up to 240 mm²

Net Weight: 5kg

Gross Weight: 10kg

Dimensions: 470 x 120 x 120mm

Charging Time: 2hrs

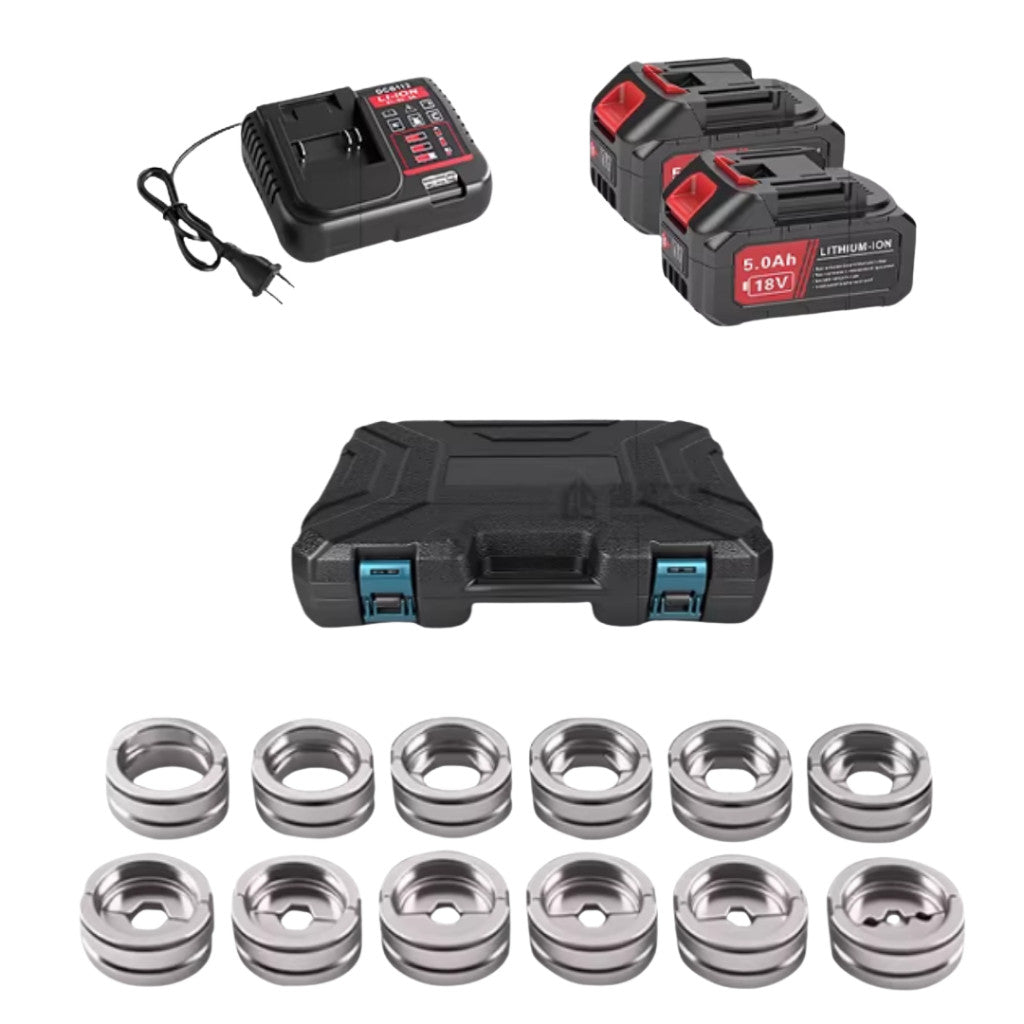

Includes:

Main Tool: Battery-powered hydraulic unit

Crimping Dies: Sizes for 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, and 300 mm² cables

Battery Pack: 2 × 18V / 5.0Ah lithium-ion batteries

Charger: 1 × compatible charging unit

FAQs

Q: Is it suitable for field work?

A: Yes, it’s battery‑powered and portable, weighing only 5 kg, making it ideal for overhead and on‑site jobs.

Q: How long can the tool operate on a full charge?

A: The high‑capacity 5.0 Ah battery provides strong endurance for continuous crimping operations.

Q: How long does it take to charge?

A: Approximately 2 hours per battery.

Q: Does the tool have safety features?

A: Yes, it has a smart chip with real‑time monitoring (battery level, temperature, usage count) and a triple‑layer protection system that extends lifespan up to 7×.

Q: Is overheating a concern?

A: No, the tool has a ventilation and heat dissipation design to prevent overheating during extended use.
