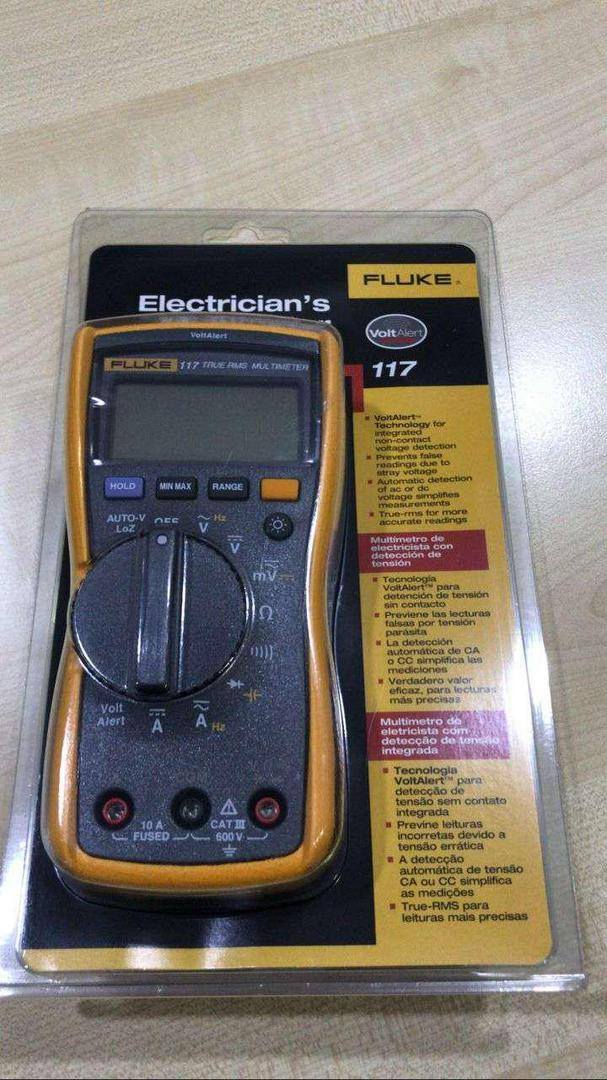

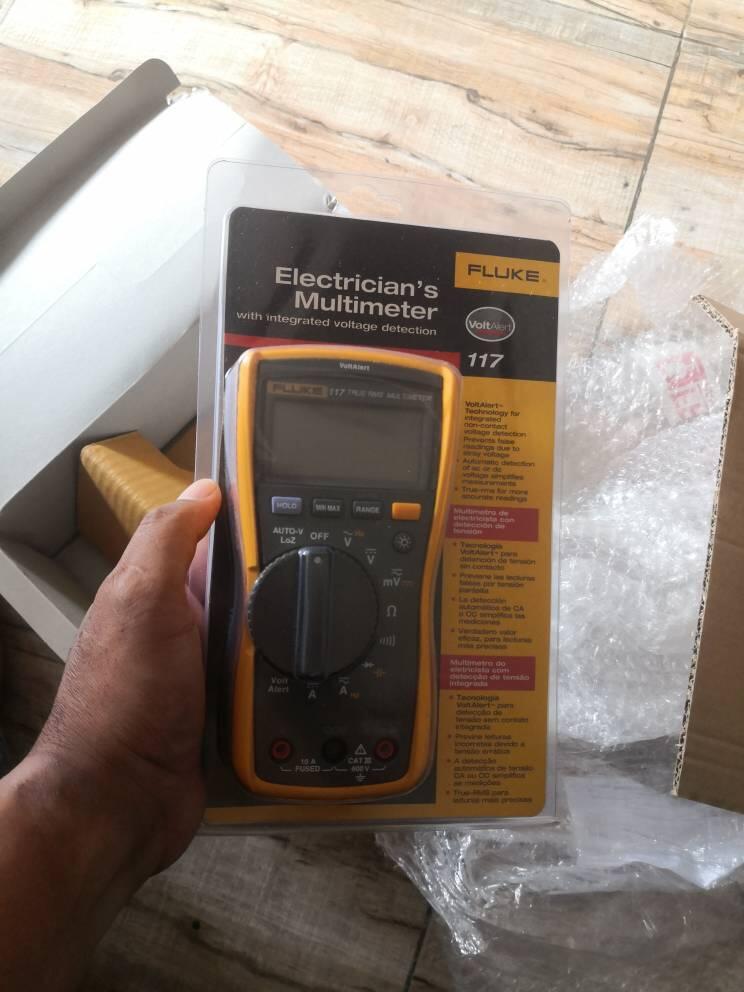

Fluke 117 Electrician's Multimeter with Non-Contact Voltage
Overview of FLUKE 117 Electrician’s Multimeter
The FLUKE 117 Electrician’s Multimeter is a reliable True-RMS digital multimeter specifically designed for professional electricians working in commercial and residential environments. Featuring built-in non-contact voltage detection, the FLUKE 117 Electrician’s Multimeter allows users to quickly identify live circuits without direct contact, improving safety and efficiency during troubleshooting. Its compact design, intuitive interface, and trusted Fluke accuracy make it suitable for daily electrical testing tasks.
Key Features:
- True-RMS measurements for accurate readings.
- Non-contact voltage detection with VoltAlert™ technology.
- AutoVolt: automatic AC/DC voltage selection.
- CAT III 600 V safety-rated for professional use.
- Compact, durable design with easy-to-read backlit display.
- Selectable low-impedance mode to prevent ghost voltage.

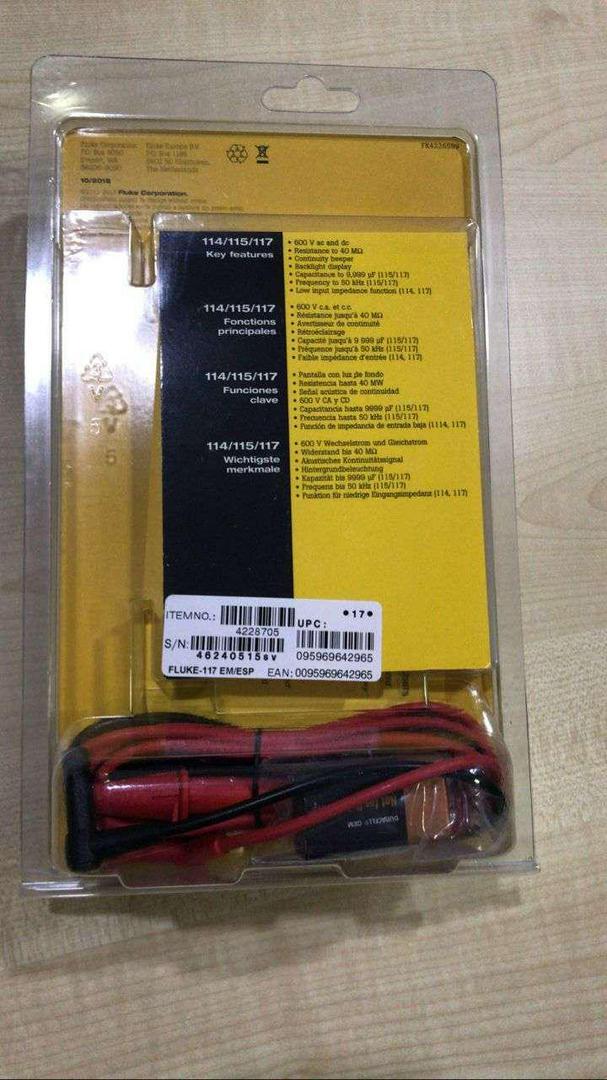

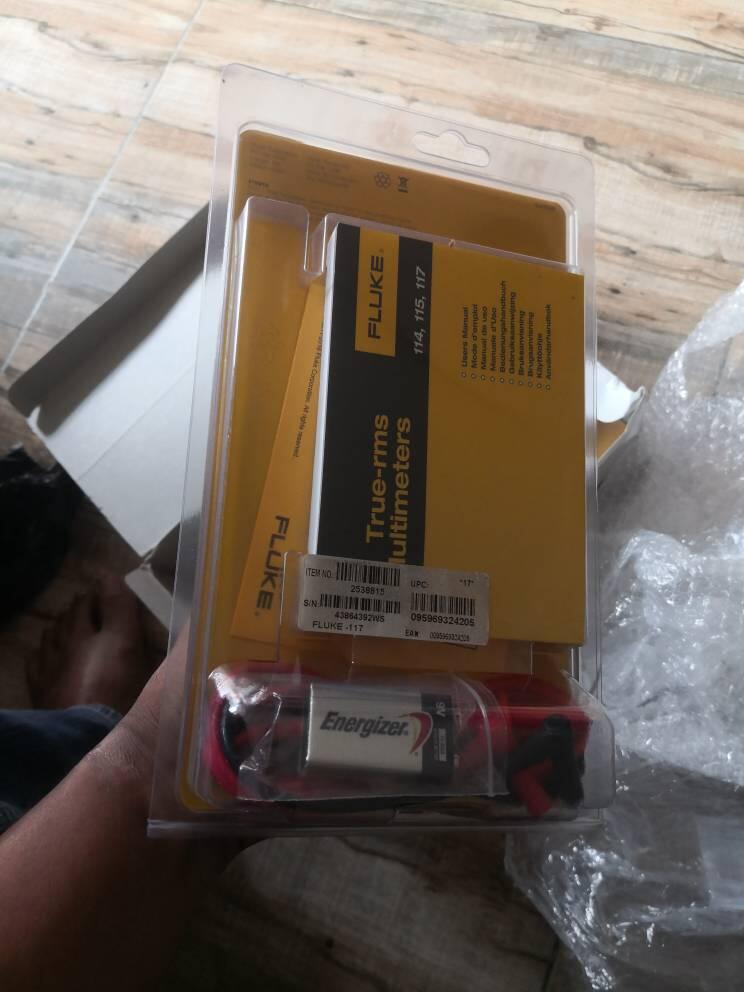

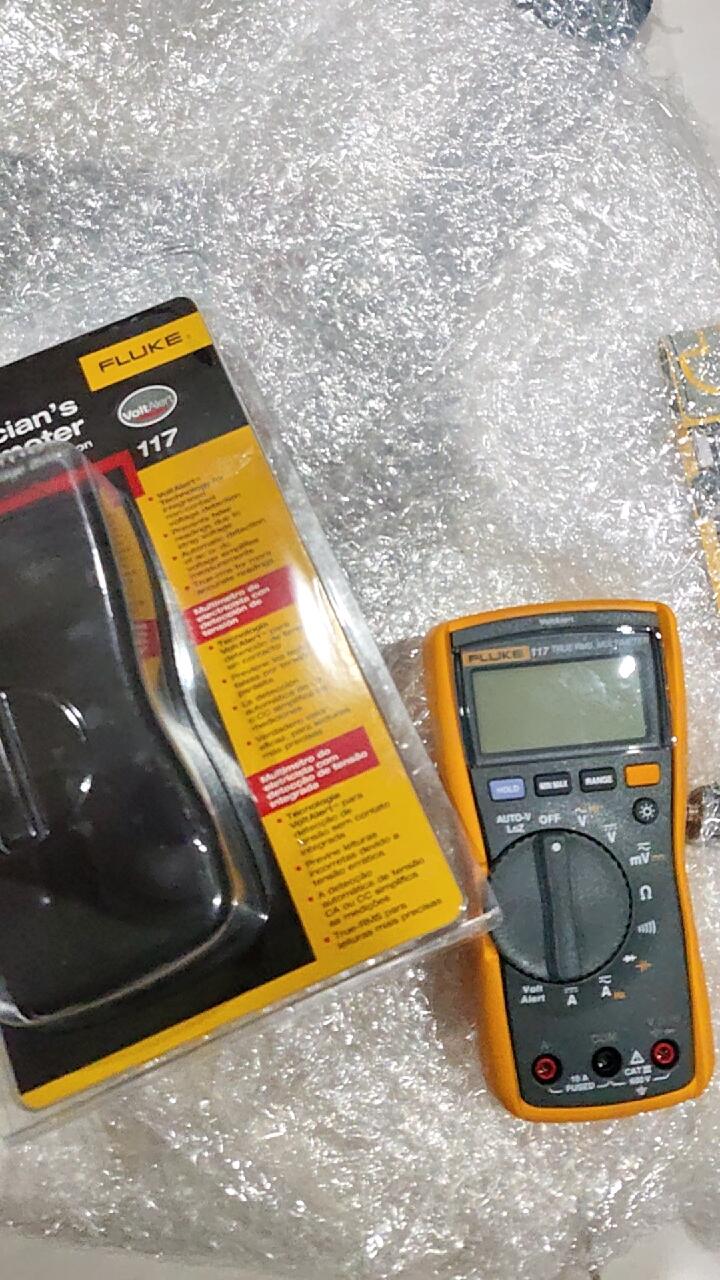

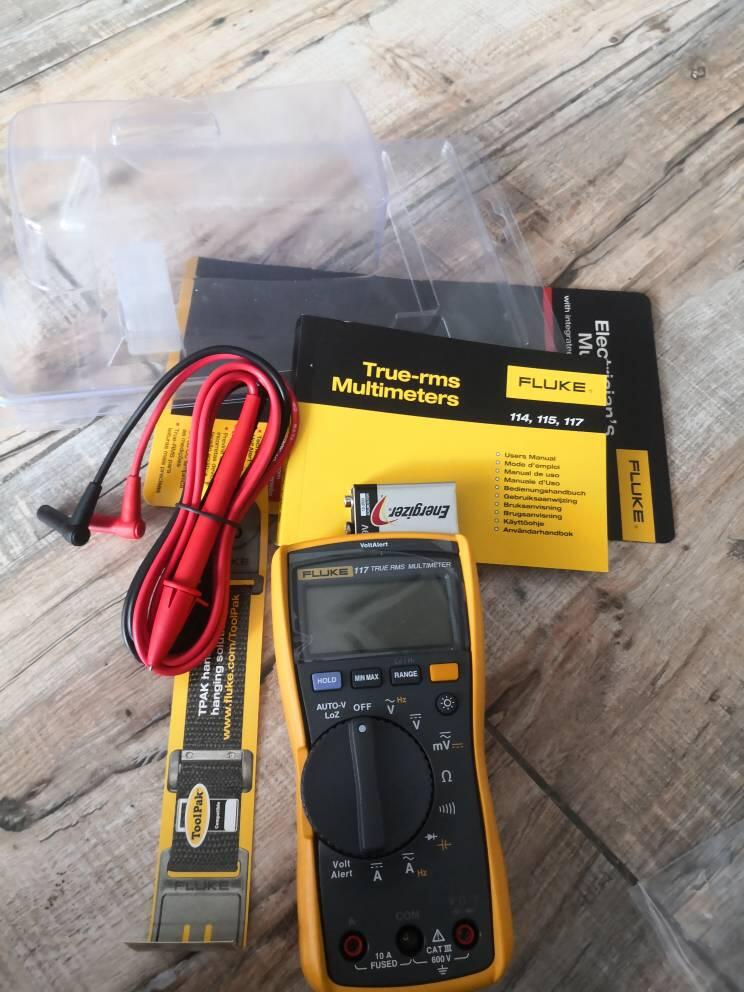

What's in the Box:
- Fluke 117 Electrician's Multimeter.
- Protective holster.
- Installed 9V battery.
- 4 mm PVC-insulated test leads.
- Quick reference guide.
Specifications:
Electrical Specifications:
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| DC millivolts | 600.0 mV | 0.1 mV | ±0.5% + 2 |
| DC volts | 6.000 V - 600.0 V | 0.001 V - 0.1 V | ±0.5% + 2 |
| AC volts (True RMS) | 6.000 V - 600.0 V | 0.001 V - 0.1 V | ±1.0% + 3 (45 Hz to 500 Hz) |
| Resistance | 600.0 Ω - 40.00 MΩ | 0.1 Ω - 0.01 MΩ | ±0.9% + 1 |
| Capacitance | 1000 nF - 9999 μF | 1 nF - 1 μF | ±1.9% + 2 |
| Continuity | 600 Ω | 1 Ω | Beeper on < 20 Ω, off > 250 Ω |
| AC amps (True RMS) | 6.000 A - 10.00 A | 0.001 A - 0.01 A | ±1.5% + 3 |
| DC amps | 6.000 A - 10.00 A | 0.001 A - 0.01 A | ±1.0% + 3 |
| Frequency (Hz) | 99.99 Hz - 50.00 kHz | 0.01 Hz - 0.01 kHz | ±0.1% + 2 |
General Specifications:
| Feature | Details |
|---|---|
| Dimensions | 167 x 84 x 46 mm |
| Weight | 550 g |
| Battery Type | 9V Alkaline, IEC 6LR61 |
| Battery Life | 400 hours (typical, without backlight) |
| Safety Rating | CAT III 600 V |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +60°C |
Warranty Information:
1-Year Warranty
Origin:
Made in Singapore
