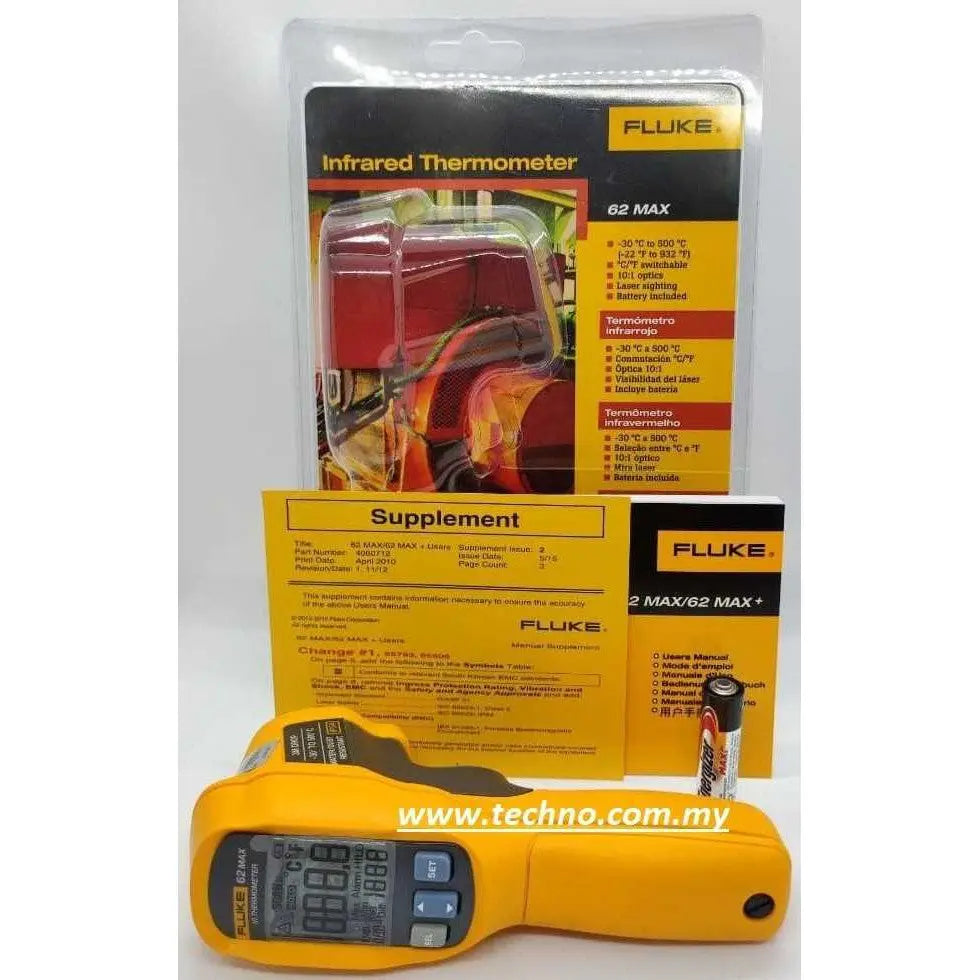

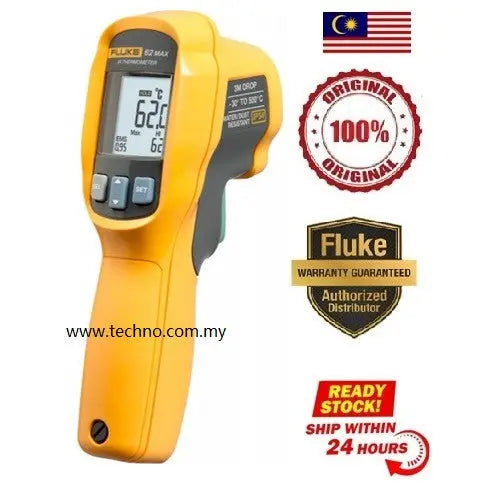

FLUKE 62 MAX Infrared Thermometer | -30°C to 500°C
- Product Datasheet (PDF) Muat turun
- User manual / Instruction Book (PDF) Muat turun
Tidak dapat memuatkan ketersediaan pengambilan
Fluke 62 MAX Infrared Thermometer — Compact, Rugged Non-Contact Temperature Measurement
The Fluke 62 MAX Infrared Thermometer is a compact and rugged handheld temperature measurement tool designed for fast, non-contact surface temperature testing. Capable of measuring temperatures up to 500°C, it is ideal for electrical maintenance, mechanical inspection, HVAC servicing and industrial troubleshooting. With its IP54-rated housing, the Fluke 62 MAX is resistant to dust and splashes, ensuring reliable performance in harsh working environments. Its ergonomic design and simple one-button operation make it suitable for daily professional use.
Features & Benefits
-
Wide Temperature Range
Measures from -30°C to 500°C — versatile enough for cold storage checks through to high-temperature industrial equipment monitoring. -
Single Laser Precision Targeting
Single laser pointer ensures precise targeting and accurate measurement on the exact surface point being tested. -
10:1 Distance-to-Spot Ratio
Allows accurate readings from a safe distance, making it suitable for measuring hot, hazardous or hard-to-reach surfaces. -
Min, Max, Avg, Dif Display
Displays Min, Max, Average and Differential readings for efficient troubleshooting and trend analysis during inspections. -
High and Low Alarms
Configurable high and low temperature alarms enable rapid detection of temperature anomalies during routine checks. -
IP54 Dust & Water Resistance
Rated IP54 for dust and splash resistance — built to perform reliably in harsh industrial and outdoor working environments. -
3-Metre Drop Test Rating
Compact, lightweight design rated to survive a 3-metre drop — built for the rigours of daily professional fieldwork. -
Long Battery Life
Powered by a single AA battery delivering up to 10 hours of operation with laser and backlight active.
Accuracy Specifications:
| Parameter | Details |
|---|---|
| Temperature Range | -30°C to 500°C (-22°F to 932°F) |
| Accuracy | ±1.5°C or ±1.5% of reading, whichever is greater -10°C to 0°C: ±2.0°C -30°C to -10°C: ±3.0°C |
| Repeatability | ±0.8% of reading or ±1.0°C, whichever is greater |
| Display Resolution | 0.1°C (0.2°F) |
| Response Time | < 500ms (95% of reading) |
| Spectral Response | 8 to 14 microns |
| Optical Resolution | 10:1 (calculated at 90% energy) |
| Emissivity | 0.10 to 1.00 |
General Specifications:
| Parameter | Details |
|---|---|
| Power | 1 AA Battery |
| Battery Life | 10 hours with laser and backlight on |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F), without battery |
| Operating Humidity | 10% to 90% RH non-condensing at 30°C (86°F) |
| Operating Altitude | 2,000m above sea level |
| Storage Altitude | 12,000m above sea level |
| Weight | 255g |
| Size | 175 × 85 × 75mm |
| Ingress Protection | IP54 per IEC 60529 |
| Drop Test | 3 metres |
| Shock and Vibration | IEC 68-2-6: 2.5g, 10 to 200Hz; IEC 68-2-27: 50g, 11ms |
| Compliance | IEC 61010-1 (pollution degree 2), IEC 60825-1 (Class 2 Laser), IEC 61326-1 |
| Origin | Made in China |
Applications

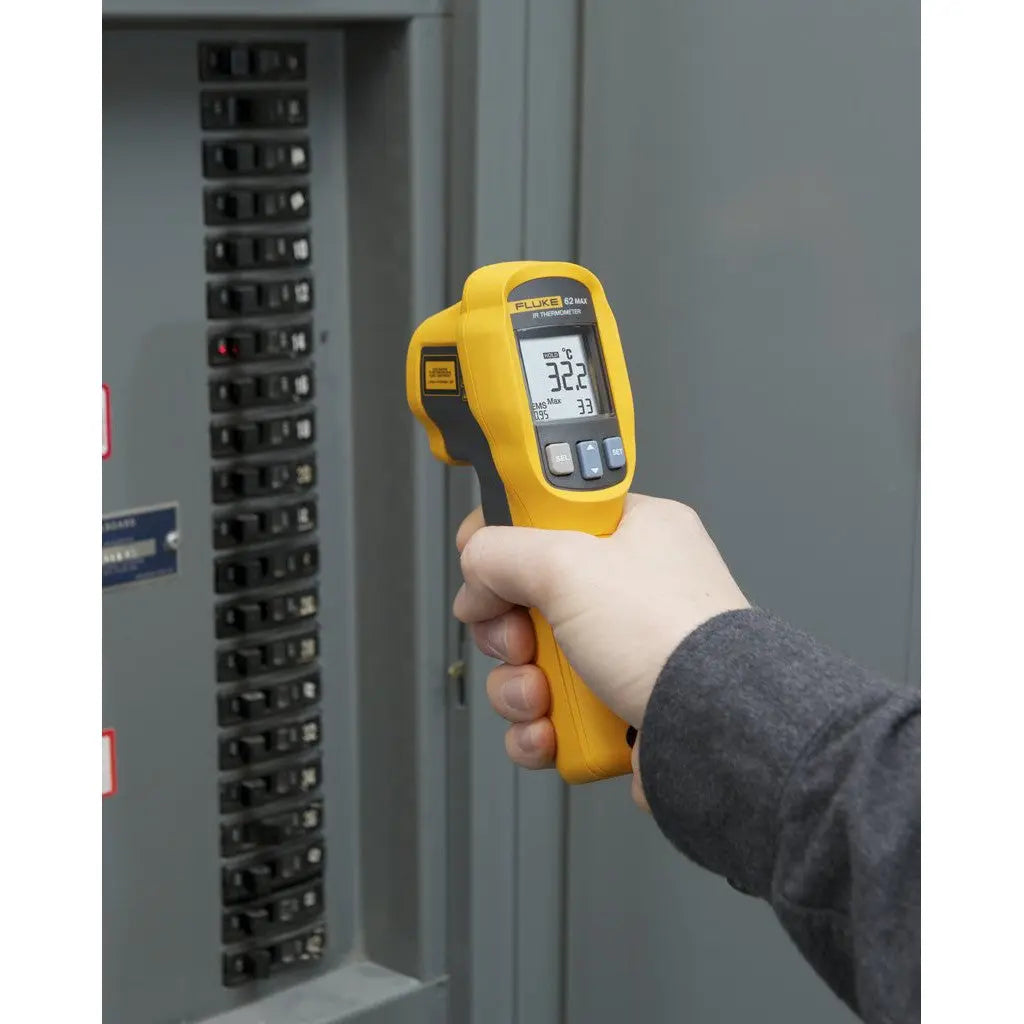

- Electrical maintenance and panel hotspot detection
- Mechanical inspection and bearing temperature checks
- HVAC servicing and ductwork temperature testing
- Industrial troubleshooting and preventive maintenance
- Food storage and cold chain temperature monitoring
Fluke 59 MAX vs 59 MAX+ vs 62 MAX vs 62 MAX+ comparison
| Specification | Fluke 59 MAX | Fluke 59 MAX+ | Fluke 62 MAX (this model) | Fluke 62 MAX+ |
|---|---|---|---|---|
| Temperature range | -30 °C to 350 °C | -30 °C to 500 °C | -30 °C to 500 °C | -30 °C to 650 °C |
| Accuracy (at 0 °C and above) | ±2.0 °C or ±2.0% | ±1.5 °C or ±1.5% | ±1.5 °C or ±1.5% | ±1.0 °C or ±1.0% |
| Distance-to-spot ratio | 8:1 | 10:1 | 10:1 | 12:1 |
| Laser targeting | Single | Single | Single | Dual |
| Ingress protection | IP40 | IP40 | IP54 | IP54 |
| Drop test | 1 m | 1 m | 3 m | 3 m |
| Battery life (laser and backlight on) | 12 hours | 12 hours | 10 hours | 8 hours |
| Best for | Basic spot checks at the lowest cost | Wider range and better accuracy at a low price | Rugged IP54 field use | Highest range and accuracy, dual laser, rugged |
Why Choose Fluke 62 MAX Infrared Thermometer?
- Wide -30°C to 500°C measurement range
- IP54 rated for dust and water resistance
- 3-metre drop test rated for field durability
- Min/Max/Avg/Dif display for detailed troubleshooting
- High/low alarms for fast anomaly detection
- Simple one-button operation
| Warranty period | 3 Year Warranty |
|---|---|
| Coverage | Free from defects in material and workmanship for 3 years from the date of purchase. Accessories supplied with the product, such as test leads and probes, are covered for 1 year from the date of purchase. |
| Not covered | Fuses, disposable batteries and manuals; damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. |
| Warranty void if | The product has been used outside its specifications, altered, or repaired by a party not authorised by Fluke. |
Contact Techno Tools with your proof of purchase. The warranty applies to the original purchaser only.
