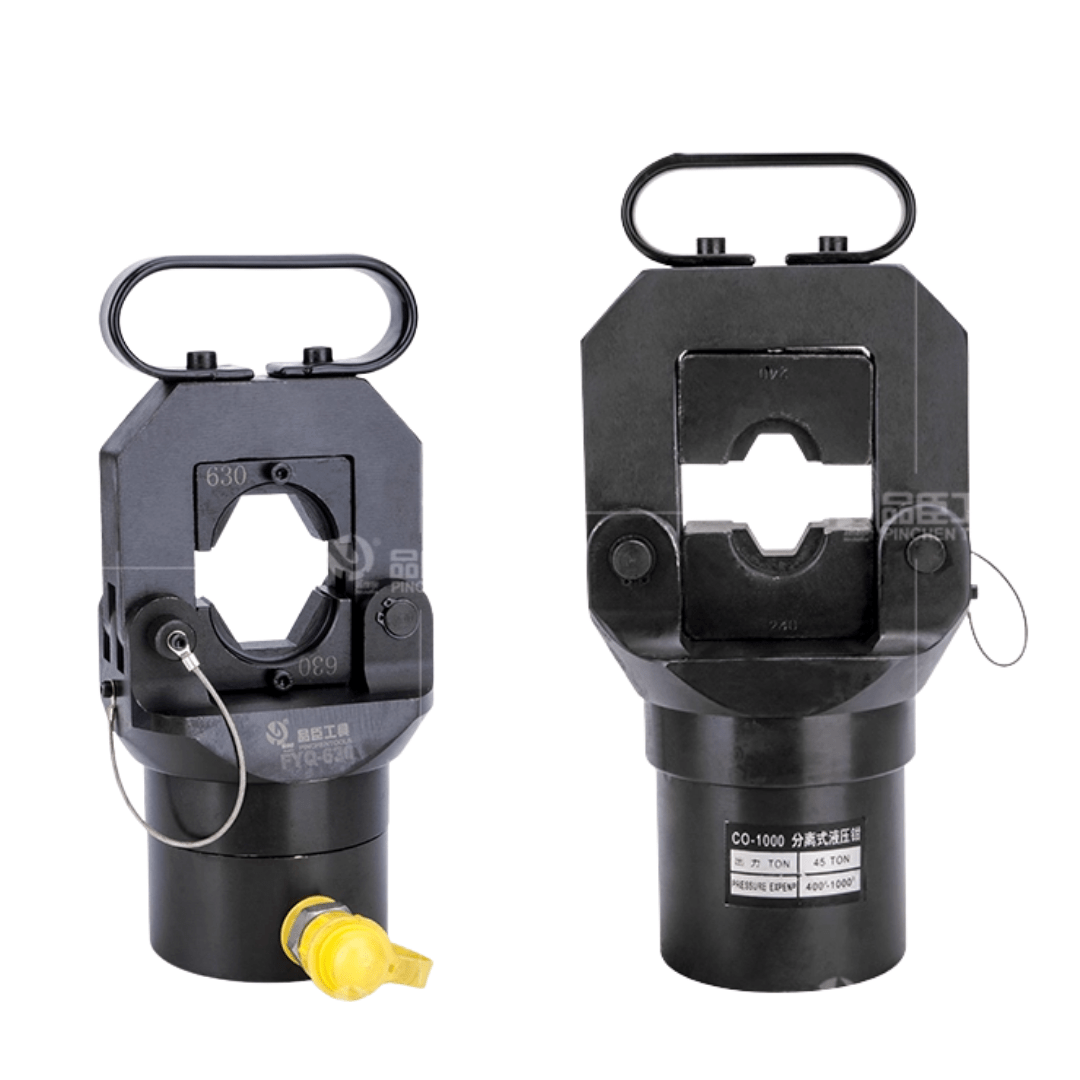

FYQ-630A / FYQ-1000 Portable Split Hydraulic Clamp| Crimping Tools Manual Wire Crimper | 3 Months Warranty

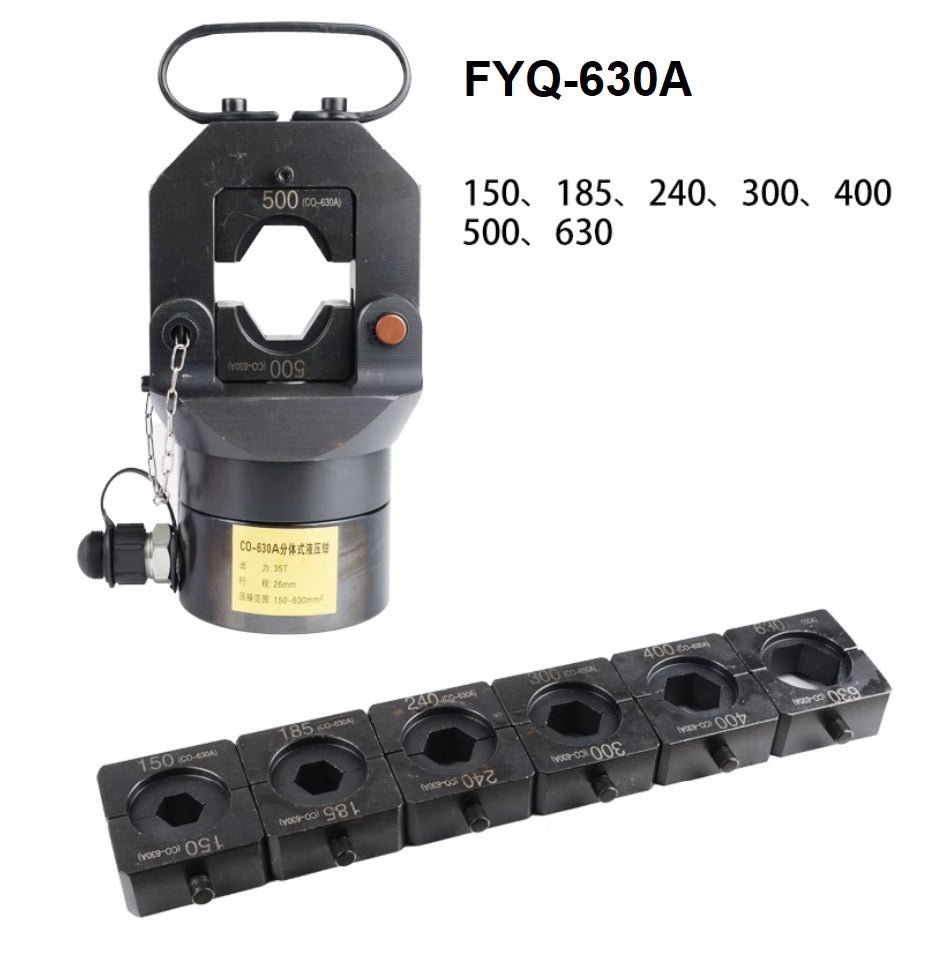

FYQ-630A Portable Split Hydraulic Clamp

Die Sizes: 150. 185, 240, 300, 400, 500, 630mm² (Hexagon Die)
Crimping Force: 350kN /35Ton
Strokes: 25mm
Dimensions: 305x210x195mm
Overall Weight: 11.2kg

Usage: Aluminum 185 - 500mm², Copper 150-630mm²

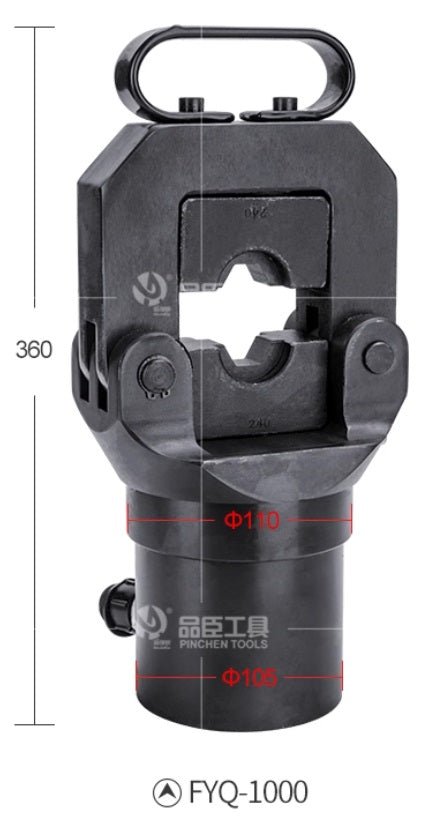

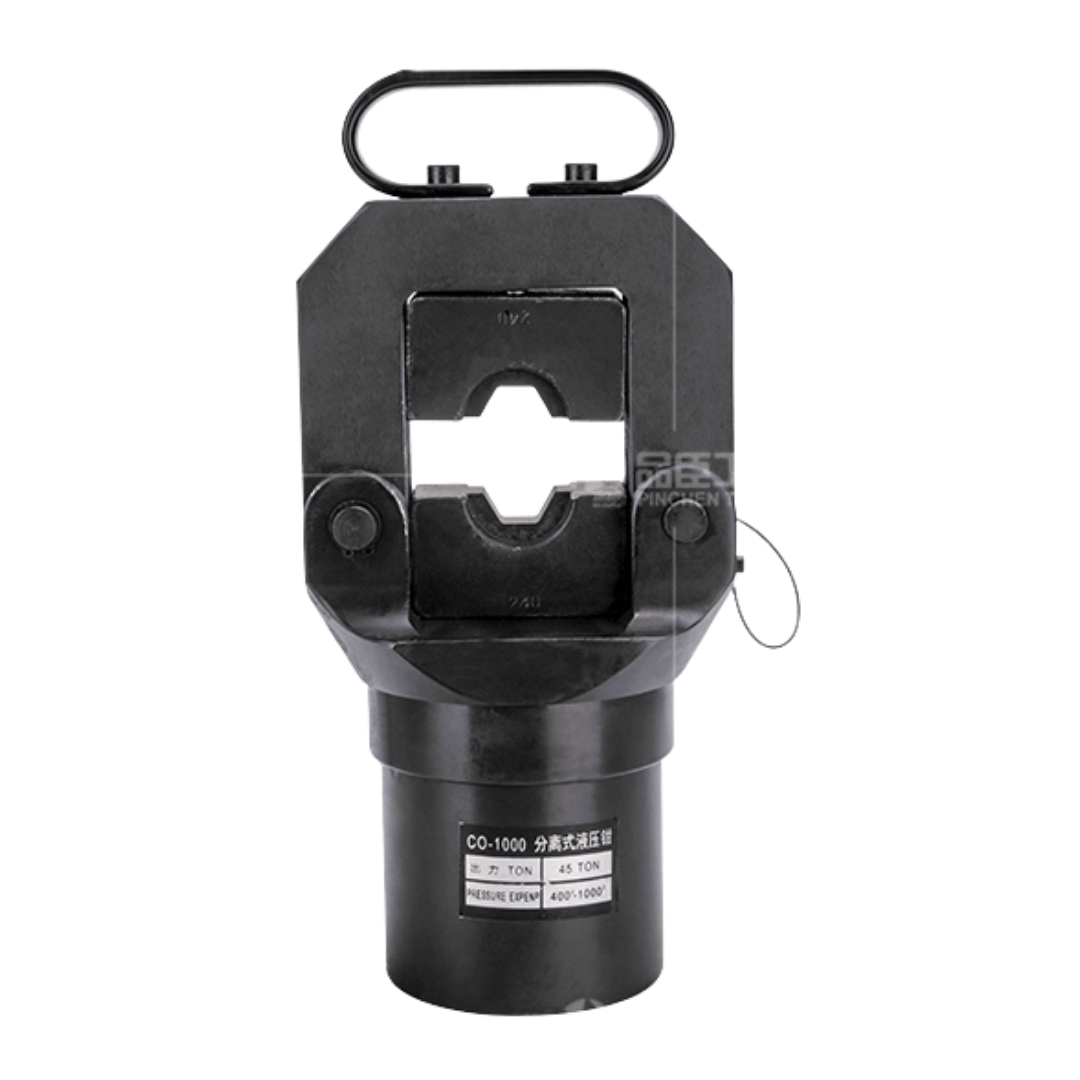

FYQ-1000 Portable Split Hydraulic Clamp

Die Sizes: 400, 500, 800, 1000mm² (Hexagon Die)
Crimping Force: 550kN /55Ton
Strokes: 24mm
Dimensions: 305x210x195mm
Overall Weight: 23.7kg

Usage: Aluminum 500 - 800mm², Copper 400 - 1000mm²

Suitable for MS 1540:2002 Cable Lugs & MS 1779:2005 Cable Links

Thread: Oil pipe coupler fitted with PT 3/8″ thread

These are split-type hydraulic crimping heads, they are portable and connect to external hydraulic pumps. Their role is to crimp cable lugs onto large power cables, ensuring safe, conductive, and durable electrical connections.

Hexagonal Crimping Dies Standardized hexagonal dies provide compatibility with most cable lugs used in the industry. Ensures a strong mechanical grip and excellent electrical conductivity.

Portability Split-head design allows technicians to carry the clamp into tight spaces while leaving the pump at a convenient location.

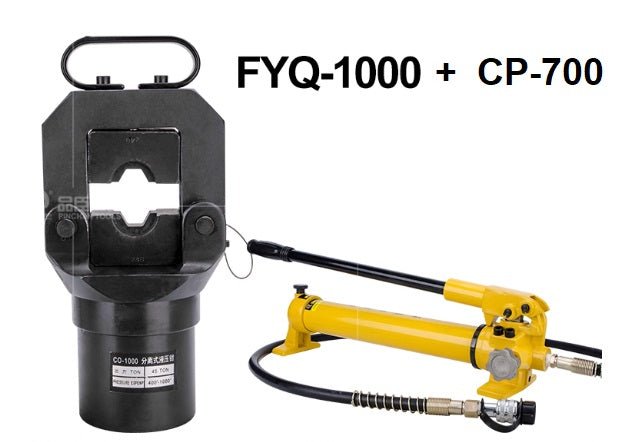

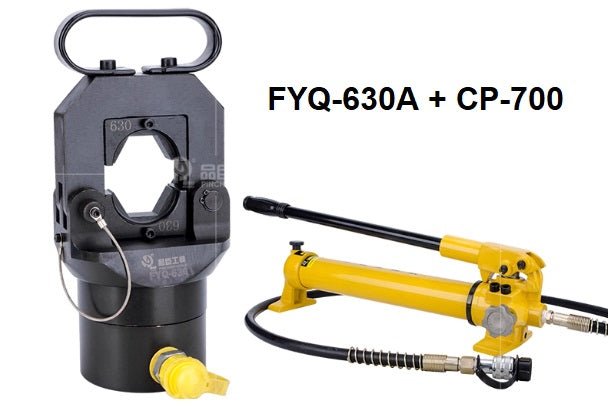

C/W 2-Speed Hydraulic Hand Pump c/w pressure gauge

1.8m/6 feet hydraulic hose with quick coupler

Fast, easy and simple to operate.

Compact design makes this a perfect choice for use on construction sites and maintenance jobs

Copper Crimping Range: 150 - 630mm²

Aluminum Crimping Range: 150 - 500mm²

Model: OB-CP-700
Rated pressure: 700 bar / 10000 psi
Oil flow per stroke: 13.8CC (low pressure) /2.8CC (high pressure)
Oil capacity: 900CC
Weight: 12 kg
Packing size: 550x170x170mm
Size: : 510mm x 140mm x 150mm
CE Standard
