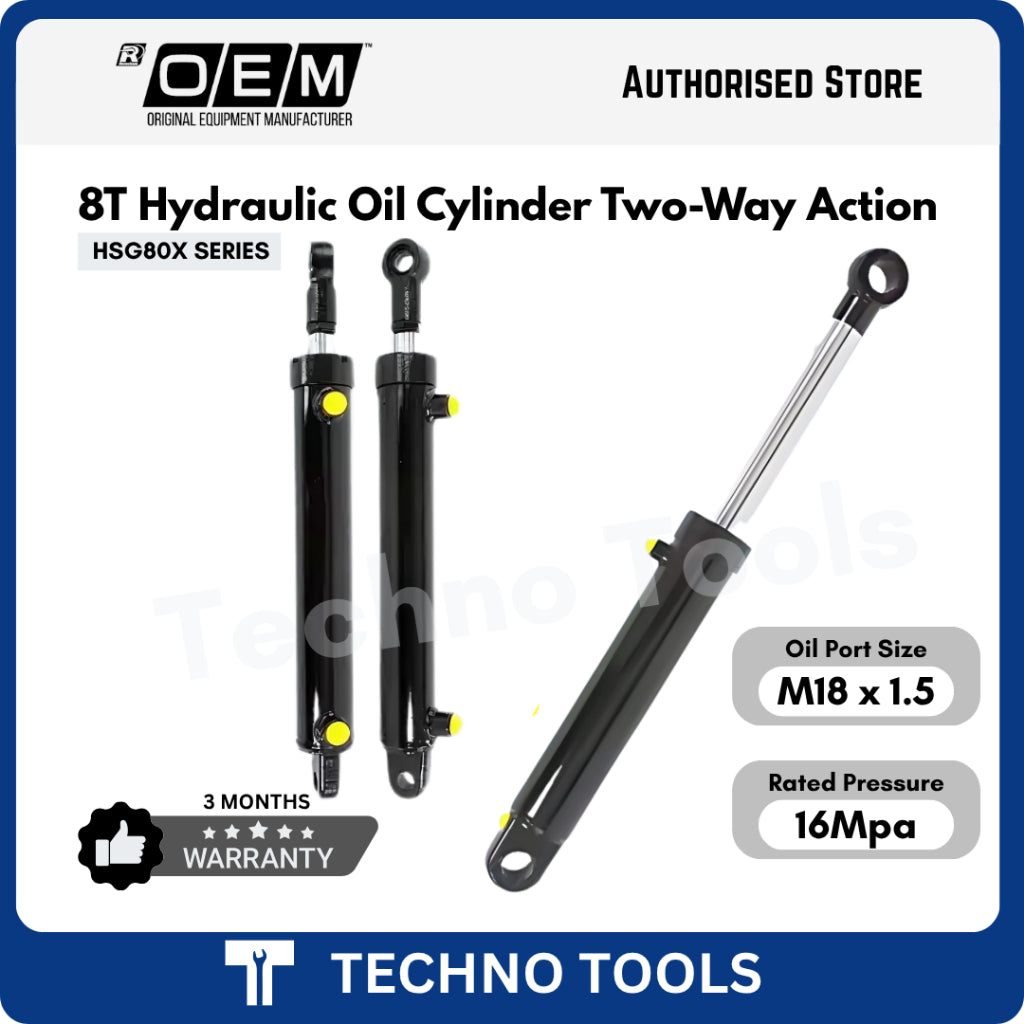

Double-Acting Hydraulic Cylinder, 8 Ton, 100–500mm Stroke – HSG80 Series

SKU: HSG80X100
Harga biasa RM394.90
Harga biasa YOU SAVE RM 4.10 (1%) RM399.00 Harga jualan RM394.90
Dalam stok - 1 item tersedia
Next-day delivery (West Malaysia). Order before 4pm.
3 Months Warranty See warranty terms
Stroke
  • Visa
  • Mastercard
  • Touch n Go
  • FPX
  • Boost
  • ShopeePay
  • GrabPay
  • PayPal
  • Union Pay
  • Maybank
  • Google Pay
Techno Tools's Services

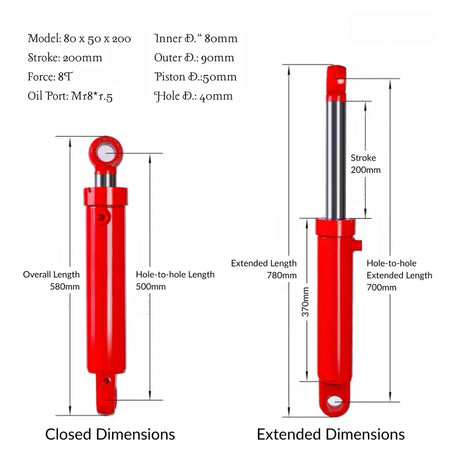

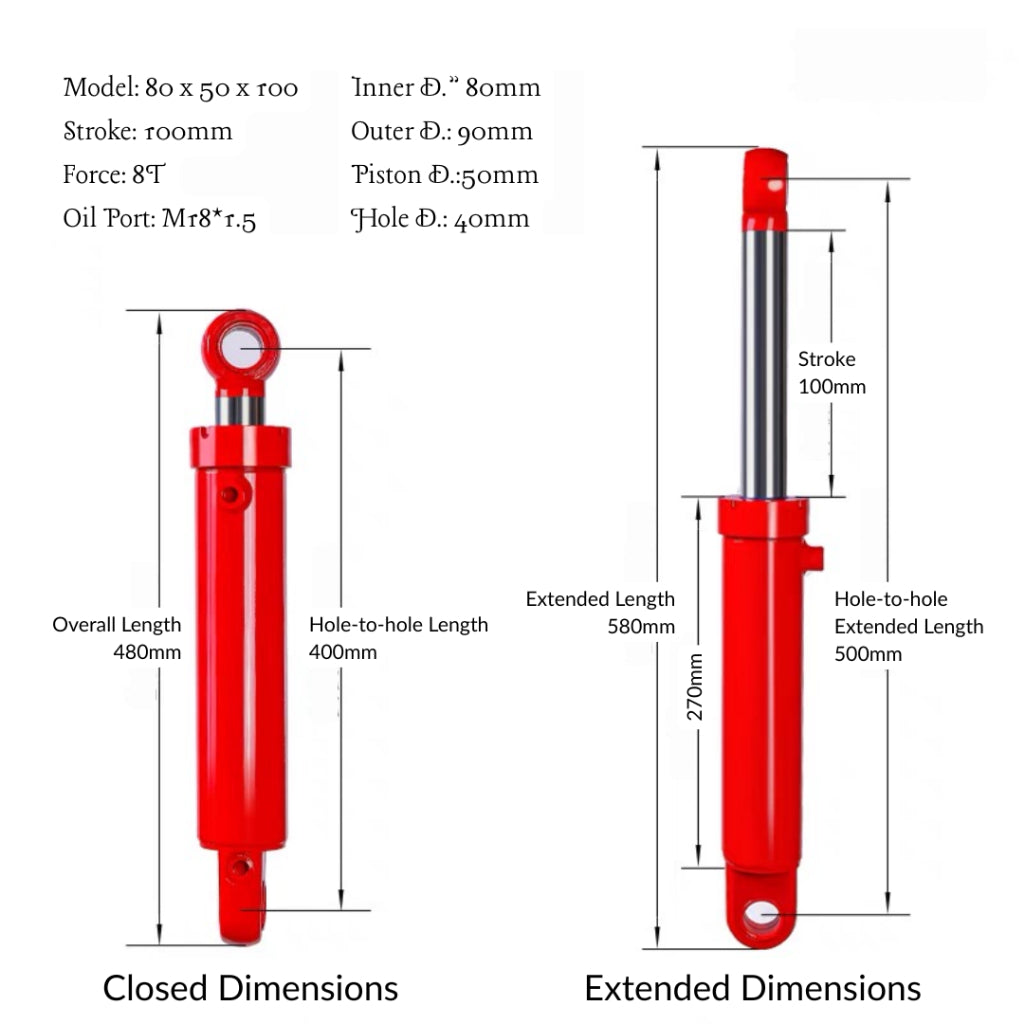

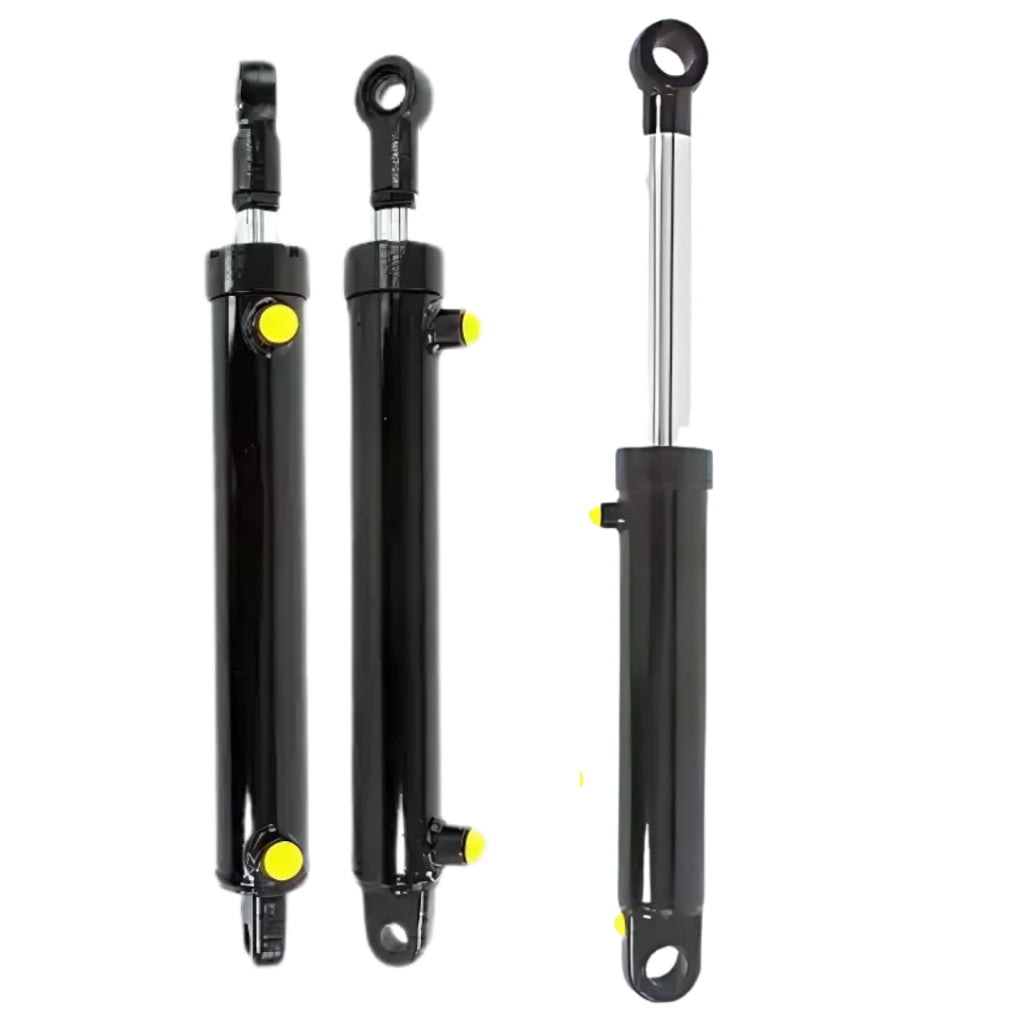

Heavy Duty Dual-Action Hydraulic Oil Cylinder 8Ton



Features:

Output Force: 8 Tons

O.D: φ90mm

I.D: φ80mm

Rod Diameter: φ50mm

Hole Diameter: φ40mm

Rated Pressure: 16Mpa

Port: M18 * 15



Weight:

100mm - 19.4kg

200mm - 20.9kg

300mm - 22.3kg

400mm - 23.7kg

500mm - 25.1kg



The double‑acting telescopic design allows precise control in both directions, making it safer and more efficient for heavy loads. Stroke lengths can be customized, and the cylinder is compatible with standard hydraulic systems.



Double-acting / Dual inner oil chambers: Hydraulic fluid enters both sides of the piston, allowing controlled extension and retraction. It provides smoother motion, higher efficiency, and precise positioning compared to single-acting cylinders.

Telescopic design: Multiple stages allow longer stroke in compact installation space.

Material: 45# high-quality carbon steel — widely used for hydraulic cylinders due to its strength, toughness, and wear resistance. The inner surface is honed for smoothness, reducing friction and extending seal life.

Seals: Equipped with high-pressure oil seals (often HOB/MOB type) to prevent leakage and withstand continuous operation.

Mounting options: Ear mounts, flange mounts, or pin mounts depending on the machinery.

Surface treatment: Anti-rust coating or chrome-plated piston rod for durability in outdoor/industrial environments.

Warranty period3 Months Warranty
CoverageManufacturing defects in materials and workmanship for 3 months from the date of purchase, covering the pump, body, cylinder and operating mechanism.
Not coveredSeals and O-rings worn through normal use; oil leakage caused by overloading or contaminated oil; dies, blades, cutting heads and other wear parts; hoses and couplers; normal wear and tear; cosmetic damage; damage from drops, impact, misuse or use beyond the rated capacity.
Warranty void ifThe product has been modified, opened or repaired by unauthorised persons, used beyond its rated tonnage or pressure, or proof of purchase cannot be shown.

Contact Techno Tools via WhatsApp or sales@techno.com.my with your invoice number and photos or a video of the defect. Return the unit complete with all accessories. Defective units or parts will be repaired or replaced after inspection.
