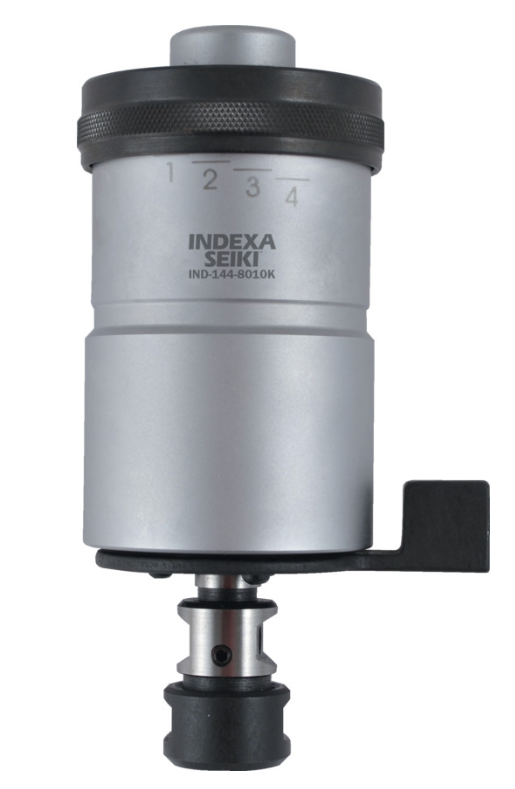

INDEXA M2-M7 TAPPING HEAD SETS OLLETS X ARBOR IND1448010K
Helpful Documents
- Product Brochure Muat turun
Tidak dapat memuatkan ketersediaan pengambilan
Product Details
Adjustable torque control protects against tap breakage/overload. Auto-reverse withdraws the tap without reversing the machine spindle. Each set is supplied complete with two rubber-flex collets, two Morse arbors, kick bar and wrenches. Suitable for use with ISO, DIN and ANSI taps. These tapping heads are suitable for light and medium duty applications, not for production machining. Range capacity is nominal sizes only and is dependent on tap shank dimensions (ISO or DIN).
Product Specification
Attribute |
Value |
|---|---|
|
Body Diameter |
52.0mm |
|
Brand |
Indexa |
|
Clockwise Compression |
5.0mm |
|
Clockwise Expansion |
10.0mm |
|
Compatible Tap Size |
M2 - M7 |
|
Compatible Tap Standard |
BS 949 DIN 371 DIN 376 ISO 529 |
|
EAN |
5036140084391 |
|
ECLASS Code |
21019090 |
|
For Use With |
JSN-7 |
|
Includes |
(2) Morse Arbors (2) Rubber Flex Collets Carrying Case Kick Bar Tapping Head Wrenches |
|
Maximum Speed |
1500rpm |
|
Model Number |
JSN7 |
|
Number of Pieces |
9 |
|
Overall Length |
130.0mm |
|
Reverse Ratio |
0.000712963 |
|
Shank Size |
MT1 MT3 |
|
Shank Type |
Morse Taper |
|
Type |
Tapping Head Set |
|
UNSPSC Code |
27112806 |
