Ratchet Cable Cutter, 50 / 75 / 95mm² – J52 / J75 / J95
Tidak dapat memuatkan ketersediaan pengambilan
Product Details:
Mechanical design gear - High frequency quenching process of tooth, professional mechanics design pressure angle 20 anti-slip adjustment free convenient, high efficient, stable and reliable use.
The sharp edge - The blade is hard and sharp and saves time and effort. The blade is forged with imported spring steel which is durable and not easy to rust, blunt, and corrosion.
Telescopic hand lever - Five layer electroplating handle is made of high-density ferroalloy. The material is hard and not easy to bend and rust. Free telescopic shear line with high efficiency and easy to carry.
Anti-slip massage handle - Ball's antiskid design adds friction to protect both hands. Humanized handle design for comfortable grip and easy to use for a long time.
Stretchable handle leads to low manual labour force. Made of high quality alloy steel that can be durable for long time use. It is easy to cut it with a bracket. It is also easy to return and retract midway
*Attention: It can't be used to cut steel wires and copper hard drawn wires.
J52
Cutting Range: Cu-Al single cored cable 3x120mm² Or Cu-Al armored cable ≤φ50mm²
Weight: 3.1kg
Size: 397 * 165 * 54mm
For: Armored Cable, Cu-Al Cable
J75
Cutting Range: Cu-Al single cored cable 3x150mm² Or Cu-Al armored cable ≤φ75mm²
Weight: 3.6kg
Size: 416 * 205 * 55mm
For: Armored Cable, Cu-Al Cable
J95
Cutting Range: Cu-Al single cored cable 3x185mm² Or Cu-Al armored cable ≤φ95mm²
Weight: 5kg
Size: 446 * 248 * 55mm
For: Armored Cable, Cu-Al Cable
J52 - 52mm Maximum Cutting Diameter
J75 - 75mm Maximum Cutting Diameter
J95 - 95mm Maximum Cutting Diameter

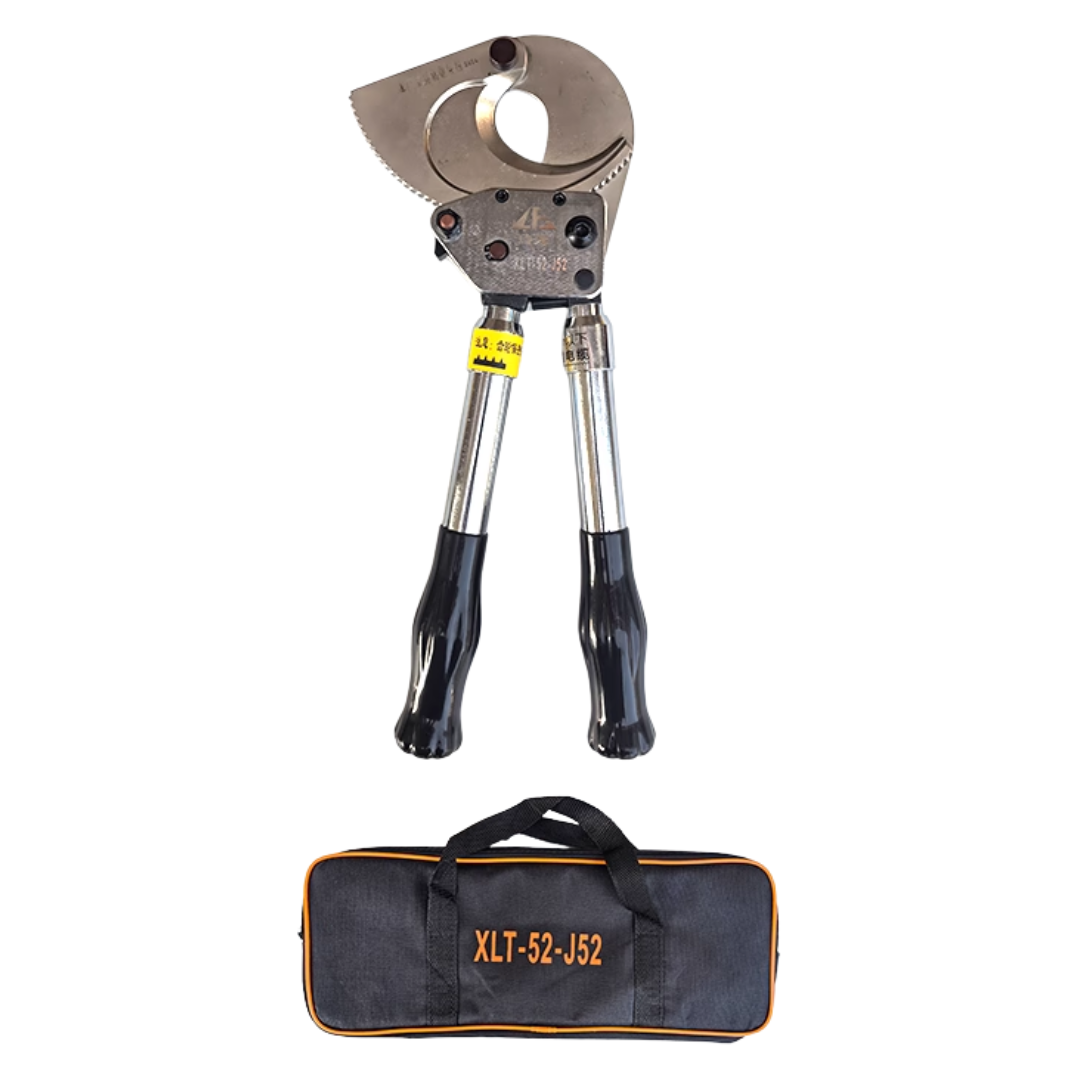

XLT-52-J52 - Upgraded Model
Cutting Range: Cu-Al single cored cable 3x120mm² Or Cu-Al armored cable ≤φ50mm²
Weight: 3.1kg
Size: 397 * 165 * 54mm
For: Armored Cable, Cu-Al Cable
Note: Strictly forbidden to cut Steel wire rope, ACSR and all kind of steel cables.

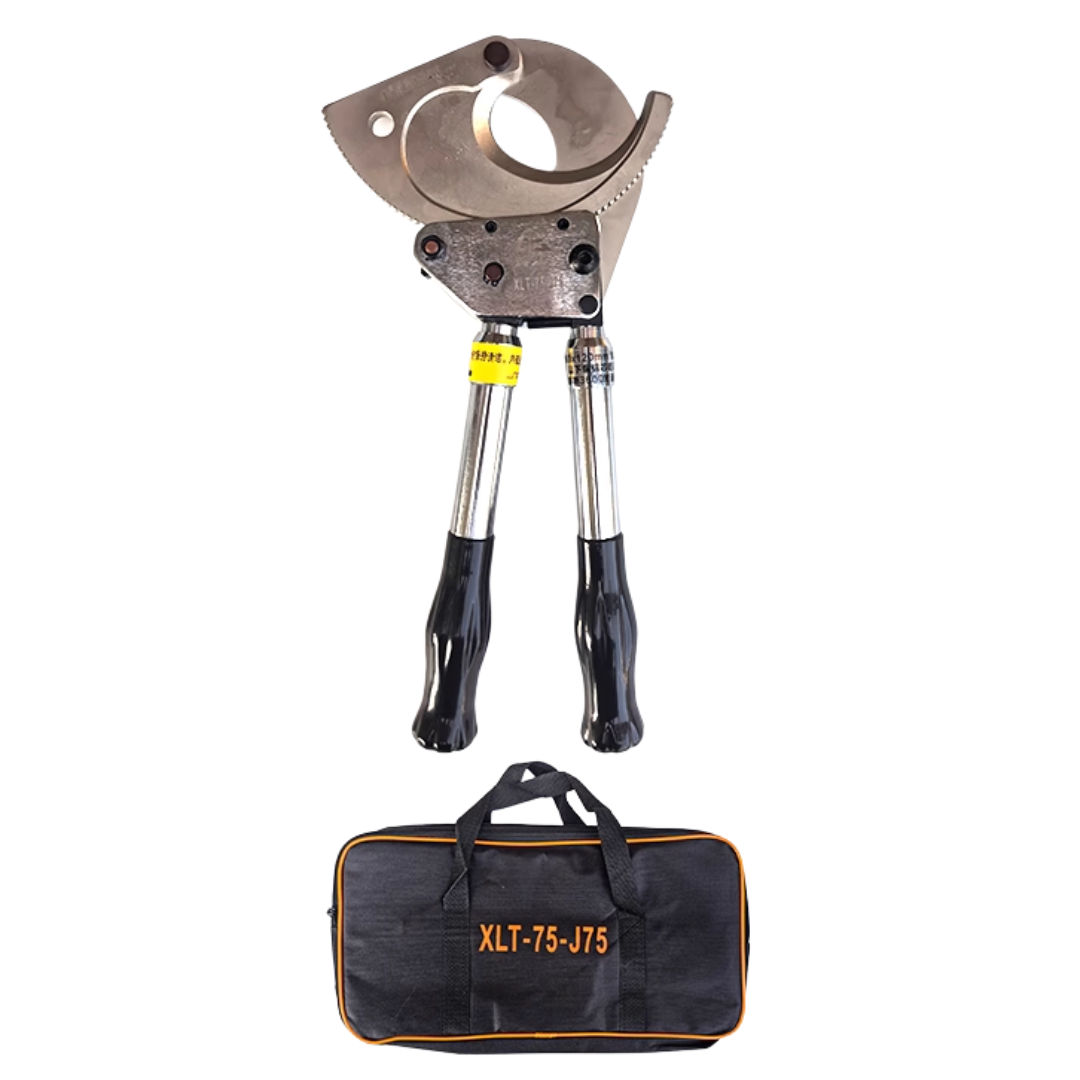

XLT-75-J75 - Upgraded Model
Cutting Range: Cu-Al single cored cable 3x150mm² Or Cu-Al armored cable ≤φ75mm²
Weight: 3.6kg
Size: 416 * 205 * 55mm
For: Armored Cable, Cu-Al Cable

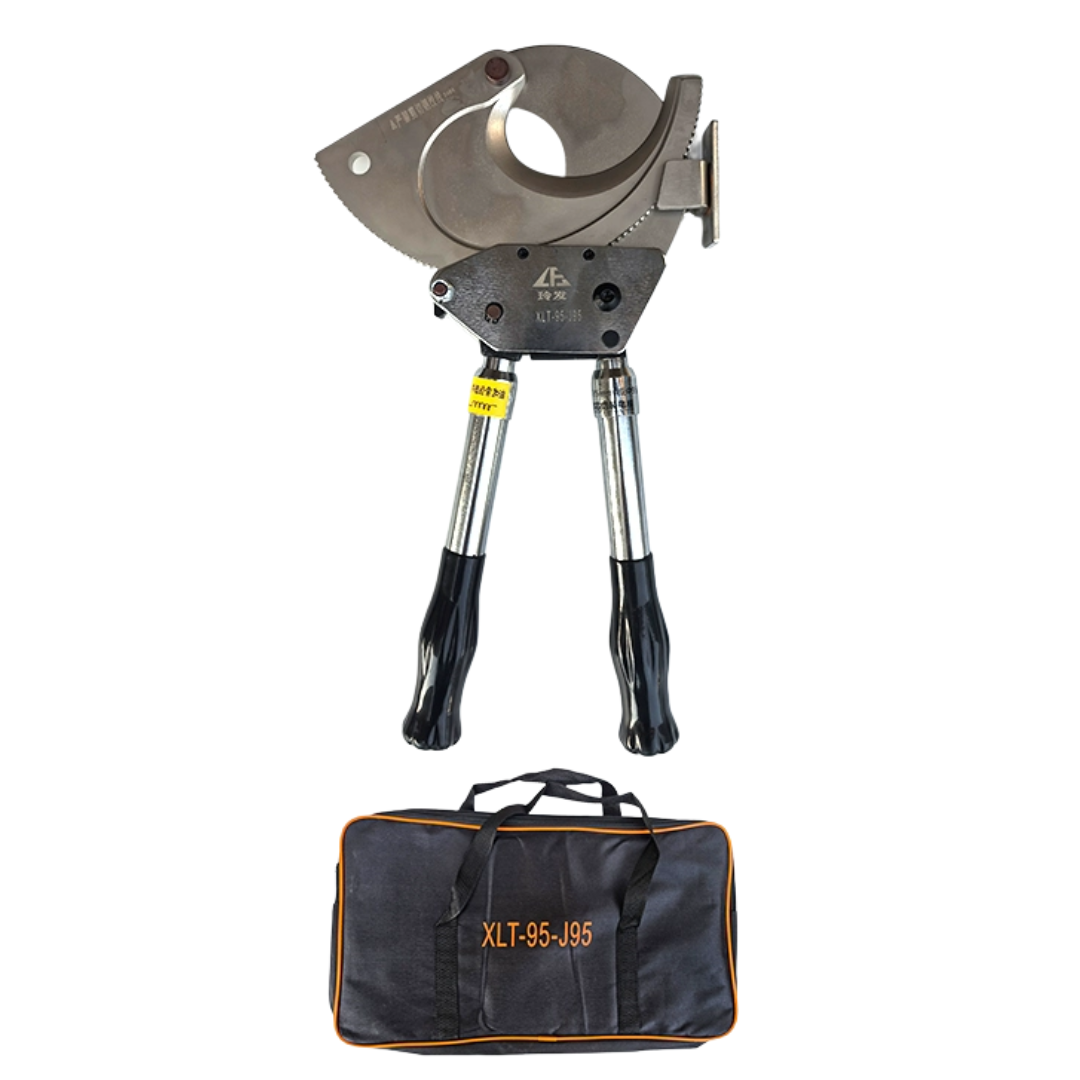

XLT-95-J95 - Upgraded Model
Cutting Range: Cu-Al single cored cable 3x185mm² Or Cu-Al armored cable ≤φ95mm²
Weight: 5kg
Size: 446 * 248 * 55mm
For: Armored Cable, Cu-Al Cable
Ratchet cable cutter comparison: HS-325A vs J40A vs J40 vs J52 / J75 / J95
| Model | HS-325A | J40A | J40 | J52 / J75 / J95 (this model) |
|---|---|---|---|---|
| Max cutting diameter | 32mm | 40mm | 40mm | 52 / 75 / 95mm |
| Cable capacity | Up to 240mm² | Up to 300mm² Cu/Al | Armoured Cu/Al up to 300mm² | Single-core 3×120 / 3×150 / 3×185mm² or armoured cable |
| Length / size | 260mm | 245 × 135 × 40mm | Approx. 360mm | 397 / 416 / 446mm long |
| Weight | 0.7kg | Approx. 1kg | – | 3.1 / 3.6 / 5kg |
| Best for | Light one-handed cutting up to 240mm² | Compact cutter for cables up to 300mm² | Armoured cable up to 300mm² | Large armoured cables over 40mm |
| Warranty period | 14-Day Defect Replacement |
|---|---|
| Coverage | Hand tools and general items carry no warranty. If the product has a manufacturing defect, you may request a new unit within 14 calendar days of purchase. |
| Not covered | Normal wear and tear; damage from misuse, prying, striking, overloading or use beyond the product's rated capacity. |
| Warranty void if | The product has been modified, or the request is made more than 14 calendar days after purchase. |
Contact Techno Tools within 14 calendar days of purchase with your proof of purchase (invoice or receipt).
