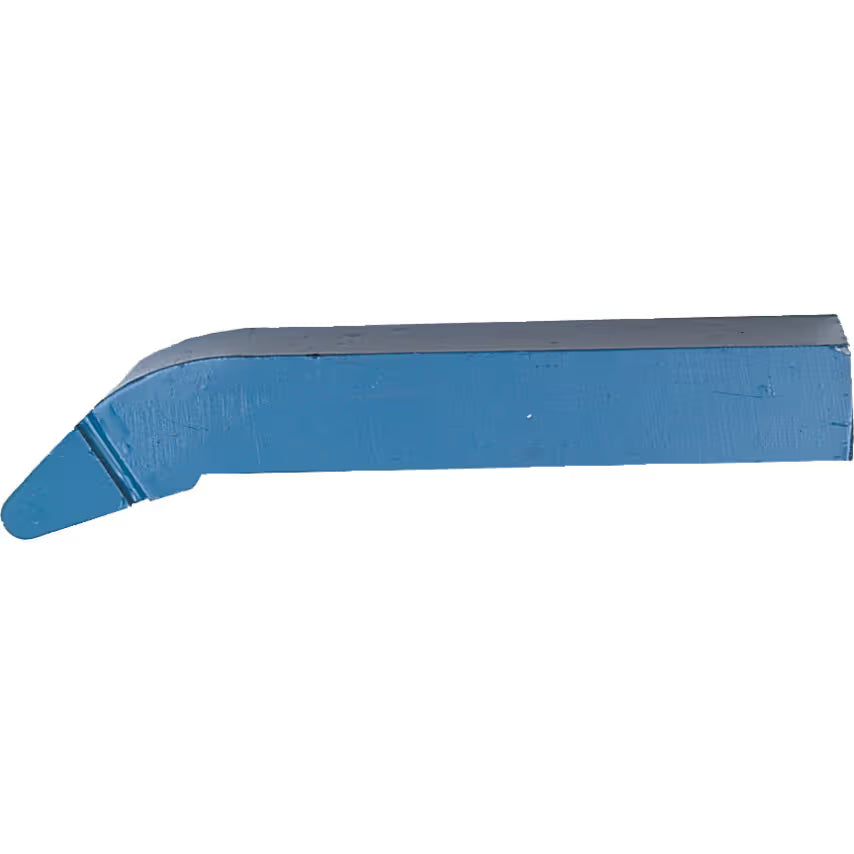

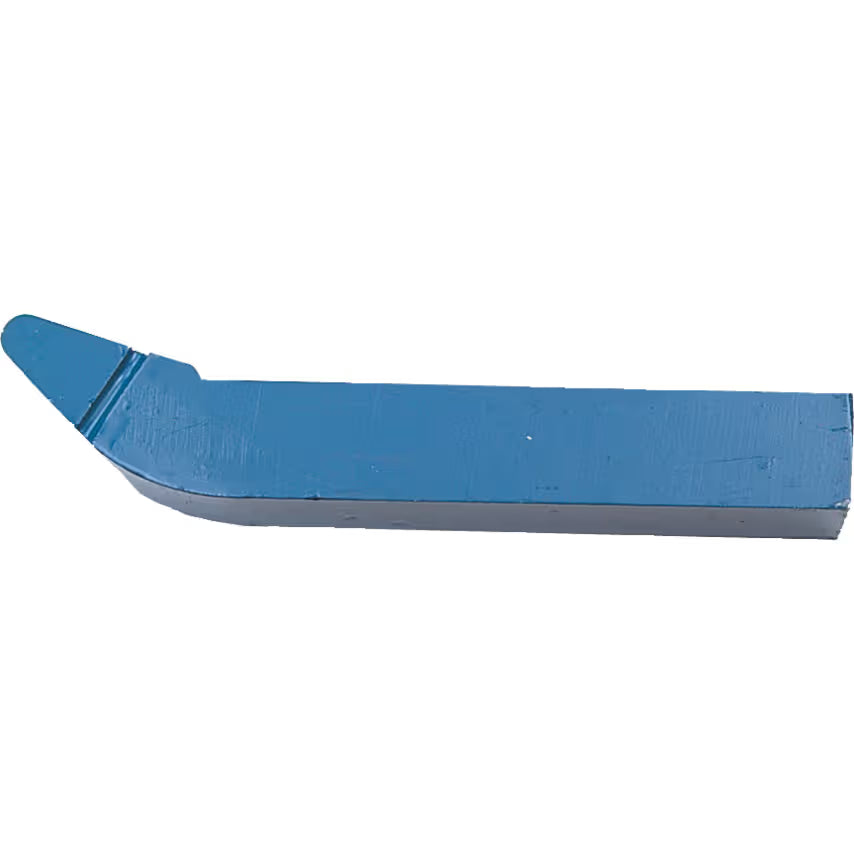

KENNEDY K20 Brazed Carbide Turning Tool Cranked Type
Tidak dapat memuatkan ketersediaan pengambilan
OVERVIEW SUMMARY
The KENNEDY K20 Brazed Carbide Cranked Turning Tool is a general-purpose machining solution designed for cast iron and non-ferrous materials. Manufactured to ISO DIN BHMA standards, it features a durable carbide tip that balances wear resistance and toughness. The cranked design improves accessibility in machining operations, making it ideal for turning and boring applications at moderate speeds and high feed rates.
KEY FEATURES
- K20 carbide grade for general-purpose machining
- Ideal for cast iron and non-ferrous materials
- Cranked tool design for better access and flexibility
- Brazed carbide tip for durability and long tool life
- Suitable for moderate speeds and high feed rates
- Right-hand cutting direction
- Reliable for turning and boring operations
- Manufactured to ISO DIN BHMA standards
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Tool Number | Overall Length | Shank Height / Width |
|---|---|---|---|
| KEN1000520K | 12 | 4" | 1/2" |
| KEN1000540K | 13 | 4" | 1/2" |
| KEN1000600K | 16 | 5" | 5/8" |
| KEN1000720K | 21 | 5-1/2" | 3/4" |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | KENNEDY |
| Tool Type | Cranked Round Nose Turning Tool |
| Tip Material | Carbide |
| ISO Grade | K20 |
| ISO Category | K |
| Material Application | Cast Iron, Non-Ferrous Metals |
| Cutting Direction | Right Hand |
| Clearance Angle | 6° |
| Included Angle | 30° |
| Lead Angle | 15° |
| Shank Size | 1/2" × 1/2" |
| Overall Length | 4" |
| Standards | ISO DIN BHMA |
APPLICATION
- Turning of cast iron
- Machining non-ferrous materials
- Rough turning at moderate speeds
- High feed rate machining
- Boring operations
PACKAGE CONTENT
- 1 × KENNEDY K20 Brazed Carbide Cranked Turning Tool (Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, or improper application
WHY KENNEDY
KENNEDY is a globally recognized tooling brand known for precision, durability, and industrial-grade performance. Designed for demanding machining environments, KENNEDY tools deliver consistent results, long service life, and reliable machining quality.
