KENNEDY P20 P30 Brazed Carbide Bar Turning Tool ISO
Tidak dapat memuatkan ketersediaan pengambilan
OVERVIEW SUMMARY

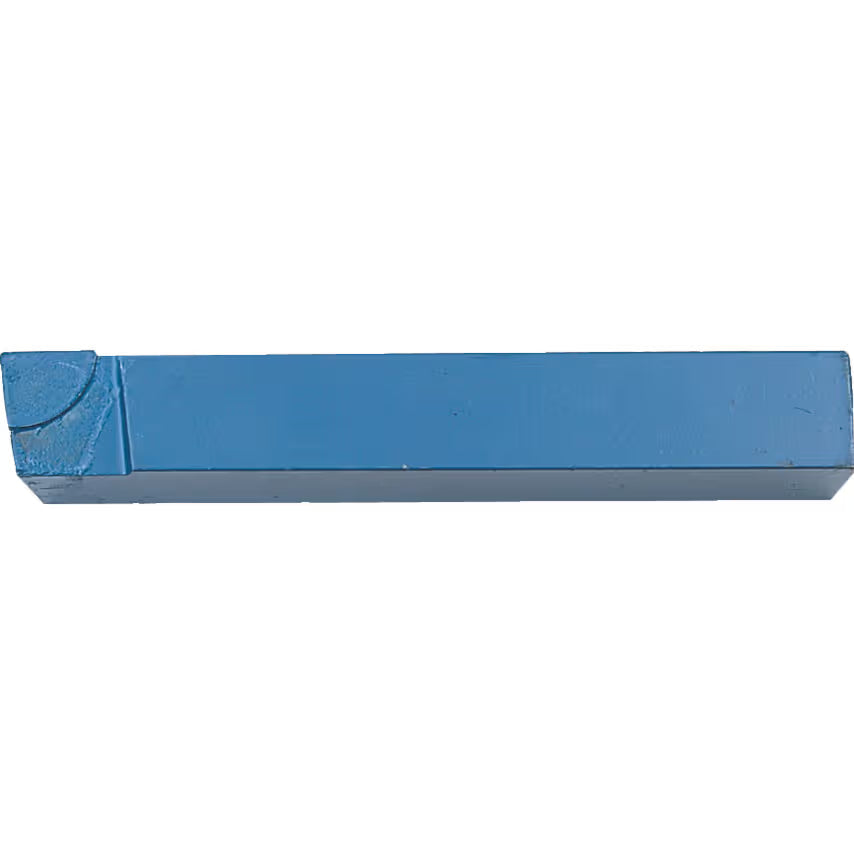

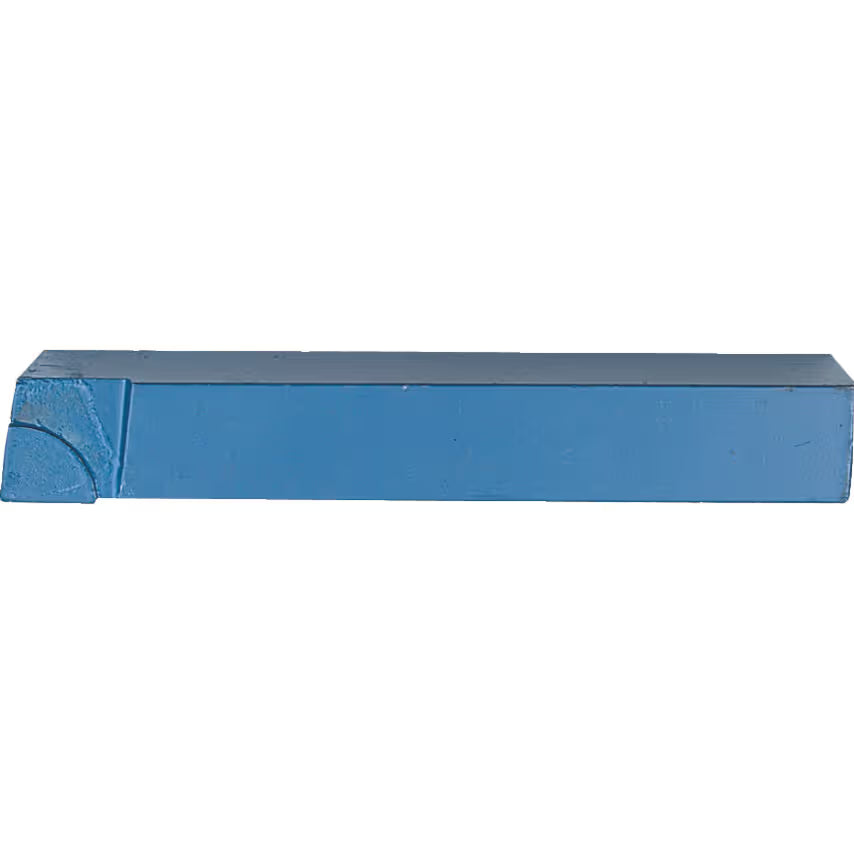

The KENNEDY P20/P30 Brazed Carbide Bar Turning Tool is engineered for heavy-duty turning and boring operations on steel. Manufactured to ISO DIN BHMA standards, it features a robust carbide tip that delivers excellent wear resistance and cutting performance. Designed for low-speed, high-feed machining, it performs reliably even in interrupted cutting conditions, making it ideal for demanding industrial applications.
KEY FEATURES
- P20/P30 carbide grade for steel machining
- Designed for bar turning and boring applications
- Suitable for heavy-duty machining conditions
- Performs well in interrupted cutting operations
- Brazed carbide tip for long tool life
- Optimized for low speeds and high feed rates
- Right-hand cutting direction
- Manufactured to ISO DIN BHMA standards
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Tool Number | Overall Length | Shank Height / Width |
|---|---|---|---|
| KEN1002010K | 100 | 3-1/2" | 3/8" |
| KEN1002040K | 101 | 3-1/2" | 3/8" |
| KEN1002060K | 102 | 4" | 1/2" |
| KEN1002100K | 103 | 4" | 1/2" |
| KEN1002180K | 106 | 5" | 5/8" |
| KEN1002280K | 110 | 5-1/2" | 3/4" |
| KEN1002300K | 111 | 5-1/2" | 3/4" |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | KENNEDY |
| Tool Type | Bar Turning Tool |
| Tip Material | Carbide |
| ISO Grade | P20 / P30 |
| ISO Category | P |
| Material Application | Steel |
| Cutting Direction | Right Hand |
| Clearance Angle | 6° |
| Shank Size | 3/8" × 3/8" |
| Overall Length | 3-1/2" |
| Standards | ISO DIN BHMA |
APPLICATION
- Heavy-duty bar turning
- Boring operations
- Machining steel and steel castings
- Interrupted cutting conditions
GRADE INFORMATION
- P30: Ideal for heavy-duty machining with high feeds and interrupted cuts
- P20: Balanced performance for general steel applications
PACKAGE CONTENT
- 1 × KENNEDY Brazed Carbide Bar Turning Tool (Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, or improper application
WHY KENNEDY
KENNEDY is a globally trusted tooling brand known for precision engineering, durability, and consistent performance. Designed for industrial machining environments, KENNEDY tools deliver reliable results, long service life, and enhanced productivity.
