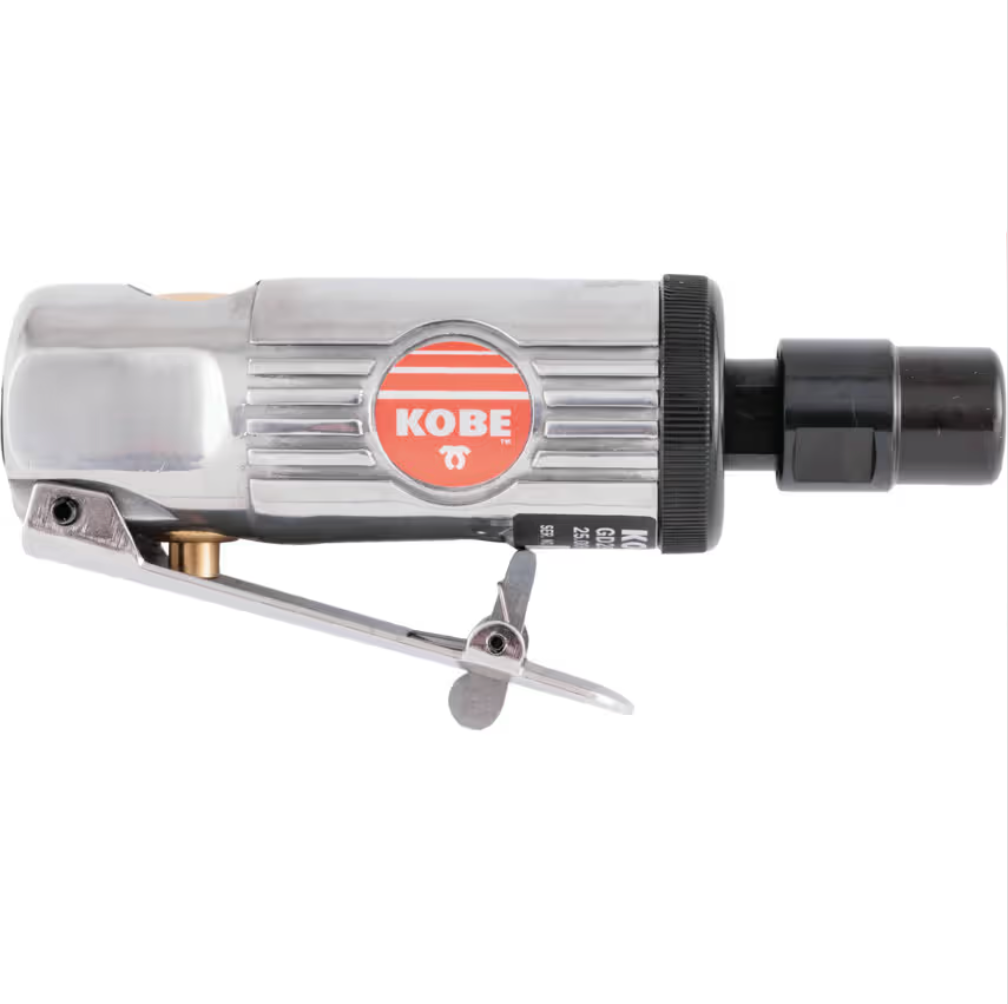

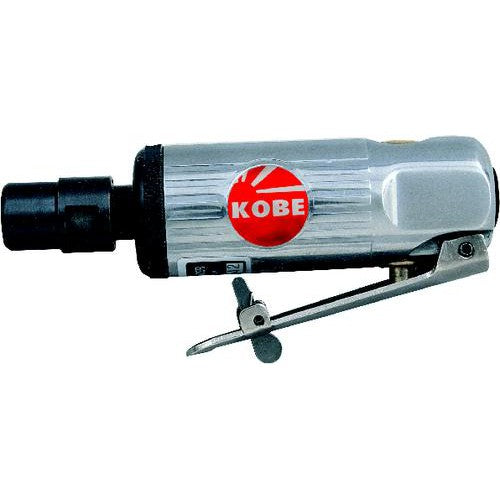

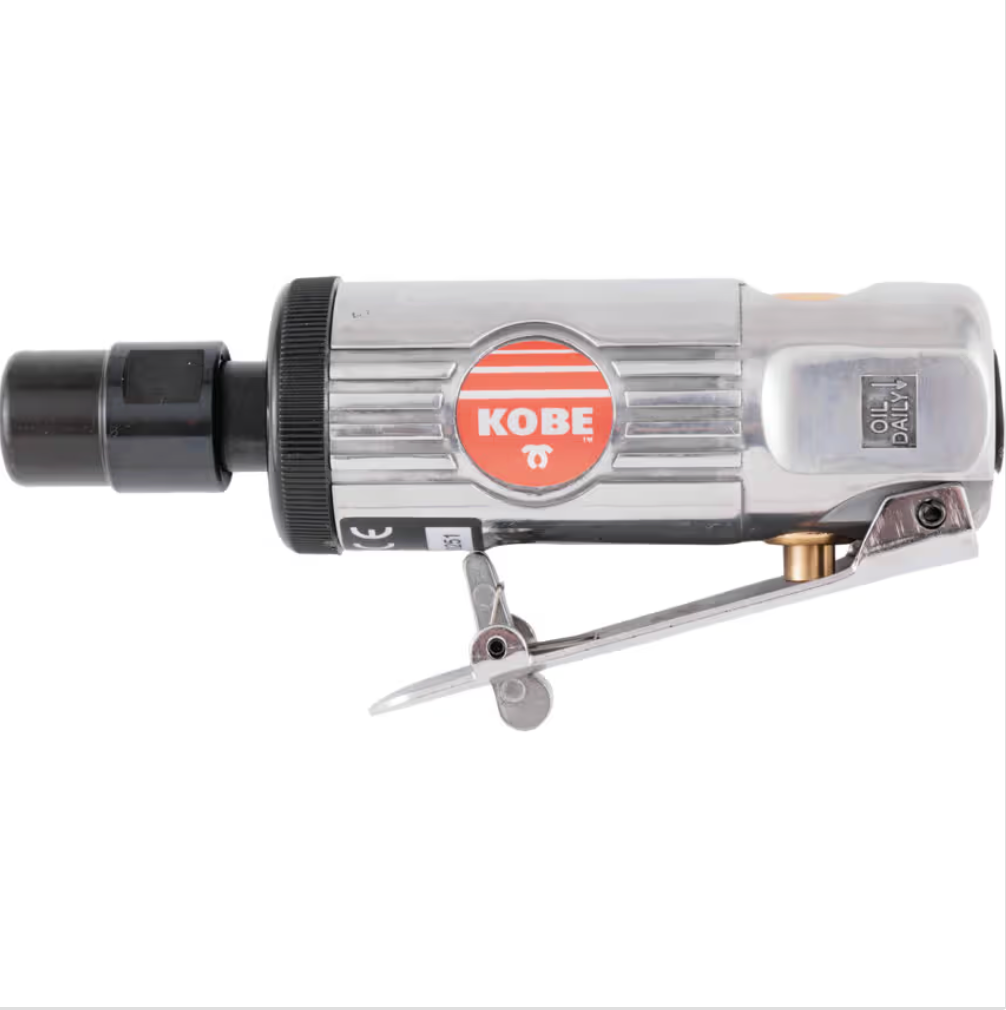

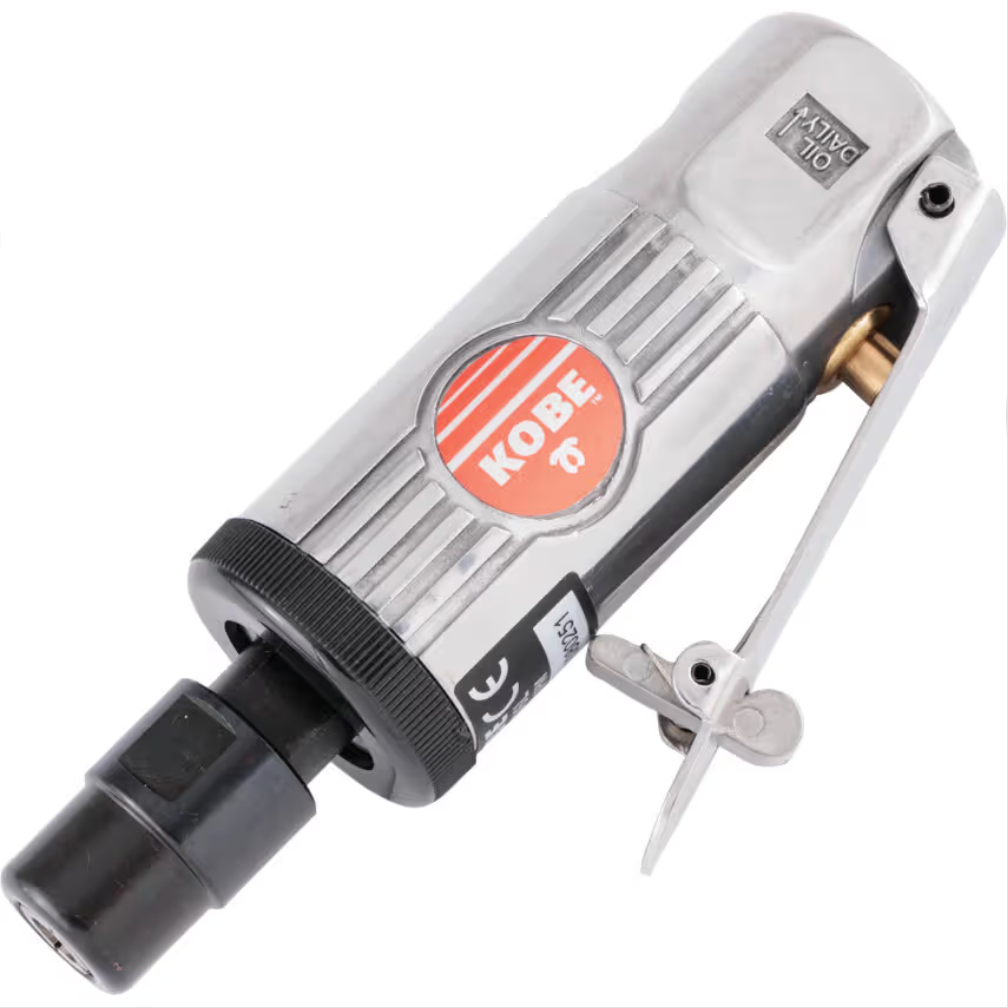

Kobe Red Line GD2806L Mini Air Die Grinder, 6mm Collet, 25,000rpm, 225W, 1/4 inch Inlet, 0.3kg, KBE2702035M
- Product Datasheet (PDF) Muat turun
- User manual / Instruction Book (PDF) Muat turun
Tidak dapat memuatkan ketersediaan pengambilan
Overview
The Kobe Red Line GD2806L is an ultra-compact mini air die grinder for sanding, grinding and deburring in confined areas. Weighing only 0.3kg, it runs at 25,000rpm with a single-piece aluminium body and precision balanced bearings.
Key Features
- Ultra-compact, lightweight 0.3kg body
- Single-piece aluminium housing for durability
- Safety release throttle prevents accidental start-up
- Front exhaust blows dust and debris clear
- Precision balanced bearings for reliable industrial use
Specifications
| Specification | Details |
|---|---|
| Brand | Kobe Red Line |
| Model | GD2806L |
| SKU | KBE2702035M |
| No Load Speed | 25,000rpm |
| Collet | 6mm |
| Power | 225W |
| Body Style | Mini Straight |
| Exhaust | Front |
| Air Inlet | 1/4" |
| Air Consumption | 4CFM |
| Sound Pressure / Power | 94dBA / 106dBA |
| Vibration | 5.0m/s² |
| Length | 121mm |
| Weight | 0.3 kg |
Kobe straight air die grinder comparison
| Model | GD2206L | GD22LK kit | GD2806L (this model) | FDG180m | B3456 | GM5603 |
|---|---|---|---|---|---|---|
| Range | Red Line | Red Line | Red Line | – | – | – |
| Free speed | 23000rpm | 23000rpm | 25000rpm | 25000rpm | 25000rpm | 56000rpm |
| Collet | 6mm | 3mm and 6mm | 6mm | 6mm | 3mm and 6mm | 3mm |
| Motor power | 375W | 338W | 225W | – | – | 38W |
| Length | 172mm | 172mm | 121mm | 158mm | 160mm | 156mm |
| Weight | 0.6kg | 0.6kg | 0.3kg | 0.367kg | 0.6kg | 0.21kg |
| Best for | Powerful 6mm grinding with safety throttle | Kit with mounted points, two collets | Compact mini grinder | Light everyday deburring | Continuous use, planetary gears | Fine engraving and mould work |
Source: Cromwell (Kobe) official product data and our Kobe spec tables. – means the figure is not published.
Compatible Accessories
- Kobe 3/8 in x 7.5m Recoil Nylon Air Hose – air supply hose for 10mm (3/8 in) class tools
- Kobe Red Line 10mm x 10m PU Air Hose Reel – wall-mounted air supply for a work bay
- Kobe Air Line Water Separator – removes moisture from the air supply
- Kobe Direct Feed Mini Oiler – keeps the air motor lubricated
Package Content
- 1 x Kobe GD2806L Mini Air Die Grinder

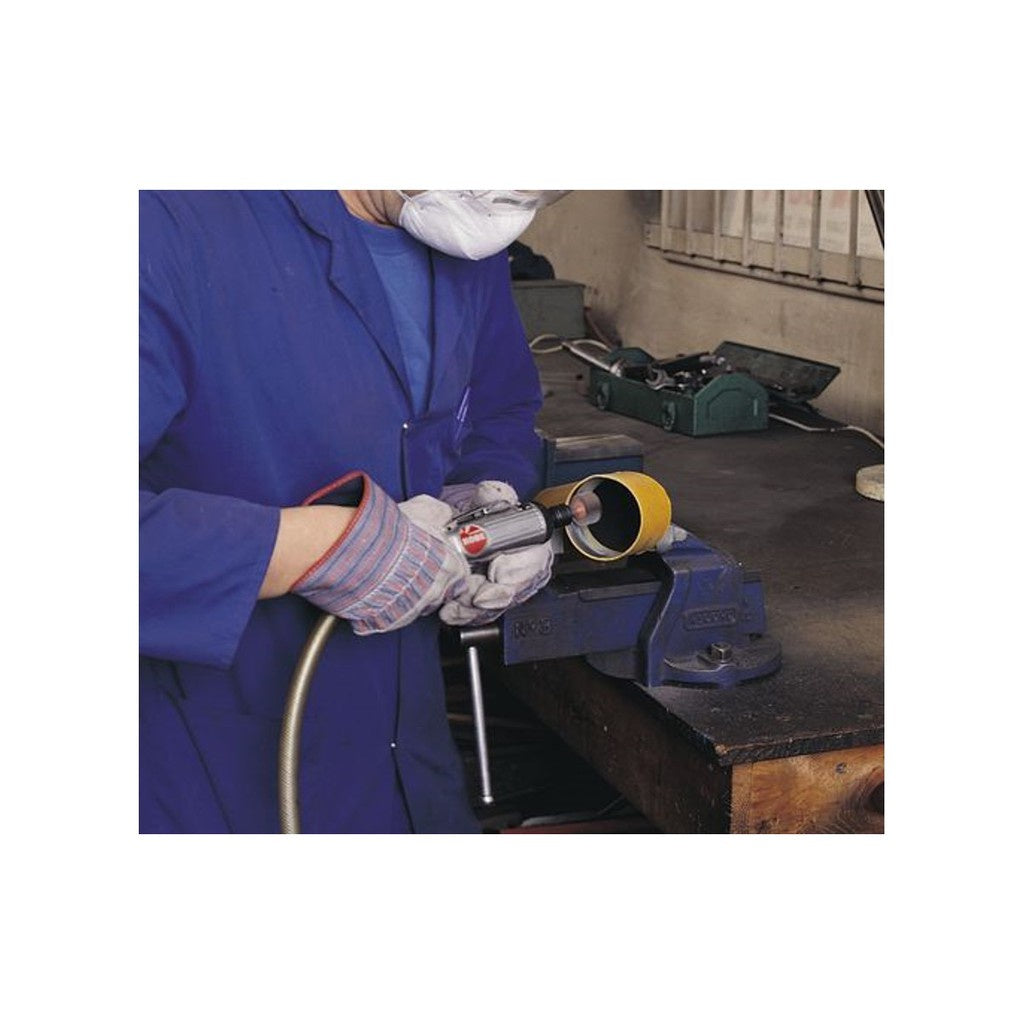

Applications
- Grinding, polishing, buffing and deburring
- Cleaning and smoothing weld seams
- Mould, die and pattern work
| Warranty period | 1 Year Warranty |
|---|---|
| Coverage | Free repair or replacement for defects in material and workmanship arising during normal use within 1 year from the date of purchase. |
| Not covered | Bits, discs, blades, hoses and other accessories or consumables; O-rings, seals, vanes and other wear parts; damage from misuse, overloading, dropping, wrong voltage, or dirty, wet or unlubricated air supply. |
| Warranty void if | The tool has been opened, modified or repaired by an unauthorised party, or proof of purchase cannot be shown. |
Contact Techno Tools with your proof of purchase (invoice or receipt).
