KYORITSU 2001A Digital Multimeter – AC/DC Clamp Sensor ≤600V
Helpful Documents
- Product Brochure Muat turun
- Product Datasheet / User manual Muat turun
Tidak dapat memuatkan ketersediaan pengambilan

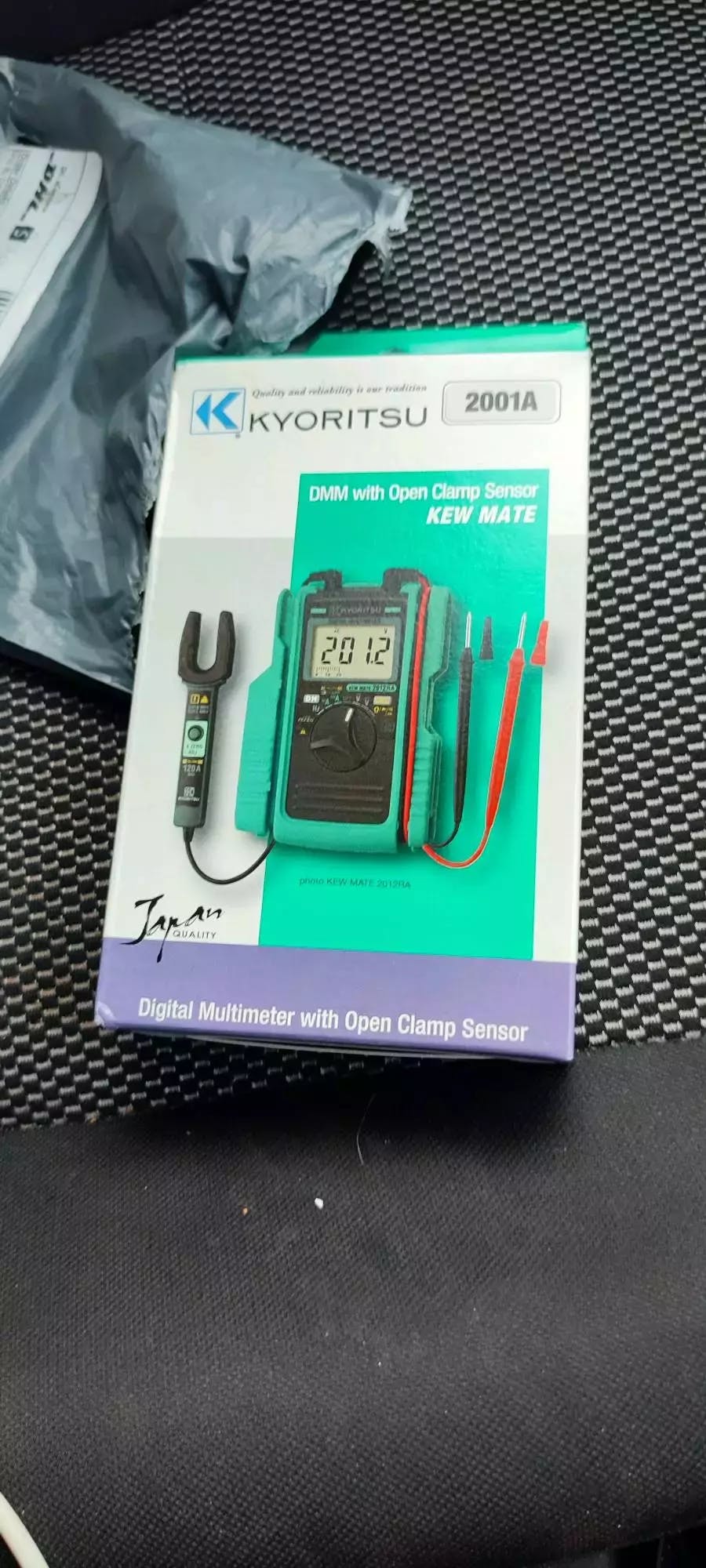

KEW MATE 2001A Digital Multimeter with AC/DC Clamp Sensor

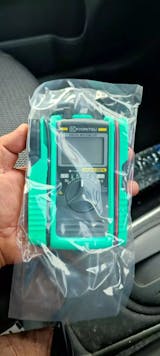

KYORITSU 2001A Digital Multimeter
The KYORITSU 2001A Digital Multimeter is a high-precision instrument designed for safe and accurate AC/DC current and voltage measurements up to 600V. Featuring an integrated AC/DC clamp sensor, the KEW 2001A provides a compact, ergonomic design with a clear digital display and stable readings. Its portability and performance make the KYORITSU 2001A Digital Multimeter ideal for electricians, maintenance technicians, and engineers who need reliable measurements for fieldwork and troubleshooting.
Video:
Key Features:
- AC/DC Current Measurement: Measures up to 100A for both AC and DC currents with the OPEN CLAMP SENSOR.
- Enhanced Cable Protection: Features improved cable strength with robust protection for added durability.
- Compact and Heavy Duty: Pocket-sized design combined with a heavy-duty build ensures portability without sacrificing strength.
- Test Probe Holster: Test probe can be securely fixed to the holster for convenient storage.
- Safety Features: Equipped with a test lead cap to prevent short circuit accidents.
- Slim Clamp Jaws: Open jaws are thin enough to clamp wires in tight spaces, offering flexibility for hard-to-reach areas.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage (DCV) | 340.0mV / 3.400V / 34.00V / 340.0V / 600V | ±1.5%rdg ±4dgt |
| AC Voltage (ACV) | 3.400V / 34.00V / 340.0V / 600V | ±1.5%rdg ±5dgt (50 - 400Hz) |
| DC Current (DCA) | 100.0A | ±2%rdg ±5dgt |
| AC Current (ACA) | 100.0A | ±2%rdg ±5dgt (50/60Hz) |
| Resistance (Ω) | 340.0Ω / 3.400kΩ / 34.00kΩ / 340.0kΩ / 3.400MΩ / 34.00MΩ | ±1%rdg ±3dgt (0 - 340kΩ); ±5%rdg ±5dgt (3.4MΩ); ±15%rdg ±5dgt (34MΩ) |
| Continuity Buzzer | Buzzer sounds below 30 ±10Ω | Works only on 340Ω range |
| Frequency | AC A: 3.4Hz - 10kHz; AC V: 3.4Hz - 300kHz | ±0.1%rdg ±1dgt (Current > 25A, Voltage > 30V) |
| Conductor Size | Ø10mm max. | — |
General Specifications
| Feature | Details |
|---|---|
| Applicable Standards | IEC 61010-1 CAT III 300V / CAT II 600V, Pollution Degree 2, IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581 (RoHS) |
| Power Source | 2 × R03 (AAA) (1.5V) |
| Dimensions | 128 mm × 92 mm × 27 mm |
| Weight | Approx. 220g (including batteries) |
| Accessories Included | Test leads (R03), instruction manual |
| Optional Accessories | Soft carrying case (9107) |
Warranty: 1 Year
