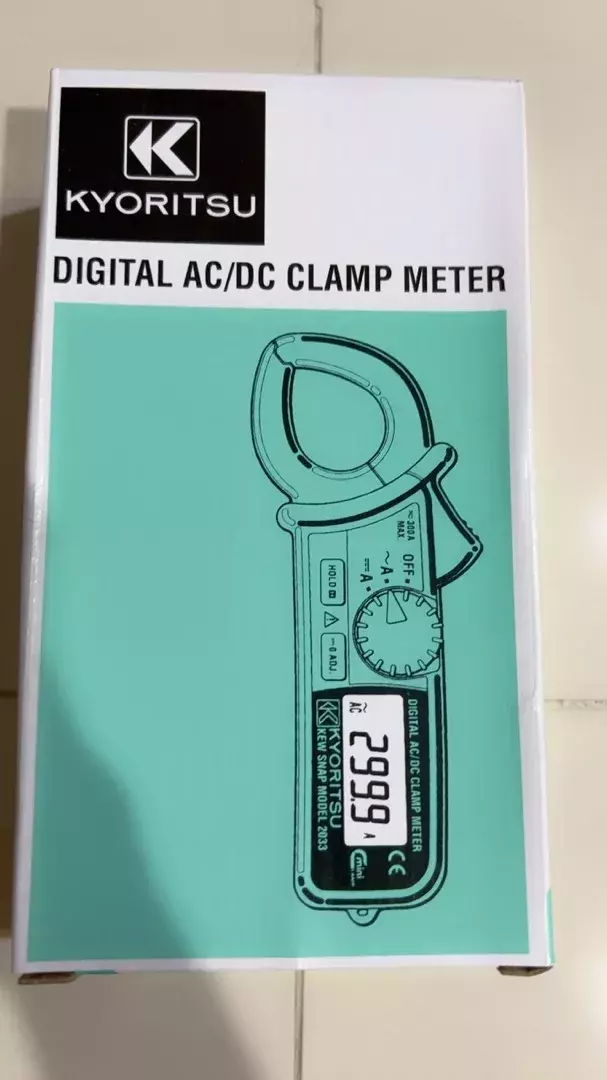

MODEL 2033 AC/DC Clamp Meter
KYORITSU 2033 Clamp Meter
The KYORITSU 2033 Clamp Meter is designed for precise AC/DC current measurements in residential, commercial, and industrial settings. Compact and lightweight, it ensures safe, reliable readings for electricians, technicians, and maintenance professionals. Its ergonomic design provides comfort during prolonged use.
Overview
The KYORITSU 2033 delivers fast and reliable readings, featuring high accuracy, easy-to-read digital display, and robust safety compliance. Its ergonomic design ensures comfort during extended use.
Key Features:
- Small and Lightweight: Compact design for ease of handling and portability.
- AC/DC Current Measurement: Measures currents up to 300A with high precision.
- Auto-Ranging Function: Automatically adjusts to the optimal range for accuracy.
- Zero Adjustment Button: Allows quick and easy DC current zeroing.
- High Safety Standards: Complies with IEC 61010-1 CAT III 300V for secure operation.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| AC Current (ACA) | 40A / 300A | ±1%rdg ±4dgt [50/60Hz] (0 - 40A); ±2.5%rdg ±4dgt [20Hz - 1kHz] (0 - 40A); ±1.5%rdg ±4dgt [50/60Hz] (20 - 200A); ±2.5%rdg ±4dgt [20Hz - 1kHz] (20 - 200A); ±3.5%rdg [50/60Hz] (200 - 300A); ±4%rdg [20Hz - 1kHz] (200 - 300A) |
| DC Current (DCA) | 40A / 300A | ±1%rdg ±4dgt (0 - ±40A); ±1.5%rdg ±4dgt (±20 - ±200A); ±3%rdg (±200 - ±300A) |
| Frequency Response | DC, 20Hz - 1kHz | — |
| Conductor Size | Ø24mm max. | — |
General Specifications
| Feature | Details |
|---|---|
| Safety Standards | IEC 61010-1 CAT III 300V; IEC 61010-2-032 |
| Power Source | 2 × LR44 (1.5V) |
| Dimensions | 147 mm × 59 mm × 25 mm |
| Weight | Approx. 100g |
| Accessories Included | Carrying case (9090), 2 × LR44 batteries, instruction manual |
