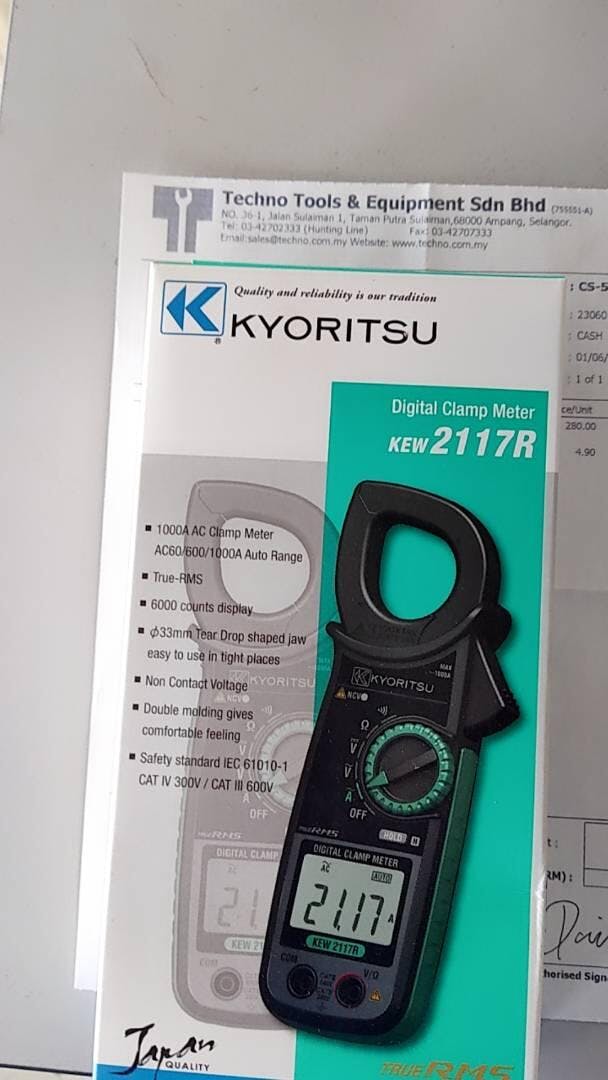

KYORITSU 2117R Digital AC Clamp Meter with True-RMS : The 1000A Gold Standard
Precision Amperage for the Modern Pro
The Kyoritsu 2117R is the go-to "workhorse" for electricians, HVAC engineers, and industrial maintenance teams. Built to handle high-demand environments, it allows you to measure up to 1000A AC safely without interrupting the circuit. Whether you are troubleshooting industrial motors or complex commercial panels, this True RMS meter ensures accuracy even in the presence of electronic noise and harmonics.
Top Irresistible Features
-
1000A True RMS Power: Get 100% accurate readings on non-sinusoidal loads like LED systems and motor inverters.
-
Integrated NCV Sensor: Built-in Non-Contact Voltage detection for instant safety checks before you touch any wire.
-
Slim Tear-Drop Jaws: 33mm ergonomic shape designed specifically to reach into tight, crowded cable bundles.
-
One-Handed Operation: Ultra-light, over-molded body provides a secure, comfortable grip for all-day field use.
-
Extreme Battery Life: Up to 170 hours of continuous use—nearly triple the industry standard.
Video:
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| AC Current (ACA) | 60.00A / 600.0A / 1000A (Auto-ranging) | ±1.5%rdg ±4dgt [45 - 65Hz]; ±2.0%rdg ±5dgt [40Hz - 1kHz] |
| AC Voltage (ACV) | 60.00V / 600.0V (Auto-ranging) | ±1.0%rdg ±2dgt [45 - 65Hz] (600V); ±1.5%rdg ±4dgt [40Hz - 1kHz] (60/600V) |
| DC Voltage (DCV) | 60.00V / 600.0V (Auto-ranging) | ±1.0%rdg ±3dgt (60V); ±1.2%rdg ±3dgt (600V) |
| Resistance (Ω) | 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ (Auto-ranging) | ±1.0%rdg ±5dgt (600Ω); ±2.0%rdg ±3dgt (6/60/600kΩ) |
| Continuity Buzzer | 600Ω | Buzzer sounds below 90Ω |
| Conductor Size | Ø33mm max. | — |
General Specifications
| Feature | Details |
|---|---|
| Applicable Standards | IEC 61010-1 CAT IV 300V / CAT III 600V, Pollution Degree 2, IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2 (EMC), IEC 60529 IP 40, EN 50581 (RoHS) |
| Power Source | 2 × R03 (AAA) (1.5V) |
| Continuous Measuring Time | Approx. 170 hours (NCV_LED off; auto power save after approx. 10 minutes) |
| Dimensions | 204 mm × 81 mm × 36 mm |
| Weight | Approx. 220g (including batteries) |
| Accessories Included | Test leads (7066A), carrying case (9079), 2 × R03 (AAA) batteries, instruction manual |
| Origin | Thailand |

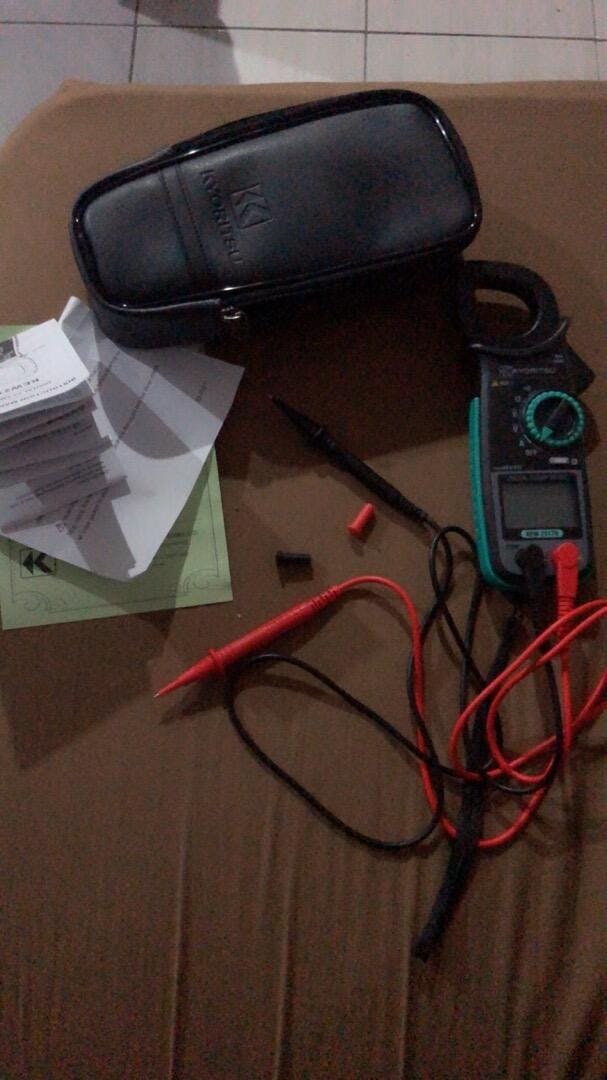

What’s Inside the Box?
-
Kyoritsu 2117R Digital Clamp Meter
-
7066A Professional Test Leads
-
9079 Heavy-Duty Carrying Case
-
2 x AAA Batteries (R03)
-
Comprehensive Instruction Manual
Why Choose Kyoritsu & This Model?
Kyoritsu is a world leader in Japanese testing technology. Users choose the 2117R because it is the "De Facto" standard for durability. While most clamp meters are bulky, this model combines a high 1000A capacity with a slim, ergonomic frame that is virtually indestructible in industrial settings.
Warranty & Support
1-Year Limited Warranty. Covers all manufacturing defects, electronic board failures, and internal calibration errors. However, it does not cover consumable leads, battery leakage, blown fuses, or physical damage from drops beyond rated limits.
