Mitutoyo 571-212-30 200mm Stainless Steel Imperial & Metric Depth Gauge | 1 Year Warranty
Tidak dapat memuatkan ketersediaan pengambilan

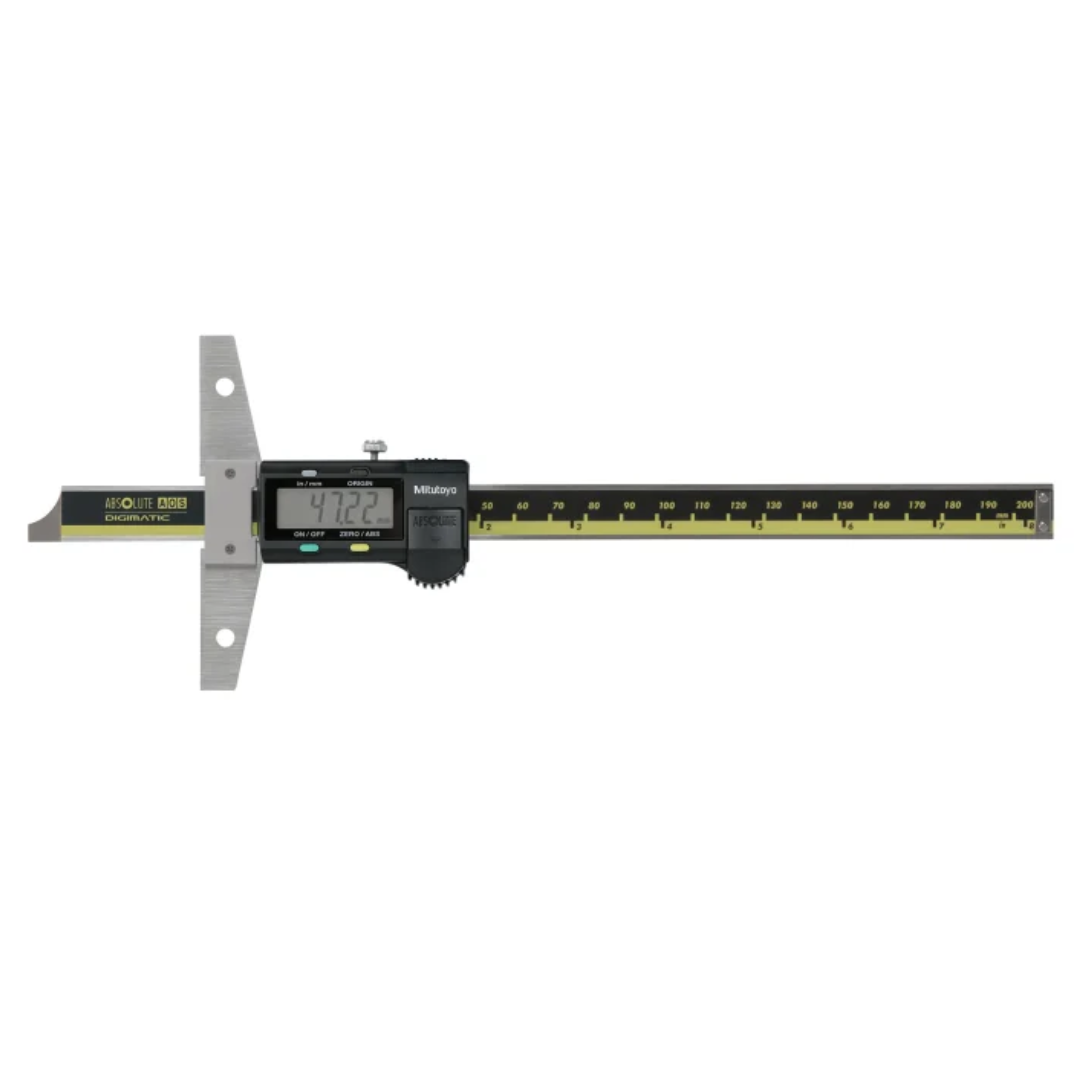

Mitutoyo 571-212-30 200mm Stainless Steel Imperial & Metric Digital Depth Gauge
The Mitutoyo 571-212-30 ABSOLUTE Digimatic Depth Gauge is a high-precision digital measuring instrument designed for accurate depth measurement of slots, grooves, recesses, holes, and stepped surfaces. Featuring Mitutoyo's advanced ABSOLUTE measuring technology, the gauge retains its original setting throughout battery life, eliminating the need for repeated zero-setting and ensuring reliable measurement results.
Constructed from hardened stainless steel with micro-lapped measuring surfaces, the 571-212-30 offers excellent durability, wear resistance, and long-term measurement accuracy in manufacturing, machining, quality control, engineering, and inspection environments. The large LCD display provides clear metric and imperial readings, while SPC data output allows seamless integration with digital data collection and quality management systems.
Ideal for precision workshops, machine shops, tool rooms, and industrial inspection applications, the Mitutoyo 571-212-30 delivers fast, repeatable depth measurements with professional-grade accuracy.
Features
- Mitutoyo ABSOLUTE Digimatic measuring system
- Measures depth of holes, grooves, slots, and recesses
- Dual reading capability in metric and imperial units
- Large easy-to-read LCD display
- Hardened stainless steel construction for durability
- Hardened and micro-lapped measuring faces for improved accuracy
- Origin position retained throughout battery life
- No need for repeated zero-setting at power-on
- Unlimited response speed eliminates overspeed errors
- SPC data output for digital measurement recording
- Automatic power on/off function
- Zero setting and origin setting functions
- Low battery warning indicator
- Mounting holes in the base for repeatable measurement setups
- Supplied in a protective storage case with SR44 battery included
Specifications
- Brand: Mitutoyo
- Model: 571-212-30
- Series: ABSOLUTE Digimatic Depth Gauge Series 571
- Measurement Range: 0-200 mm / 0-8 in.
- Resolution: 0.01 mm / 0.0005 in.
- Accuracy: ±0.001 in. (±0.02 mm equivalent)
- Display Type: Digital LCD
- Measurement System: ABSOLUTE Linear Encoder
- Material: Hardened Stainless Steel
- Base Length: 237 mm
- Base Size (W × T): 3.93 in. × 0.23 in. (approx. 100 × 6 mm)
- Mass: 212 g to 227 g (varies by source listing)
- Power Supply: 1 × SR44 Battery
- Battery Life: Approx. 20,000 hours / up to 5 years under normal use
- Data Output: SPC Output
-
Functions:
- Origin Set
- Zero Setting
- ABS/INC Measurement
- Inch/Metric Conversion
- Automatic Power On/Off
- Data Output
-
Alarm Functions:
- Low Battery Warning
- Counting Value Composition Error Alert
-
Included Accessories:
- SR44 Battery
- Protective Storage Case
