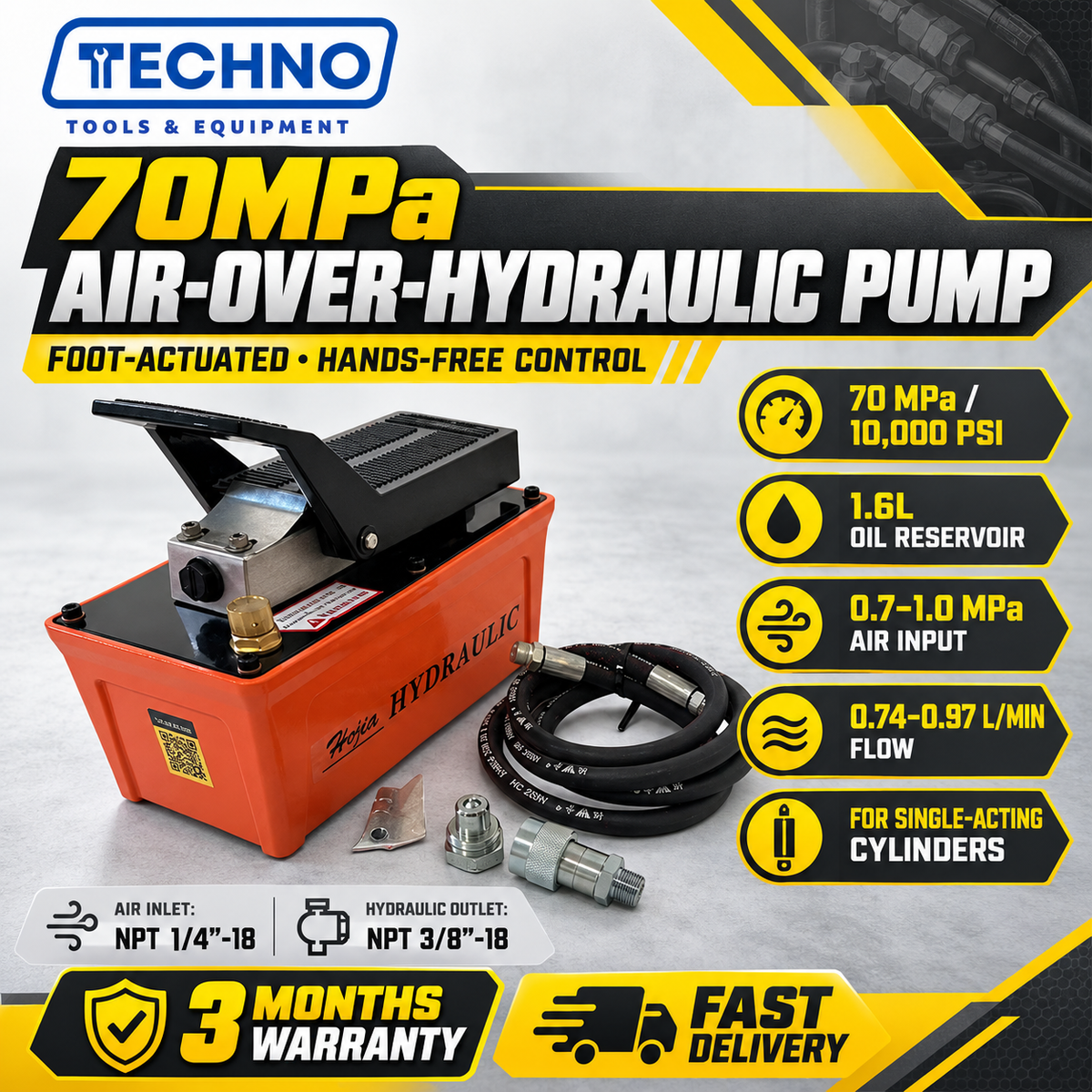

70MPa Foot-Actuated Pneumatic Air-Over-Hydraulic Pump

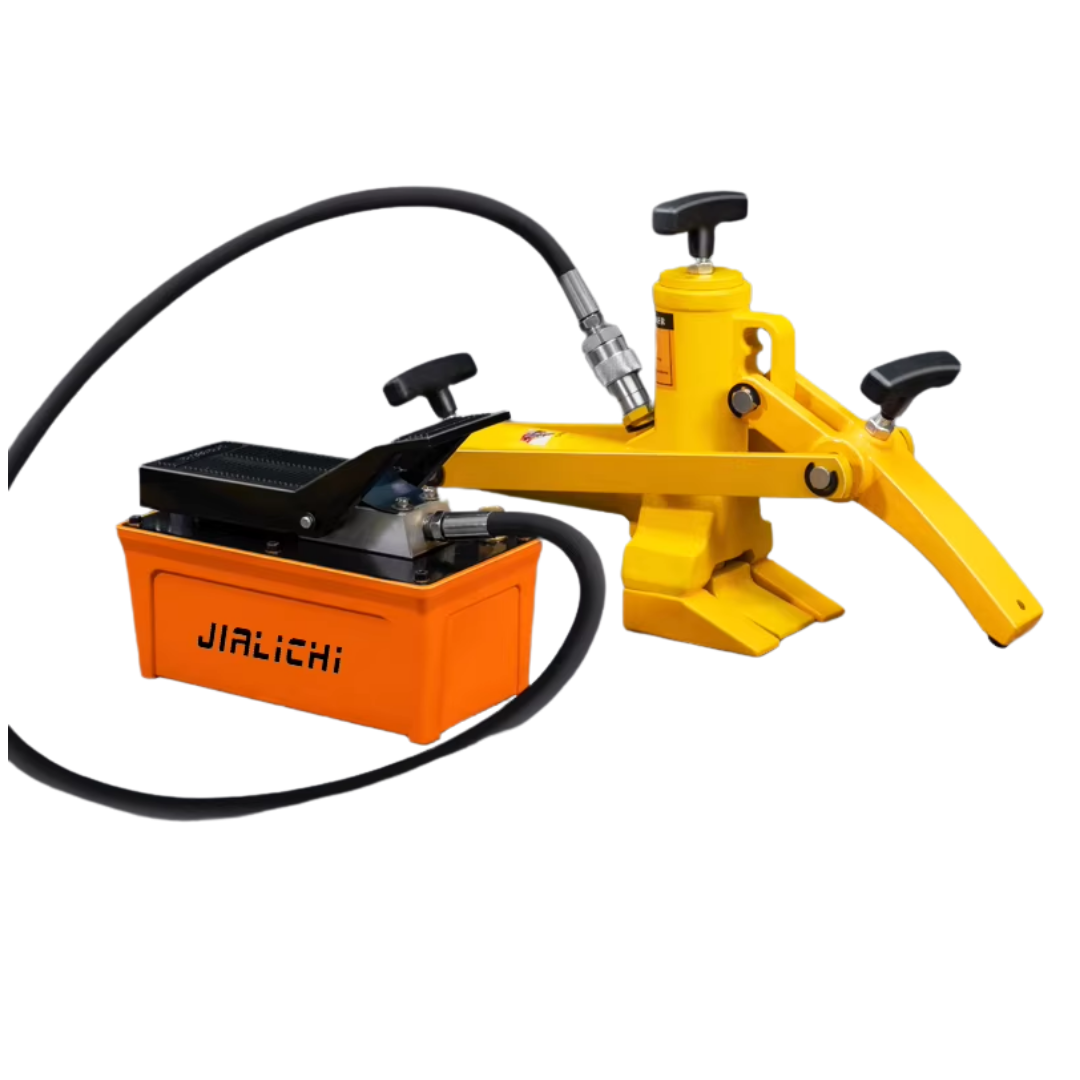

The Pneumatic Air-Over-Hydraulic Foot Pump is a compact, high-pressure power unit engineered to operate single-acting hydraulic rams, body shop frame repair equipment, hydraulic presses, pipe benders, and pullers. Driven by standard shop compressed air, this foot-actuated pump converts 0.7–1.0 MPa air pressure into an impressive 70 MPa (10,000 PSI) of hydraulic output force.

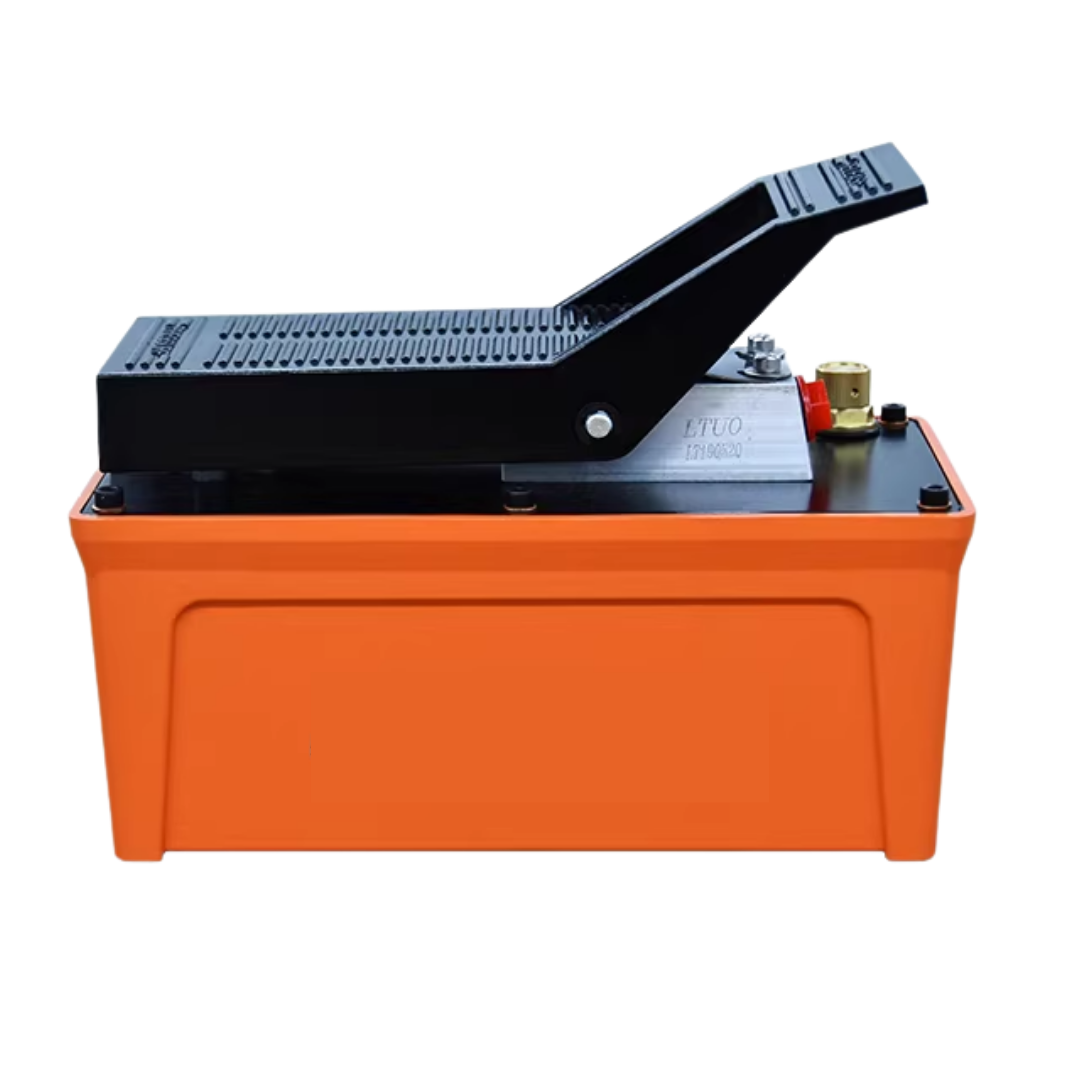

Featuring a heavy-duty 1.6-liter usable oil reservoir and an ergonomic two-stage treadle pedal, it enables hands-free operation—allowing technicians to pump, hold, or release pressure simply by stepping on the pedal. Built with a durable alloy reservoir casing and an internal pressure relief valve to protect system components from over-pressurization, it comes complete with a high-pressure hydraulic hose and quick-connect coupler for immediate installation.

Features

• Hands-Free Foot-Actuated Pedal: Treadle design lets you control hydraulic pumping, pressure holding, and load release with your foot, leaving both hands free to position workpieces or machinery.
• Extreme Power Output (70 MPa / 10,000 PSI): Converts regular shop compressed air into high-pressure hydraulic force suitable for heavy auto-body pulling and pressing tasks.
• 1.6 Liter Usable Oil Reservoir: Large oil capacity supports a wide variety of small-to-medium single-acting hydraulic cylinders and rams.
• Standard Industrial NPT Ports: Industry-standard NPT 1/4"-18 air inlet and NPT 3/8"-18 hydraulic outlet ensure leak-free connections with standard hoses and fittings.
• Internal Overload Safety Valve: Built-in relief valve automatically safeguards internal hydraulic components against excessive pressure overload.
• Rugged & Compact Construction: Built with an oil-resistant metal housing and reinforced pump core for long-lasting performance in automotive workshops.

Specifications

Driven Method: Pneumatic (Air-driven over hydraulic)
Rated Hydraulic Pressure: Up to 70 MPa (10,000 PSI / 700 bar)
Working Air Pressure Input: 0.7 - 1.0 MPa (7 - 10 bar / 100 - 145 PSI)
Usable Oil Reservoir Capacity: 1.6 Liters
Hydraulic Flow Rate: 0.74 - 0.97 L/min
Recommended Hydraulic Oil: No. 32 Anti-Wear Hydraulic Oil
Air Inlet Thread Size: NPT 1/4"-18
Oil Outlet Thread Size: NPT 3/8"-18
Cylinder Compatibility: Single-acting hydraulic rams and cylinders
Pump Body Dimensions: 255mm x 185mm x 135mm
Packaging Dimensions: 265mm x 145mm x 195mm
Weight: 8kg
