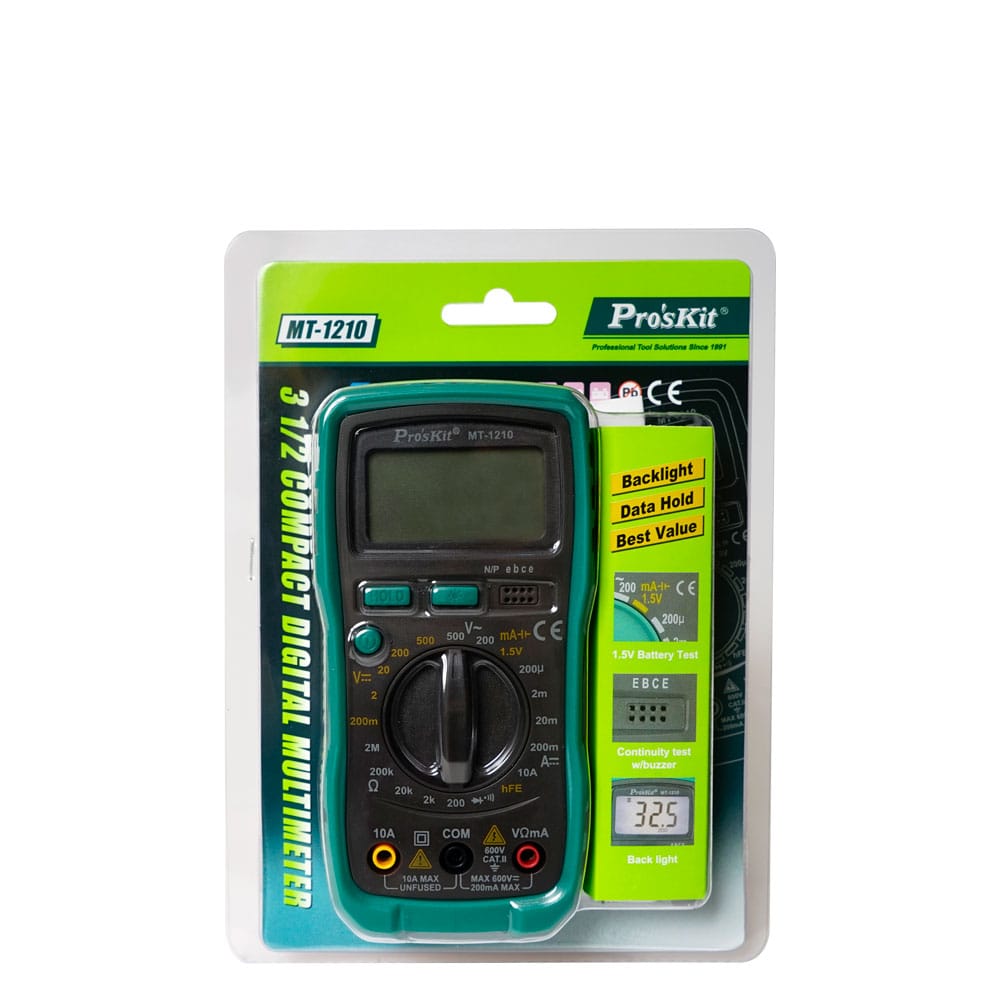

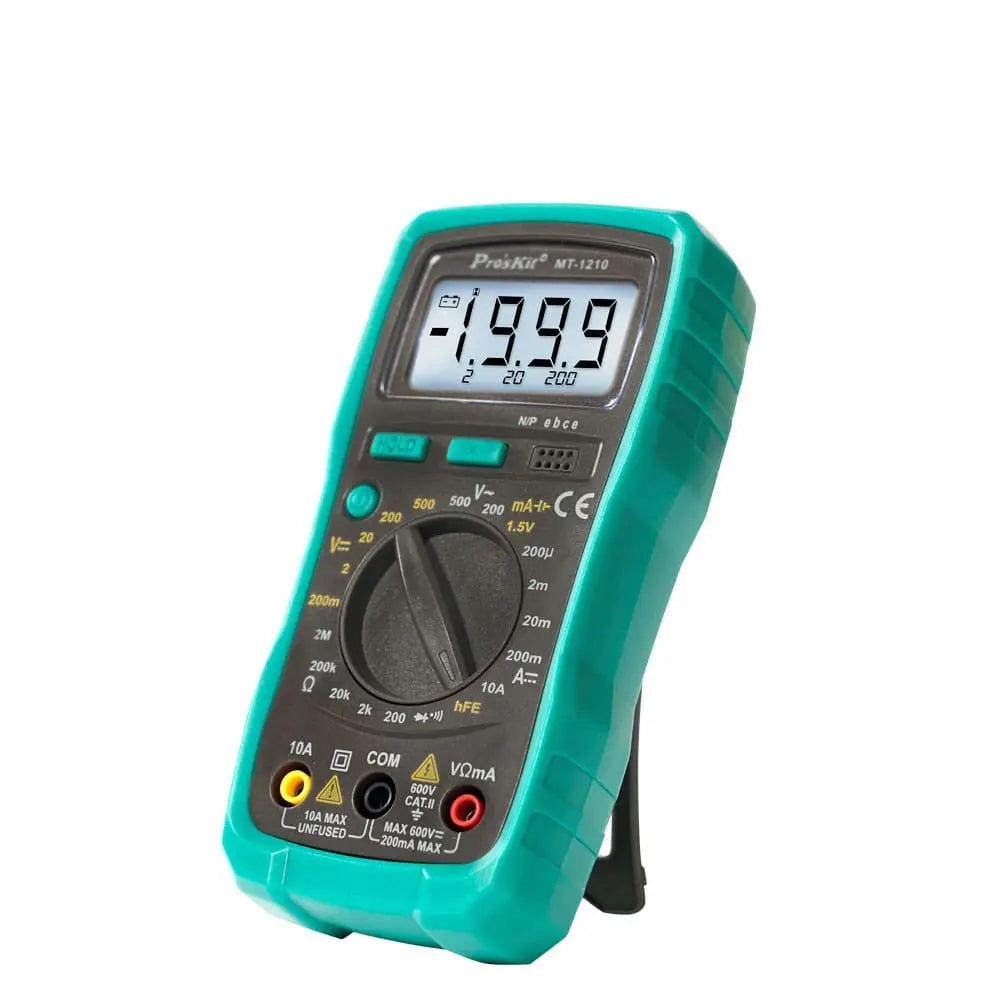

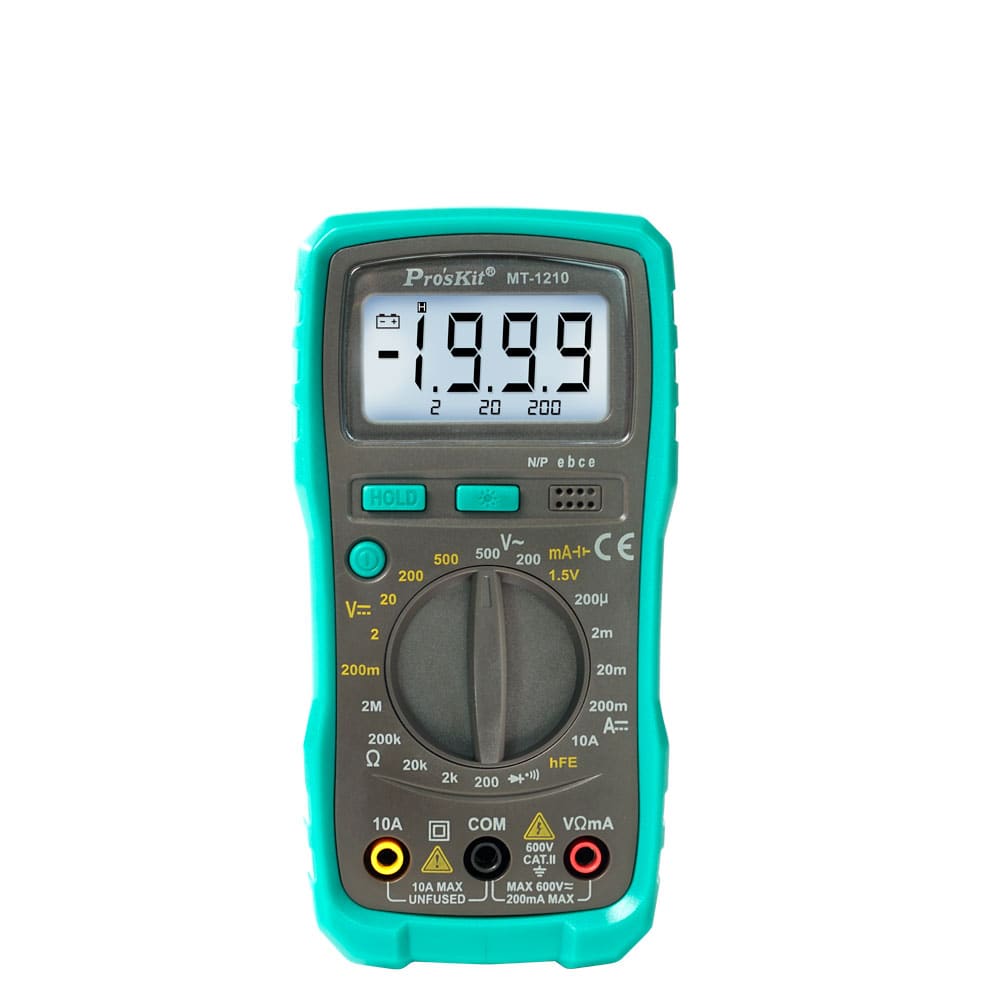

Pro'sKit MT-1210 Compact Digital Multimeter — Affordable, User-Friendly, Backlit Display
The Pro'sKit MT-1210 Compact Digital Multimeter is an excellent value-for-money entry-level multimeter, ideal for students, hobbyists and DIY users. With a large, easy-to-read display and built-in backlight, the MT-1210 makes everyday voltage, current and resistance measurement simple and accessible for users of all experience levels.
Key Specifications
| Specification | Details |
|---|---|
| Model | Pro'sKit MT-1210 |
| Display | 3 1/2 digits (1999 count) |
| Panel Size | 50 x 30mm |
| Backlight | Yes |
| Analog Bargraph | No |
| Ranging | Manual |
| Safety Standard | EN61010-1 CAT II / CAT III 600V |
| Battery | 9V (6F22) x 1 |
| Dimensions (D×W×H) | 144 x 70 x 32mm |
| Weight | 175g |
| Packing | Double blister |
Measurement Ranges & Accuracy
| Parameter | Range | Accuracy |
|---|---|---|
| DC Voltage | 200mV | ±(1.0%+2d) |
| 2/20/200V | ±(1.0%+2d) | |
| 500V | ±(1.2%+5d) | |
| AC Voltage | 200V | ±(2.5%+10d) |
| 500V | ±(2.5%+10d) | |
| DC Current | 200μA | ±(2.0%+5d) |
| 2mA/20mA/200mA | ±(2.0%+5d) | |
| 10A | ±(3.0%+5d) | |
| Resistance | 200Ω | ±(1.0%+5d) |
| 2K/20K/200KΩ | ±(1.0%+5d) | |
| 2MΩ | ±(1.5%+5d) |
Features & Benefits
-
Backlit Display for Low Light Use
Built-in backlight ensures clear, easy reading even in dim or poorly lit working environments. -
Large, Easy-to-Read Display
3 1/2 digit display panel with 1999 count provides clear, accurate readings at a glance. -
Continuity Test with Beeper
Audible beeper for continuity testing allows fast circuit checking without constantly watching the display. -
Diode & Transistor Test
Built-in diode and transistor test functions extend usability for basic electronics diagnostics and component checking. -
Low Battery Indication
Low battery warning indicator alerts users in advance, preventing inaccurate readings from a depleting battery. -
Compact & Lightweight Design
At only 175g and compact dimensions, the MT-1210 is easy to carry and store for both classroom and DIY use. -
Excellent Value for Money
Affordable entry-level multimeter offering reliable core measurement functions without unnecessary complexity.
Applications
- Student and educational electronics learning
- DIY home electrical and electronics projects
- Basic circuit troubleshooting and continuity checking
- General voltage, current and resistance measurement
- Hobbyist electronics repair and testing
Why Choose Pro'sKit MT-1210?
- Backlit display for visibility in low light conditions
- Affordable, excellent value-for-money multimeter
- User-friendly interface ideal for students and beginners
- Continuity, diode and transistor test functions included
- Compact and lightweight for easy portability
- Trusted Pro'sKit instrument quality
