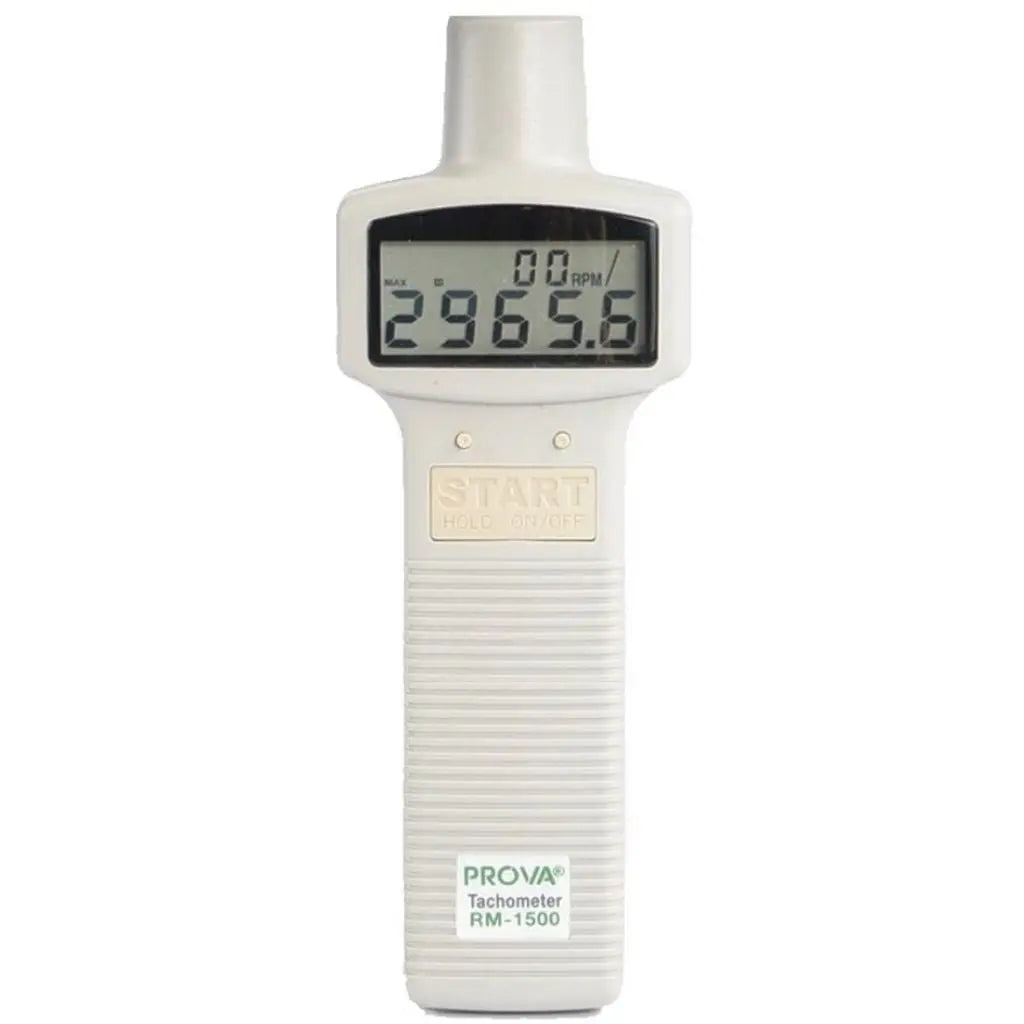

Prova RM-1500 Digital Tachometer — Non-Contact & Contact RPM | 10-99,999 RPM | CE Certified
The Prova RM-1500 Digital Tachometer is a professional-grade optical and contact tachometer capable of measuring rotational speed from 10.00 to 99,999 RPM in both non-contact and contact modes. Featuring a 5-digit LCD display, auto-range function, event counter, Max/Min/Hold and true average recording, the RM-1500 is a versatile and reliable RPM measurement tool for industrial, automotive and engineering applications.
Available in three purchasing options — Tachometer Only (RM-1500), Contact Adaptor Accessories Only (RM-1502), or the complete Tachometer + Contact Adaptor Bundle (RM-1500 + RM-1502).
What's Included per Option
| Option | Contents |
|---|---|
| RM-1500 (Tachometer Only) | RM-1500 Digital Tachometer, Carrying Case, Reflective Tape x1, Instruction Manual |

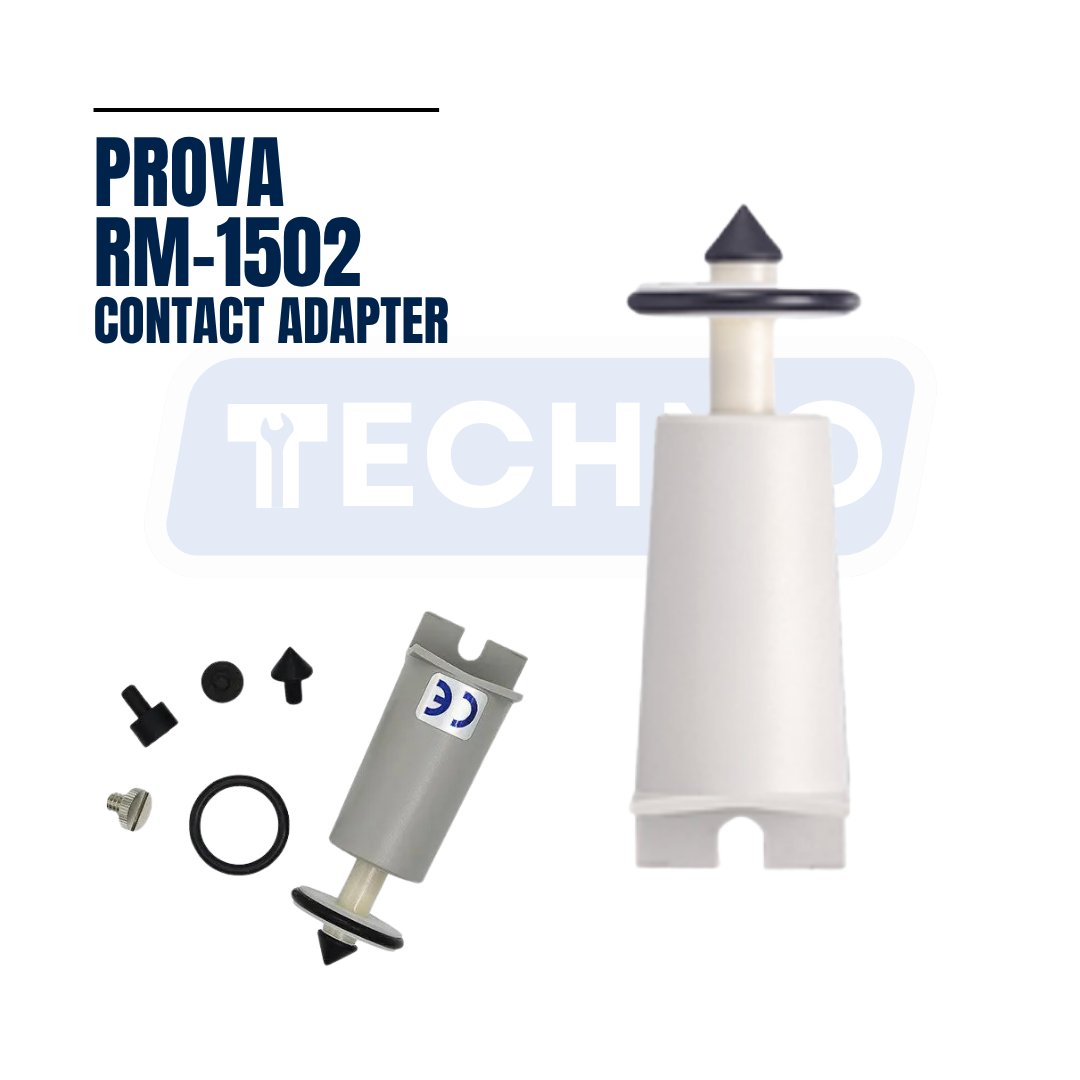

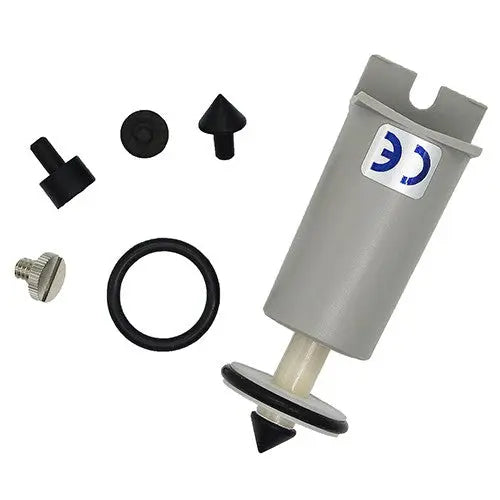

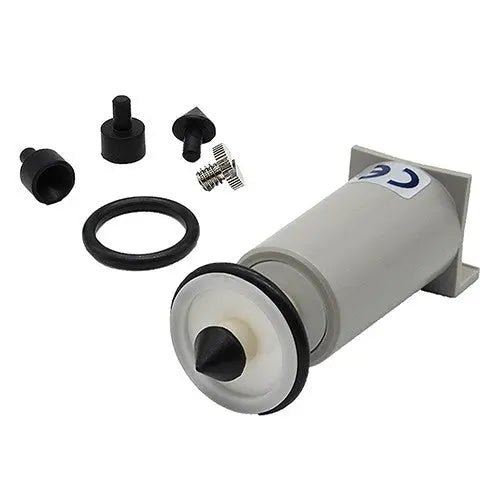

| RM-1502 (Contact Adaptor Only) | RM-1502 Contact Adaptor Accessories |

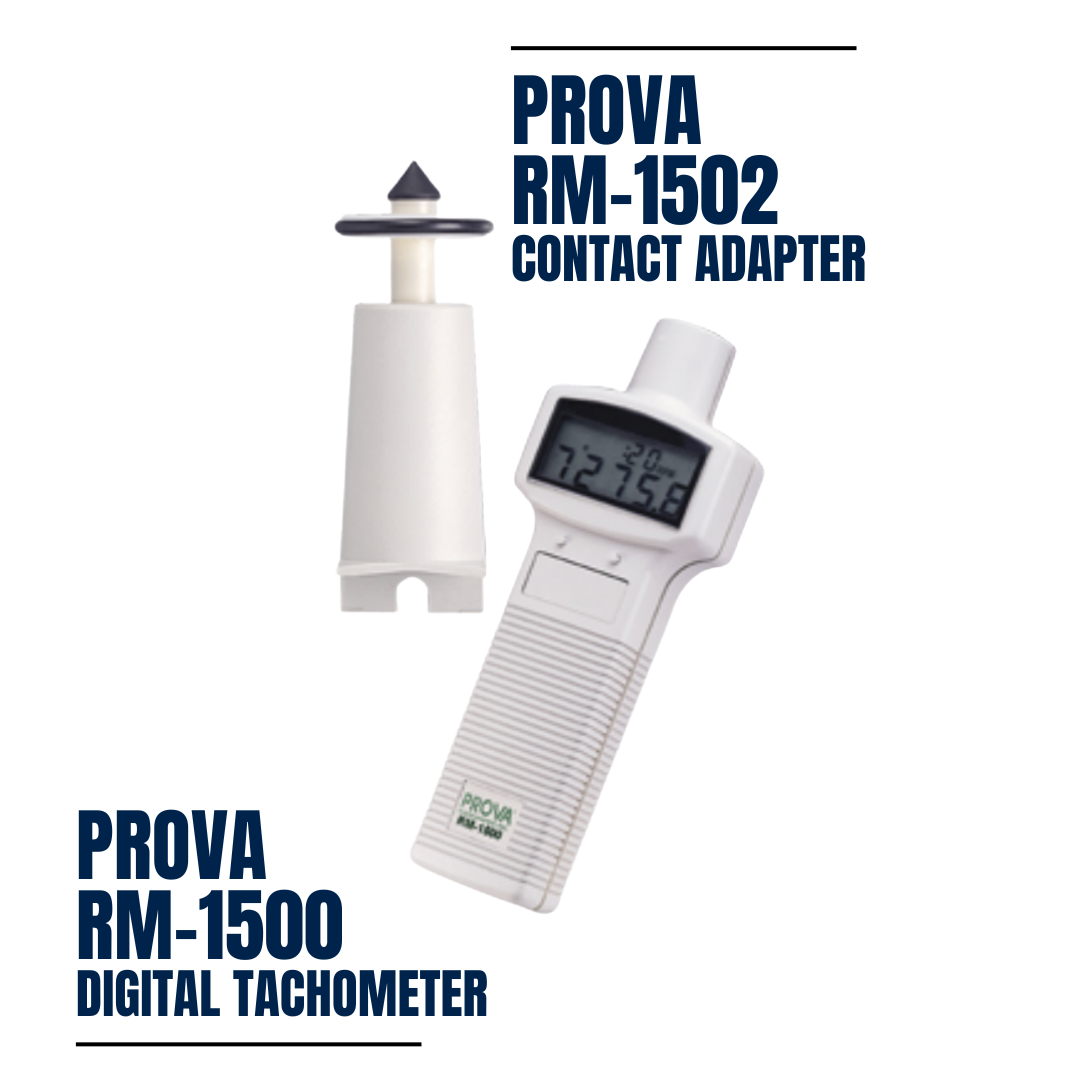

| RM-1500 + RM-1502 (Bundle) | RM-1500 Digital Tachometer + RM-1502 Contact Adaptor, Carrying Case, Reflective Tape x1, Instruction Manual |
Non-Contact (Optical) RPM Specifications — RM-1500
| Range | Resolution | Accuracy |
|---|---|---|
| 10.0 ~ 6,000.0 RPM | 0.1 RPM | ±0.01% ± 1 digit |
| 6,000.0 ~ 9,999.9 RPM | 0.1 RPM | ±0.02% ± 1 digit |
| 10,000 ~ 12,000 RPM | 1 RPM | ±0.02% ± 1 digit |
| 12,000 ~ 30,000 RPM | 1 RPM | ±0.05% ± 1 digit |
| Over 30,000 RPM | 1 RPM | ±0.1% ± 1 digit |
Full Measurement Range Specifications
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| Non-Contact RPM | 10.00 ~ 99,999 | 0.01 / 0.1 / 1 | 0.04% ± 2 dgts |
| Non-Contact RPS (Hz) | 0.2 ~ 2,000 | 0.001 / 0.01 / 0.1 | 0.04% ± 2 dgts |
| Contact RPM | 10.00 ~ 29,999 | 0.01 / 0.1 / 1 | 0.04% ± 2 dgts |
| Contact m/min | 1.000 ~ 2,999.9 | 0.001 / 0.01 / 0.1 | 0.04% ± 2 dgts |
| Contact ft/min | 1.000 ~ 2,999.9 | 0.001 / 0.01 / 0.1 | 0.04% ± 2 dgts |
| Contact yard/min | 2.00 ~ 3,000 | 0.01 / 0.1 / 1 | 0.04% ± 2 dgts |
| Contact RPS (Hz) | 0.2 ~ 500 | 0.001 / 0.01 / 0.1 | 0.04% ± 2 dgts |
General Specifications
| Specification | Details |
|---|---|
| Model | Prova RM-1500 |
| Brand | Prova (TECPEL) |
| Display | 5-digit LCD |
| Measuring Distance | 50mm to 300mm (non-contact) |
| Reflective Light | Red LED |
| Time Base | 4.000MHz Quartz Crystal |
| Battery | 4 x 1.5V AA (UM3) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions | 175mm(L) x 65mm(W) x 36mm(H) |
| Weight | 250g (including battery) |
| Certificate | CE Approved |
| Origin | Taiwan (TECPEL) |
Features & Benefits
-
Wide 10-99,999 RPM Non-Contact Range
Optical non-contact measurement from 10.00 to 99,999 RPM covers a broad range of rotating equipment from slow-moving machinery to high-speed motors. -
Optical & Contact Measurement in One
Supports both optical (non-contact) RPM measurement and contact RPM, linear velocity (m/min, ft/min, yard/min) measurement with the optional RM-1502 adaptor. -
5-Digit LCD Display with Auto Range
5-digit high-resolution LCD with auto-range function automatically selects the correct measurement range — simplifying operation across the full RPM spectrum. -
Event Counter
Built-in event counter (0 to 99,999) and elapsed time function support production counting and timing applications beyond standard RPM measurement. -
Max/Min/Hold & True Average
Records maximum, minimum, hold and true average values — providing comprehensive data capture for monitoring speed consistency and detecting anomalies. -
50-300mm Non-Contact Measuring Distance
Flexible non-contact measuring distance from 50mm to 300mm accommodates different equipment sizes and access constraints during measurement. -
RS-232 Interface (Optional RM-1501)
Optional RS-232 interface with software and cable (RM-1501) enables PC data logging and reporting for advanced measurement documentation. -
CE Safety Approved
Certified to CE safety standards, ensuring compliance with recognised international electrical safety and quality requirements.
Applications
- Motor and rotating equipment RPM verification
- Industrial machinery speed monitoring
- Automotive engine and fan speed testing
- HVAC fan and blower speed measurement
- Production line speed and event counting
- Linear velocity measurement (m/min, ft/min)
Why Choose Prova RM-1500?
- Wide 10 to 99,999 RPM non-contact measurement range
- Dual optical and contact measurement capability
- 5-digit LCD with auto range for easy operation
- Event counter and elapsed time for production use
- Max/Min/Hold and true average recording
- 50-300mm non-contact measurement distance
- Optional RS-232 interface for PC data logging
- CE certified — trusted TECPEL Taiwan quality
