FSH-14 14 Ton Hydraulic Flange Spreader Head 80mm Max Spread Wedge Separator Pipeline Maintenance Tool
Tidak dapat memuatkan ketersediaan pengambilan

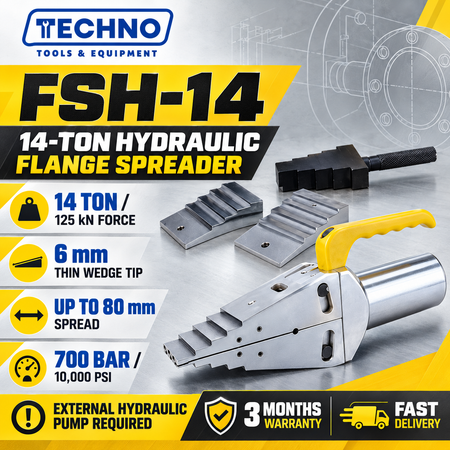

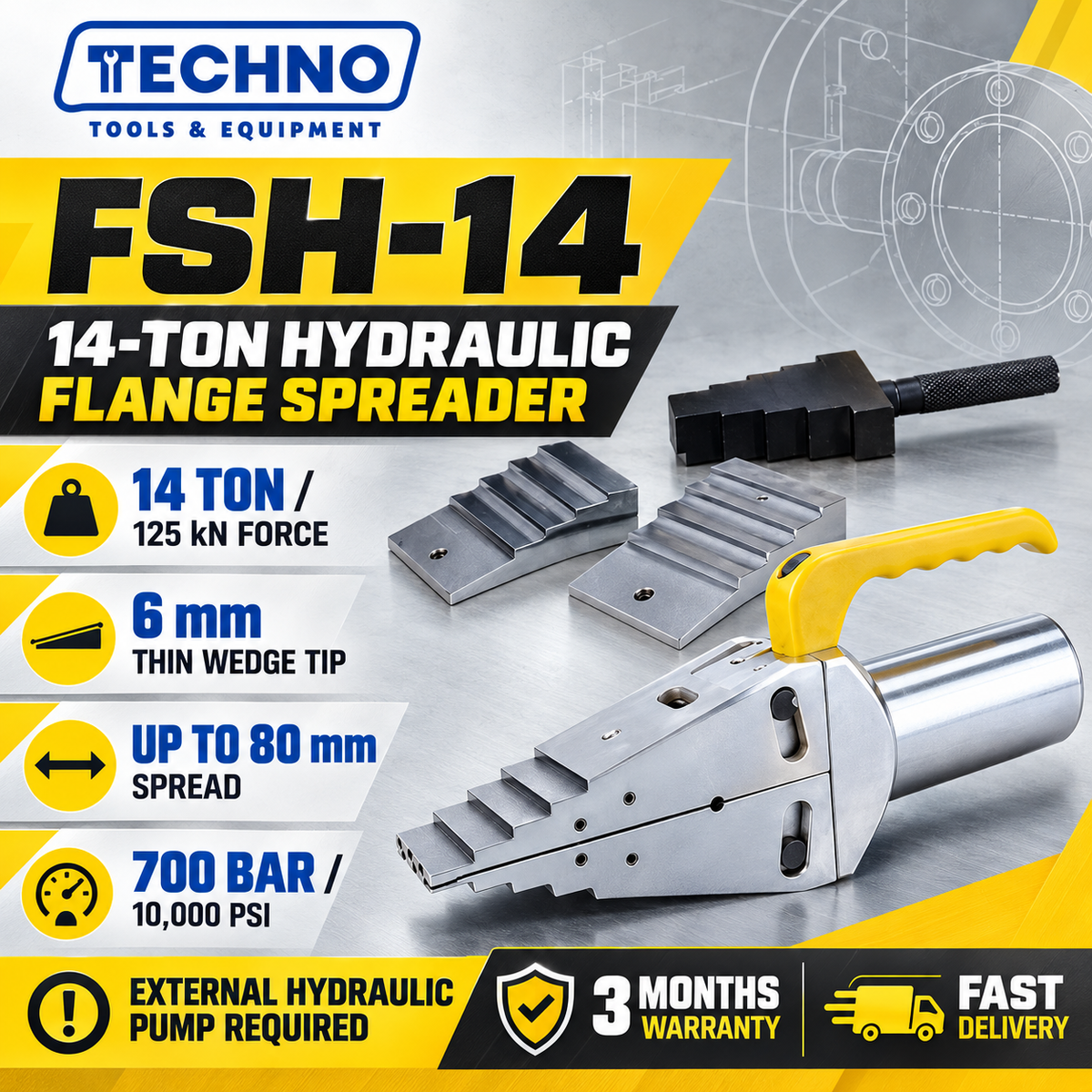

FSH-14 14-Ton Hydraulic Flange Spreader Head

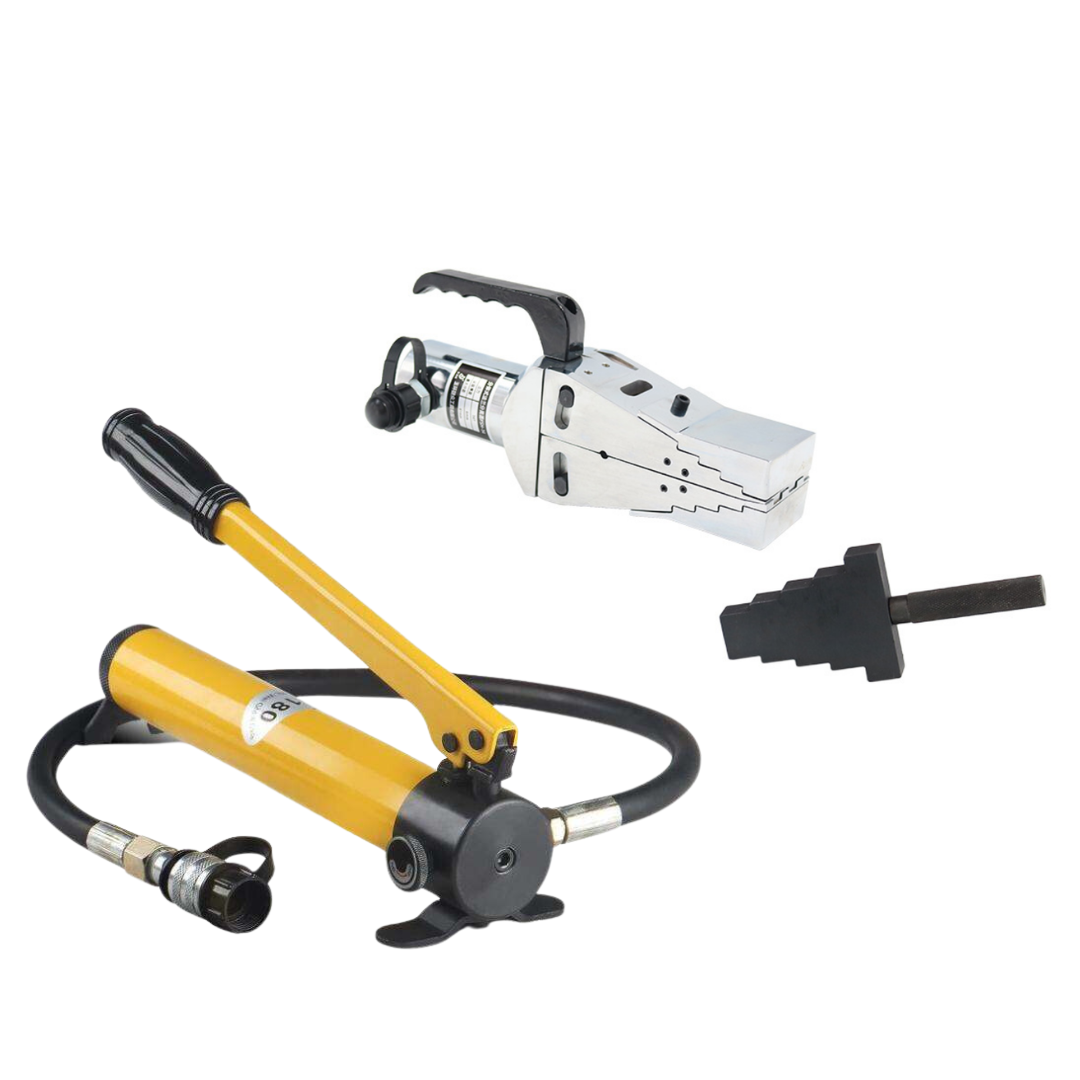

The FSH-14 is an industrial-grade hydraulic flange spreader head designed for safe, efficient, and damage-free separation of pipe flanges during gasket replacement, valve maintenance, and pipeline servicing. Engineered to generate up to 14 tons (125kN) of spreading force, it operates as a split-type head powered by an external 70MPa hydraulic hand pump (such as CP-180 or CP-700).
Featuring an ultra-thin 6mm wedge tip, the FSH-14 easily inserts into tight flange access gaps. Its stepped wedge design delivers a smooth, friction-free parallel expansion up to a maximum spreading distance of 80mm, preventing flange face damage and spreading arm binding. Complete with a comfortable top carrying handle and a compact storage case, it is an essential tool for oil, gas, chemical, and industrial piping applications.
Please note: this is a generic OEM flange spreader head built to the common FSH-14 pattern and compatible with standard 700 bar hydraulic pumps and couplers. It is not an Enerpac-branded product.
Key Features
- 14-Ton High Spreading Capacity: Delivers 125kN of hydraulic spreading force to separate stubborn, high-pressure pipe flanges with ease.
- Ultra-Thin 6mm Wedge Tip Clearance: Fits into extremely tight flange gaps and narrow access points for rapid initial setup.
- Interlocking Stepped Expansion Jaws: Stepped wedge surface provides incremental spreading capability and prevents slipping or flange damage under full load.
- Split Hydraulic Head Design: Connects via standard hydraulic quick couplers to external hand or foot pumps for remote, safe operation.
- Ergonomic Carrying Handle: Built-in top handle provides balanced portability and precise positioning during pipeline setup.
Technical Specifications
| Model number | FSH-14 |
|---|---|
| Tool type | Split Hydraulic Flange Spreader Head |
| Max spreading force | 14 tons (125kN) |
| Max spreading range | 80mm (3.15 inches) |
| Tip insertion thickness | 6mm (0.24 inches) |
| Required oil capacity | 78cc |
| Max operating hydraulic pressure | 70MPa (700 bar / 10,000 psi) |
| Body material | High-strength alloy steel |
| Compatible power source | External single-acting hydraulic pump (e.g. CP-180 / CP-700) |
| Net weight | ~7.1 to 8.0kg (spreader head only) |
| Packaging inclusions | FSH-14 Spreader Head, Safety Blocks, Metal/Plastic Storage Box |
Hydraulic flange spreader comparison: FSH-14 vs FS-14 vs YQ-30
| Model | FSH-14 (this model) | FS-14 | YQ-30 |
|---|---|---|---|
| Spreading force | 14T (125kN) | 14T | 8T |
| Max spread | 80mm | 81mm | 30mm top / 51mm terminal |
| Tip thickness | 6mm | 6mm | – |
| Pump | External 700 bar pump (e.g. CP-700), sold separately | Integrated hand pump | Built-in hand pump |
| Weight | ~7.1–8.0kg (head only) | 10.6kg | 4.5kg |
| Best for | Sites that already have a hydraulic pump | Self-contained 14T spreading | Light, portable 8T jobs |
Works with
- CP-700 Hydraulic Hand Pump, 900cc – 700 bar pump named on this page to power the FSH-14
| Warranty period | 3 Months Warranty |
|---|---|
| Coverage | Manufacturing defects in materials and workmanship for 3 months from the date of purchase, covering the pump, body, cylinder and operating mechanism. |
| Not covered | Seals and O-rings worn through normal use; oil leakage caused by overloading or contaminated oil; dies, blades, cutting heads and other wear parts; hoses and couplers; normal wear and tear; cosmetic damage; damage from drops, impact, misuse or use beyond the rated capacity. |
| Warranty void if | The product has been modified, opened or repaired by unauthorised persons, used beyond its rated tonnage or pressure, or proof of purchase cannot be shown. |
Contact Techno Tools via WhatsApp or sales@techno.com.my with your invoice number and photos or a video of the defect. Return the unit complete with all accessories. Defective units or parts will be repaired or replaced after inspection.
