ROTHENBERGER R170063 ROAIRVAC 6.0 Vacuum Pump – 6CFM Two-Stage Pump
Helpful Documents
- Product Brochure Muat turun
Tidak dapat memuatkan ketersediaan pengambilan

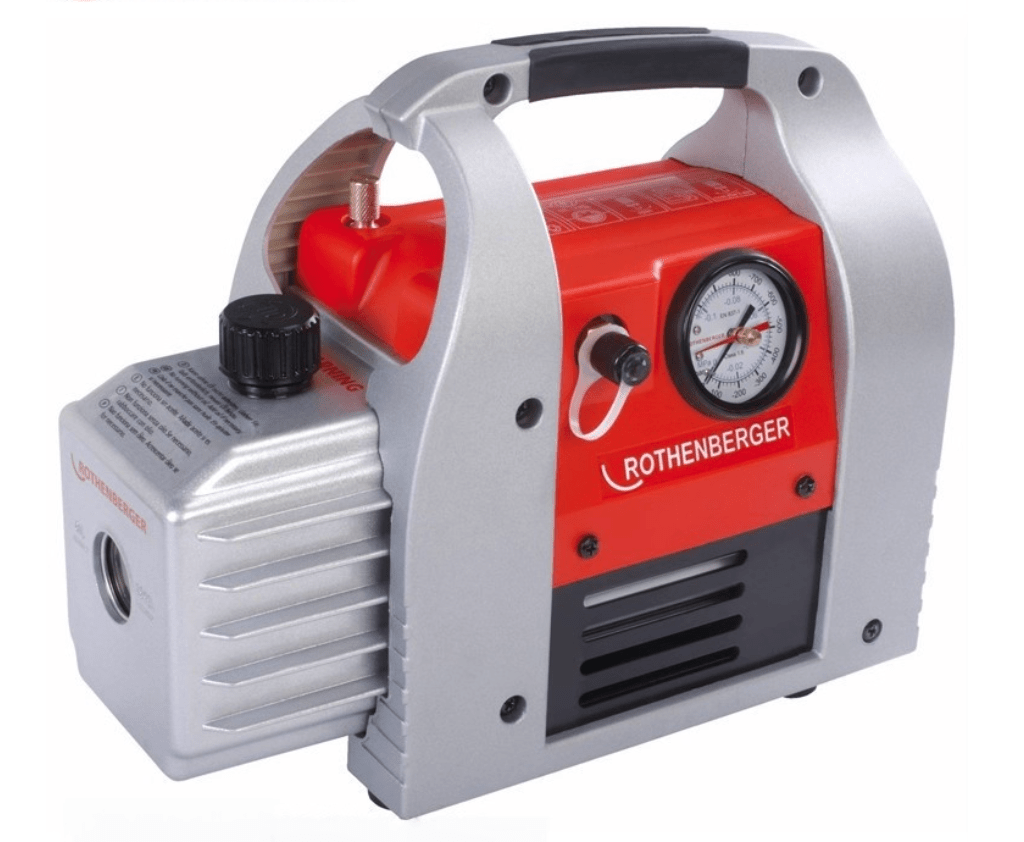

ROTHENBERGER R170063 ROAIRVAC 6.0 Vacuum Pump — Product Overview
The ROTHENBERGER R170063 ROAIRVAC 6.0 Vacuum Pump is a heavy-duty two-stage rotary vane pump engineered for fast, reliable evacuation of refrigeration and air-conditioning systems. Designed for professional HVAC technicians, this ROAIRVAC 6.0 delivers a powerful 6.0 CFM (255 l/min) extraction rate, ensuring deep vacuum performance down to 25 microns (0.034 mbar).
Built with a durable cast housing, integrated vacuum gauge, and gas ballast valve, the ROTHENBERGER R170063 offers precise vacuum monitoring, extended service life, and dependable field performance.

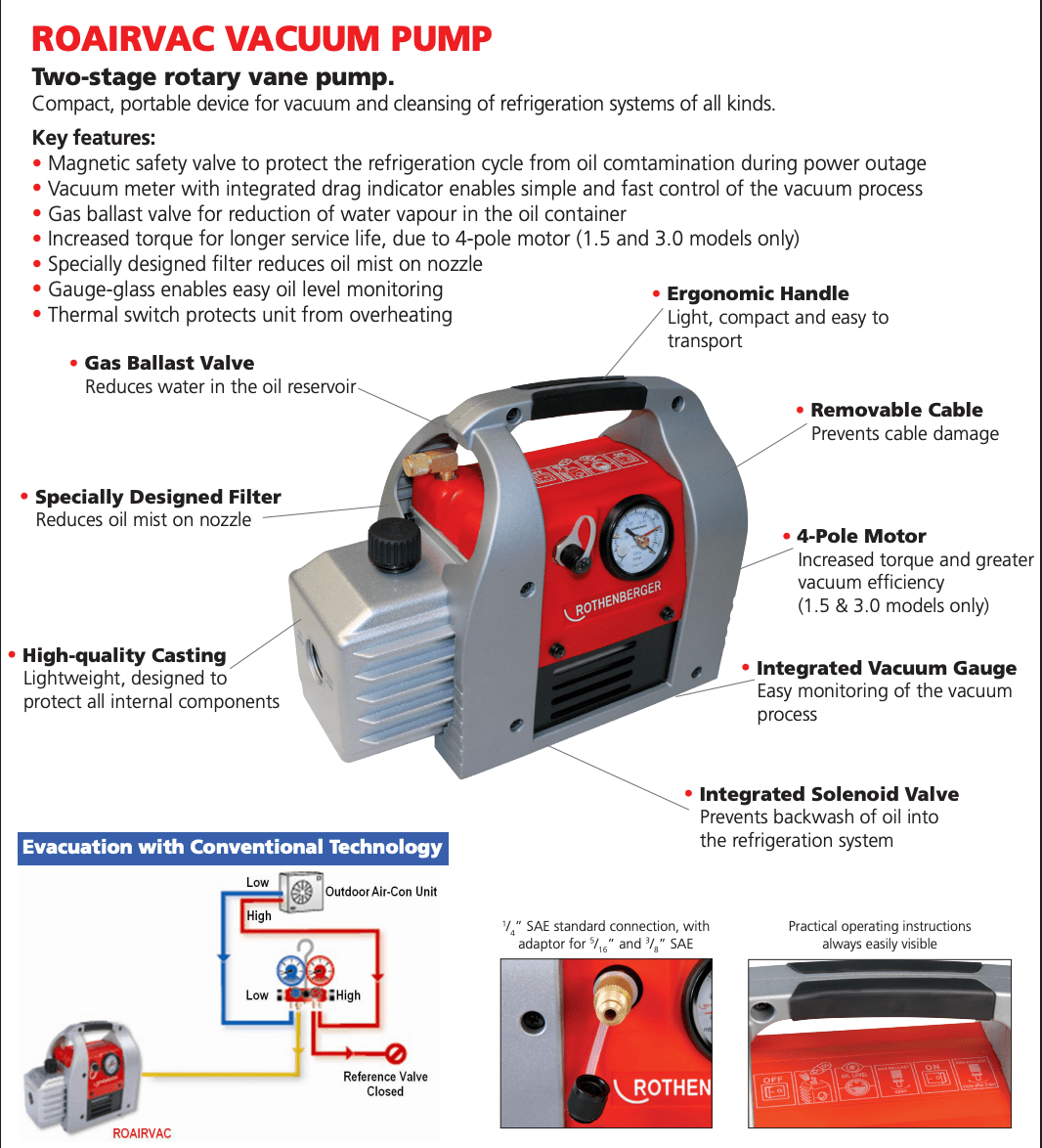

Key Features of the ROTHENBERGER R170063 Vacuum Pump
- 6.0 CFM / 170 l/min extraction capacity
- Two-stage rotary vane system for deep vacuum performance
- 1/2HP (370W) motor for efficient, stable suction
- Final vacuum: 25 microns (0.034 mbar)
- 230V / 50–60Hz dual-frequency compatibility
- ¼″ SAE connection plus 5/16″ & 3/8″ SAE adaptors
- Thermal protection switch to prevent overheating
- Gas ballast valve minimises moisture content
- Oil level observation window for easy monitoring
- Lightweight 11.3 kg for mobile service work
Specification Table
| Specification | ROAIRVAC 6.0 (R170063) |
|---|---|
| Pump Rating | 6.0 CFM / 170 l/min |
| Pump Stages | 2 |
| Final Vacuum | 25 micron / 0.034 mbar |
| Motor Power | 1/2HP (375W) |
| Voltage | 230V |
| Frequency | 50–60 Hz |
| Poles | 2 |
| Connection | ¼″ SAE |
| With Adaptors | 5/16″ & 3/8″ SAE |
| Oil Capacity | 330 ml |
| Weight | 11.5 kg |
| Pressure Gauge | 50 mm |
| Design Type | Two-stage rotary vane |

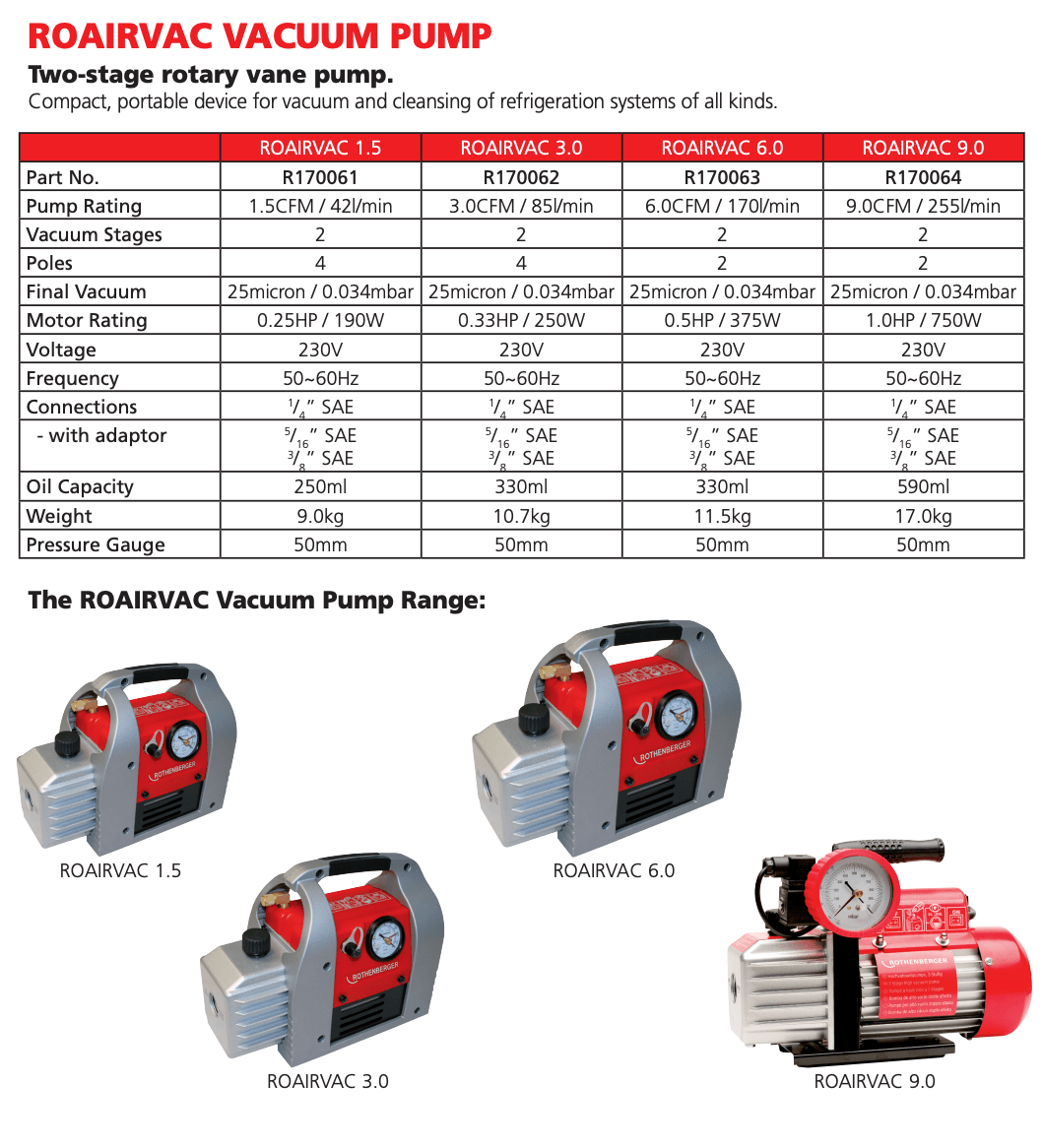

Available Options (ROAIRVAC Range)
| Model | CFM Rating | Part Number |
|---|---|---|
| ROAIRVAC 1.5 | 1.5 CFM | R170061 |
| ROAIRVAC 3.0 | 3.0 CFM | R170062 |
| ROAIRVAC 6.0 | 6.0 CFM | R170063 |
| ROAIRVAC 9.0 | 9.0 CFM | R170064 |
Package Content
- ROAIRVAC 6.0 Vacuum Pump (R170063)
- Integrated vacuum gauge
- Power cable
- ¼″ SAE connection
- Adaptors for 5/16″ & 3/8″ SAE
- User manual
- Original Rothenberger packaging
Warranty Term
ROTHENBERGER ROAIRVAC pumps come with a standard 1-year manufacturer warranty, covering manufacturing defects and motor performance under normal professional use.
Why Choose ROTHENBERGER?
ROTHENBERGER tools are trusted internationally for HVAC, refrigeration, and plumbing applications. The ROTHENBERGER R170063 delivers strong airflow, deep vacuum capability, and long-lasting build quality, making it a preferred choice for technicians who need reliability during daily service jobs. With durable construction and precise performance, this pump ensures consistent evacuation results and professional-grade efficiency.
