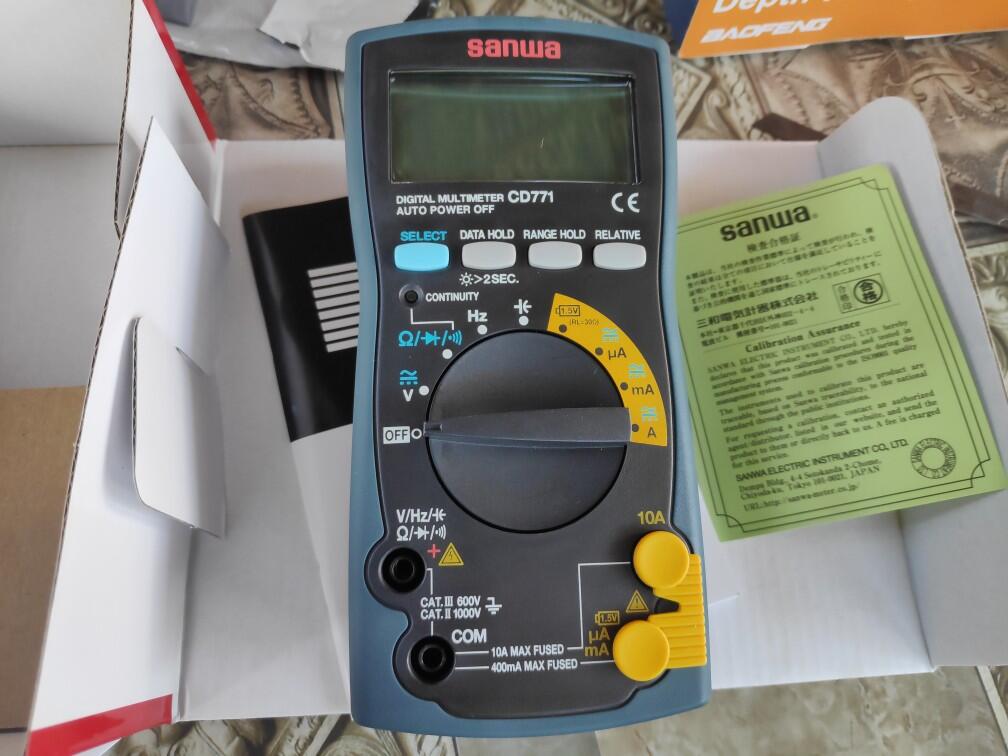

Sanwa CD771 Digital Multimeter
Product Overview:
The Sanwa CD771 Digital Multimeter offers precise and reliable measurements, making it an essential tool for professional and hobbyist applications alike. With a large, backlit LCD and advanced features such as continuity buzzer with LED, 1.5V battery check function, and auto power off, it combines functionality with user-friendly design. Built with thermoplastic elastomer for enhanced durability, this multimeter withstands the rigors of demanding environments.
With its safety ratings of IEC61010 CAT III 600V and CAT II 1000V, the CD771 ensures reliable operation in various conditions while maintaining user safety.
Key Features:
- Backlit LCD for easy readability in low-light conditions.
- Continuity buzzer with LED for intuitive feedback.
- 1.5V battery check function for quick diagnostics.
- High resistance to drop shock with thermoplastic elastomer casing.
- Large breaking capacity fuse (30kA) for enhanced safety.
Specifications:
Accuracy Specifications:
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| Voltage DC | 400m/4/40/400/1000V | 0.1mV | ±(0.5% + 2) |
| Voltage AC | 4/40/400/1000V | 0.001V | ±(1.2% + 7) |
| Current DC | 400μ/4000μ/40m/400m/4/10A | 0.1μA | ±(1.4% + 3) |
| Current AC | 400μ/4000μ/40m/400m/4/10A | 0.1μA | ±(1.8% + 5) |
| Resistance | 400/4k/40k/400k/4M/40MΩ | 0.1Ω | ±(1.2% + 5) |
| Capacitance | 50n/500n/5μ/50μ/100μF | 0.01nF | ±(5% + 10) |
| Frequency | 5/50/500/5k/50k/100kHz | 0.001Hz | ±(0.3% + 3) |
General Specifications:
| Parameter | Details |
|---|---|
| Operating temperature | -10°C to +50°C |
| Storage temperature | -30°C to +60°C |
| Safety compliance | IEC61010 CAT III 600V / CAT II 1000V |
| Size | 166 x 82 x 44 mm |
| Weight | 360 g |
| Battery | R6Px2 |
| Battery life | Approx. 400 hours (DCV range, manganese battery) |
Origin:
Made in China
| Warranty period | 1 Year Warranty |
|---|---|
| Coverage | Free repair or replacement for defects in material and workmanship arising during normal use within 1 year from the date of purchase. |
| Not covered | Fuses, batteries, test leads and accessories; damage from accident, dropping, overload, misuse, or use outside the instrument's rated specifications. |
| Warranty void if | The instrument has been opened, repaired or modified by a party not authorised by Sanwa or its Malaysian distributor. |
