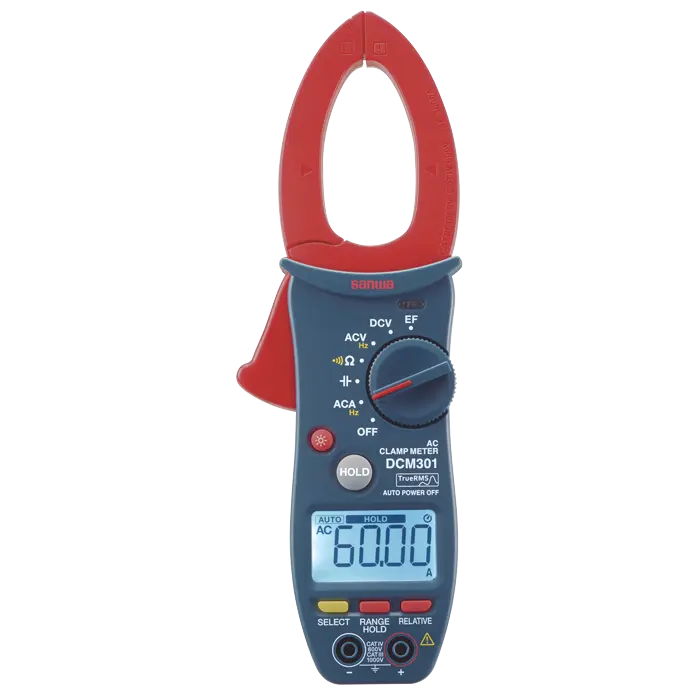

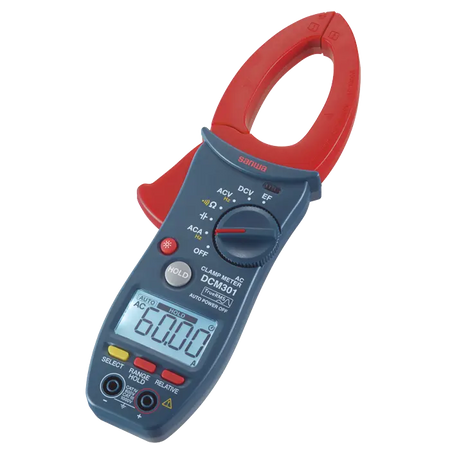

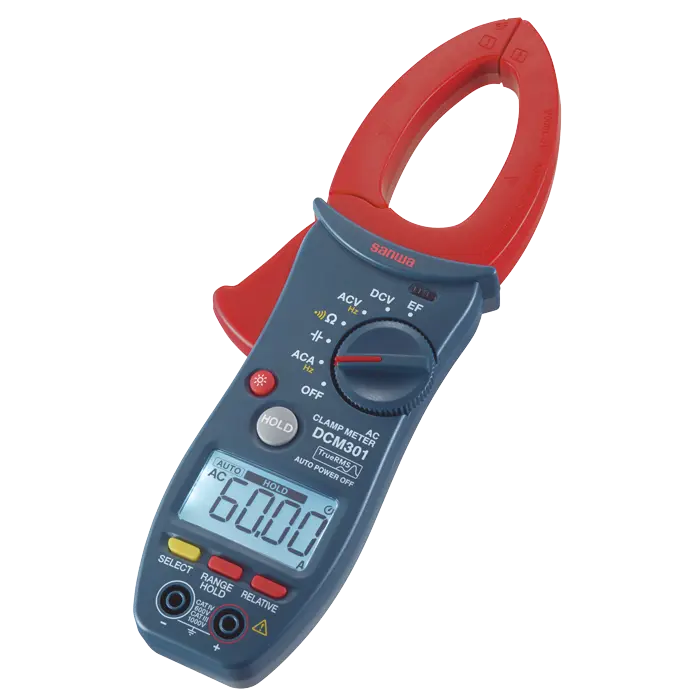

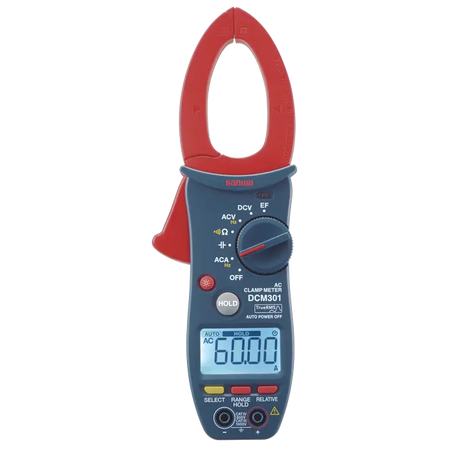

SANWA DCM301 AC True RMS Clamp Meter

Overview Summary of SANWA DCM301

The SANWA DCM301 is a high-performance True RMS clamp meter designed for professionals who require accuracy and ease of use in challenging environments. Its uniquely shaped current transformer (CT) is specifically engineered to clamp cables easily even in crowded electrical panels. Equipped with a built-in Electric Field (EF) sensor for non-contact voltage detection and an integrated LED light, this meter ensures safety and visibility during every measurement. Rated at CAT IV 600V and CAT III 1000V, it provides the rugged protection needed for industrial electrical testing.

Key Features

• True RMS Accuracy: Provides precise measurements of AC current and voltage, even on non-linear signals.

• Slim CT Design: The specialized jaw shape allows for effortless clamping in tight or congested wiring spaces.
• Non-Contact Voltage Detection (EF): Detects AC voltages of approximately 90V or more with an audible buzzer and visual LED flickering.
• Integrated LED Worklight: Illuminates the measurement target for safer operation in dark enclosures.
• Ergonomic Data Hold: Features a large, easy-to-press HOLD button to freeze readings for easy recording.
• Comprehensive Testing: Measures AC/DC Voltage, Resistance, Frequency, Capacitance, and Continuity in one compact unit.

Technical Specifications

Hardware Details

• Safety Standard: IEC61010 CAT IV 600V / CAT III 1000V.

• Clamp Diameter: Φ34mm.

• Sampling Rate: Approx. 3 times/sec.

• Battery Life: Approx. 200 hours (Powered by 3x LR03 batteries).

• Size/Mass: H252 × W85 × D40mm / Approx. 360g.


Warranty Term

The SANWA DCM301 includes a 1-year limited manufacturer warranty covering defects in materials and workmanship from the date of purchase. This warranty excludes consumable items such as batteries and damage resulting from misuse, such as exceeding the rated CAT IV 600V / CAT III 1000V safety standards or maximum measurement limits. To maintain coverage, the device must be used within its specified frequency bandwidth and conductor size limits as defined by the technical manual.

Why Choose the SANWA DCM301?

The SANWA DCM301 stands out for its high-voltage safety ratings and user-centric design. By combining a traditional clamp meter with an electric field detector (EF function), it allows technicians to verify live lines before clamping, adding an extra layer of safety. Its 6000-count display and high-capacity 1000A measurement capability make it a versatile tool for both commercial HVAC and heavy industrial electrical maintenance.
