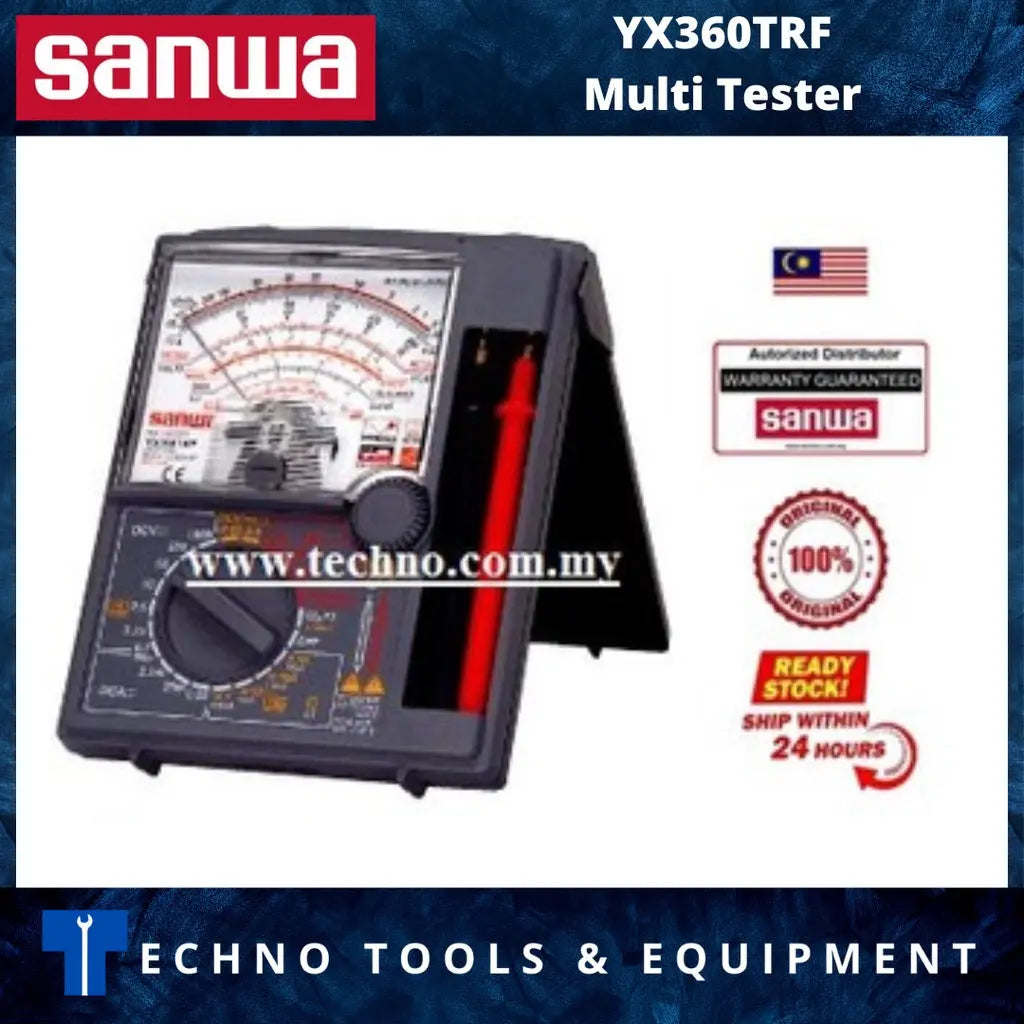

Sanwa YX360TRF Analogue Multimeter
The Sanwa YX360TRF Analogue Multimeter is a trusted classic analogue tester, widely used by electricians, technicians and electronics hobbyists for reliable voltage, current, resistance and component testing. Built with a precision taut-band meter movement, the YX360TRF delivers stable, accurate readings even in demanding field and workshop conditions.

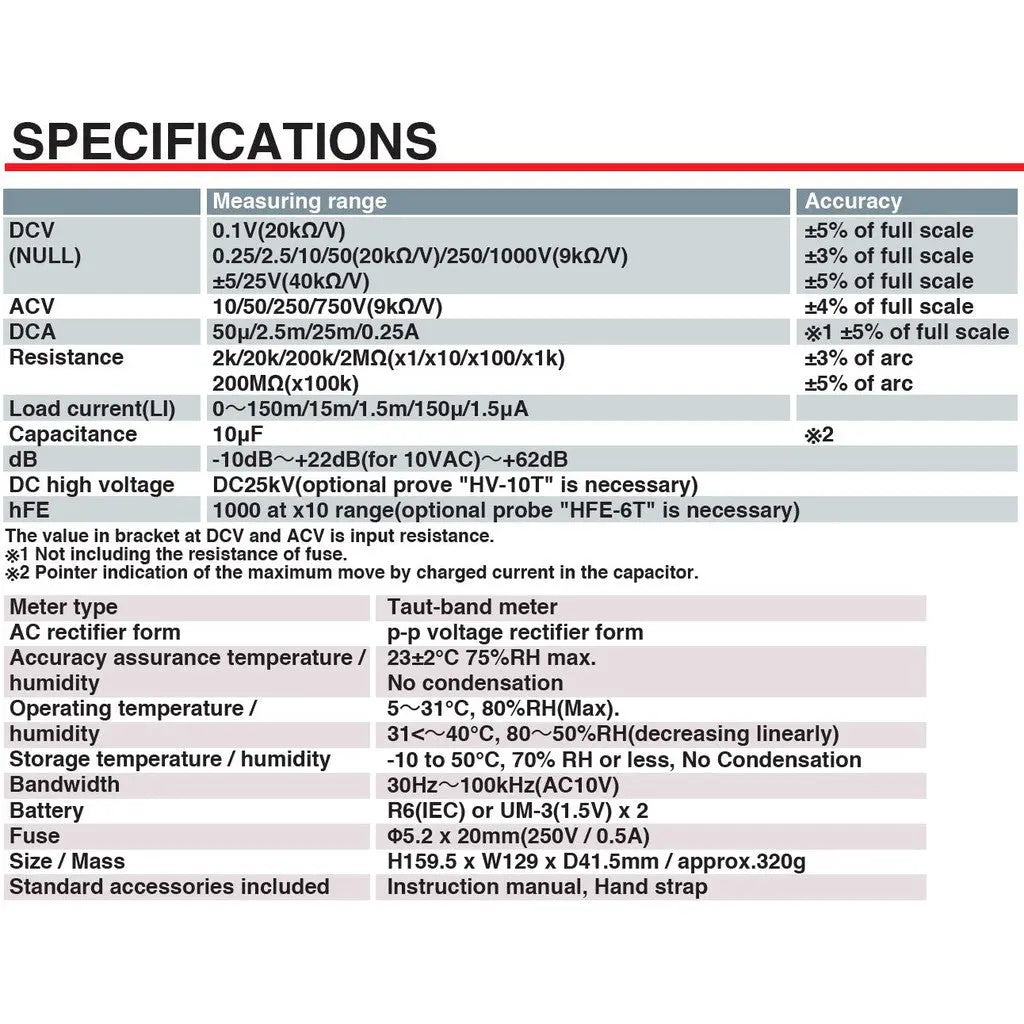

Specifications
| Measurement | Range | Accuracy |
|---|---|---|
| DCV (NULL) | 0.1V (20kΩ/V) | ±5% of full scale |
| 0.25/2.5/10/50 (20kΩ/V) / 250/1000V (9kΩ/V) | ±3% of full scale | |
| ±5/25V (40kΩ/V) | ±5% of full scale | |
| ACV | 10/50/250/750V (9kΩ/V) | ±4% of full scale |
| DCA | 50μ/2.5m/25m/0.25A | ±3% of full scale* |
| Resistance | 2k/20k/200k/2MΩ (x1/x10/x100/x1k) | ±3% of arc |
| 200MΩ (x100k) | ±5% of arc | |
| Load Current (LI) | 0~150m/15m/1.5m/150μ/1.5μA | — |
| Capacitance | 10μF | — |
| dB | -10dB ~ +22dB (for 10VAC) ~ +62dB | — |
| DC High Voltage | DC25kV (requires optional HV-10T probe) | — |
| hFE | 1000 at x10 range (requires optional HFE-6T probe) | — |
General Characteristics

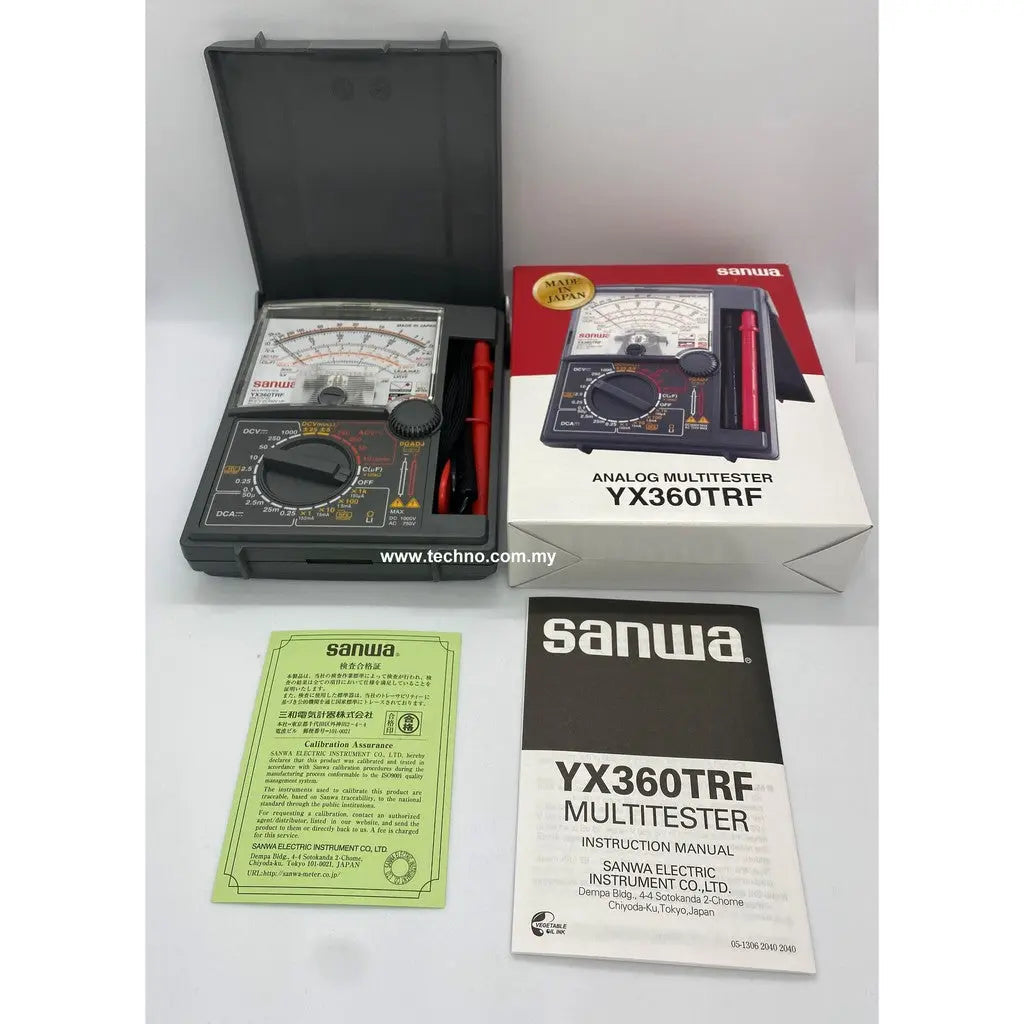

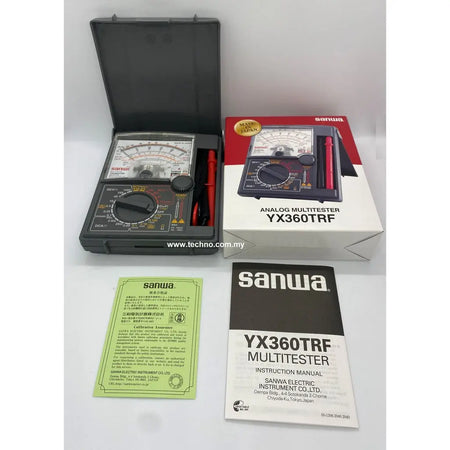

| Specification | Details |
|---|---|
| Meter Type | Taut-band meter |
| AC Rectifier Form | p-p voltage rectifier form |
| Withstand Voltage | 6kV AC (1 min) between input terminals and case |
| Overload Protection | Each range protected for 5 seconds at up to 230V AC |
| Accuracy Assurance Temp/Humidity | 23±2°C, 75%RH max, no condensation |
| Operating Temp/Humidity | 5~31°C, 80%RH max / 31~40°C, 80~50%RH (decreasing linearly) |
| Operating Environment | Indoor use, altitude up to 2000m, pollution degree 2 |
| Storage Temp/Humidity | -10 to 50°C, 70%RH or less, no condensation |
| Bandwidth | 30Hz ~ 100kHz (AC10V) |
| Battery | R6 (IEC) or UM-3 (1.5V) x 2 |
| Fuse | Φ5.2 × 20mm, F500mA/250V (fast-acting) |
| Size | 159.5 × 129 × 41.5mm (H × W × D) |
| Weight | Approx. 320g |
| Standard Accessories | Instruction manual, hand strap |
| Optional Accessories | HV-10T high-voltage probe, HFE-6T hFE probe |
Features & Benefits
-
Taut-Band Meter Movement
Precision taut-band design provides smooth, accurate needle movement with minimal friction — delivering reliable readings test after test. -
Wide Measurement Range
Comprehensive DCV, ACV, DCA, resistance, capacitance and dB measurement covers a broad range of electrical and electronic testing needs in one tool. -
hFE Transistor Testing
Built-in hFE function (with optional HFE-6T probe) allows transistor gain testing — a valuable feature for electronics repair and component checking. -
DC High Voltage Capability
Supports DC25kV measurement with optional HV-10T probe — suitable for specialised high-voltage testing applications. -
Decibel (dB) Measurement
Integrated dB scale from -10dB to +62dB supports audio and signal level testing applications. -
Compact & Lightweight
At only 320g and compact dimensions, the YX360TRF is easy to carry and use in the field or workshop.
Applications
- Electrical installation and maintenance testing
- Electronics repair and component diagnostics
- Audio and signal level (dB) measurement
- Educational and laboratory use
- General DIY electrical troubleshooting
Sanwa YX360TRF vs YX361TR
| Feature | YX360TRF (this model) | YX361TR |
|---|---|---|
| AC voltage (max.) | 750V | 1000V |
| Resistance (max.) | 200MΩ (×100k) | 20MΩ |
| Capacitance range | 10μF | – |
| LED continuity check | – | Yes |
| Output terminal (series capacitor) | – | Yes |
| Optional probes | HV-10T (DC 25kV), HFE-6T (hFE) | HFE-6T (hFE) |
| Best for | Electronics repair and component checks, with optional high-voltage and hFE probes | Electrical work up to 1000V AC with quick LED continuity checks |
Why Choose Sanwa YX360TRF?
- Trusted classic analogue multimeter design
- Precision taut-band meter movement
- Wide voltage, current and resistance ranges
- Built-in hFE transistor and dB testing
- Compact, lightweight and easy to carry
- Reliable Sanwa instrument quality
| Warranty period | 1 Year Warranty |
|---|---|
| Coverage | Free repair or replacement for defects in material and workmanship arising during normal use within 1 year from the date of purchase. |
| Not covered | Fuses, batteries, test leads and accessories; damage from accident, dropping, overload, misuse, or use outside the instrument's rated specifications. |
| Warranty void if | The instrument has been opened, repaired or modified by a party not authorised by Sanwa or its Malaysian distributor. |
