SATA 03005 Mini Digital Multimeter - Auto Range CAT IV
Product Overview

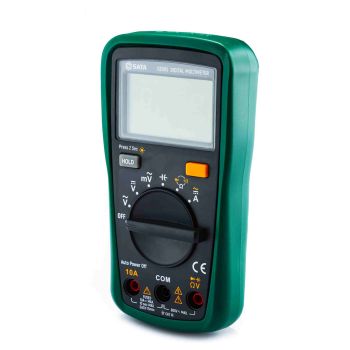

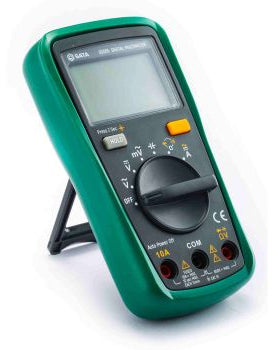

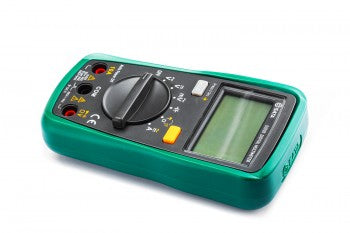

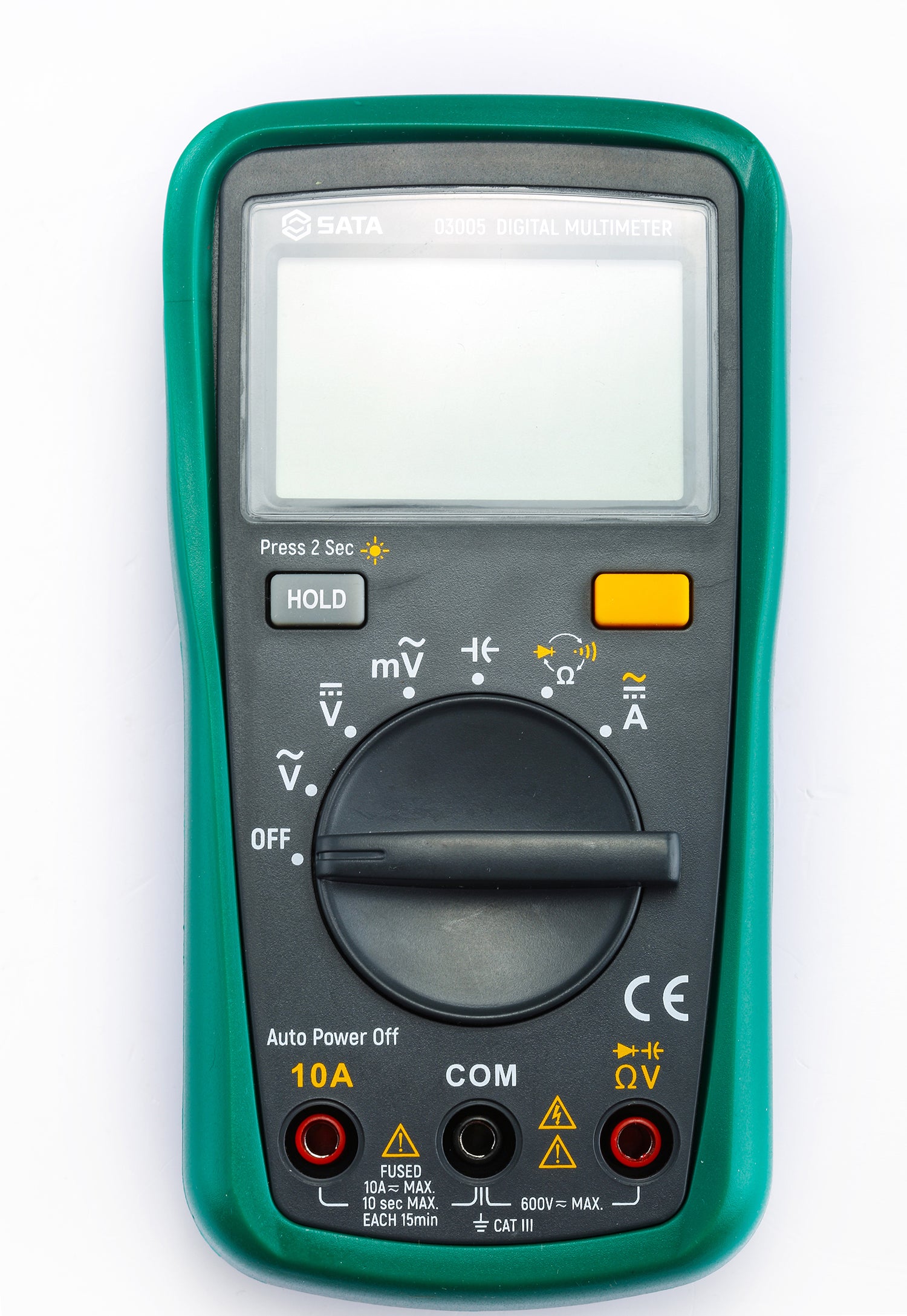

The SATA 03005 Mini Digital Multimeter is a compact, high-performance testing tool designed for electricians, technicians, and DIY enthusiasts who need fast, accurate readings on the go. With auto-ranging capability, low power consumption, and full-range overload protection, this multimeter handles DC/AC voltage, DC/AC current, resistance, capacitance, continuity, and diode testing all in one lightweight, easy-to-carry unit. Its CAT IV 600V safety rating makes it suitable for a wide range of electrical measurement tasks, from household circuits to more demanding field work.
Key Features
- Auto-ranging function for fast, hassle-free measurements
- High performance with low power consumption
- Measures DC/AC voltage, DC/AC current, resistance, and capacitance
- Continuity test, diode test, and data storage functions built in
- Backlit display for clear readings in low-light conditions
- Automatic power-off to conserve battery life
- Full-range overload protection for safer everyday use
- CAT IV 600V safety rating for reliable, industry-grade protection
- Compact and lightweight, ideal for on-site or field use
Specifications
| Specification | Detail |
|---|---|
| Model | 03005 |
| Safety Level | CAT IV 600V |
| Maximum Measured Value | 3999 |
| Range Mode | Automatic |
| DC Voltage Range ± Accuracy | 4V ±(0.5%+5) / 40V ±(0.5%+5) / 400V ±(0.5%+5) / 600V ±(1.0%+5) |
| AC Voltage Range ± Accuracy | 400mV ±(1.0%+5) / 4V ±(0.8%+5) / 40V ±(1.0%+5) / 400V ±(1.0%+5) / 600V ±(1.0%+5) |
| DC Current Range ± Accuracy | 4A ±(1.0%+7) / 10A ±(1.5%+7) |
| AC Current Range ± Accuracy | 4A ±(1.5%+10) / 10A ±(2.5%+10) |
| Resistance Range ± Accuracy | 400Ω ±(1.0%+5) / 4KΩ ±(0.5%+5) / 40KΩ ±(0.5%+5) / 400KΩ ±(0.5%+5) / 4MΩ ±(1.5%+5) / 40MΩ ±(3.0%+10) |
| Capacitance Range ± Accuracy | 51.2nF ±(3.5%+20) / 51.2nF ±(2.5%+5) / 5.12µF ±(5.0%+5) / 51.2µF ±(5.0%+5) / 100µF ±(5.0%+5) |
| Data Storage | Yes |
| Backlight | Yes |
| Automatic Power Off | Yes |
| Power Supply | 2 x 1.5V AAA batteries |
| Size | 150 x 78 x 38 mm |
| Weight |
245g (including battery and carrying case) |
Available Options
- Power Supply: 2 x 1.5V AAA batteries (standard)
- Includes carrying case
Package Contents
- 1 x SATA 03005 Mini Digital Multimeter
- 1 x Carrying Case
- 2 x 1.5V AAA Batteries
- 1 x Set of Test Leads
- 1 x Instruction Manual
Warranty
Covered under SATA's standard manufacturer warranty against defects in materials and workmanship under normal use. (Confirm exact warranty duration and terms with your local SATA distributor before publishing, as this can vary by region.)
Why Choose SATA?
SATA is a trusted name in professional-grade tools, known for combining durability, precision engineering, and everyday usability. The 03005 reflects this standard with its accurate auto-ranging measurements, robust CAT IV safety rating, and compact reliable design — giving electricians and technicians a dependable tool they can trust for quick, accurate readings on any job.
