SATA 03015/03017 Digital Multimeter CAT III 1000V
Product Overview

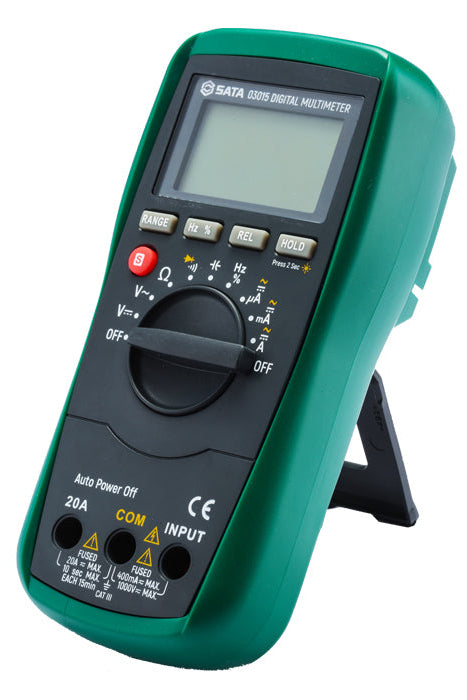

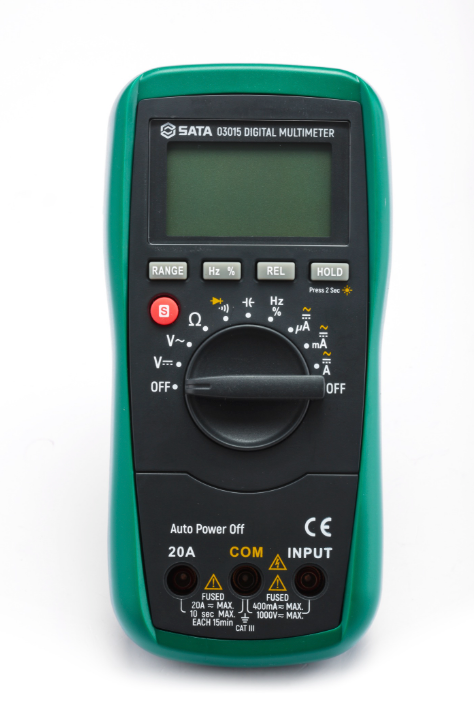

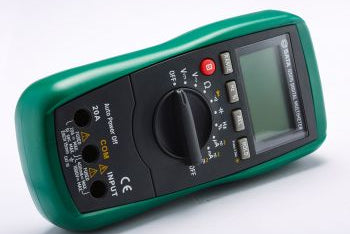

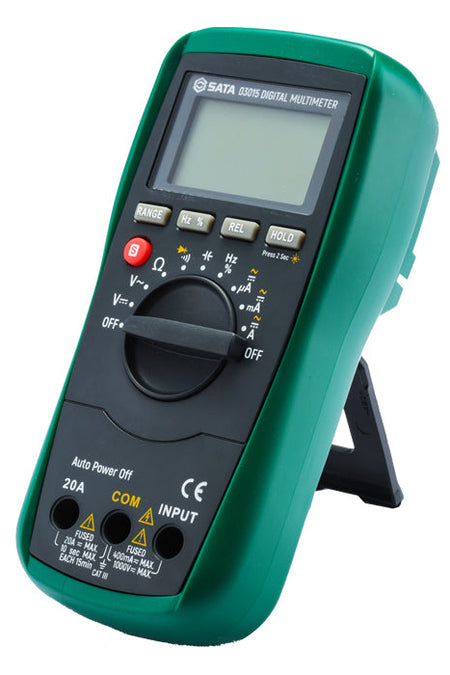

The SATA 03015 Digital Multimeter is a high-performance testing tool built for electricians and technicians who need dependable, accurate readings across a wide range of electrical measurements. With auto-ranging, low power consumption, and a CAT III 1000V safety rating designed to IEC-61010 standards, this multimeter measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, and diode function — all with a backlit display for clear readings anywhere.

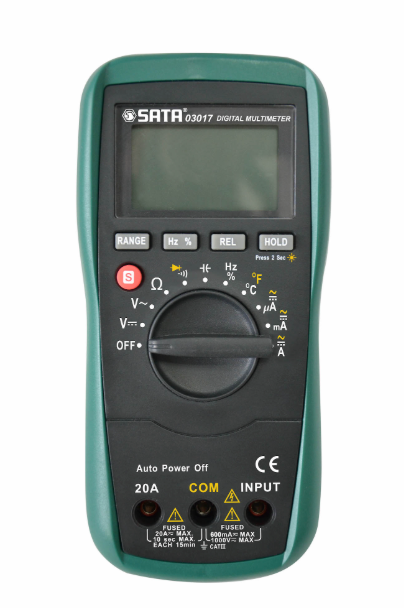

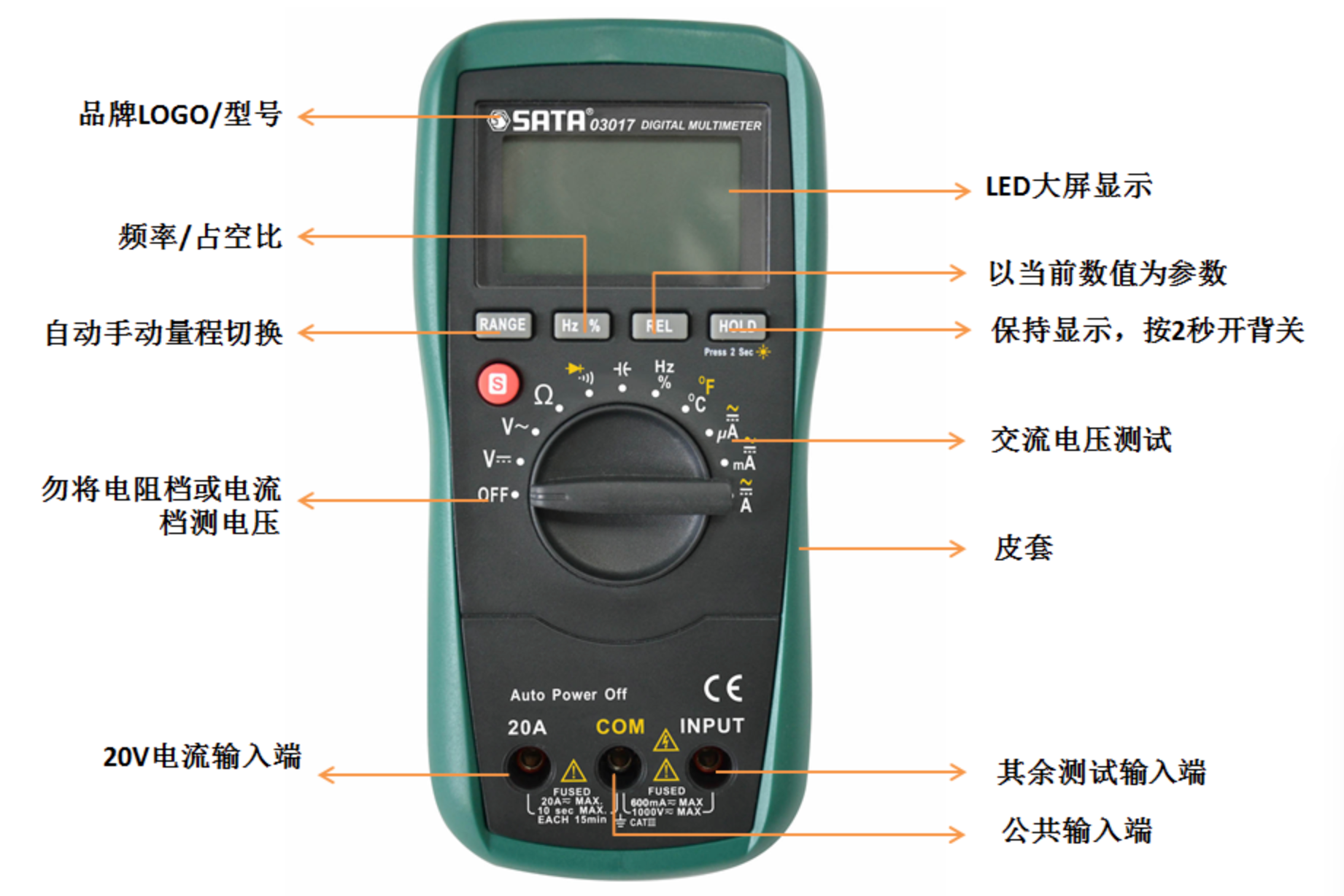

For work that also requires temperature readings, the SATA 03017 variant adds full temperature measurement (-20°C to 1000°C) on top of all the standard 03015 functions, making it the ideal choice for technicians who need an all-in-one diagnostic tool.
Key Features
- Auto-ranging function for fast, hassle-free measurements
- High performance with low power consumption
- Measures AC/DC voltage, AC/DC current, resistance, capacitance, and frequency
- Continuity test, diode test, and relative mode (relative value) test
- Duty ratio measurement function
- Backlit display for clear readings in low-light conditions
- Data retention (hold) function
- Automatic power-off to conserve battery life
- CAT III 1000V safety rating, designed in accordance with IEC-61010
- 03017 variant adds temperature measurement from -20°C to 1000°C
Specifications
| Property | SATA 03015 | SATA 03017 |
|---|---|---|
| Maximum Reading | 3999 | 5999 |
| Range Mode | Automatic | Automatic |
| DC Voltage | 400mV ±(0.8%+5) / 4V,40V,400V ±(0.5%+5) / 1000V ±(1.0%+5) | 600mV ±(0.8%+5) / 6V,60V,600V ±(0.5%+5) / 1000V ±(1.0%+5) |
| AC Voltage | 4V ±(0.8%+5) / 40V,400V ±(1.0%+5) / 1000V ±(1.2%+5) | 6V ±(0.8%+5) / 60V,600V ±(1.0%+5) / 1000V ±(1.2%+5) |
| DC Current | 400µA–400mA ±(1.0%+7) / 4A,20A ±(1.5%+7) | 600µA–600mA ±(1.0%+7) / 6A,20A ±(1.5%+7) |
| AC Current | 400µA–400mA ±(1.8%+10) / 4A,20A ±(2.5%+10) | 600µA–600mA ±(1.8%+10) / 6A,20A ±(2.5%+10) |
| Resistance | 400Ω ±(1.0%+5) / 4kΩ–400kΩ ±(0.5%+5) / 4MΩ ±(1.5%+5) / 40MΩ ±(3.0%+10) | 600Ω ±(1.0%+5) / 6kΩ–600kΩ ±(0.5%+5) / 6MΩ ±(1.5%+5) / 60MΩ ±(3.0%+10) |
| Frequency | 10Hz–1MHz ±(1.0%+5); 10MHz ref. only | 10Hz–1MHz ±(1.0%+5); 10MHz ref. only |
| Capacitance | 40nF ±(3.5%+20) / 400nF ±(2.5%+5) / 4µF,40µF ±(3.5–4.0%+5) / 400µF ±(5.0%+5) / 1000µF ref. only | Same as 03015 |
| Duty Ratio | 5%–95% ±(2.0%+3) | 5%–95% ±(2.0%+3) |
| Temperature | Not available | -20°C–0°C ±(6.0%+5°C) / 0°C–400°C ±(1.5%+4°C) / 400°C–1000°C ±(1.8%+5°C) |
| Short-circuit Beep | Yes | Yes |
| Diode Test | Yes | Yes |
| Relative Mode Test | Yes | Yes |
| Data Retention | Yes | Yes |
| Backlight | Yes | Yes |
| Auto Shutdown | Yes | Yes |
| Safety Standard (EN61010-1) | CAT III 1000V | CAT III 1000V |
| Battery | 9V 6F22 | 9V 6F22 |
| Size | 184 x 89 x 62 mm | 184 x 89 x 62 mm |
| Weight | 440g (battery & jacket included) |
440g (battery & jacket included) |
Available Options
- SATA 03015 — Standard Digital Multimeter
- SATA 03017 — Digital Multimeter with Temperature Test function
Package Contents
- 1 x SATA Digital Multimeter (03015 or 03017)
- 1 x Set of Test Probes
- 1 x 9V 6F22 Battery
- 1 x Protective Jacket/Case
- 1 x Instruction Manual
Warranty
2-year warranty, excluding battery and probes.
