SATA 13810–13819 Metric Deep Socket 1/2" Drive 10–19mm 12-Point
Tidak dapat memuatkan ketersediaan pengambilan
SATA 1/2" Dr. 12PT Deep Socket 10MM–19MM (13810–13819)
Product Overview

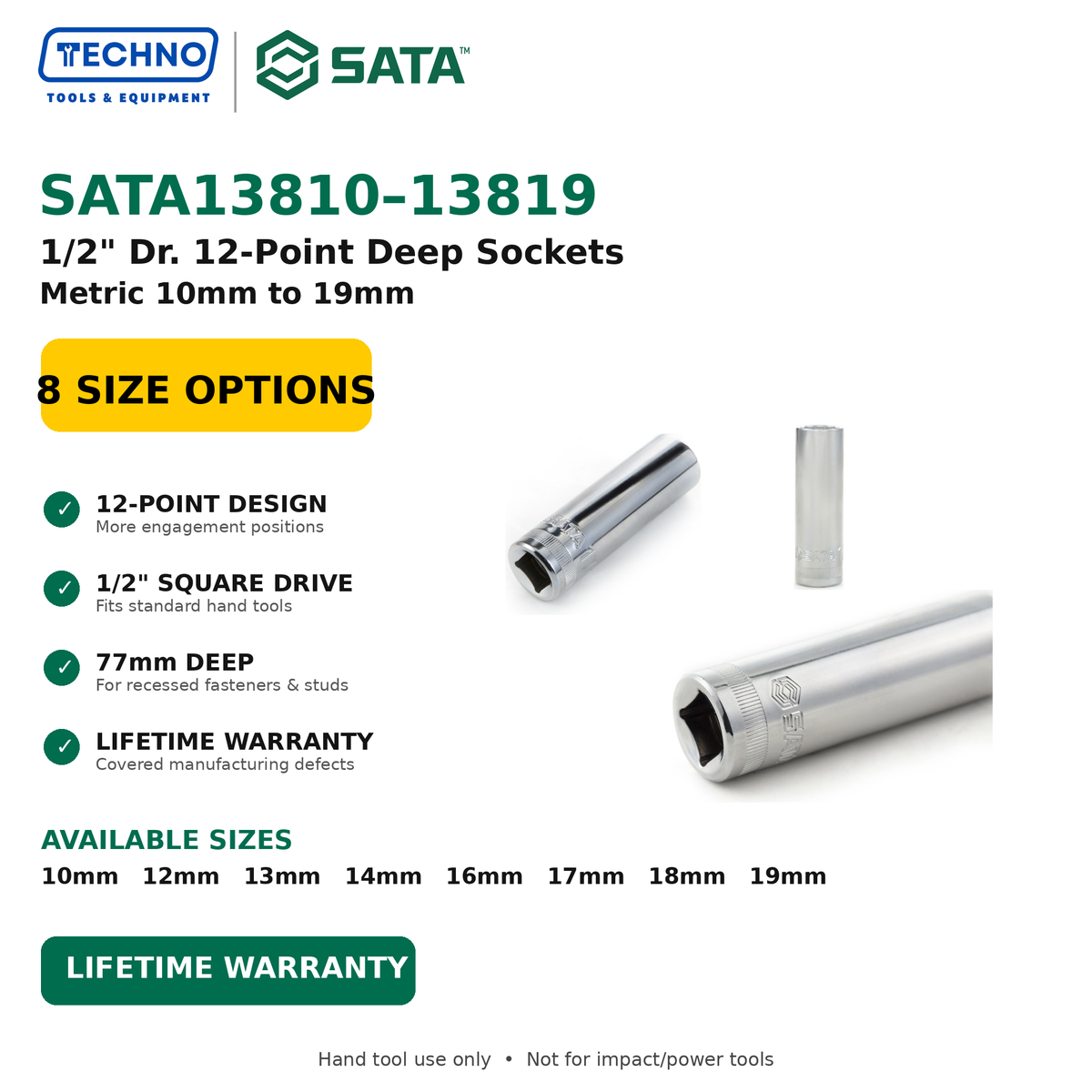

The SATA 1/2" Dr. 12PT Deep Socket series (13810–13819) is a range of long-reach metric hand-tool sockets for recessed bolts, nuts and studs. Each socket has a 1/2" square drive, a 12-point opening that can engage the fastener from more positions, and a 77mm overall length. The slim body narrows toward the fastener end to help it fit into confined spaces. Choose from 8 metric sizes: 10, 12, 13, 14, 16, 17, 18 and 19mm.
What Type of Tool Is This?
This is a 1/2" drive metric deep socket (12-point), a hand tool used with a 1/2" drive ratchet, breaker bar, speed handle or T-handle to tighten and loosen hex bolts and nuts in hard-to-reach places.
Key Features
- 12-point design: the opening can engage the fastener at more positions, which helps when swing room is limited.
- Deep 77mm length: reaches nuts on long studs and bolts in recessed spots.
- Slim-profile body: the body narrows at the fastener end to fit confined areas.
- 1/2" square drive: works with standard 1/2" drive ratchets, breaker bars and handles.
- 8 metric sizes: 10, 12, 13, 14, 16, 17, 18 and 19mm.
- Knurled grip band: makes it easier to position and remove the socket by hand.
- Polished finish: smooth surface that is easy to wipe clean.
- Lifetime warranty: backed by SATA's lifetime warranty terms.
- Hand tool use only: these sockets should never be used on power drivers, pneumatic impact wrenches and/or extenders.
Specifications
| SKU | Size (mm) | L (mm) | W (mm) | ØQ (mm) | ØH (mm) | Pcs / Pack |
|---|---|---|---|---|---|---|
| SATA13810 | 10 | 77 | 17 | 22 | 15.3 | 6 |
| SATA13812 | 12 | 77 | 23 | 22 | 17.8 | 6 |

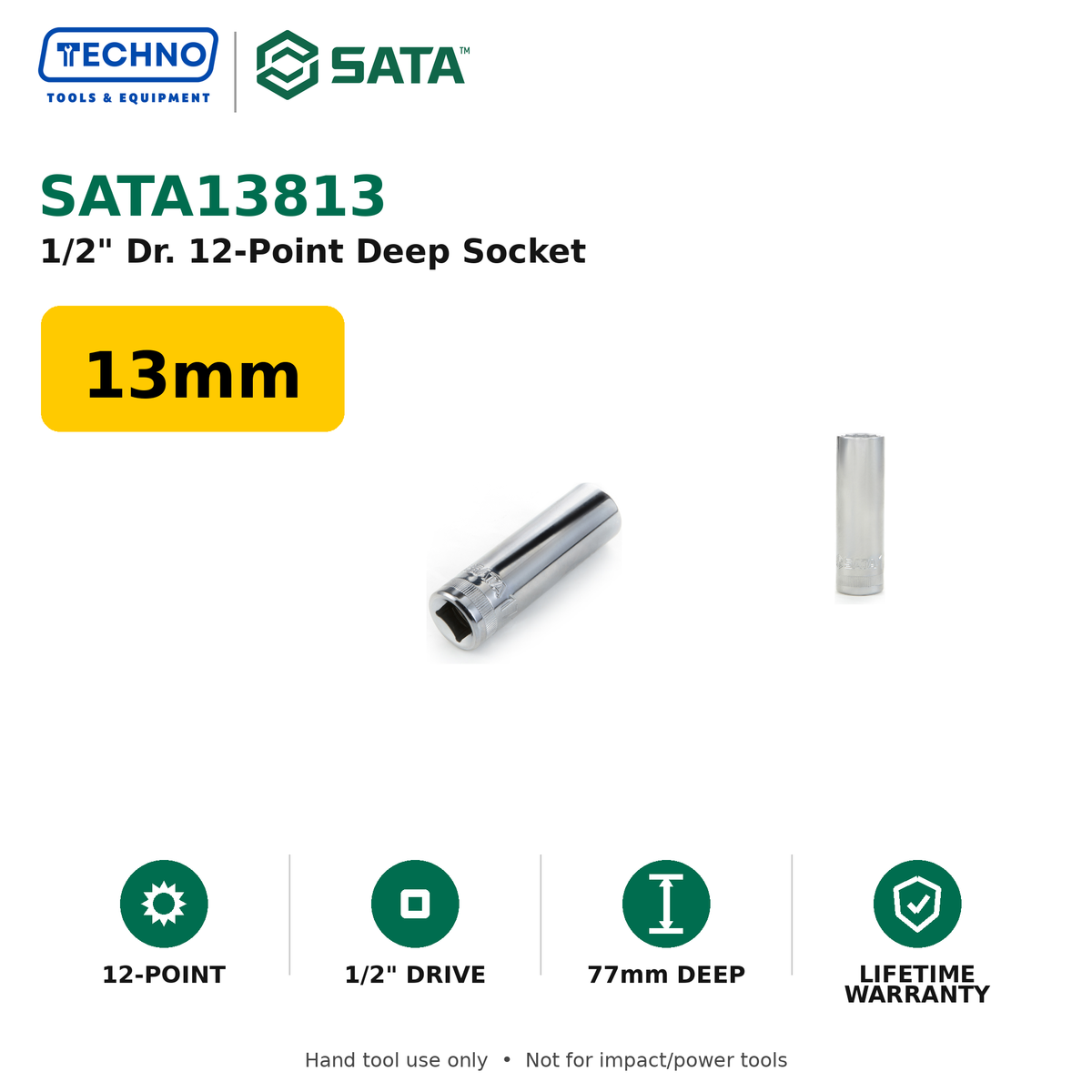

| SATA13813 | 13 | 77 | 25 | 22 | 19 | 6 |
| SATA13814 | 14 | 77 | 27 | 22 | 20.3 | 6 |
| SATA13816 | 16 | 77 | 31 | 22 | 22 | 6 |
| SATA13817 | 17 | 77 | 34 | 23.8 | 23.8 | 6 |
| SATA13818 | 18 | 77 | 34 | 24.8 | 24.8 | 6 |
| SATA13819 | 19 | 77 | 34 | 25.8 | 25.8 | 6 |
Warranty: Lifetime warranty
Drive size: 1/2" | Type: 12-point deep socket (metric) | Overall length (L): 77mm | Origin: China. All dimensions in mm.
Available Options
Size (select one): 10mm (SATA13810) | 12mm (SATA13812) | 13mm (SATA13813) | 14mm (SATA13814) | 16mm (SATA13816) | 17mm (SATA13817) | 18mm (SATA13818) | 19mm (SATA13819)
Package Contents
- 1 × SATA 1/2" Dr. 12PT Deep Socket in the size you select
Warranty Terms
Warranty: SATA lifetime warranty applies to this product.
Why Choose SATA?
- Professional-grade tools: SATA designs hand tools for technicians, mechanics and serious DIY users.
- Common sizes covered: the series includes the popular metric sizes from 10mm to 19mm.
- Consistent quality: each socket is made to the same dimensional specifications, so it fits and performs the same way every time.
- Lifetime warranty: long-term coverage for confidence in every purchase.
- Trusted range: part of SATA's wider line of sockets, wrenches, screwdrivers and tool sets, so you can build a matching toolkit.
Warranty Terms
All SATA products, unless otherwise stated, are warranted against manufacturing defects in materials and workmanship, subject to intended use and fair wear and tear.
| Product Category | Period |
|---|---|
| Hand Tools | Lifetime |
| Torque Products | Calibration: 90 days Tool: 1 year |
| Bits, Bit Holders, Bit Sockets, Extensions, Taps & Dies, Files & Cutting Tools | 30 days |
| Accessories, Cases, Pouches, Toolboxes & Consumables | 1 year |
Warranty periods start from the purchase date.
| Warranty period | Lifetime Warranty |
|---|---|
| Coverage | Free repair or replacement for functional faults arising during normal use. No time limit. |
| Not covered | Wear beyond the tool's normal service life; rust, plating wear, surface scratches or handle damage that does not affect function; parts marked as consumables in the SATA catalogue (e.g. coloured sleeves, brackets, power bars); packaging. |
| Warranty void if | Damage from misuse or abnormal operation (e.g. striking, prying, using hand sockets on impact tools, exceeding the tool's rated capacity); the product has been machined or modified, or parts have been replaced, lost or are incomplete. |
