SATA 1/2" Dr. 12PT Socket 5/16"–1-1/4" SAE (13501–13515)
Product Overview

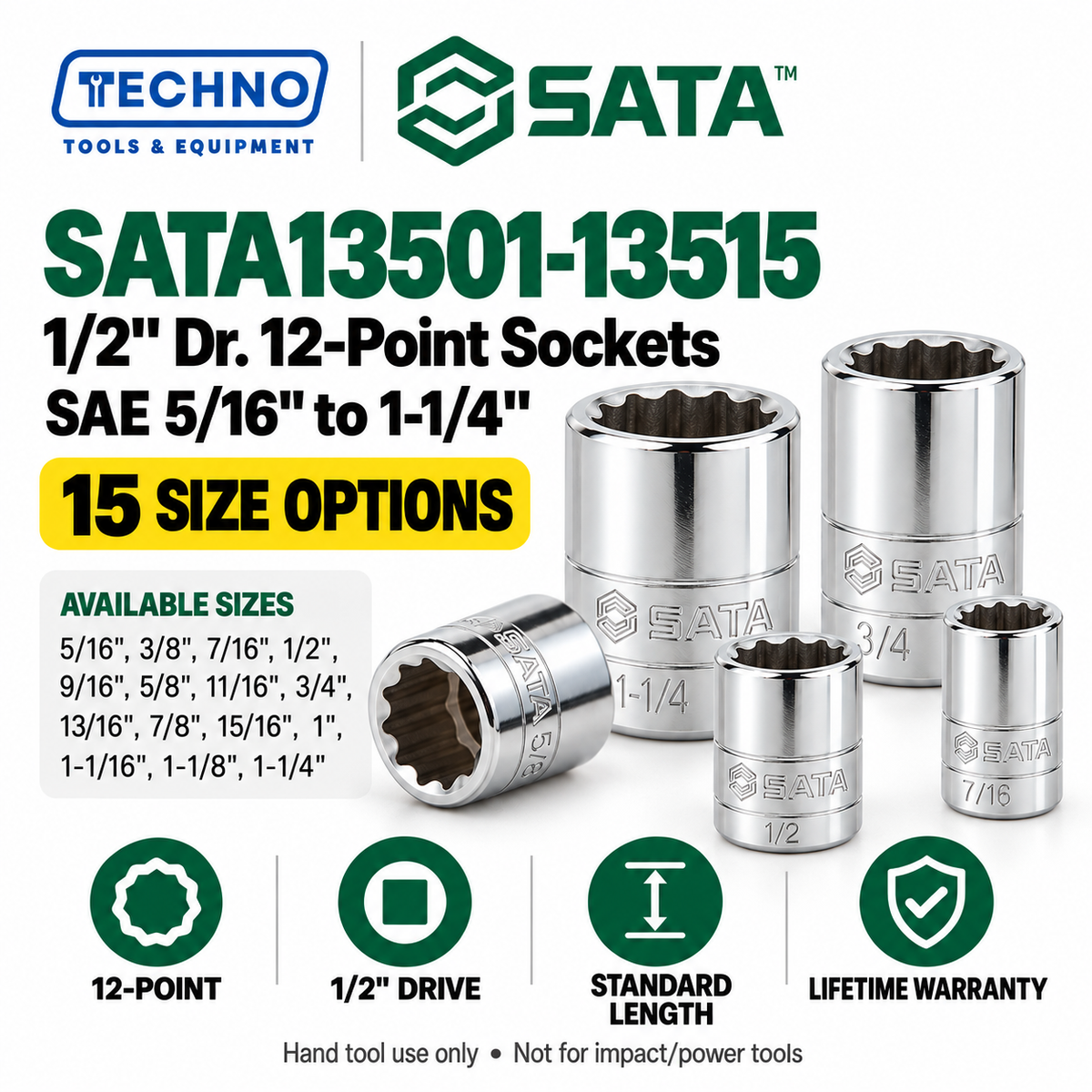

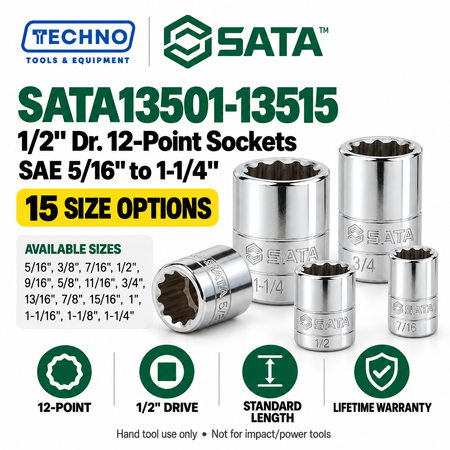

The SATA 1/2" Dr. 12PT Socket series (13501–13515) is a range of standard-length SAE (inch) hand-tool sockets for everyday fastening work. Each socket has a 1/2" square drive and a 12-point opening that fits hex bolts and nuts and can engage the fastener from more positions. The range covers 15 inch sizes, from 5/16" to 1-1/4". It suits automotive repair, machinery maintenance, workshop assembly and general mechanical work.
What Type of Tool Is This?
This is a 1/2" drive SAE standard socket (12-point), a hand tool used with a 1/2" drive ratchet, breaker bar, speed handle or T-handle to tighten and loosen bolts and nuts. Its compact body suits jobs where a deep socket is not needed.
Key Features
- 12-point design: the opening can engage the fastener at more positions, which helps when swing room is limited.
- Compact standard length: 37.8mm to 42mm overall, depending on size, for use in tighter spaces.
- 1/2" square drive: works with standard 1/2" drive ratchets, breaker bars and handles.
- 15 SAE sizes: 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16", 1-1/8" and 1-1/4".
- Polished finish: smooth surface that is easy to wipe clean.
- Lifetime warranty: backed by SATA's lifetime warranty terms.
- Hand tool use only: these sockets should never be used on power drivers, pneumatic impact wrenches and/or extenders.
Specifications
| SKU | Size (in) | Length C (mm) | A (mm) | B (mm) | E (mm) | Pcs / Pack |
|---|---|---|---|---|---|---|

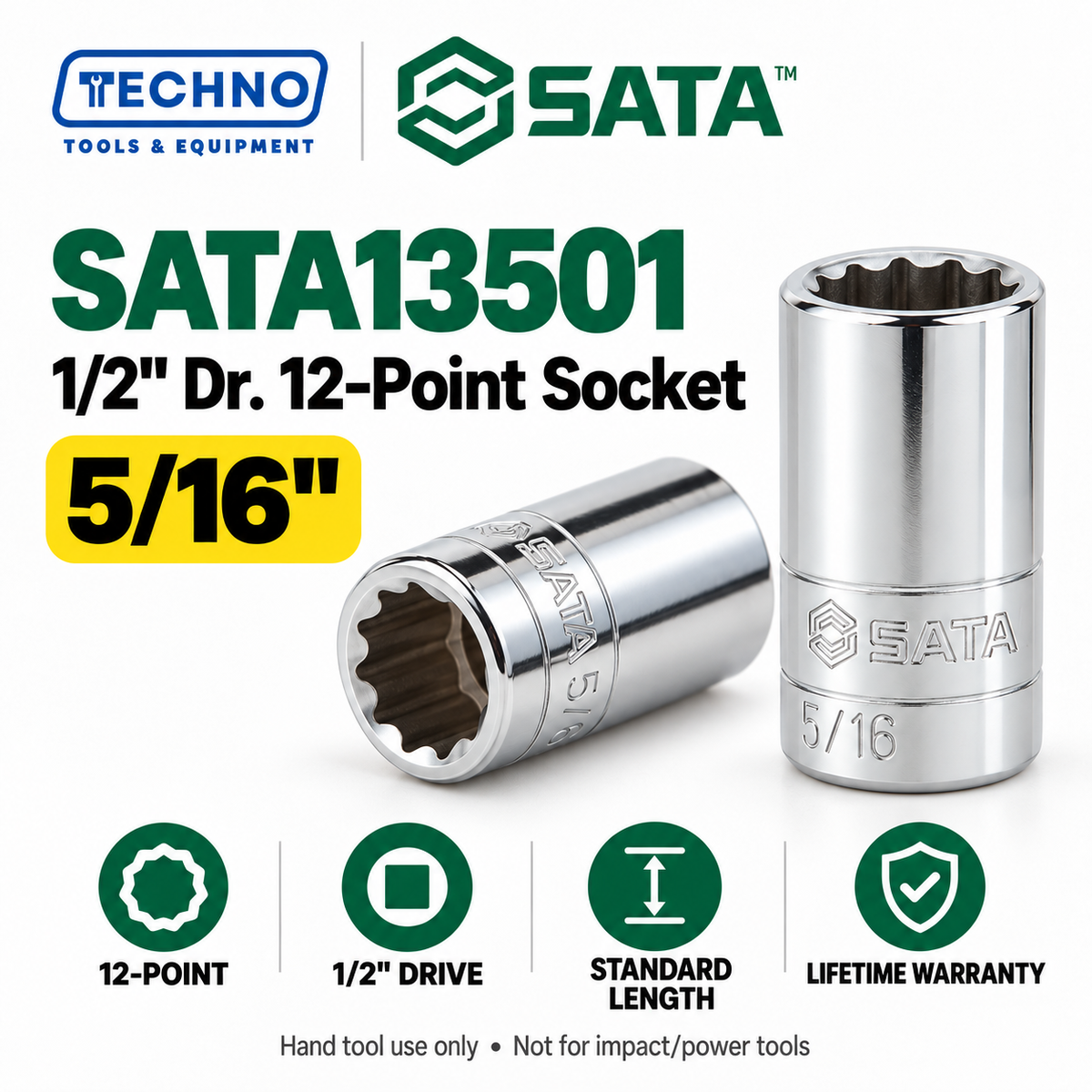

| SATA13501 | 5/16" | 37.8 | 22.2 | 12.5 | 14 | 6 |

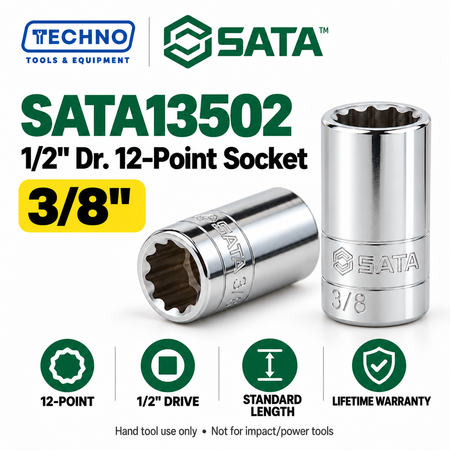

| SATA13502 | 3/8" | 37.8 | 22.2 | 14.5 | 14 | 6 |

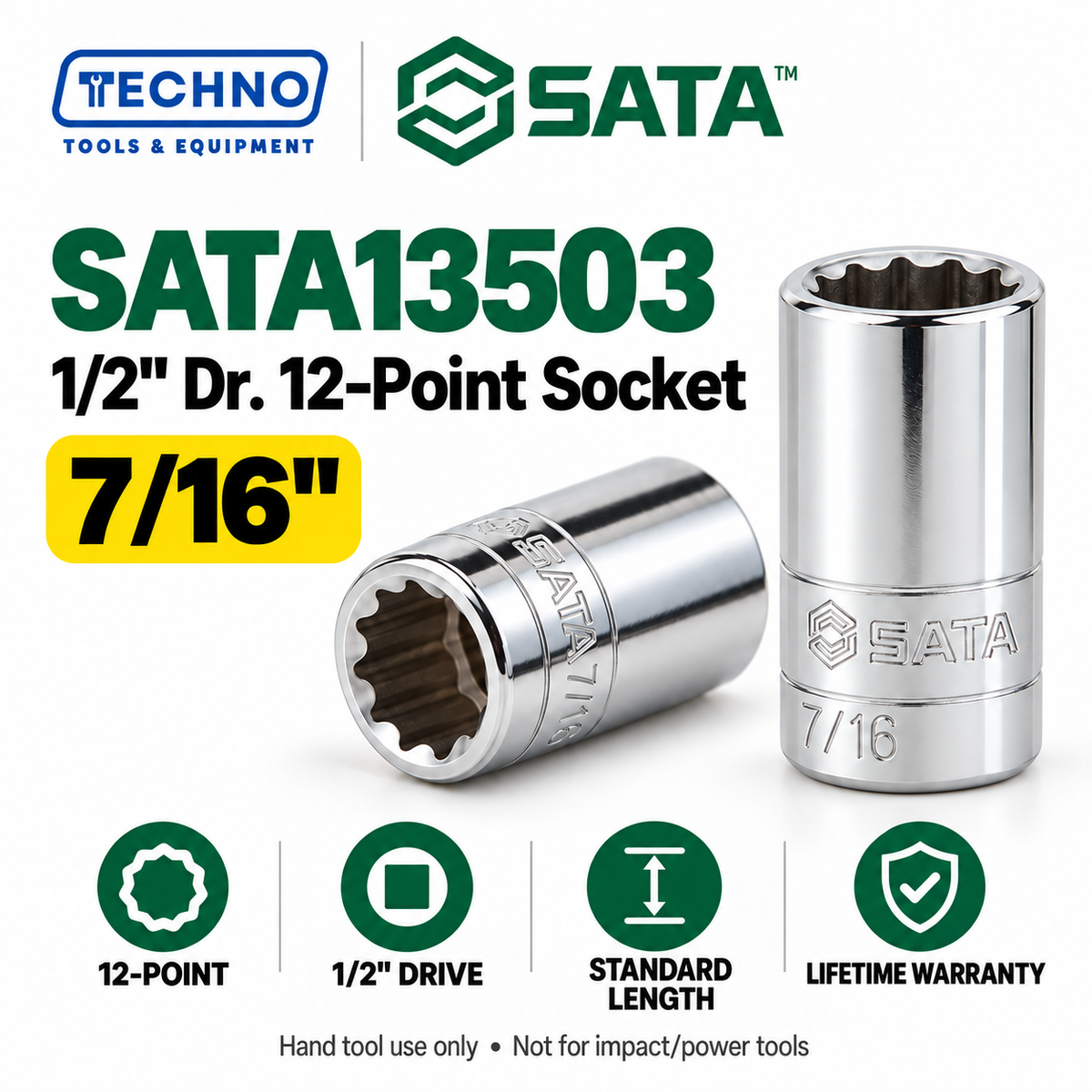

| SATA13503 | 7/16" | 37.8 | 22.2 | 17 | 14 | 6 |
| SATA13504 | 1/2" | 37.8 | 22.2 | 18.6 | 14 | 6 |

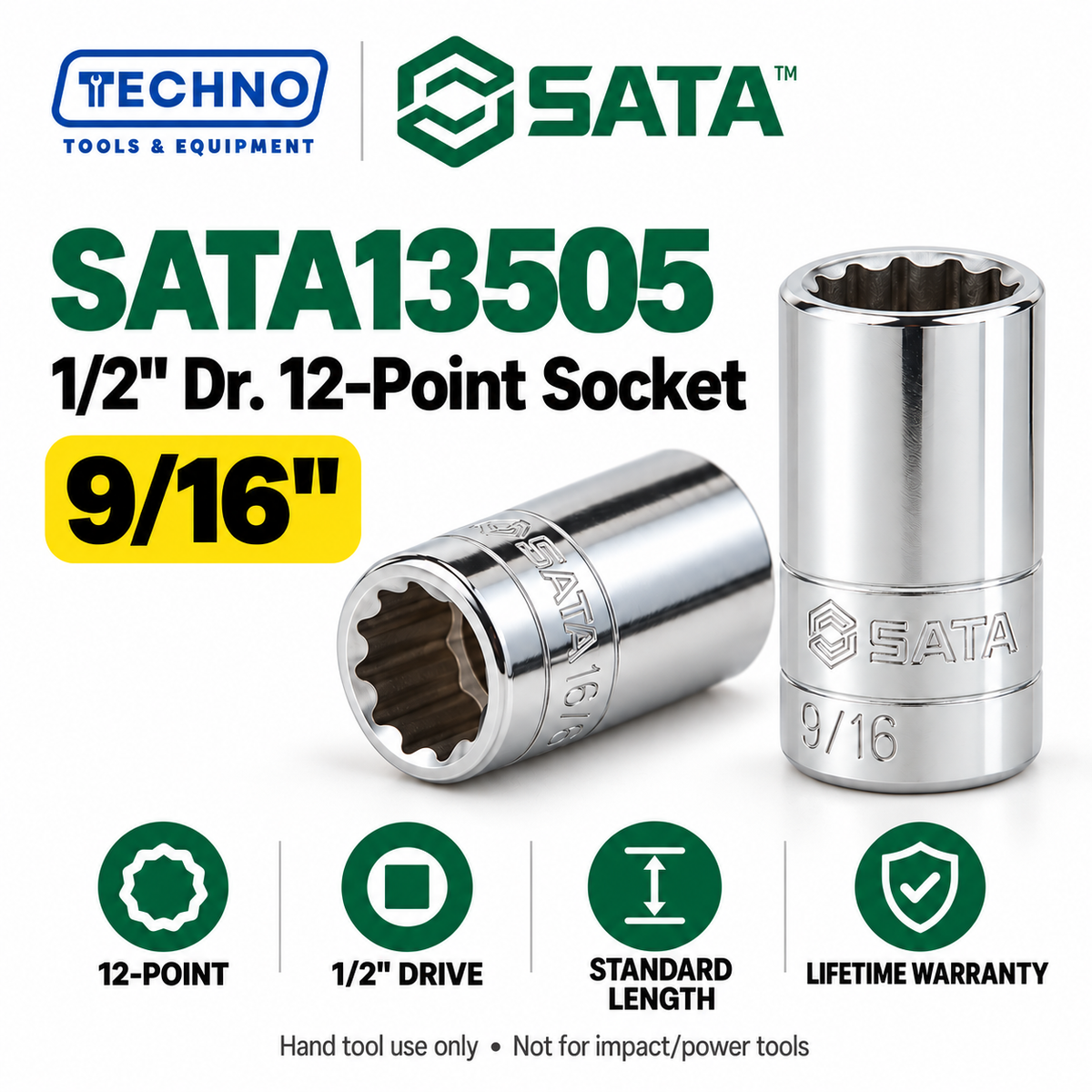

| SATA13505 | 9/16" | 37.8 | 22.2 | 20.6 | 14.5 | 6 |
| SATA13506 | 5/8" | 37.8 | 22.2 | 22.2 | 14.5 | 6 |
| SATA13507 | 11/16" | 37.8 | 23.8 | 23.8 | 15 | 6 |

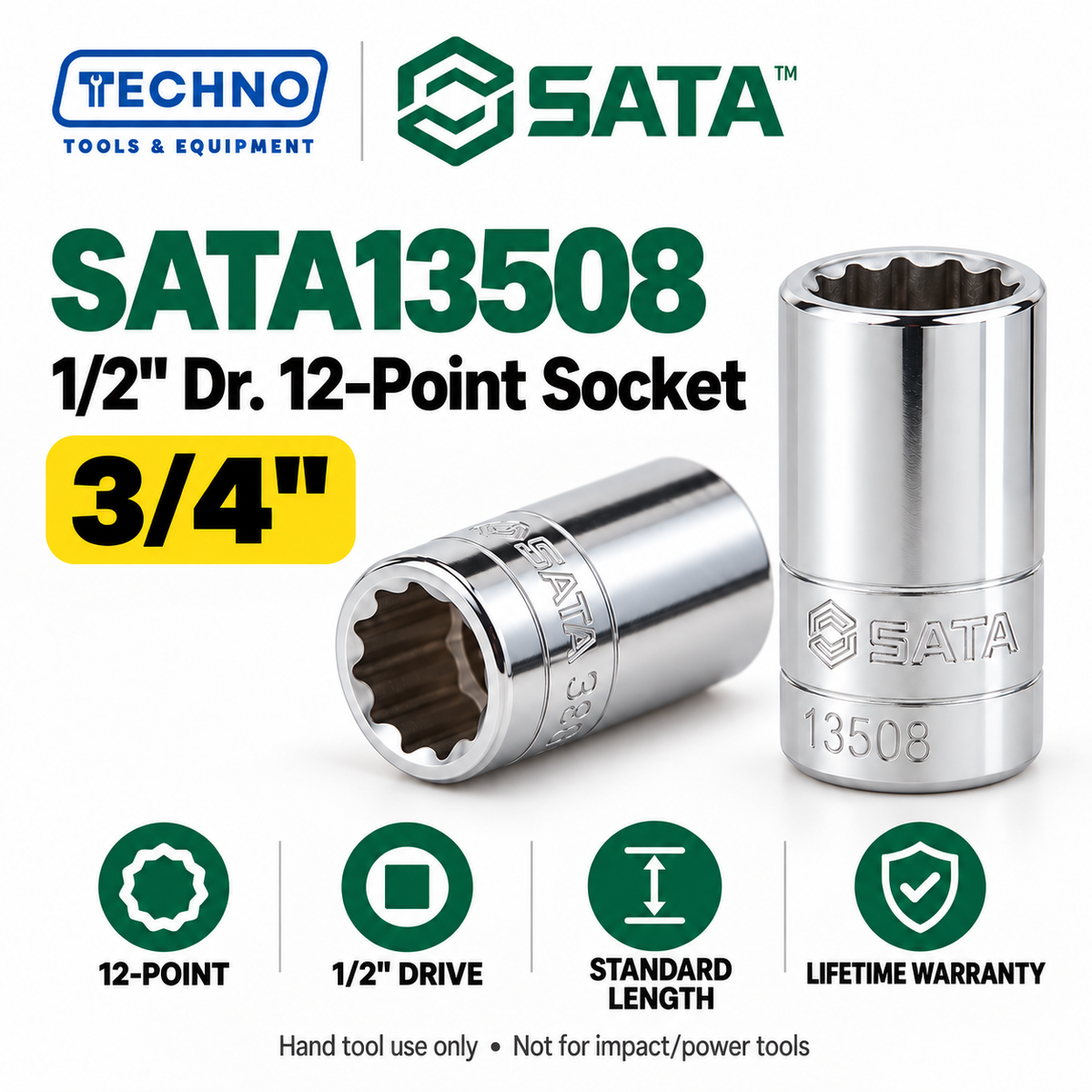

| SATA13508 | 3/4" | 37.8 | 25.9 | 25.9 | 19.5 | 6 |

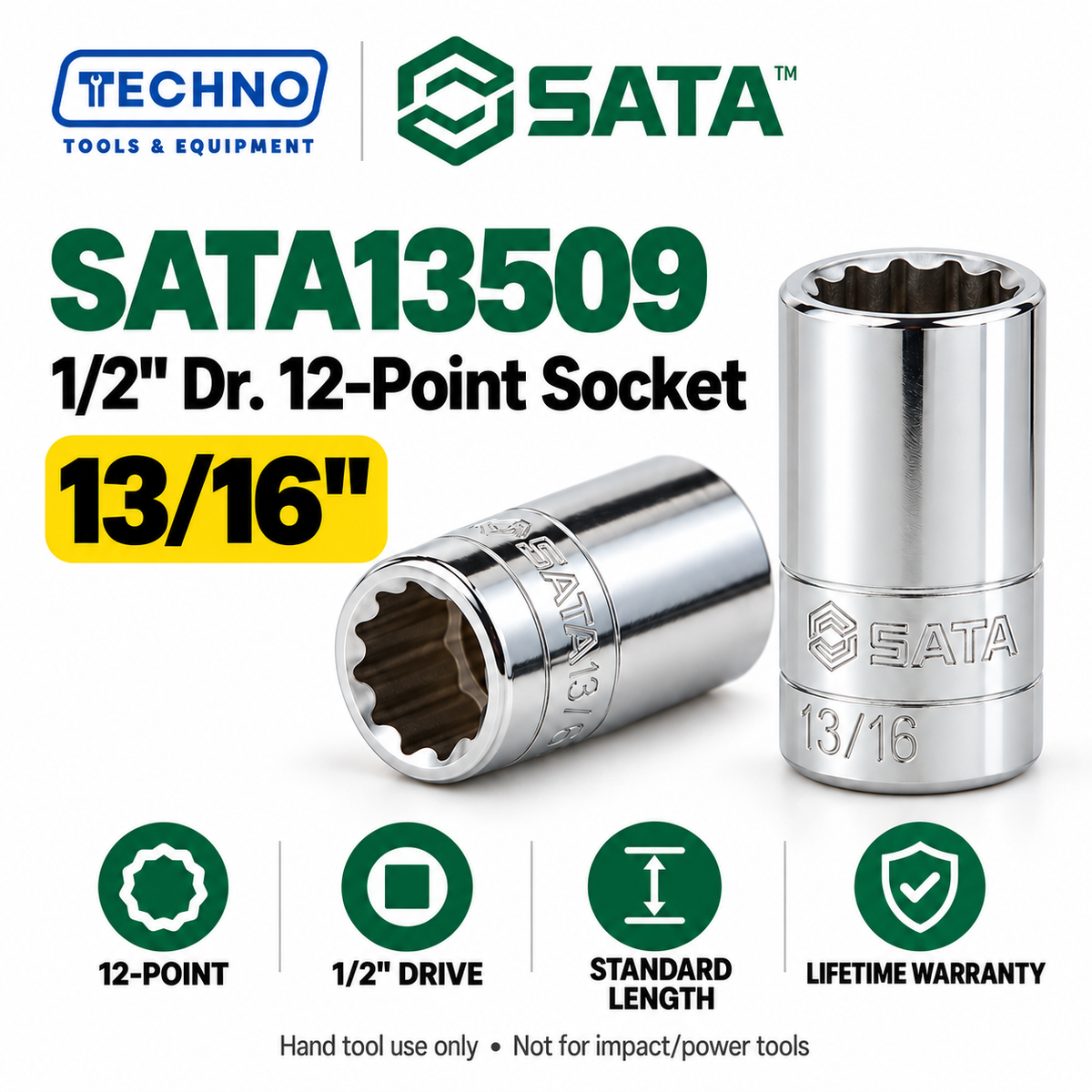

| SATA13509 | 13/16" | 37.8 | 27.9 | 27.9 | 19.5 | 4 |

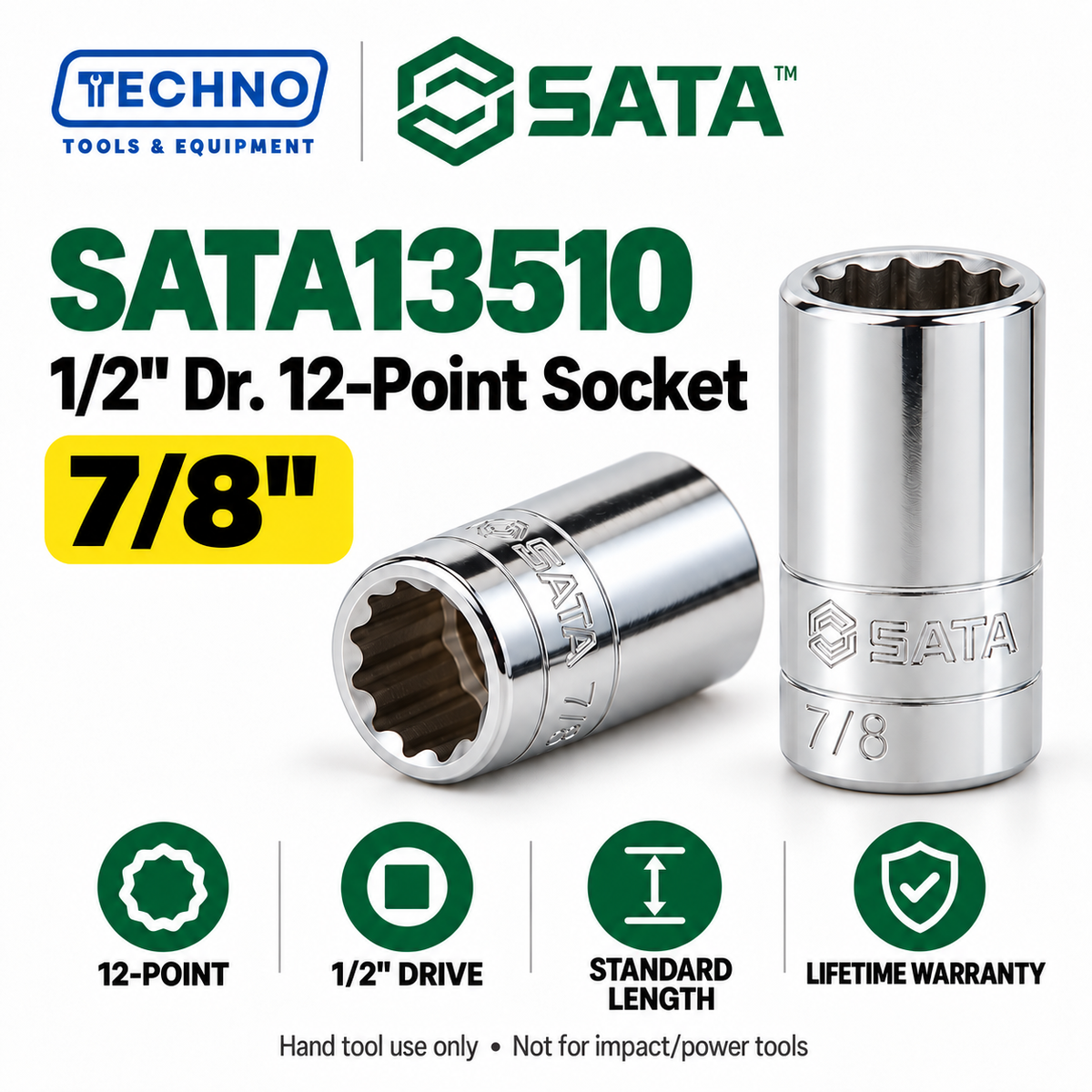

| SATA13510 | 7/8" | 37.8 | 29.9 | 29.9 | 19.5 | 4 |

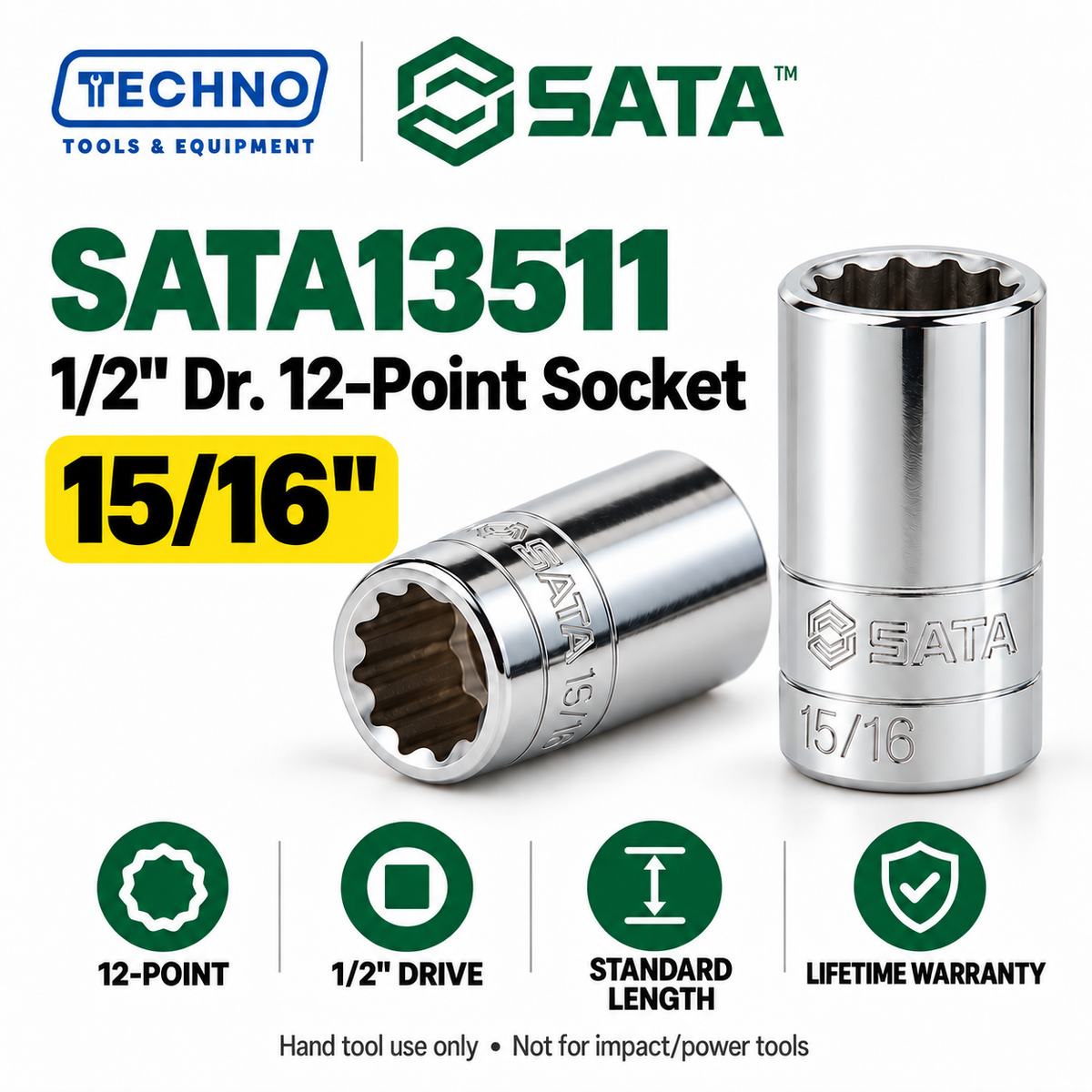

| SATA13511 | 15/16" | 37.8 | 31.9 | 31.9 | 20.5 | 4 |

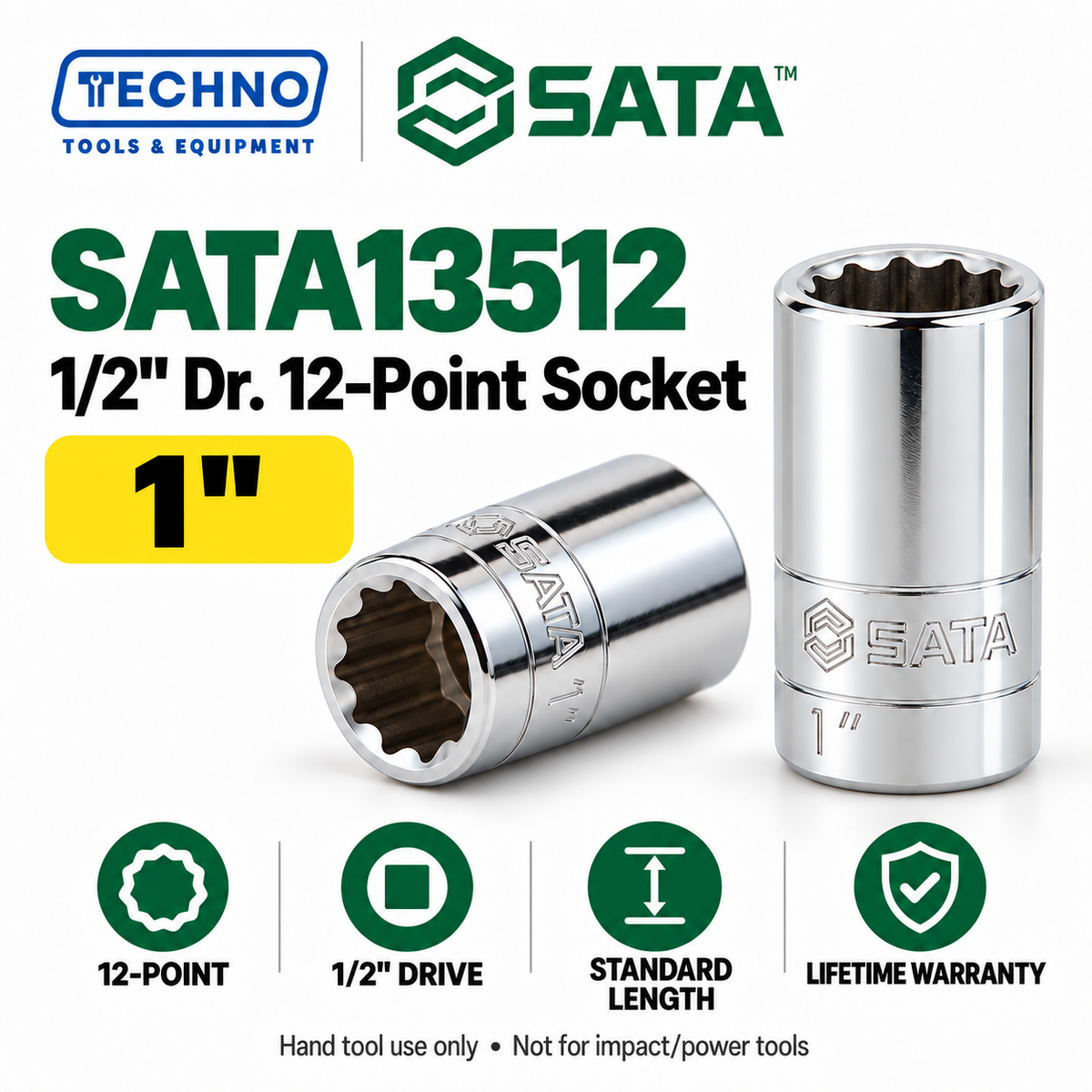

| SATA13512 | 1" | 40 | 33.9 | 33.9 | 22.5 | 4 |
| SATA13513 | 1-1/16" | 40 | 35.9 | 35.9 | 22.5 | 4 |
| SATA13514 | 1-1/8" | 42 | 37.9 | 37.9 | 24.5 | 4 |
| SATA13515 | 1-1/4" | 42 | 41.9 | 41.9 | 24.5 | 2 |
Drive size: 1/2" | Type: 12-point standard socket (SAE) | Origin: China. Dimensions in mm; sizes in inches.
Available Options
Size (select one): 5/16" (SATA13501) | 3/8" (SATA13502) | 7/16" (SATA13503) | 1/2" (SATA13504) | 9/16" (SATA13505) | 5/8" (SATA13506) | 11/16" (SATA13507) | 3/4" (SATA13508) | 13/16" (SATA13509) | 7/8" (SATA13510) | 15/16" (SATA13511) | 1" (SATA13512) | 1-1/16" (SATA13513) | 1-1/8" (SATA13514) | 1-1/4" (SATA13515)
Package Contents
- 1 × SATA 1/2" Dr. 12PT Socket in the size you select
Warranty Terms
Warranty: SATA lifetime warranty applies to this product.
Why Choose SATA?
- Professional-grade tools: SATA designs hand tools for technicians, mechanics and serious DIY users.
- Complete size range: one series covers every common SAE size from 5/16" to 1-1/4".
- Consistent quality: each socket is made to the same dimensional specifications, so it fits and performs the same way every time.
- Lifetime warranty: long-term coverage for confidence in every purchase.
- Trusted range: part of SATA's wider line of sockets, wrenches, screwdrivers and tool sets, so you can build a matching toolkit.
