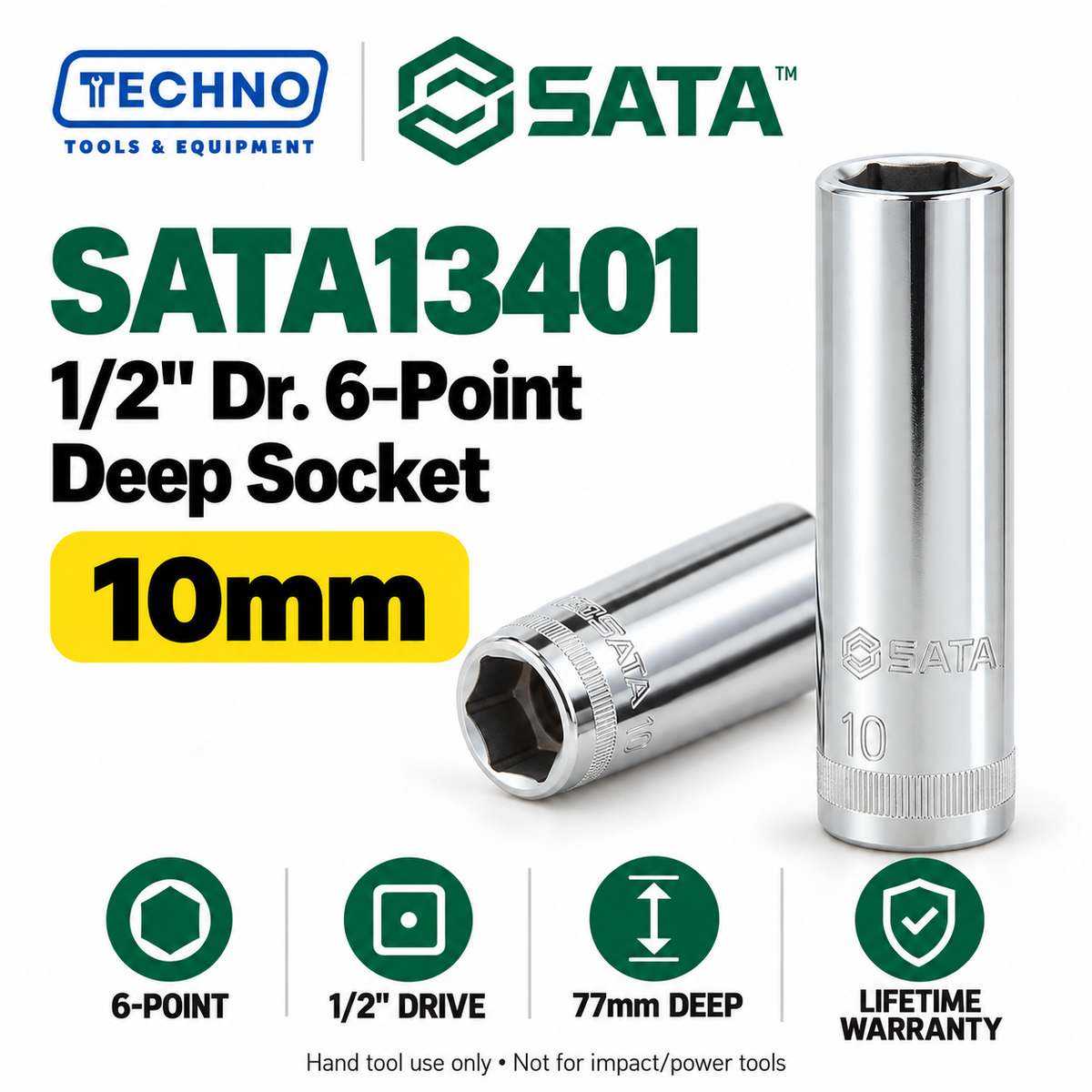

SATA 13401 10mm deep socket, 1/2" drive, view 2

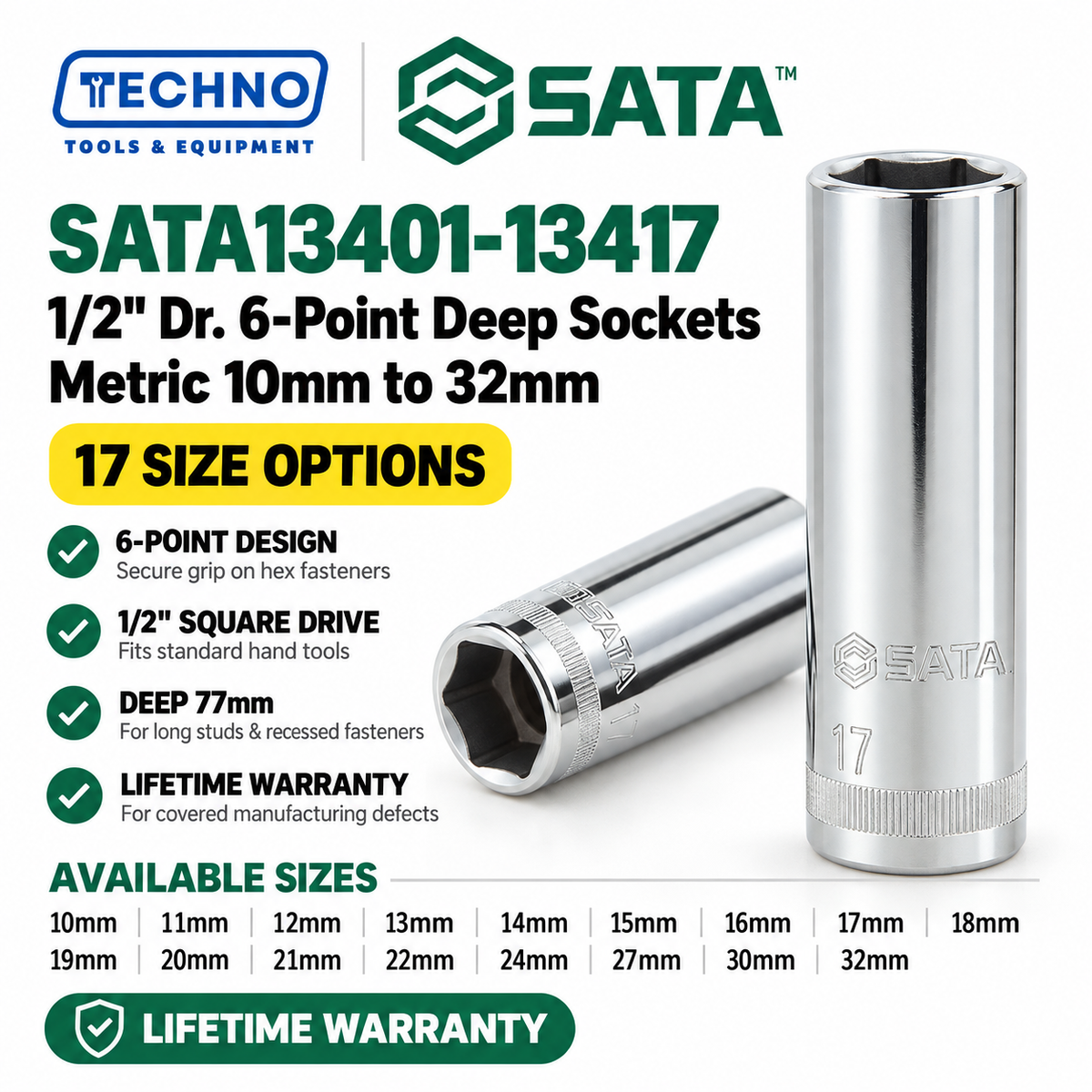

SATA 13401–13417 metric deep socket, 1/2" drive 6-point, 10mm to 32mm, 77mm long

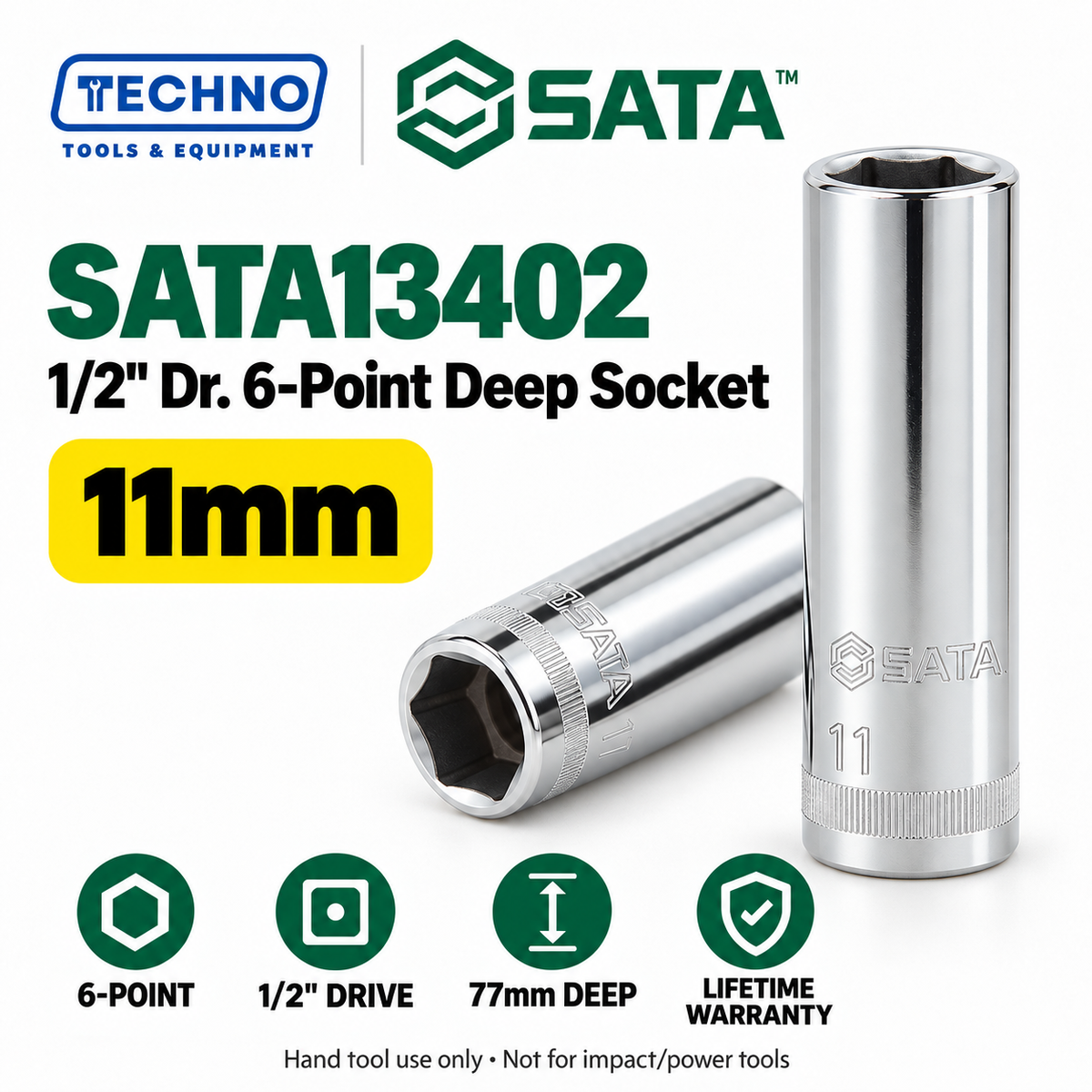

SATA 13402 11mm deep well socket, 1/2" drive, view 3

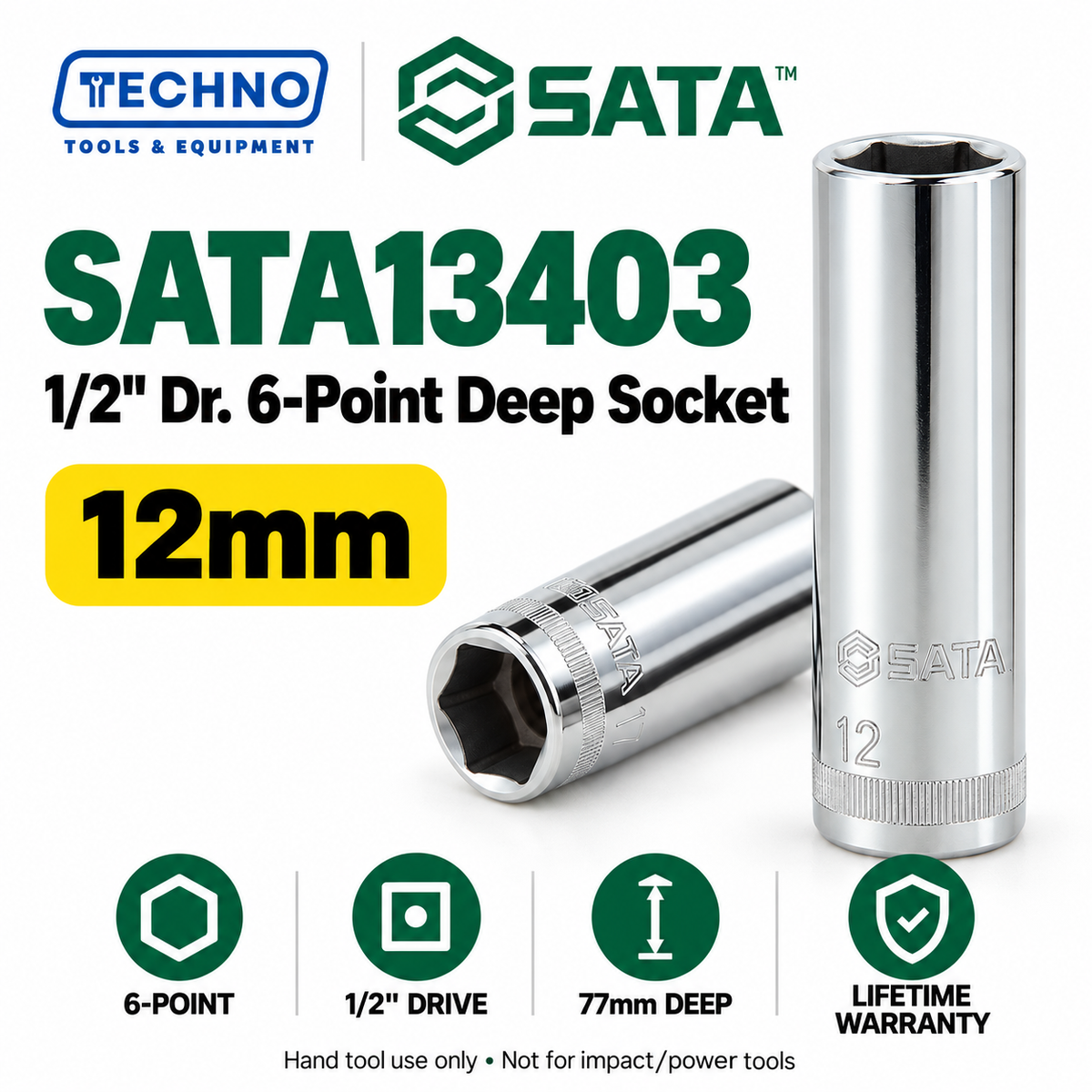

SATA 13403 12mm long hex socket, 1/2" drive, view 4

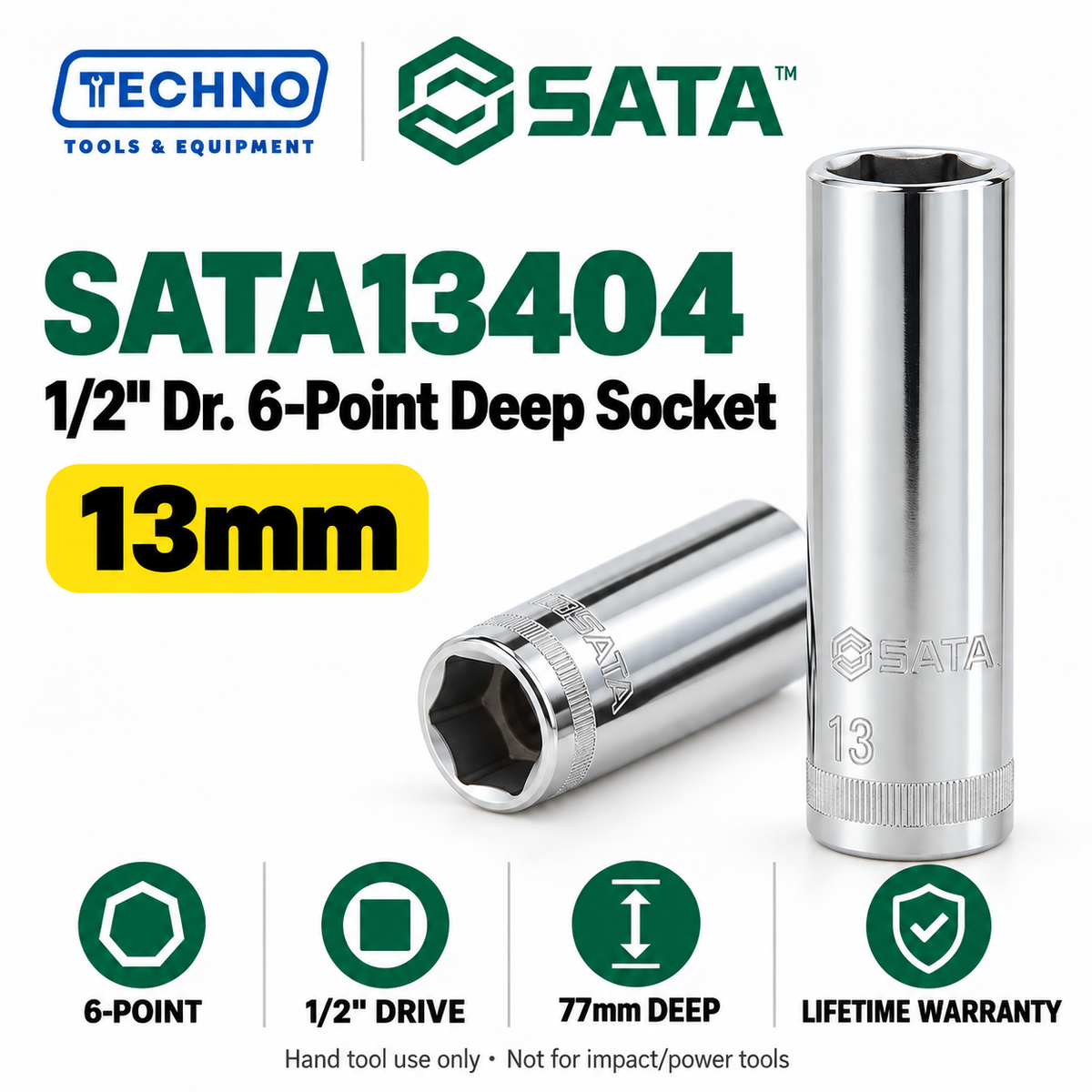

SATA 13404 13mm 6-point deep socket, 1/2" drive, view 5

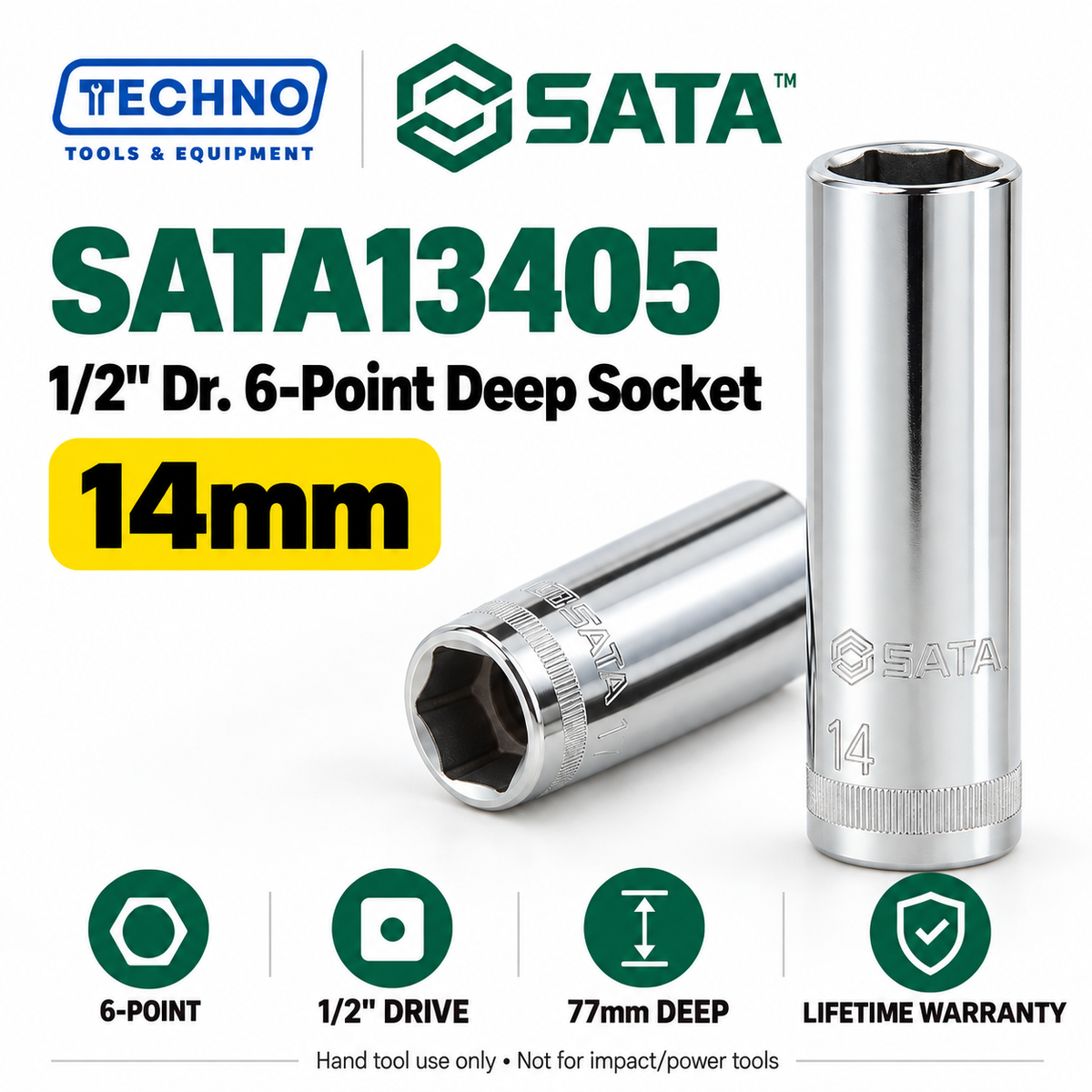

SATA 13405 14mm deep hex socket, 1/2" drive, view 6

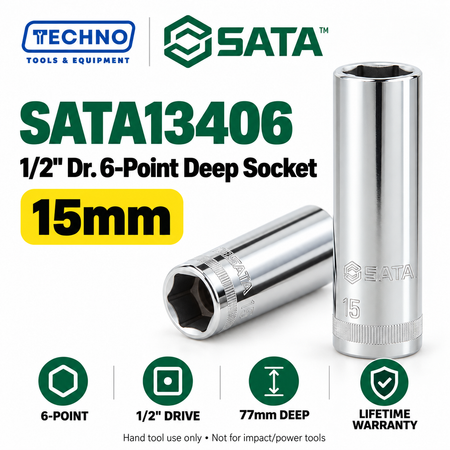

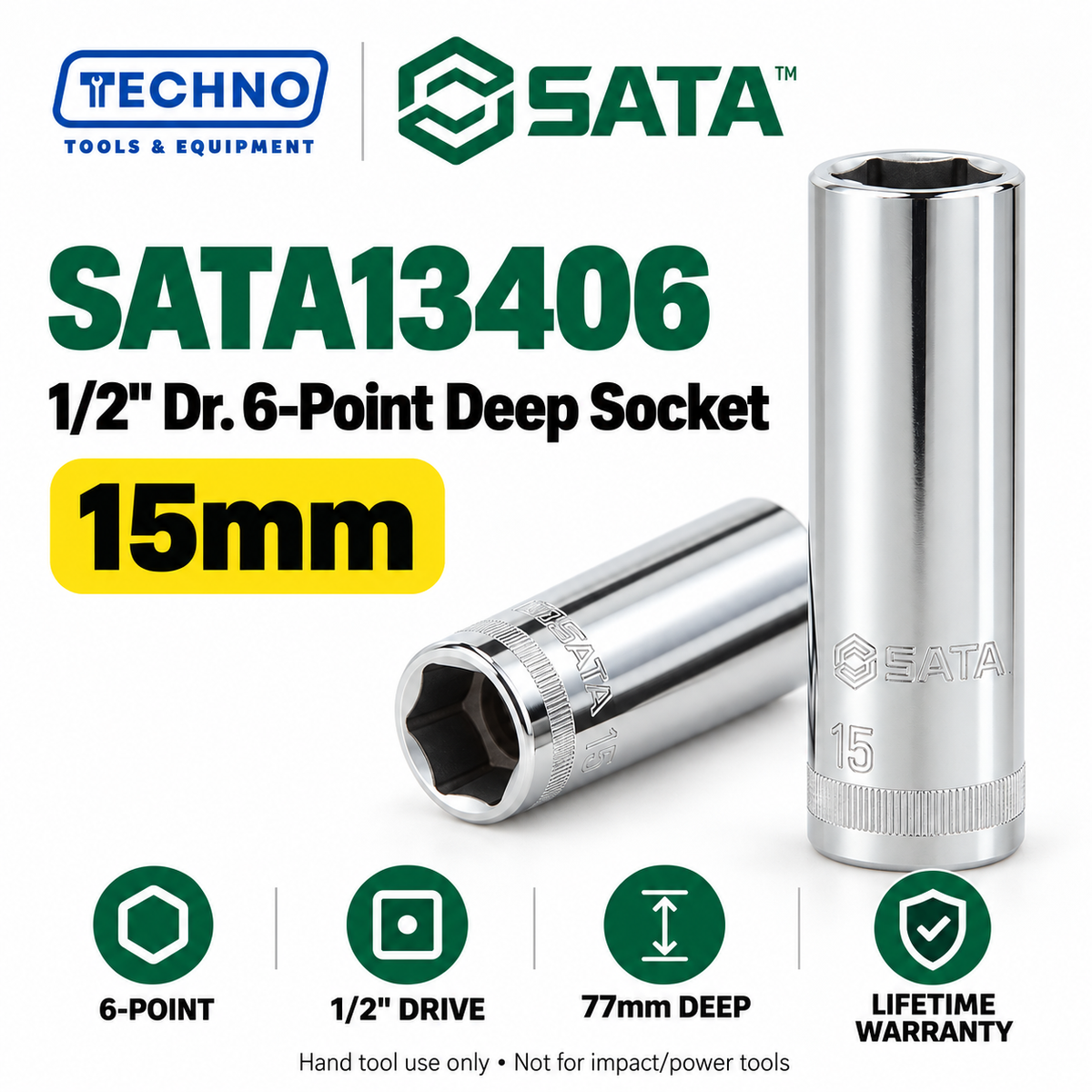

SATA 13406 15mm deep socket, 1/2" drive, view 7

SATA 13407 16mm deep well socket, 1/2" drive, view 8

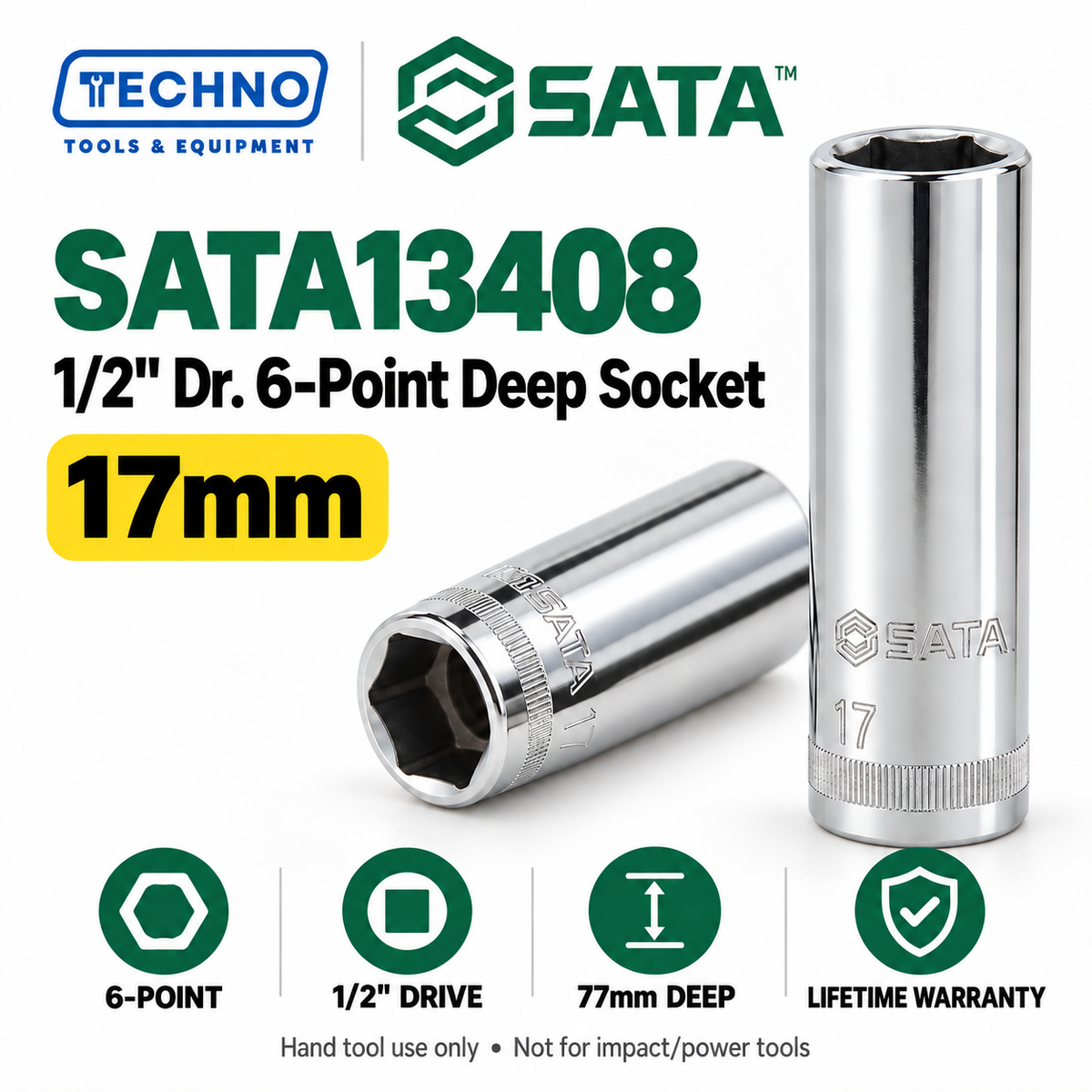

SATA 13408 17mm long hex socket, 1/2" drive, view 9

SATA 13409 18mm 6-point deep socket, 1/2" drive, view 10

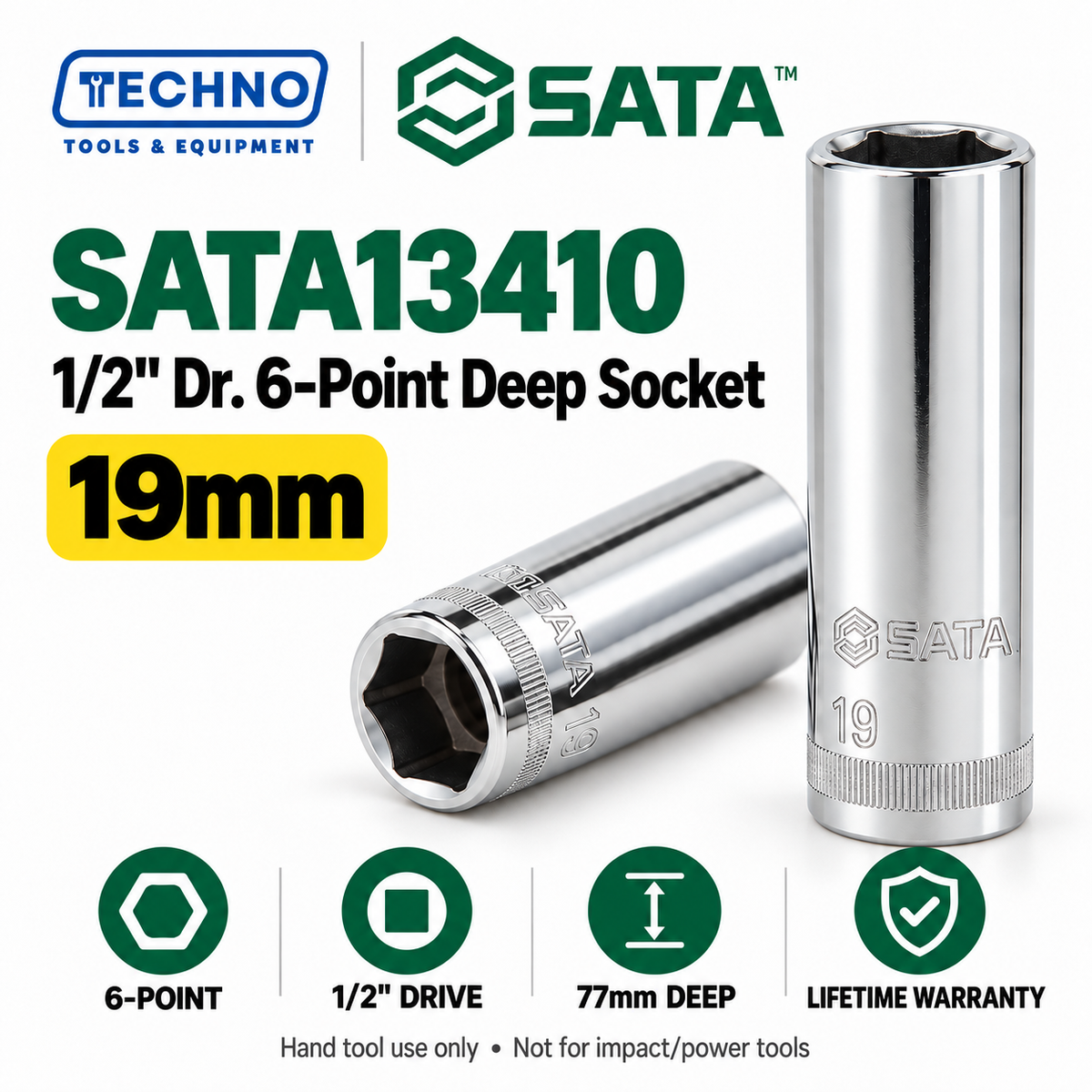

SATA 13410 19mm deep hex socket, 1/2" drive, view 11

SATA 13411 20mm deep socket, 1/2" drive, view 12

SATA 13412 21mm deep well socket, 1/2" drive, view 13

SATA 13413 22mm long hex socket, 1/2" drive, view 14

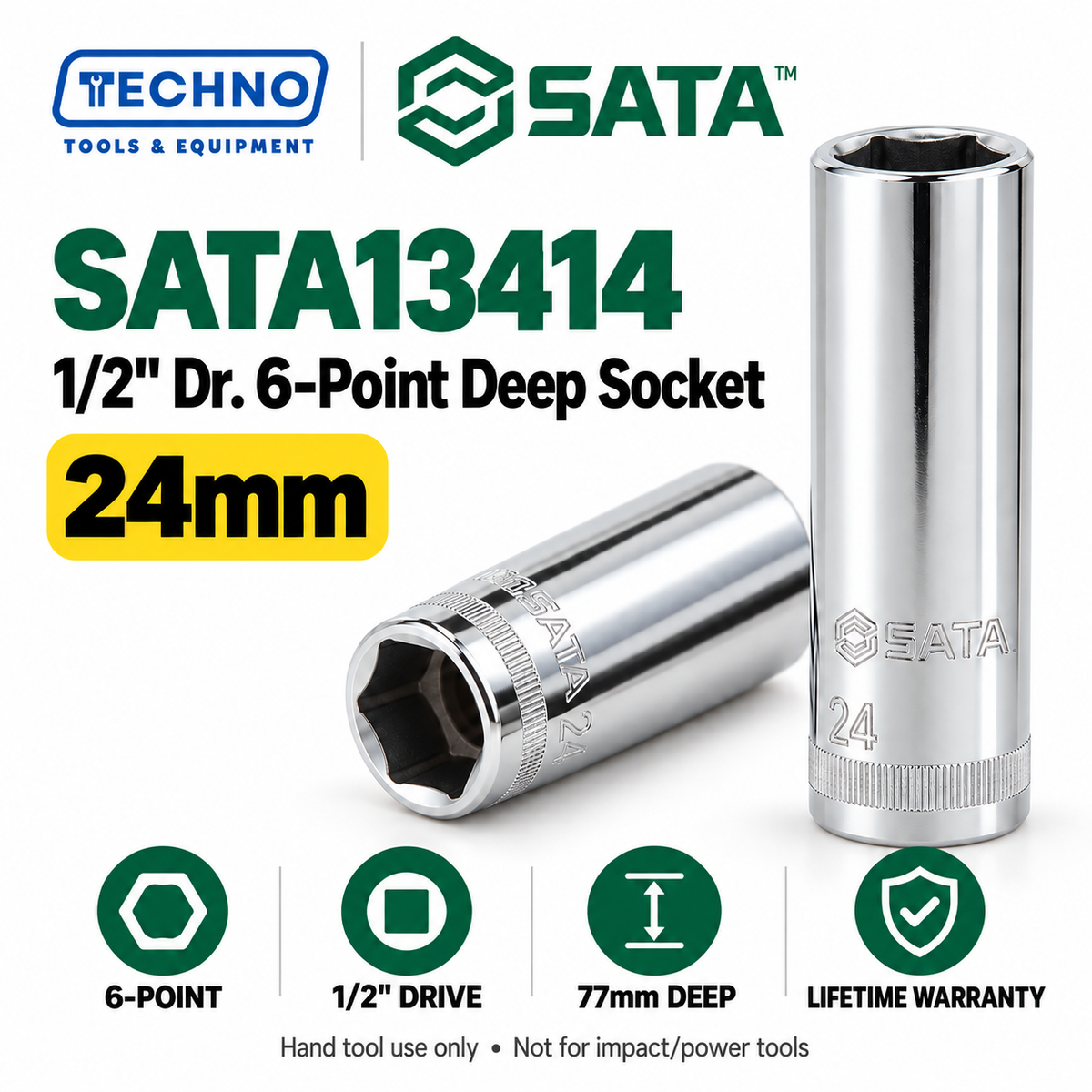

SATA 13414 24mm 6-point deep socket, 1/2" drive, view 15

SATA 13415 27mm deep hex socket, 1/2" drive, view 16

SATA 13416 30mm deep socket, 1/2" drive, view 17

SATA 13417 32mm deep well socket, 1/2" drive, view 18

SATA 13401–13417 Metric Deep Socket 1/2" Drive 10–32mm 6-Point

SKU: SATA13401

RM24.12

Dalam stok

Estimated delivery: 1-2 weeks

Lifetime Warranty See warranty terms

Techno Tools & Equipment's provide same day delivery

SATA 1/2" Dr. 6PT Deep Socket 10MM–32MM (13401–13417)

Product Overview

The SATA 1/2" Dr. 6PT Deep Socket series (13401–13417) is a hand-tool socket range built for reaching recessed bolts, nuts and long threaded studs. Each socket has a 1/2" square drive, a 6-point hex opening for a secure grip on fasteners, and a 77mm overall length. Choose from 17 metric sizes, from 10mm to 32mm. It suits automotive repair, machinery maintenance, workshop assembly and general mechanical work.

What Type of Tool Is This?

This is a 1/2" drive metric deep socket, a hand tool used with a 1/2" drive ratchet, breaker bar, speed handle or T-handle to tighten and loosen hex bolts and nuts. The extra length gives the reach that standard sockets lack.

Key Features

6-point hex design: spreads contact across the fastener flats, helping reduce rounding on bolt heads and nuts.
Deep 77mm length: reaches nuts on long studs and bolts in recessed or hard-to-access spots.
1/2" square drive: works with standard 1/2" drive ratchets, breaker bars and handles.
17 metric sizes: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30 and 32mm.
Knurled grip band: makes it easier to position and remove the socket by hand.
Polished finish: smooth surface that is easy to wipe clean.
Lifetime warranty: backed by SATA's lifetime warranty terms.
Hand tool use only: these sockets should never be used on power drivers, pneumatic impact wrenches and/or extenders.

Specifications

SKU	Size (mm)	Length C (mm)	A (mm)	B (mm)	D (mm)	E (mm)	Pcs / Pack
SATA13401	10	77	22	15.3	8	17	6
SATA13402	11	77	22	16.5	9	23	6
SATA13403	12	77	22	17.8	10	23	6
SATA13404	13	77	22	19	10	25	6
SATA13405	14	77	22	20.3	12	27	6
SATA13406	15	77	22	21.4	13	29	6
SATA13407	16	77	22	22	14	31	6
SATA13408	17	77	23.8	23.8	15	34	6
SATA13409	18	77	24.8	24.8	16	34	6
SATA13410	19	77	25.8	25.8	17	34	6
SATA13411	20	77	27.8	27.8	18	34	4
SATA13412	21	77	27.8	27.8	19	34	4
SATA13413	22	77	29.8	29.8	20	34	4
SATA13414	24	77	31.8	31.8	22	34	4
SATA13415	27	77	35.8	35.8	25	34	4
SATA13416	30	77	39.8	39.8	28	34	2
SATA13417	32	77	41.8	41.8	30	34	2

Warranty: Lifetime warranty

Drive size: 1/2" | Type: 6-point deep socket | Overall length (C): 77mm | Origin: China. All dimensions in mm.

Available Options

Package Contents

1 × SATA 1/2" Dr. 6PT Deep Socket in the size you select

Warranty Terms

Warranty: SATA lifetime warranty applies to this product.

SATA 1/2" Drive 6-Point Socket vs Deep Socket comparison

Spec	SATA 13301–13320 Standard Socket	SATA 13401–13417 Deep Socket (this model)
Socket length	Standard	Deep
Overall length	38mm (40–42mm on 27–32mm)	77mm
Size range	8–32mm	10–32mm
Sizes available	20	17
Best for	Larger nuts and bolts where clearance above the fastener is limited	Nuts on long studs or threaded rod, and recessed bolts

Compatible Accessories

SATA 13971 Quick-Release Teardrop Ratchet 1/2" – 250mm 1/2" drive ratchet for this socket
SATA 13904 / 13905 Wobble Extension Bar 1/2" – 5" or 10" reach with a slight wobble angle
SATA 13906–13908 Locking Extension Bar 1/2" – 3", 5" or 10" reach that holds the socket securely
SATA 13912 Universal Joint 1/2" – turns fasteners at an angle

Why Choose SATA?

Professional-grade tools: SATA designs hand tools for technicians, mechanics and serious DIY users.
Complete size range: one series covers every common metric size from 10mm to 32mm.
Consistent quality: each socket is made to the same dimensional specifications, so it fits and performs the same way every time.
Lifetime warranty: long-term coverage for confidence in every purchase.
Trusted range: part of SATA's wider line of sockets, wrenches, screwdrivers and tool sets, so you can build a matching toolkit.

Warranty Terms

All SATA products, unless otherwise stated, are warranted against manufacturing defects in materials and workmanship, subject to intended use and fair wear and tear.

Product Category	Period
Hand Tools	Lifetime
Torque Products	Calibration: 90 days Tool: 1 year
Bits, Bit Holders, Bit Sockets, Extensions, Taps & Dies, Files & Cutting Tools	30 days
Accessories, Cases, Pouches, Toolboxes & Consumables	1 year

Warranty periods start from the purchase date.

Warranty period	Lifetime Warranty
Coverage	Free repair or replacement for functional faults arising during normal use. No time limit.
Not covered	Wear beyond the tool's normal service life; rust, plating wear, surface scratches or handle damage that does not affect function; parts marked as consumables in the SATA catalogue (e.g. coloured sleeves, brackets, power bars); packaging.
Warranty void if	Damage from misuse or abnormal operation (e.g. striking, prying, using hand sockets on impact tools, exceeding the tool's rated capacity); the product has been machined or modified, or parts have been replaced, lost or are incomplete.

Bring the product to Techno Tools as an authorised SATA dealer. SATA repairs the product first and replaces it if repair is not possible.
