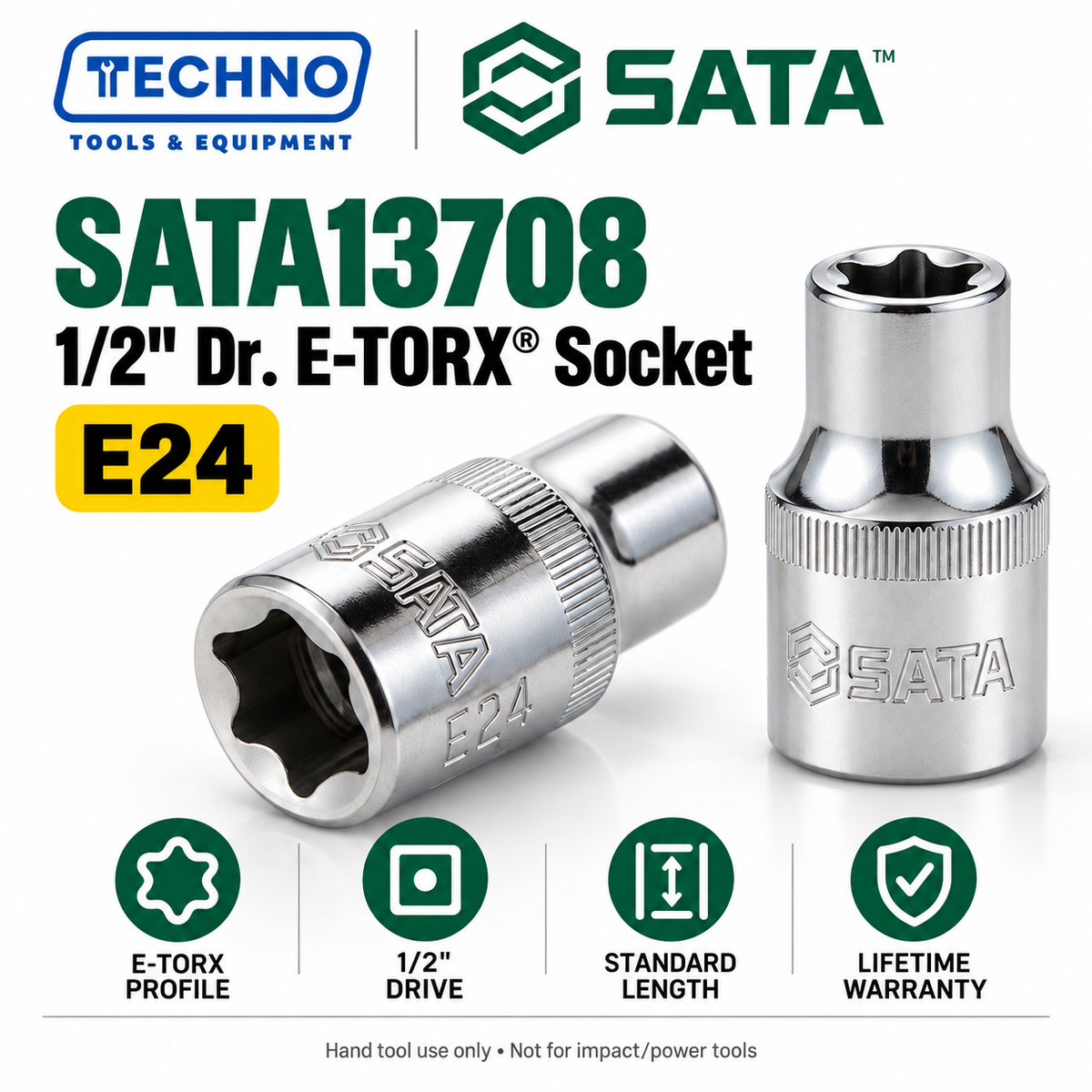

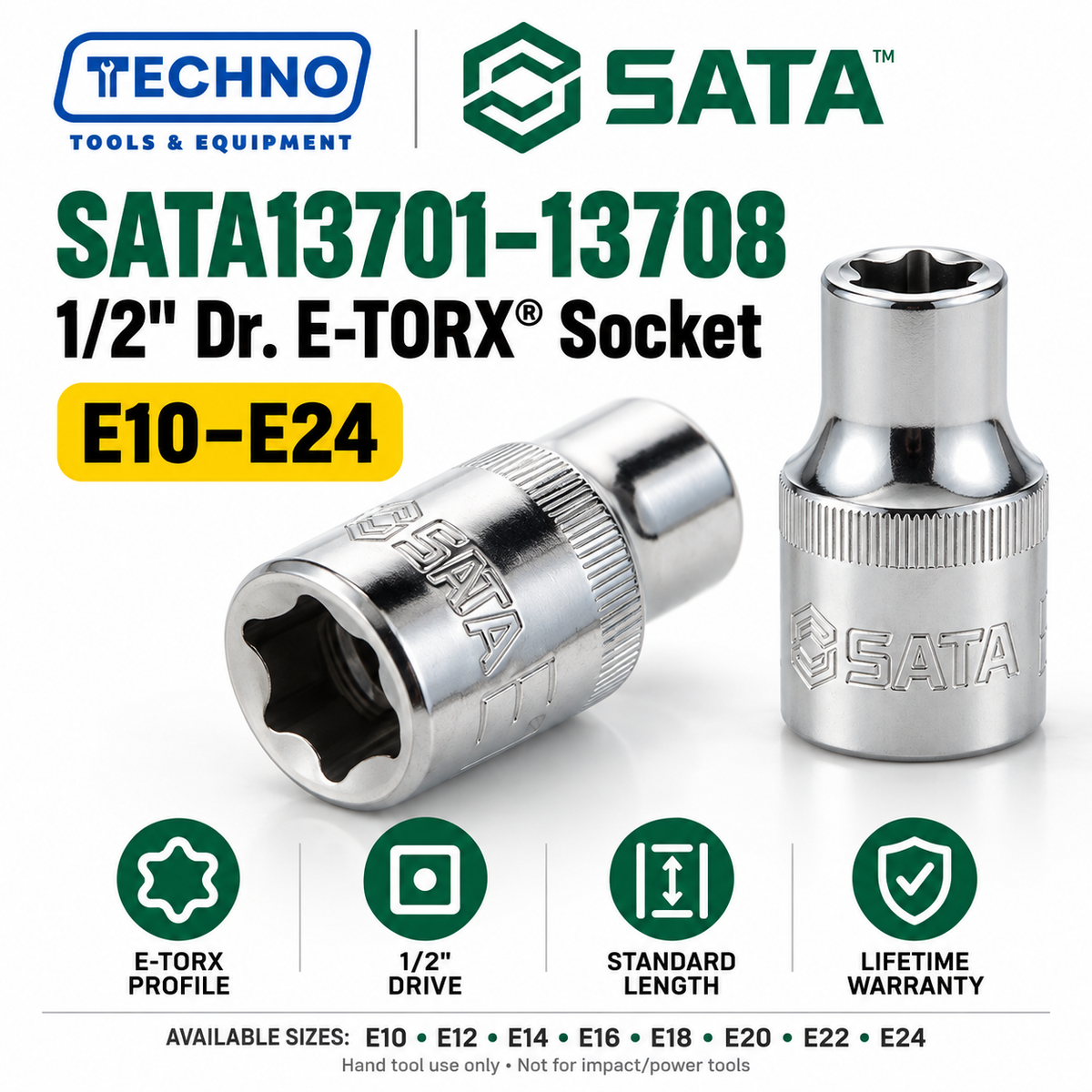

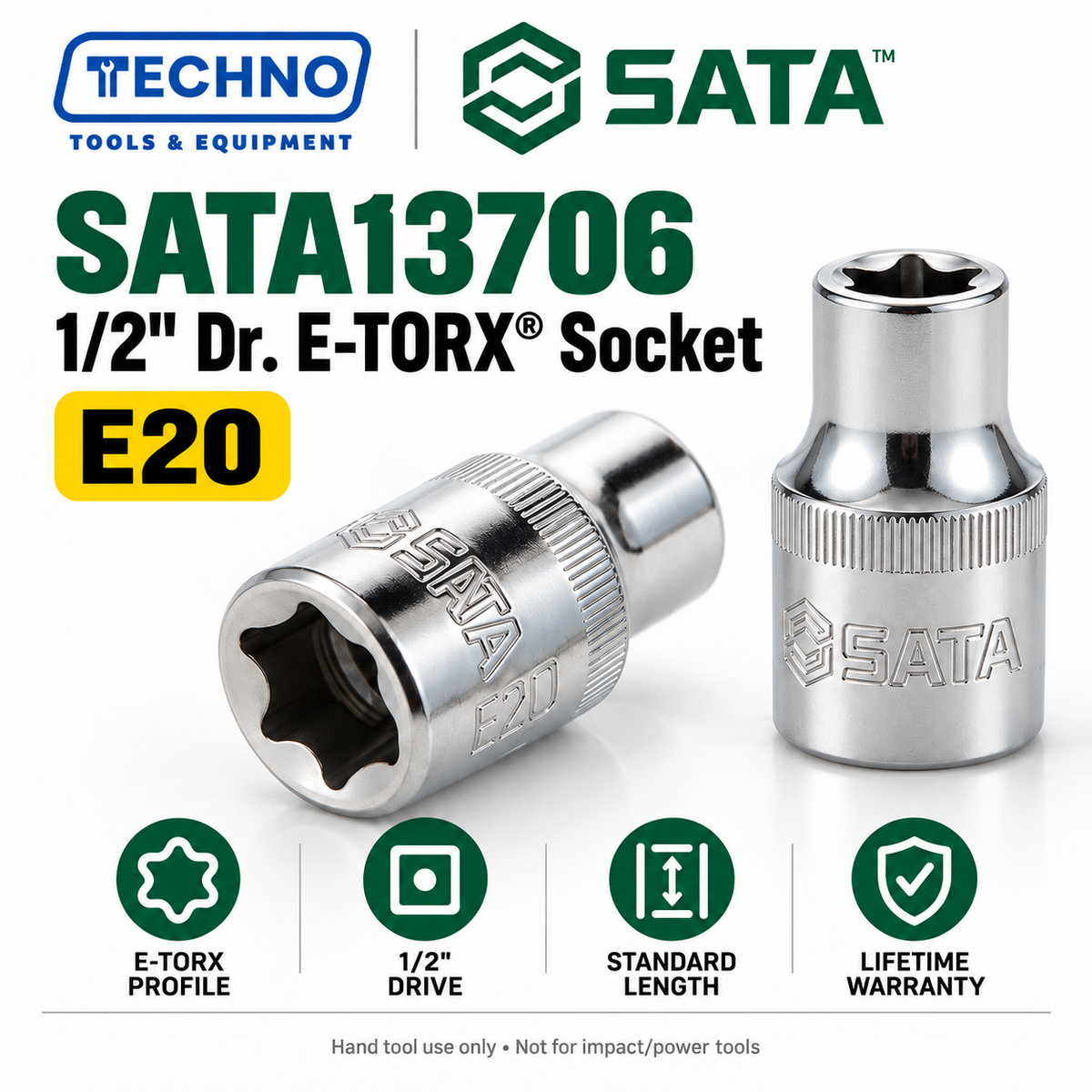

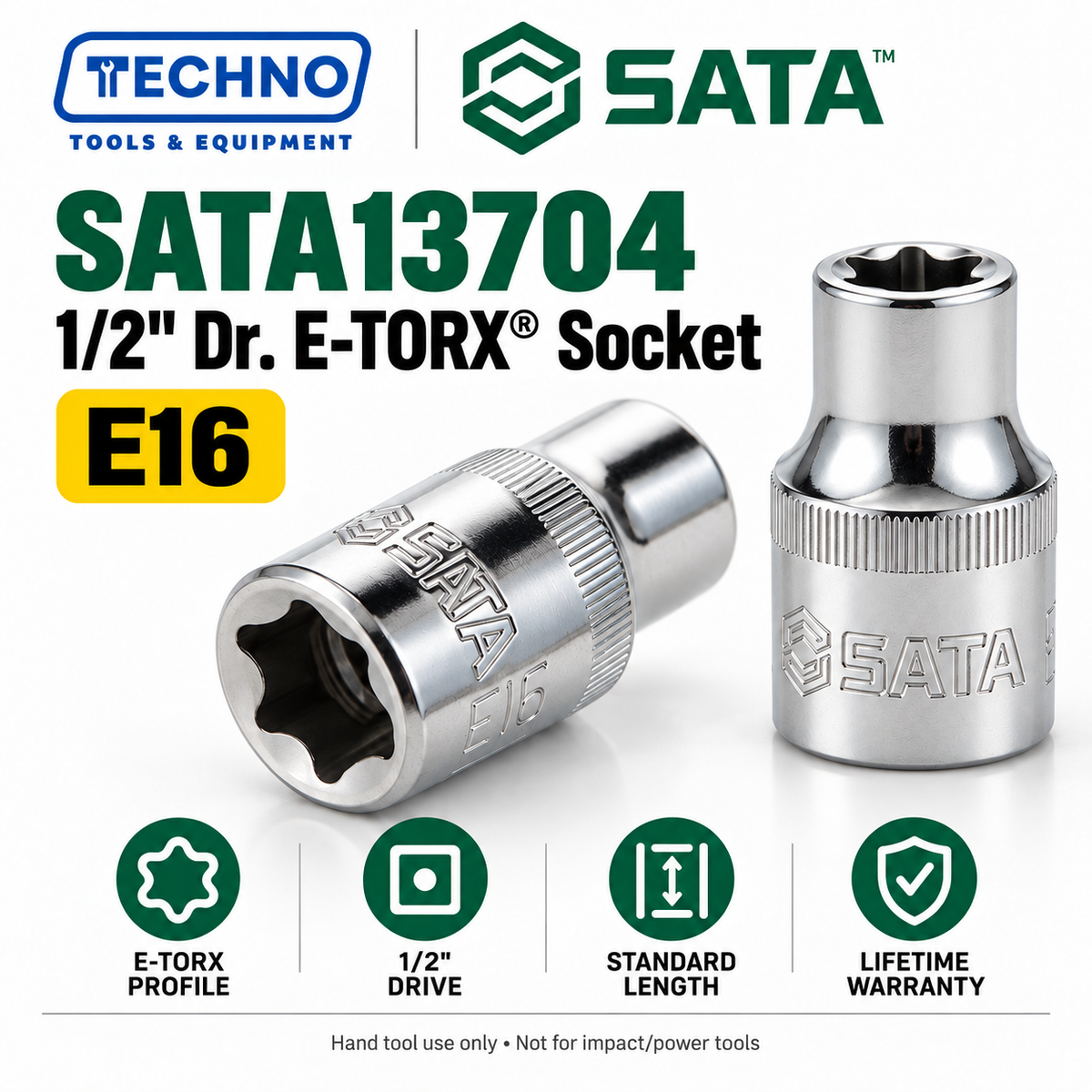

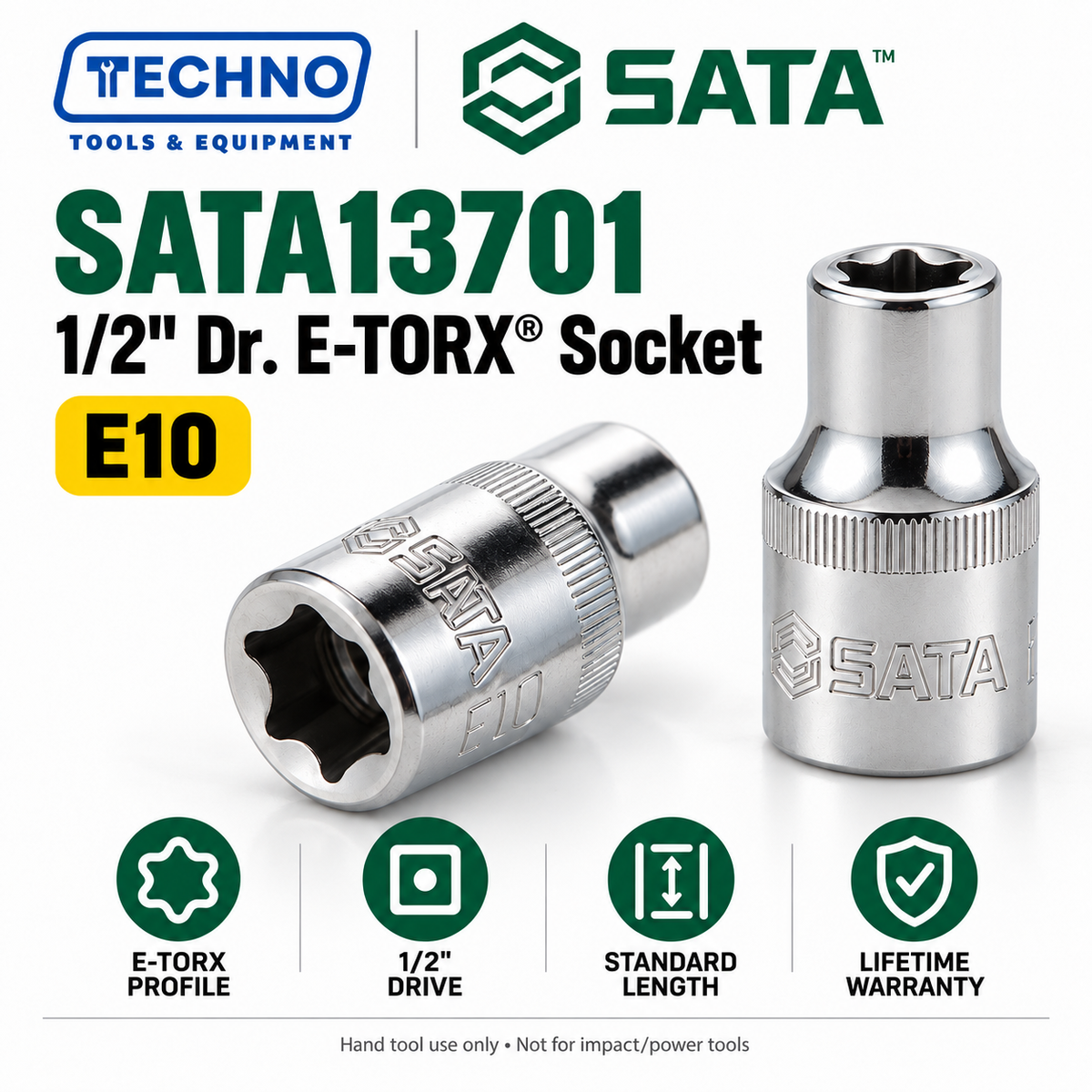

SATA 1/2" Dr. E-TORX® Socket E10–E24 (13701–13708)
Product Overview
The SATA 1/2" Dr. E-TORX® Socket series (13701–13708) is a range of hand-tool sockets made for external Torx (E-Torx) fasteners, the star-shaped bolt heads and nuts found in automotive and machinery assemblies. Each socket has a 1/2" square drive and a six-lobe star opening that fits the fastener closely. Choose from 8 sizes, from E10 to E24, in a compact 38–40mm body.
What Type of Tool Is This?
This is a 1/2" drive E-Torx (external Torx) socket, a hand tool used with a 1/2" drive ratchet, breaker bar or handle to tighten and loosen external star-shaped bolts and nuts. It is a standard-length socket for use where a deep socket is not needed.
Key Features
- E-Torx star profile: made for external Torx fasteners, with a close fit that helps reduce slipping and rounding.
- Compact 38–40mm length: suits jobs in tighter spaces.
- 1/2" square drive: works with standard 1/2" drive ratchets, breaker bars and handles.
- 8 sizes: E10, E12, E14, E16, E18, E20, E22 and E24.
- Knurled grip band: makes it easier to position and remove the socket by hand.
- Polished finish: smooth surface that is easy to wipe clean.
- Lifetime warranty: backed by SATA's lifetime warranty terms.
- Hand tool use only: these sockets should never be used on power drivers, pneumatic impact wrenches and/or extenders.
Specifications
| SKU | Size | Length C (mm) | A (mm) | B (mm) | D (mm) | E (mm) | Pcs / Pack |
|---|---|---|---|---|---|---|---|
| SATA13701 | E10 | 38 | 22 | 13 | 5.5 | 11 | 6 |
| SATA13702 | E12 | 38 | 22 | 15 | 6.5 | 11 | 6 |
| SATA13703 | E14 | 38 | 22 | 17 | 8 | 12.5 | 6 |
| SATA13704 | E16 | 38 | 22 | 19 | 8.5 | 12.5 | 6 |
| SATA13705 | E18 | 38 | 23.8 | 21 | 8.8 | 13.5 | 6 |
| SATA13706 | E20 | 38 | 25.8 | 23.5 | 9 | 14 | 4 |
| SATA13707 | E22 | 38 | 25.8 | 25.8 | 9 | 14 | 4 |
| SATA13708 | E24 | 40 | 27.8 | 27.8 | 10 | 15 | 4 |
Warranty: Lifetime warranty
Drive size: 1/2" | Type: E-Torx (external Torx) socket | Origin: China. All dimensions in mm.
Available Options
Size (select one): E10 (SATA13701) | E12 (SATA13702) | E14 (SATA13703) | E16 (SATA13704) | E18 (SATA13705) | E20 (SATA13706) | E22 (SATA13707) | E24 (SATA13708)
Package Contents
- 1 × SATA 1/2" Dr. E-TORX® Socket in the size you select
Warranty Terms
Warranty: SATA lifetime warranty applies to this product.
Why Choose SATA?
- Professional-grade tools: SATA designs hand tools for technicians, mechanics and serious DIY users.
- Complete size range: one series covers the common E-Torx sizes from E10 to E24.
- Consistent quality: each socket is made to the same dimensional specifications, so it fits and performs the same way every time.
- Lifetime warranty: long-term coverage for confidence in every purchase.
- Trusted range: part of SATA's wider line of sockets, wrenches, screwdrivers and tool sets, so you can build a matching toolkit.
Warranty Terms
All SATA products, unless otherwise stated, are warranted against manufacturing defects in materials and workmanship, subject to intended use and fair wear and tear.
| Product Category | Period |
|---|---|
| Hand Tools | Lifetime |
| Torque Products | Calibration: 90 days Tool: 1 year |
| Bits, Bit Holders, Bit Sockets, Extensions, Taps & Dies, Files & Cutting Tools | 30 days |
| Accessories, Cases, Pouches, Toolboxes & Consumables | 1 year |
Warranty periods start from the purchase date.
| Warranty period | Lifetime Warranty |
|---|---|
| Coverage | Free repair or replacement for functional faults arising during normal use. No time limit. |
| Not covered | Wear beyond the tool's normal service life; rust, plating wear, surface scratches or handle damage that does not affect function; parts marked as consumables in the SATA catalogue (e.g. coloured sleeves, brackets, power bars); packaging. |
| Warranty void if | Damage from misuse or abnormal operation (e.g. striking, prying, using hand sockets on impact tools, exceeding the tool's rated capacity); the product has been machined or modified, or parts have been replaced, lost or are incomplete. |
Bring the product to Techno Tools as an authorised SATA dealer. SATA repairs the product first and replaces it if repair is not possible.
