SATA VDE 1000V Insulated 1/2" Drive Adjustable Torque Wrench (96613 / 96615 / 96616) High Voltage Electrician Hand Tool

Note: Pre-Order 8 days

The SATA VDE 1000V Insulated 1/2" Drive Torque Wrench Series (Models 96613, 96615, and 96616) is a premium line of high-voltage safety tools engineered specifically for hybrid and electric vehicle (EV) maintenance, solar power plant installations, high-voltage battery assembly, and industrial electrical work.

Each wrench is fully certified to VDE IEC/EN 60900 standard and rated for safe working operation up to 1000V AC. Built with heavy-duty chrome-vanadium steel wrapped in durable insulation layers, these click-type adjustable torque wrenches ensure precise torque control while preventing accidental short circuits and electrical shock. Available in three torque range options (96613: 10–50 Nm, 96615: 20–100 Nm, and 96616: 40–200 Nm), the series covers low-to-high torque applications across electrical terminals and mechanical fasteners.

Features

• VDE 1000V Certified Insulation: Individually tested and certified to IEC/EN 60900 safety standards for protection against high-voltage electrical risks up to 1000V AC.
• Click-Type Torque Adjustment: Audible "click" and tactile impulse feedback when the target torque value is reached to prevent over-tightening.
• Dual Scale Display Window: Clear, easy-to-read scale window for fast and accurate torque value setting.
• Reversible Ratchet Mechanism: Integrated direction lever allows fast clockwise torque tightening and counter-clockwise ratcheting motion.
• Ergonomic Safety Grip: Molded insulated handle provides an anti-slip grip and maximum operator comfort during high-torque applications.

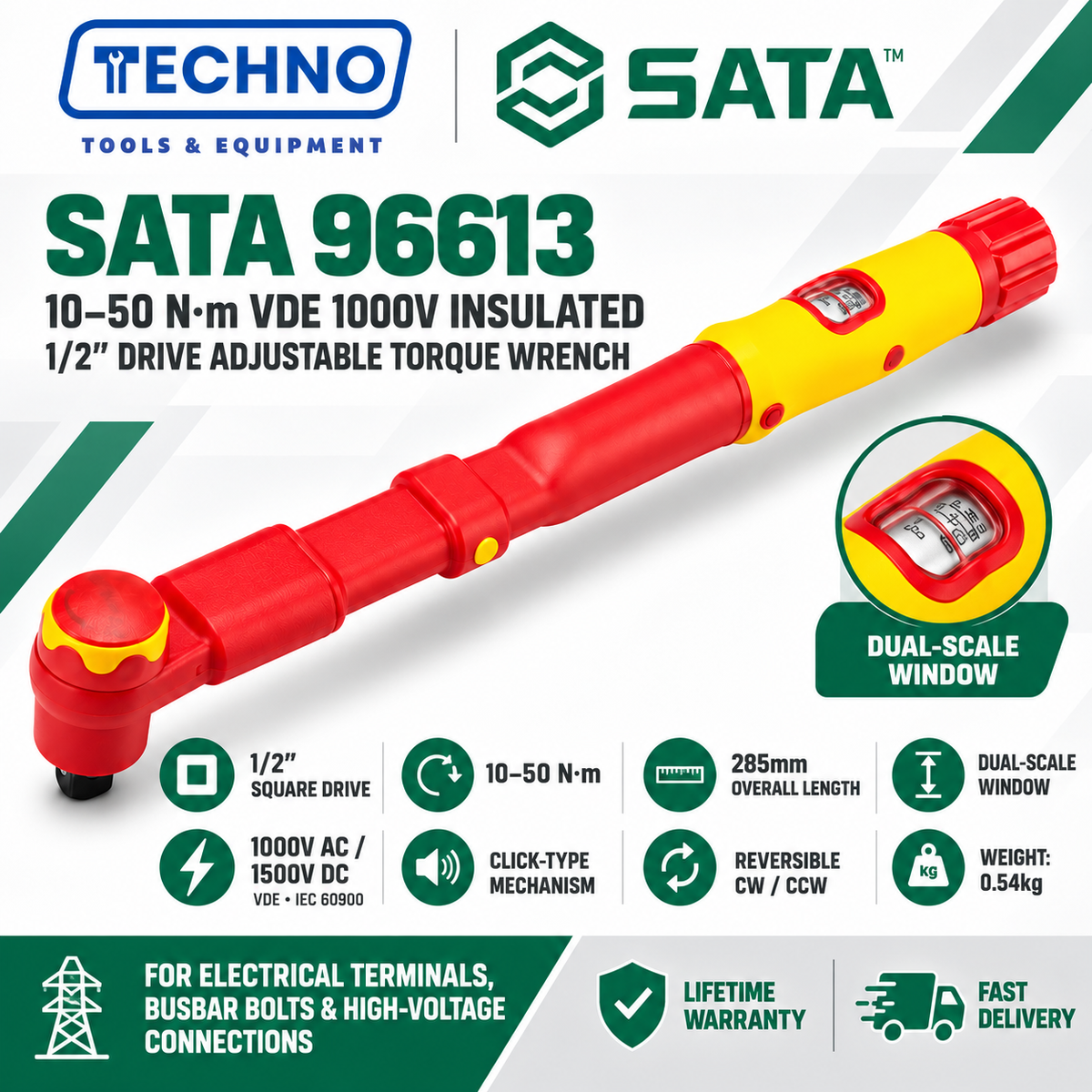

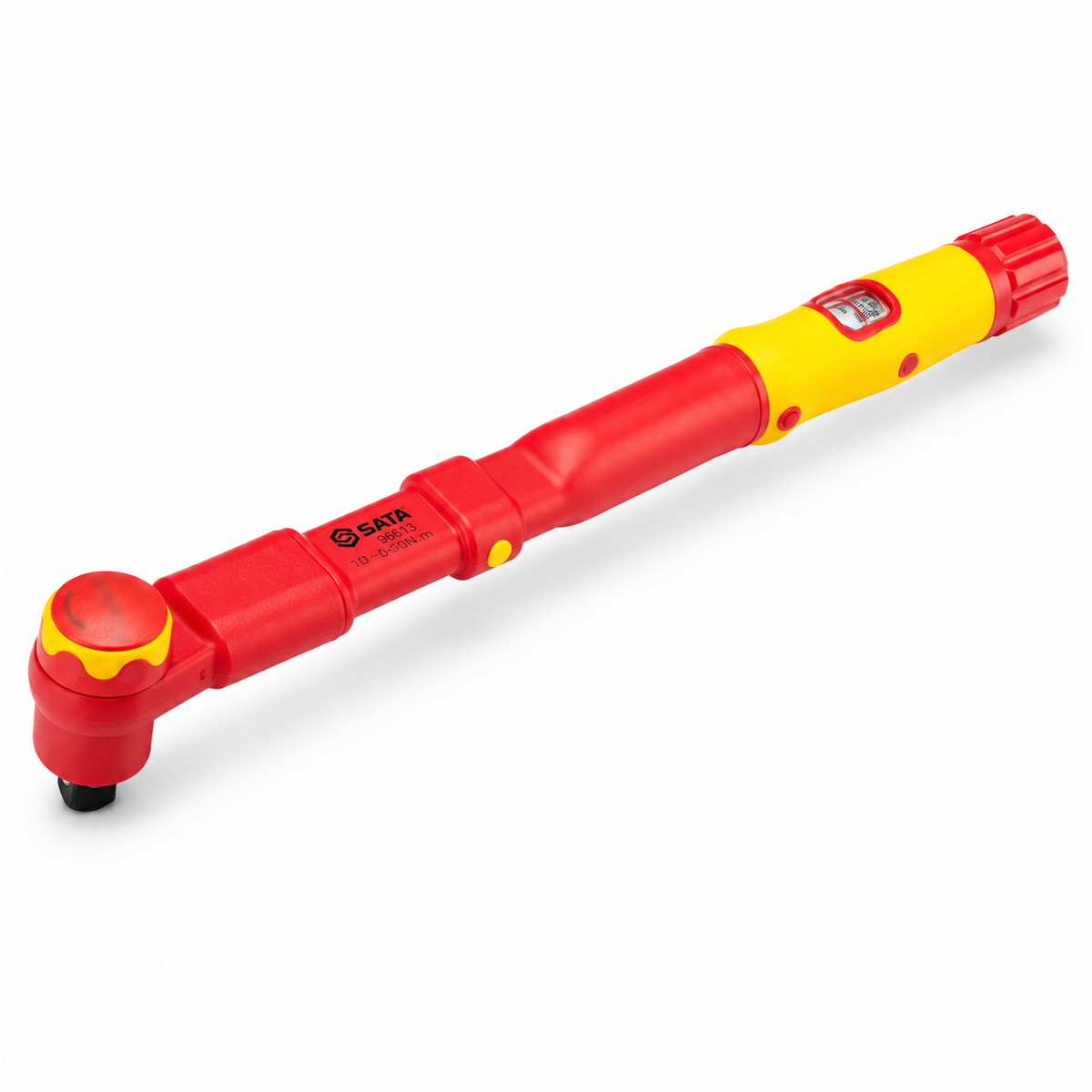

SATA 96613 Specifications

Drive Size: 1/2" Square Drive
Torque Range: 10 – 50 Nm
Overall Length: 285 mm
Voltage Insulation Rating: 1000V AC / 1500V DC
Safety Certification: VDE / IEC 60900 Standard
Mechanism: Click-type adjustable torque mechanism
Direction: Reversible ratchet head (CW / CCW)
Scale Display: Dual-scale clear window reading
Primary Application: Low-torque electrical terminals, busbar bolts, and delicate high-voltage connections
Weight: 0.54kg

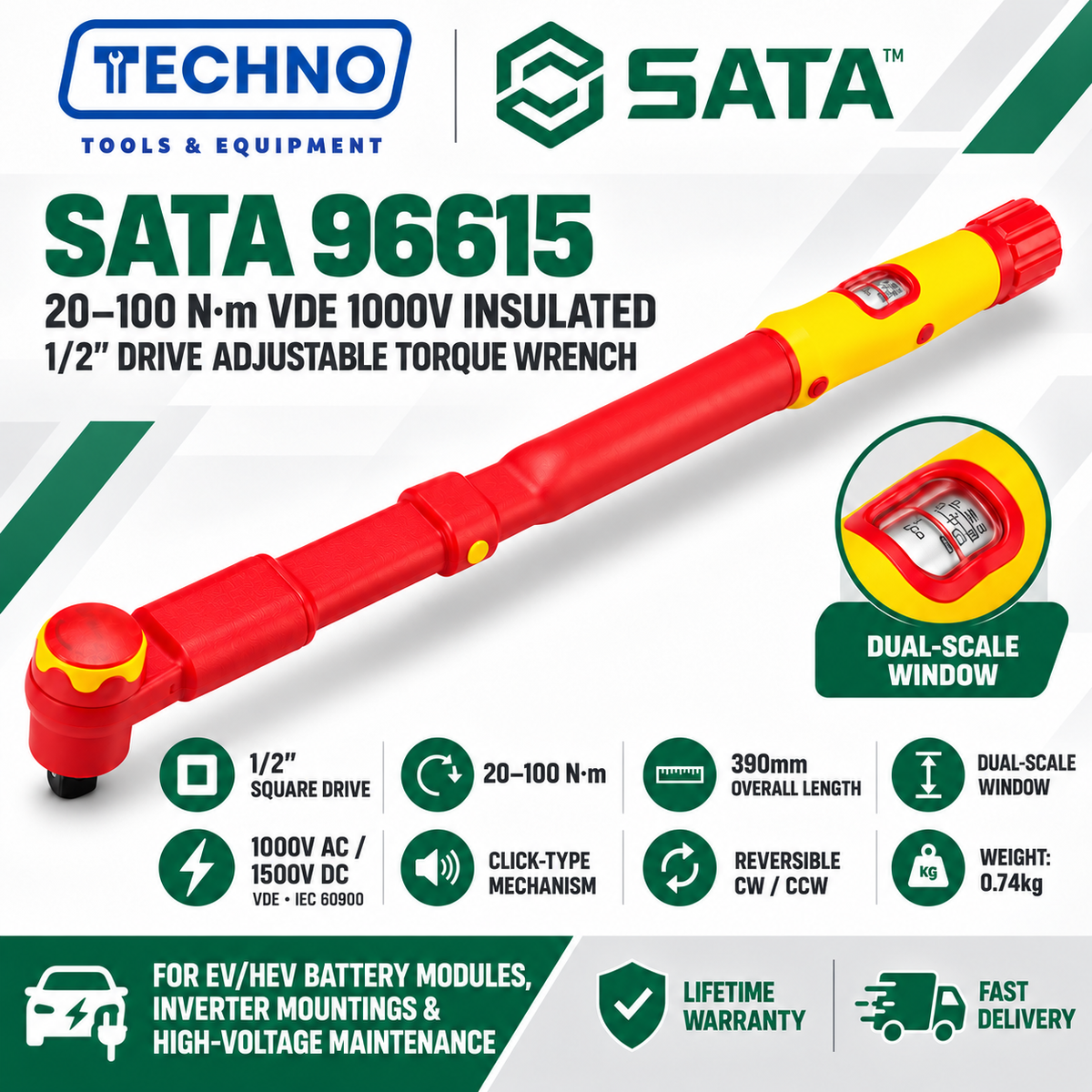

SATA 96615 Specifications

Drive Size: 1/2" Square Drive
Torque Range: 20 – 100 Nm
Overall Length: 390 mm
Voltage Insulation Rating: 1000V AC / 1500V DC
Safety Certification: VDE / IEC 60900 Standard
Mechanism: Click-type adjustable torque mechanism
Direction: Reversible ratchet head (CW / CCW)
Scale Display: Dual-scale clear window reading
Primary Application: EV/HEV battery module connections, inverter mountings, and general high-voltage maintenance
Weight: 0.74kg

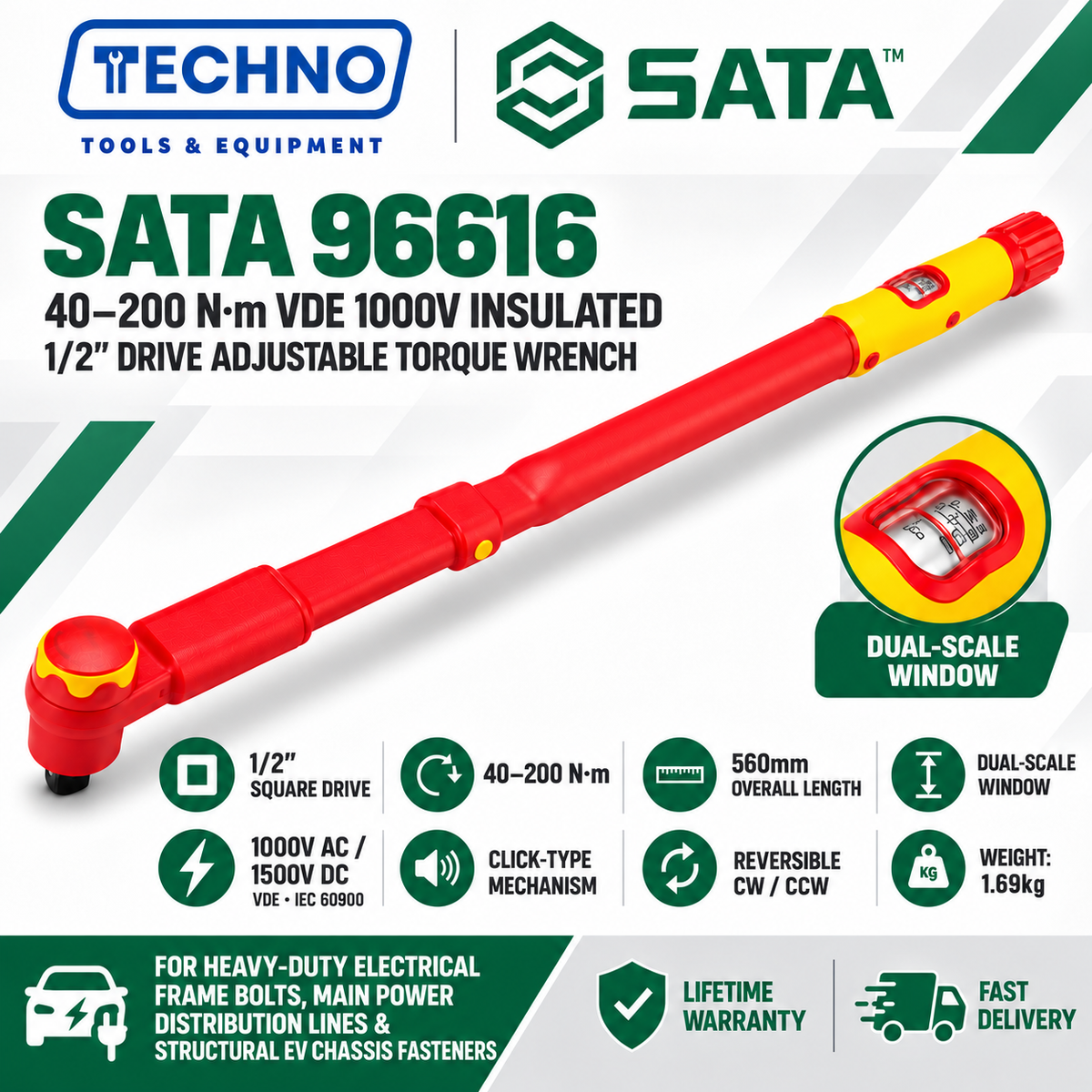

SATA 96616 Specifications

Drive Size: 1/2" Square Drive
Torque Range: 40 – 200 Nm
Overall Length: 560 mm
Voltage Insulation Rating: 1000V AC / 1500V DC
Safety Certification: VDE / IEC 60900 Standard
Mechanism: Click-type adjustable torque mechanism
Direction: Reversible ratchet head (CW / CCW)
Scale Display: Dual-scale clear window reading
Primary Application: Heavy-duty electrical frame bolts, main power distribution lines, and structural EV chassis fasteners
Weight: 1.69kg
