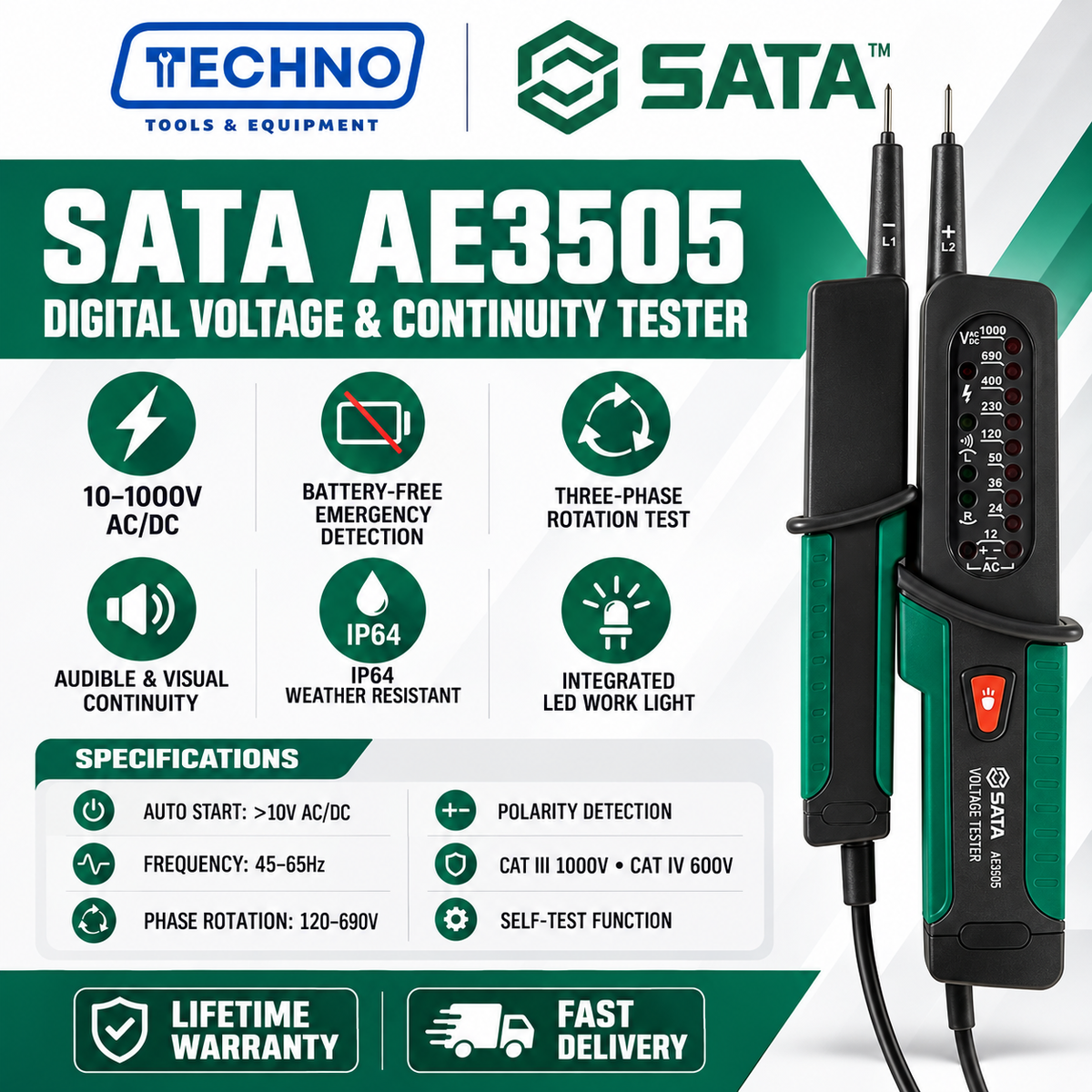

SATA AE3505 Digital Voltage & Continuity Tester Pen

The SATA AE3505 is a heavy-duty two-pole digital voltage and continuity tester designed for rapid, accurate electrical troubleshooting across industrial power lines, commercial wiring, and automotive systems. Capable of measuring both AC and DC voltages from 10V up to 1000V, it automatically powers on when detecting voltages over 10V.

Engineered with high safety ratings (CAT III 1000V / CAT IV 600V) and an IP64 dust and splash-proof housing, the AE3505 performs critical diagnostics including polarity testing, continuity buzzing, and three-phase electricity rotation testing. It features an integrated LED work light, a self-test function, and the ability to perform basic 10V–1000V AC/DC voltage detection even without installed batteries.

Features

Wide AC/DC Voltage Detection Range: Safely detects and measures AC/DC voltage levels from 10V to 1000V with automatic start above 10V.

Battery-Free Emergency Detection: Capable of performing basic voltage checks (10–1000V AC/DC) even when batteries are depleted or missing.

Three-Phase Electricity Rotation Test: Detects phase sequence for 120V to 690V three-phase industrial motor and distribution systems.

Audible & Visual Continuity Test: Built-in buzzer and indicator lights deliver clear go/no-go signals for line continuity and polarity checks.

Rugged & Weather-Resistant Construction: IP64-rated water and dust-resistant casing built for tough job-site environments.

Integrated LED Work Light: Built-in flashlight lights up dark junction boxes and electrical panels.

Specifications

Model Number: SATA AE3505
Voltage Measurement Range: 10V - 1000V AC/DC
Automatic Start Threshold: > 10V AC/DC
Frequency Range: 45Hz - 65Hz
Three-Phase Rotation Test Range: 120V - 690V
Continuity / On-Off Test: Yes (Audible buzzer & visual indicator)
Polarity Detection: Yes (Positive / Negative indication)
Ingress Protection Rating: IP64 (Dust-tight and splash-proof)
Safety Category Rating: CAT III 1000V / CAT IV 600V
Illumination: Integrated white LED flashlight
Self-Test Function: Supported
Battery-Free Operation: Supported for basic voltage testing (10V - 1000V)
