SATA 48603-48622 Forged Open End Slugging Wrench 27-105MM

Product Overview

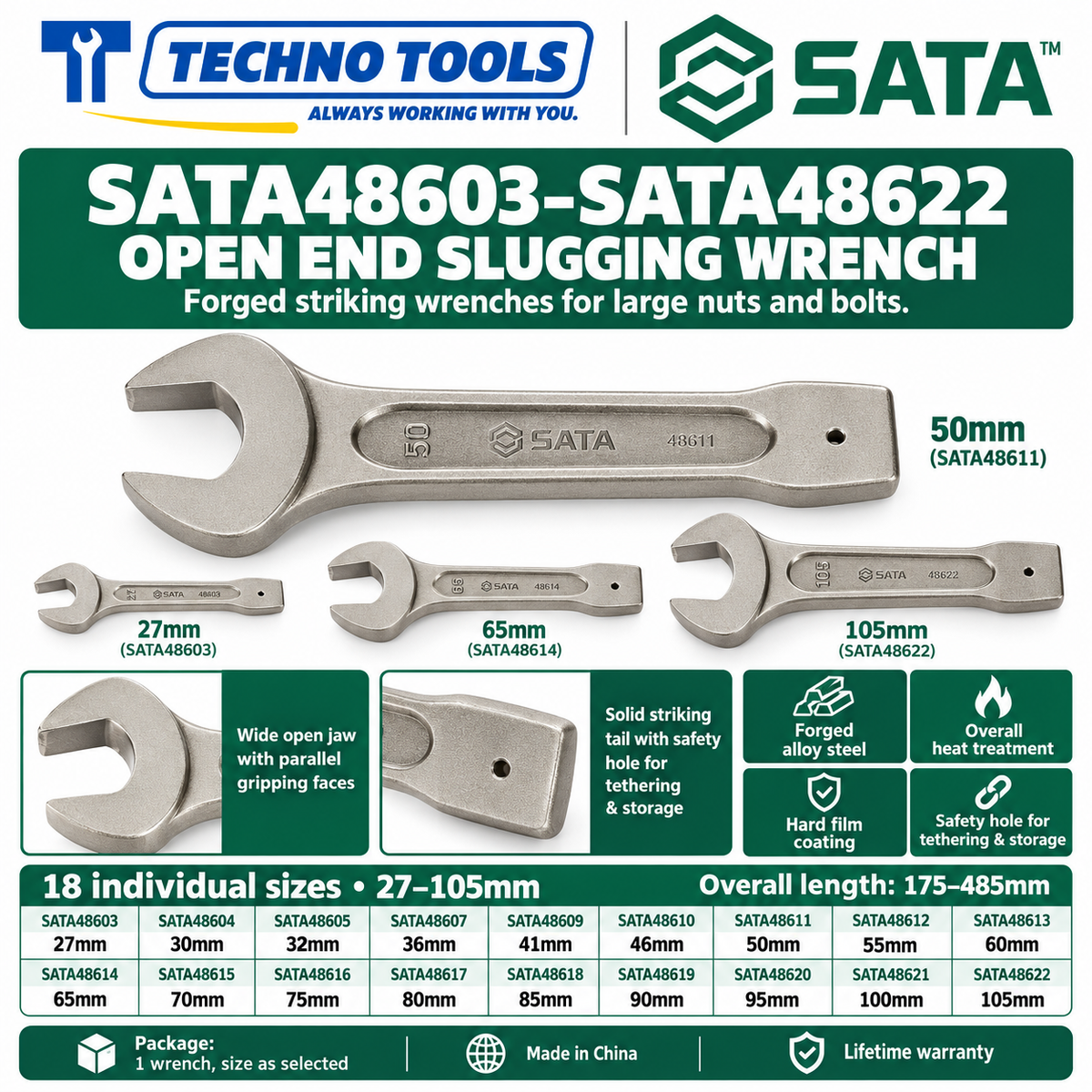

The SATA Open End Slugging Wrench (SATA48603 to SATA48622) is a heavy-duty open end wrench with an impact end, made for large nuts and bolts that need extra force. It is forged from alloy steel, heat treated all over for uniform hardness, and coated with a hard film for rust protection. The impact end has a safety hole for a wire or string, so the wrench can be tied to the equipment to reduce the risk of injury from excessive force on impact, and hung for storage. Backed by SATA's lifetime warranty, it is available in 18 sizes from 27mm to 105mm.

Key Features

Forged alloy steel: made of alloy steel through forging for strength.
Overall heat treatment: ensures uniform hardness.
Hard film surface coating: rust protection, a good appearance and high resistance to wear and rust.
Impact end with safety hole: wires or strings can be threaded through to connect the wrench to the equipment, avoiding injuries from excessive force on impact, and for hanging and storage.
Cr-V steel on the largest sizes: the 95MM, 100MM and 105MM wrenches are also made of Cr-V steel, especially suitable for use in confined spaces.
18 sizes: from 27mm to 105mm, 175mm to 485mm long.
Lifetime warranty: covered by SATA's lifetime warranty.

Specifications

SATA No.	Size S (mm)	D (mm)	H (mm)	L (mm)

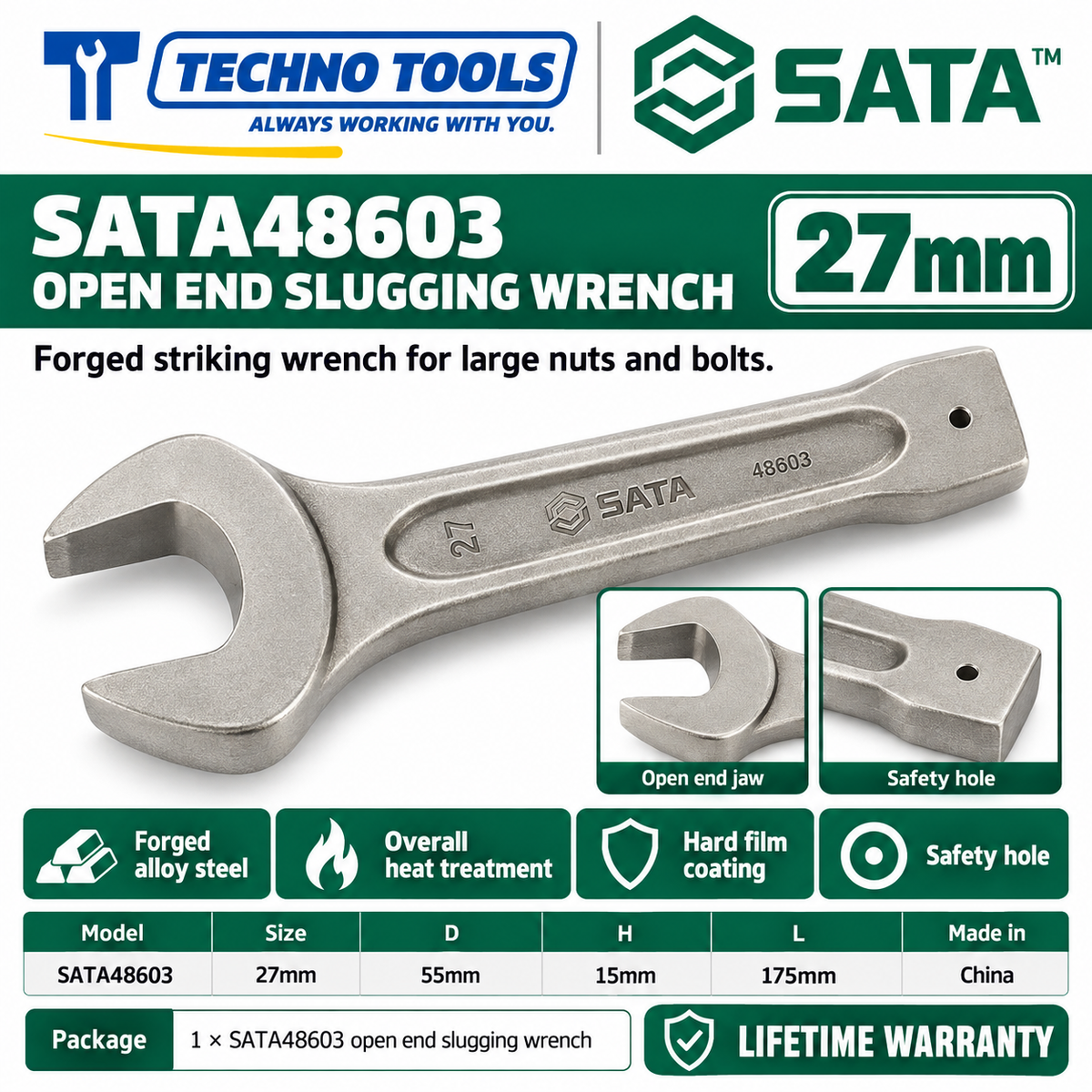

SATA48603	27	55	15	175

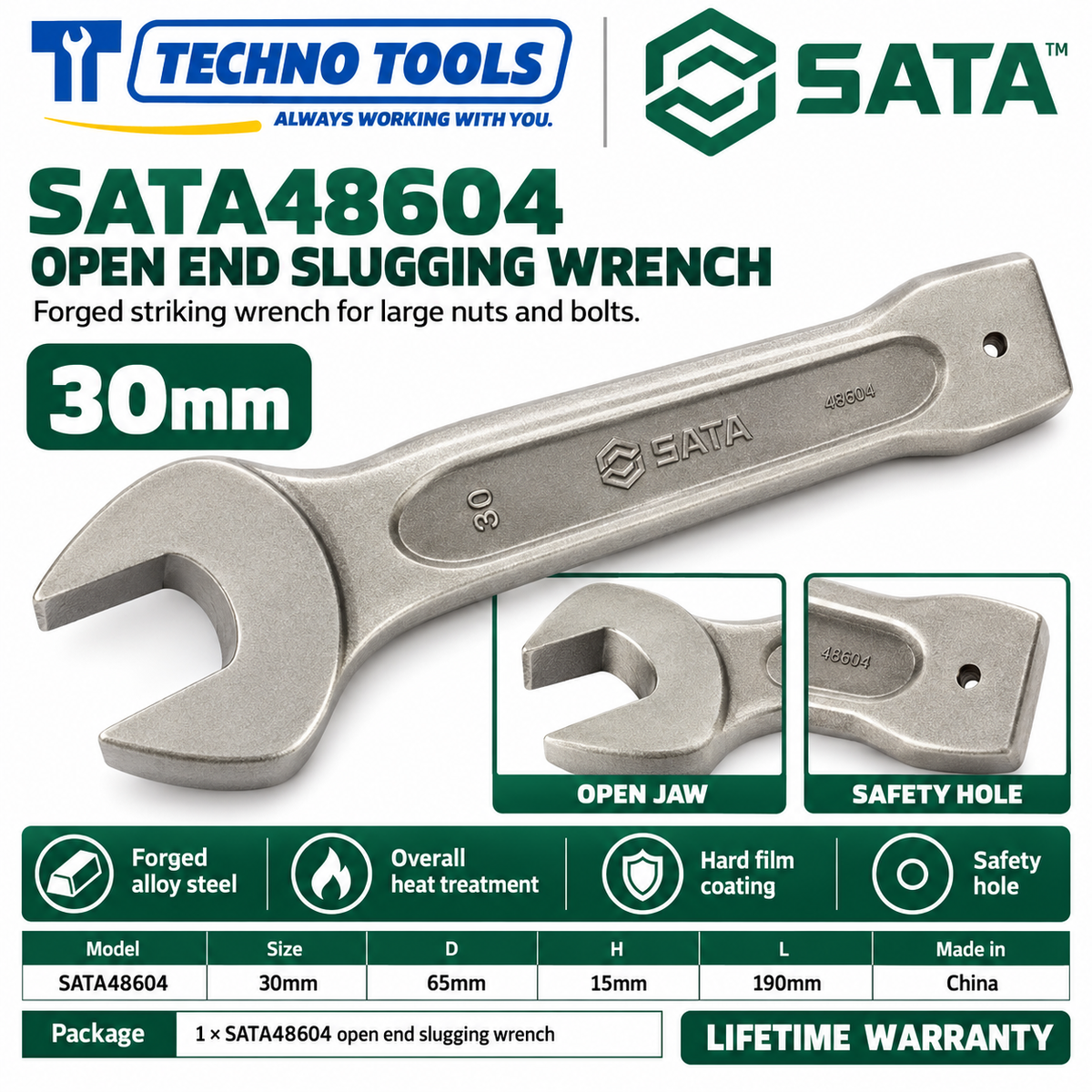

SATA48604	30	65	15	190

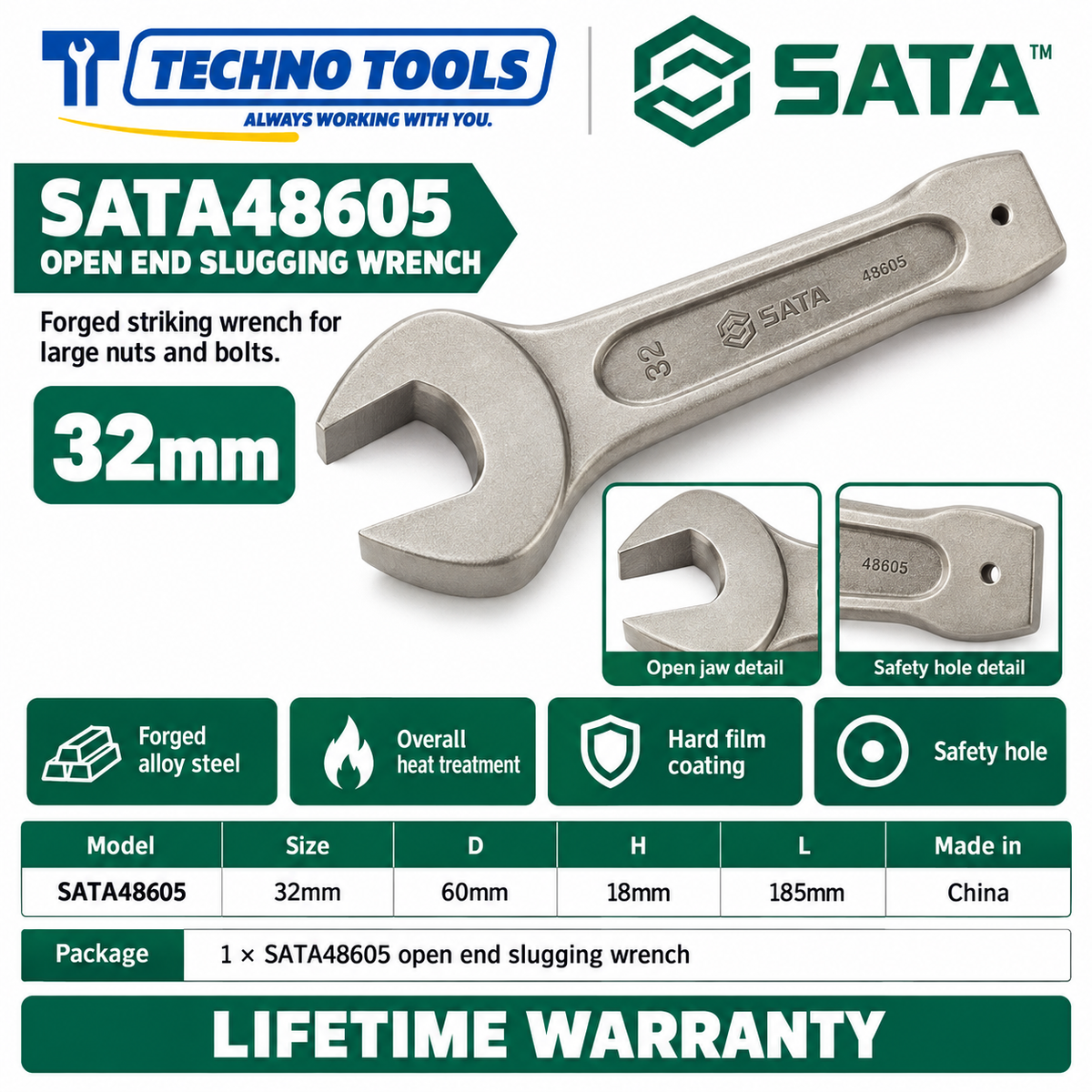

SATA48605	32	60	18	185

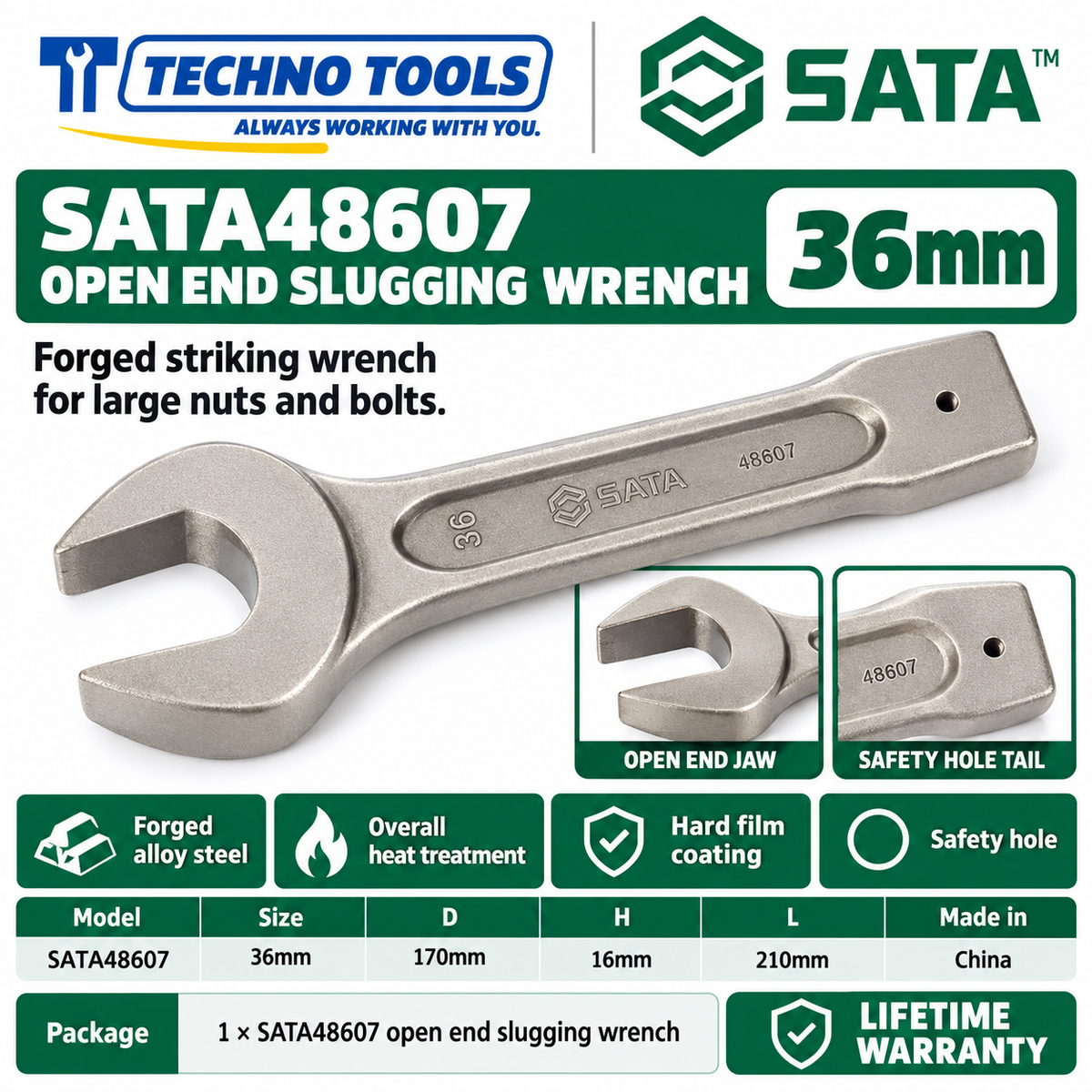

SATA48607	36	170	16	210

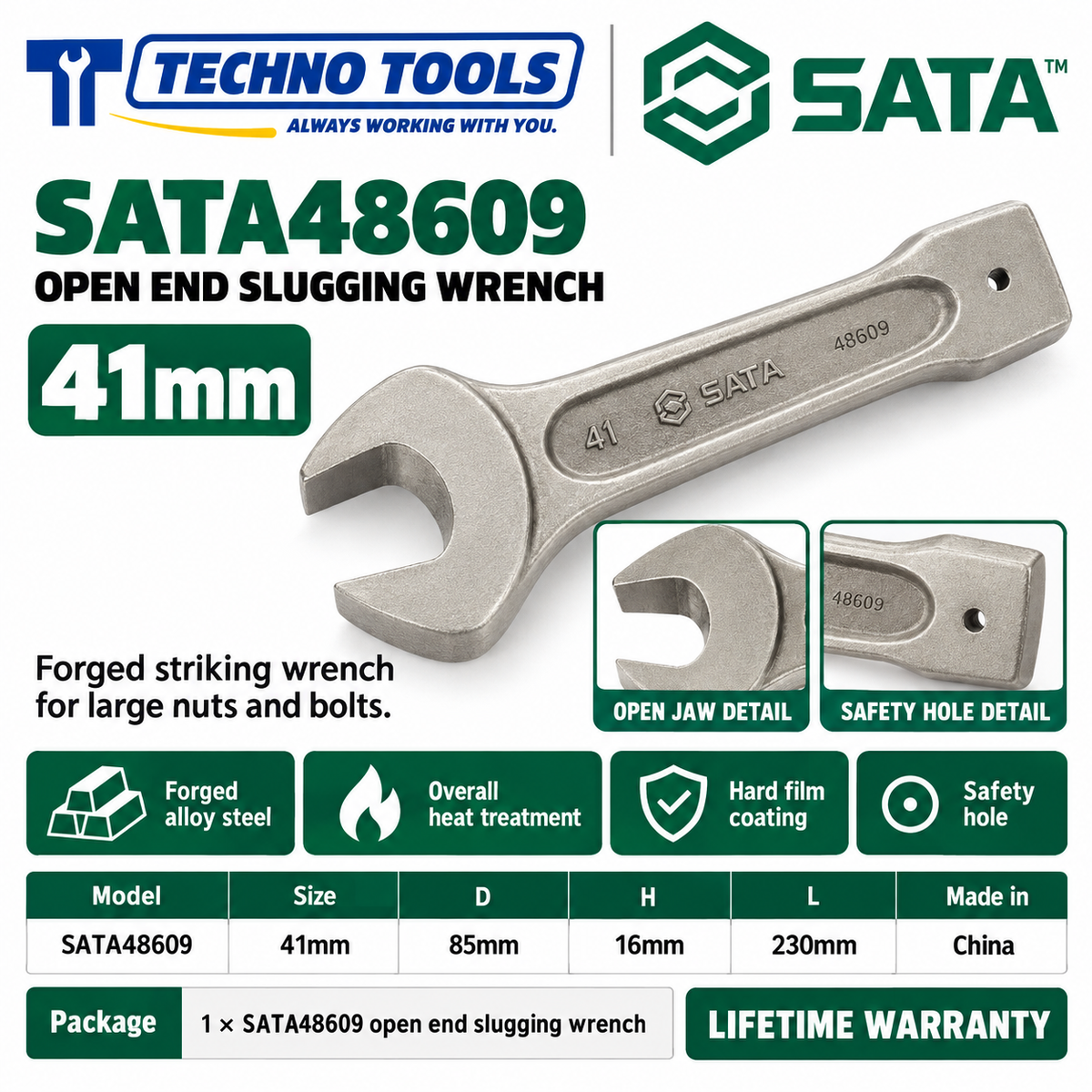

SATA48609	41	85	16	230

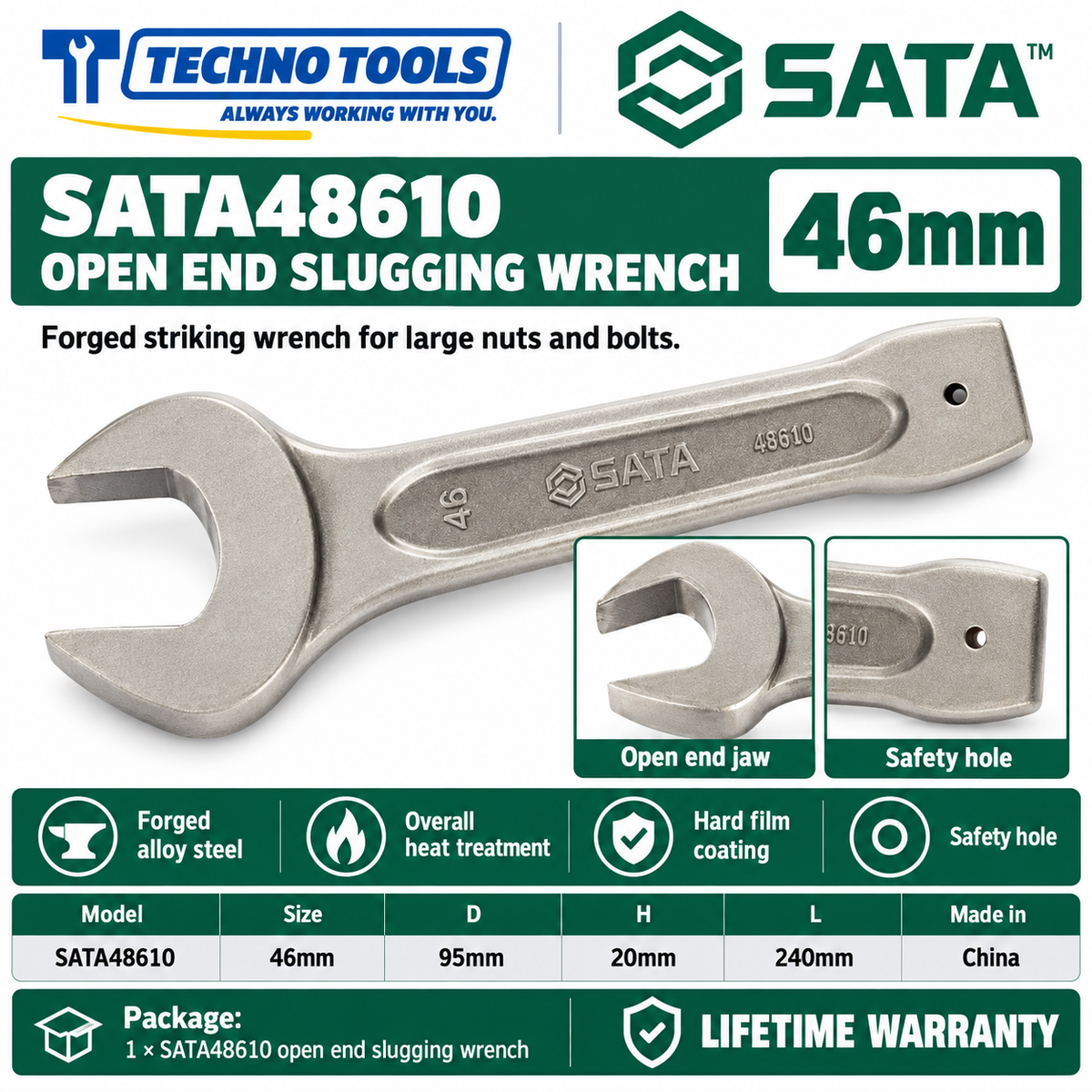

SATA48610	46	95	20	240

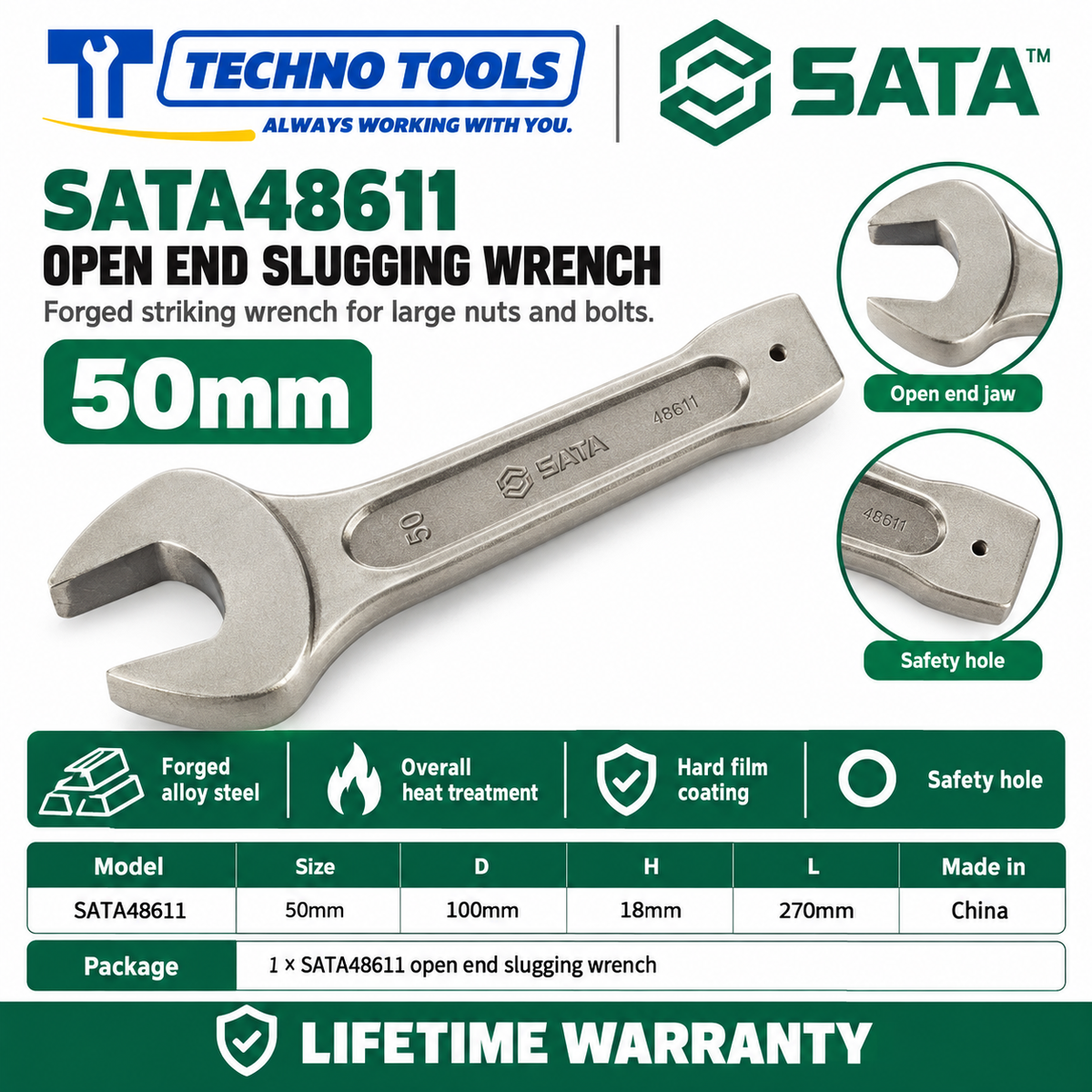

SATA48611	50	100	18	270

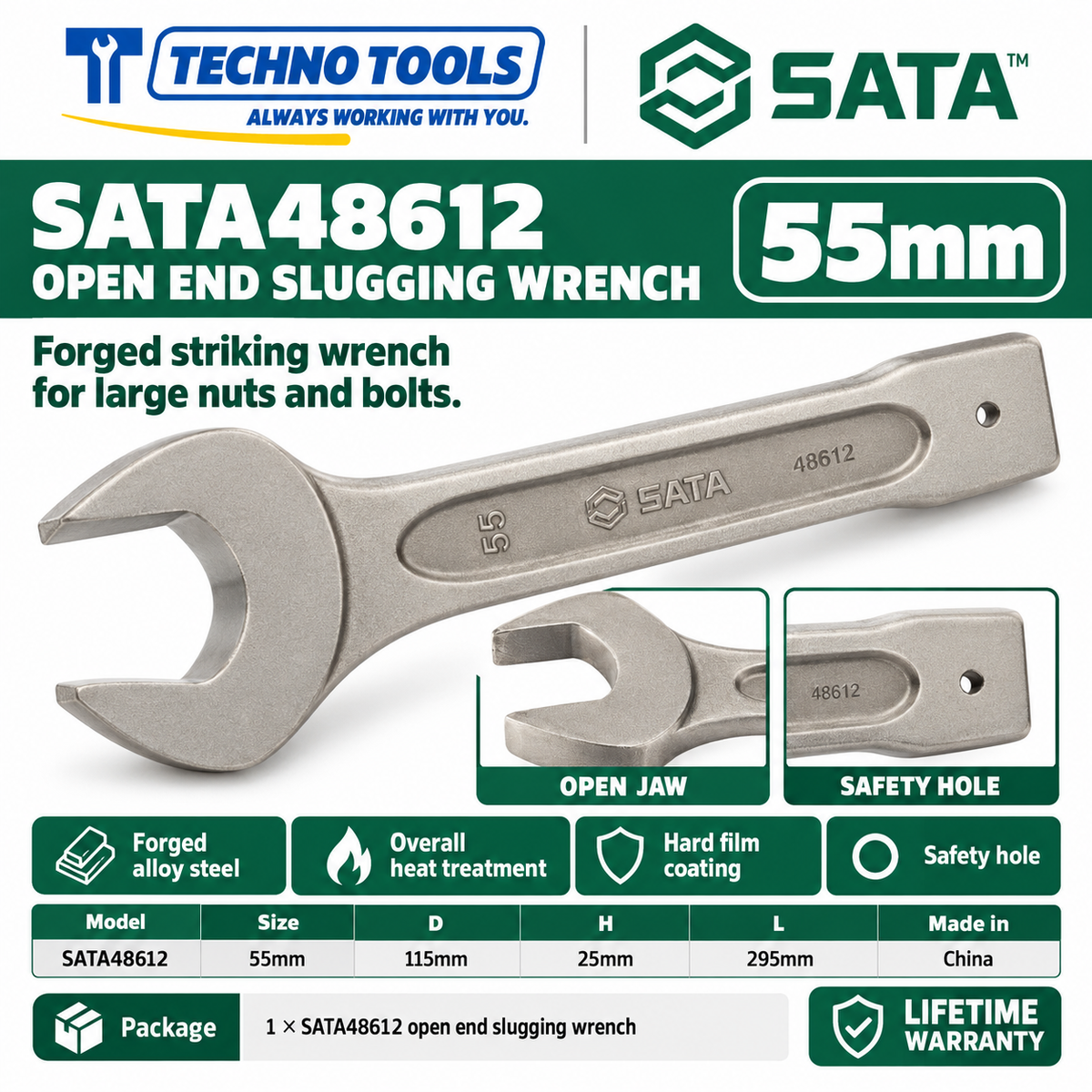

SATA48612	55	115	25	295

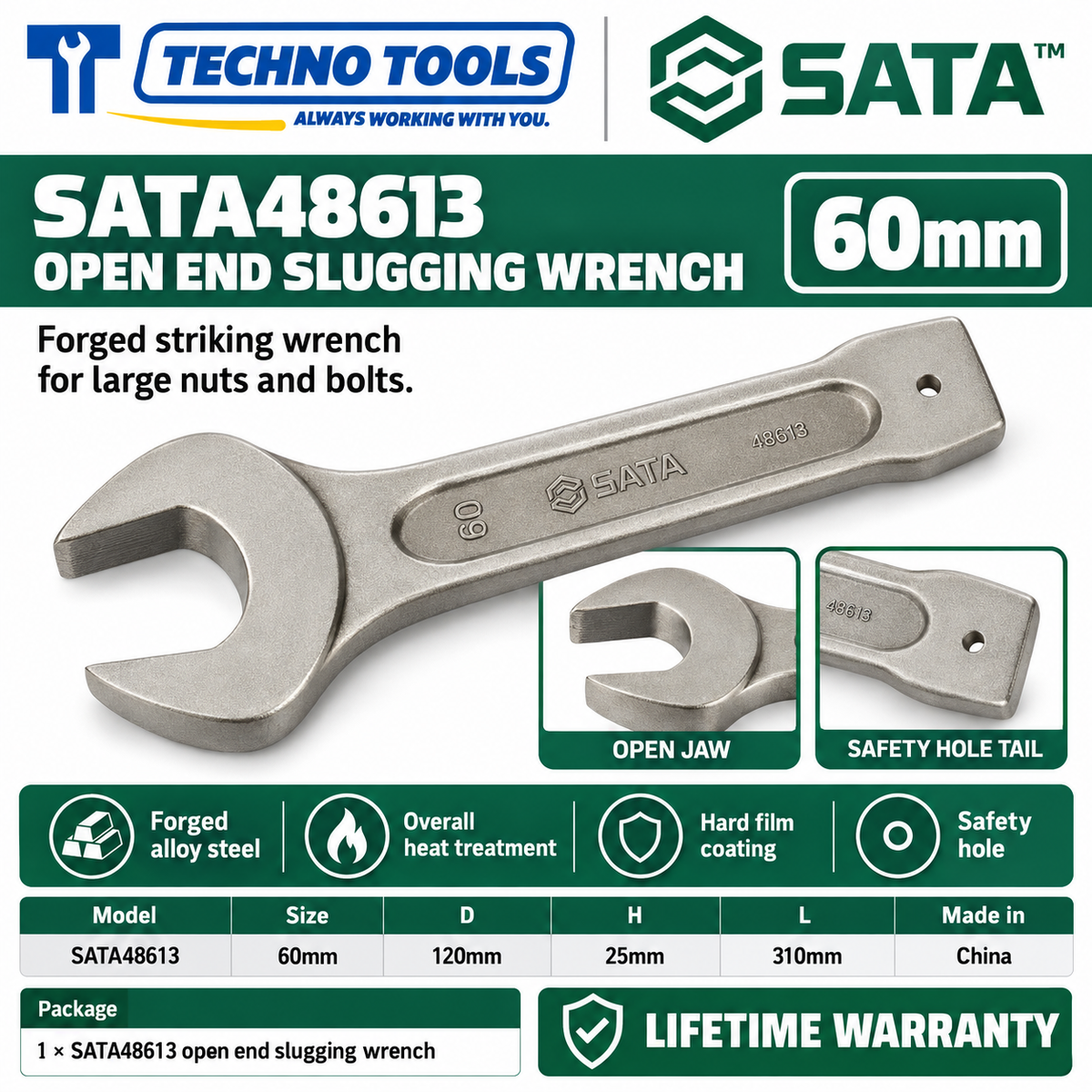

SATA48613	60	120	25	310

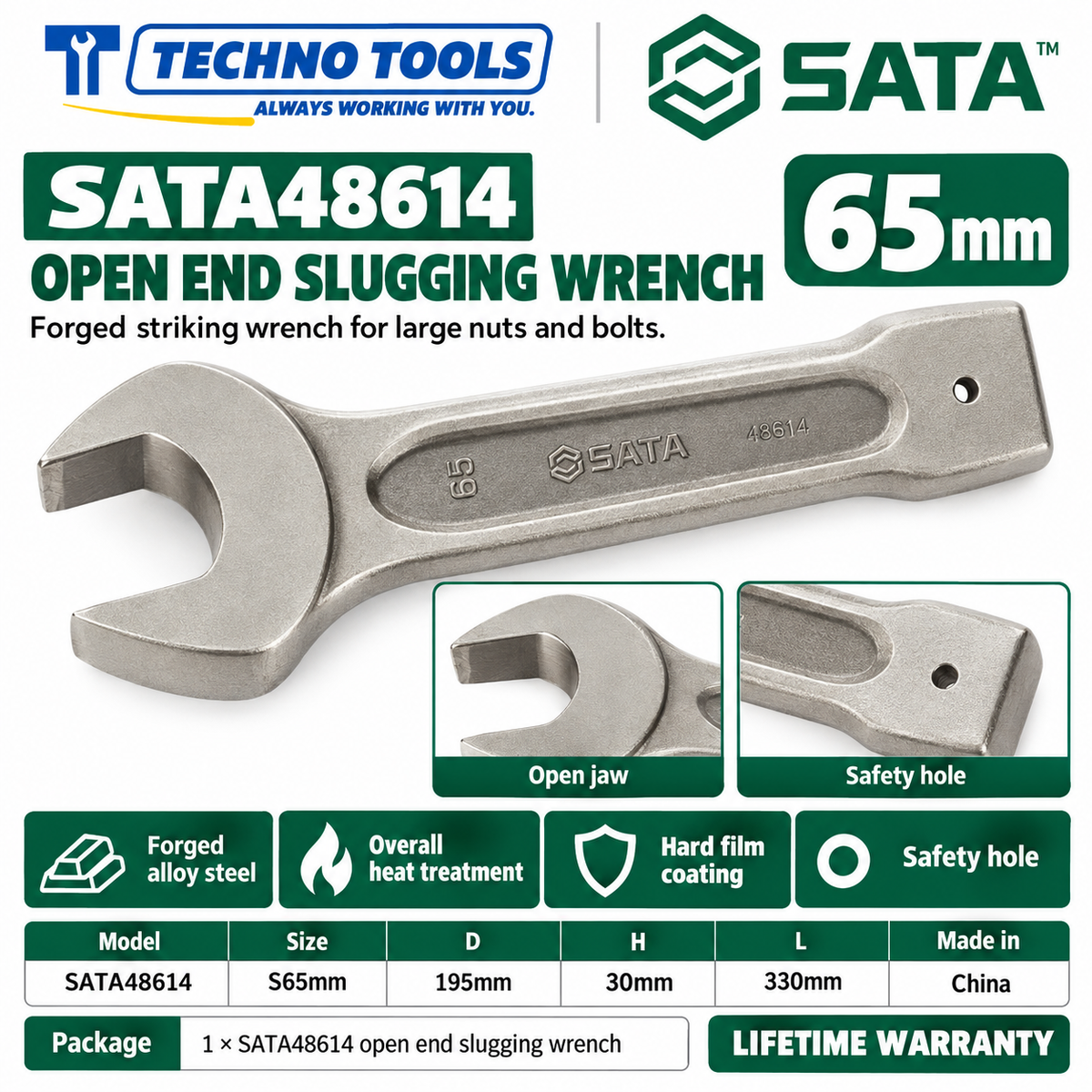

SATA48614	65	195	30	330

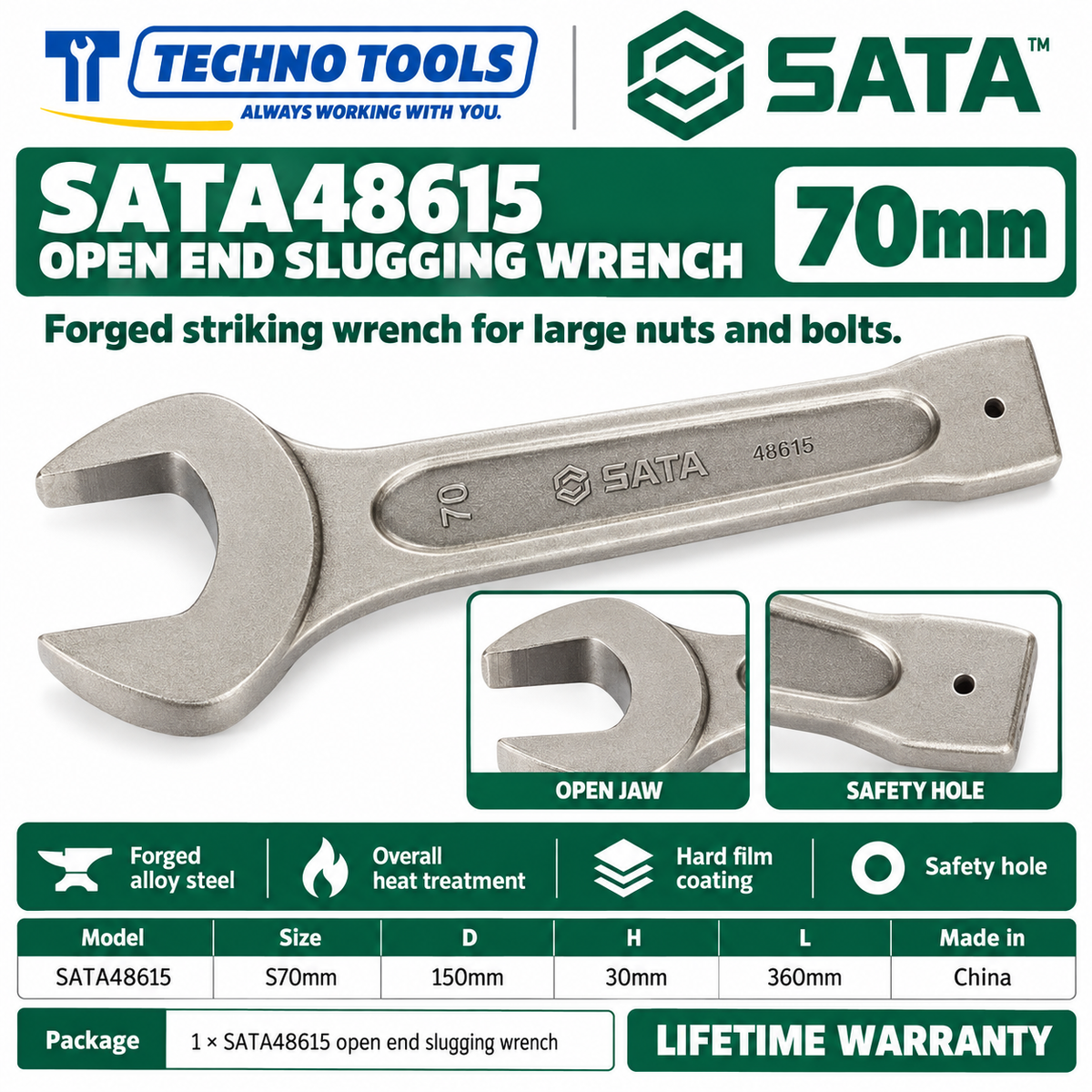

SATA48615	70	150	30	360

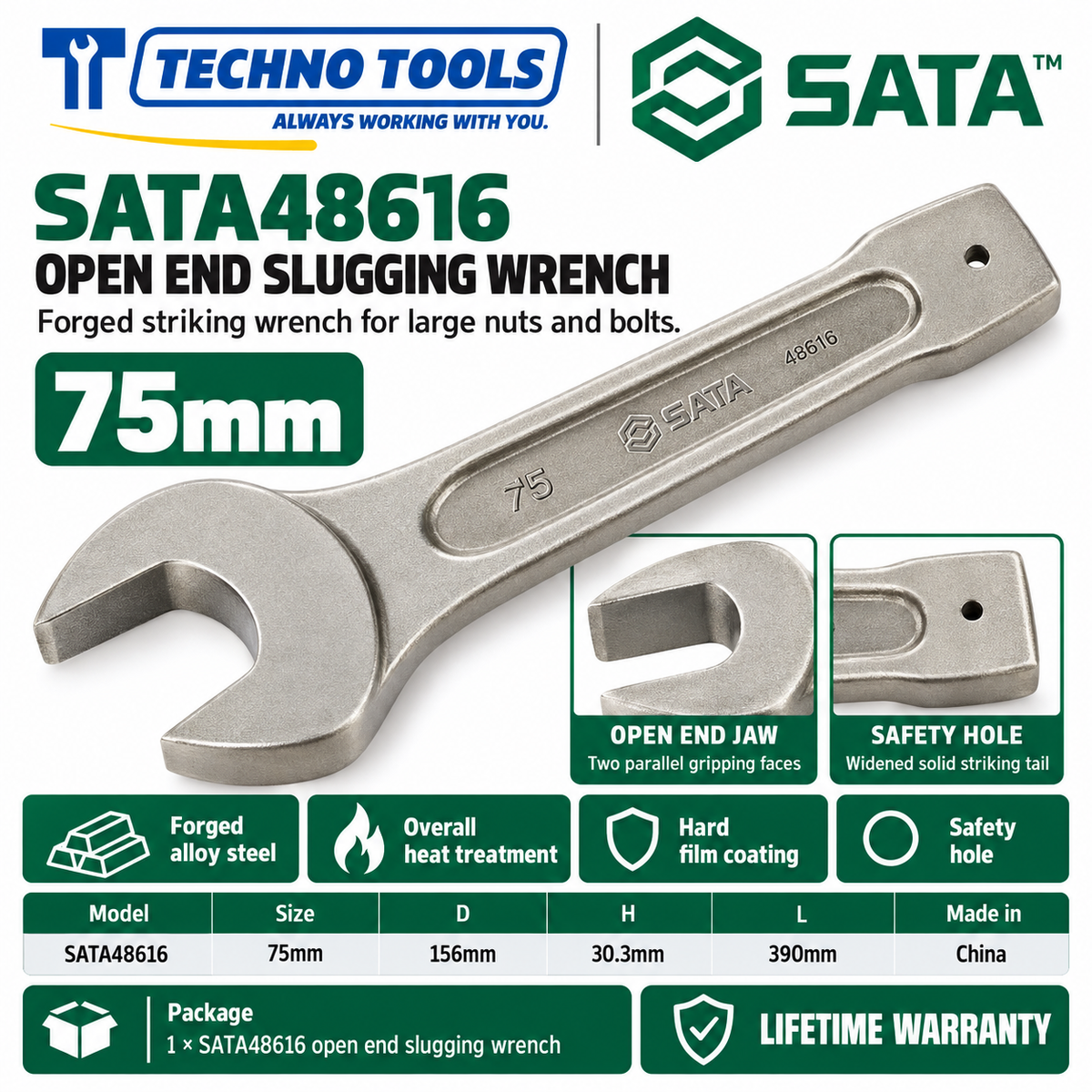

SATA48616	75	156	30.3	390

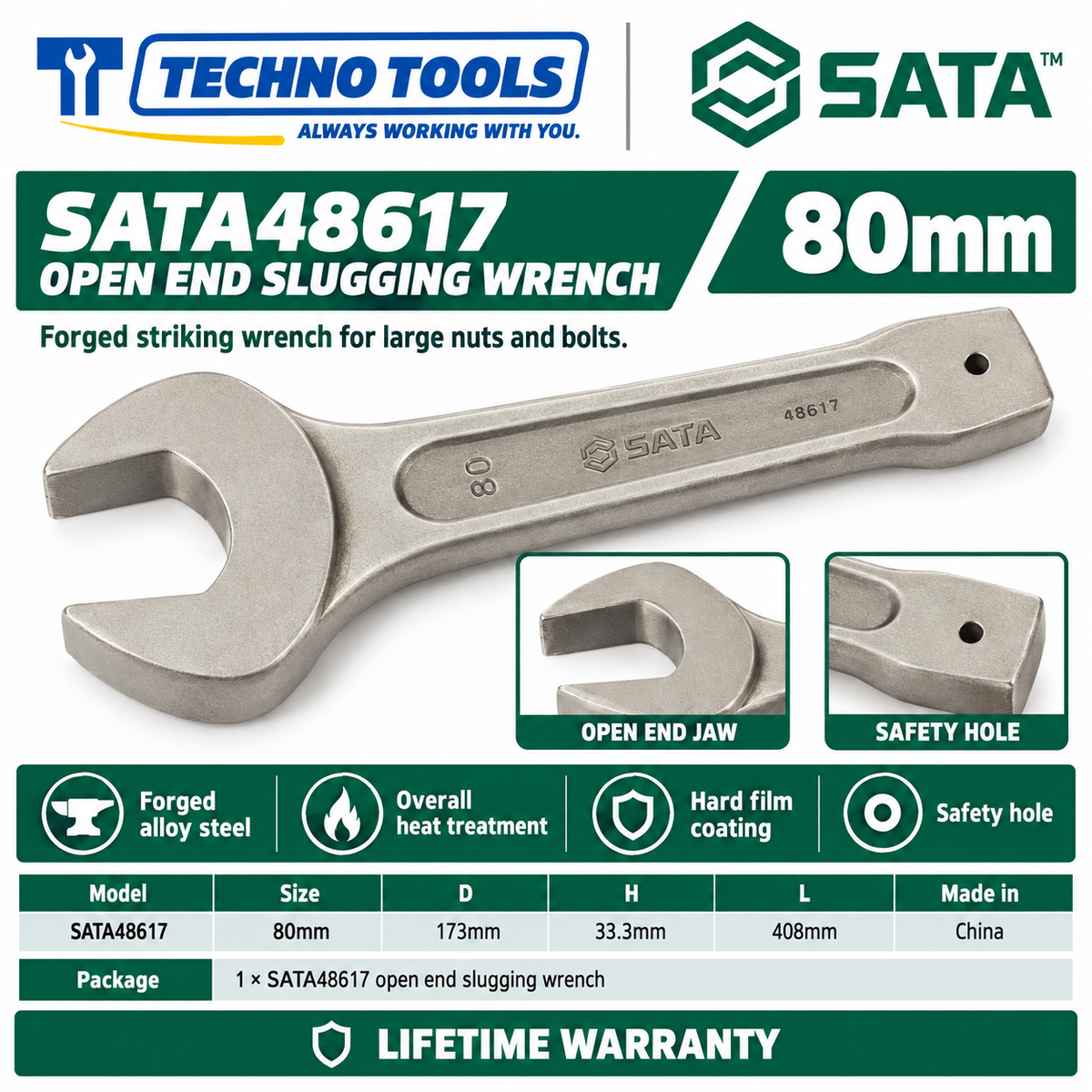

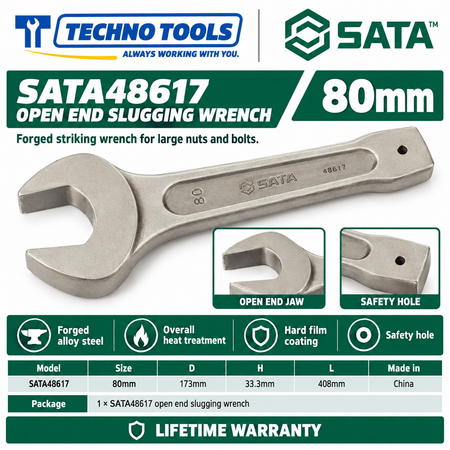

SATA48617	80	173	33.3	408

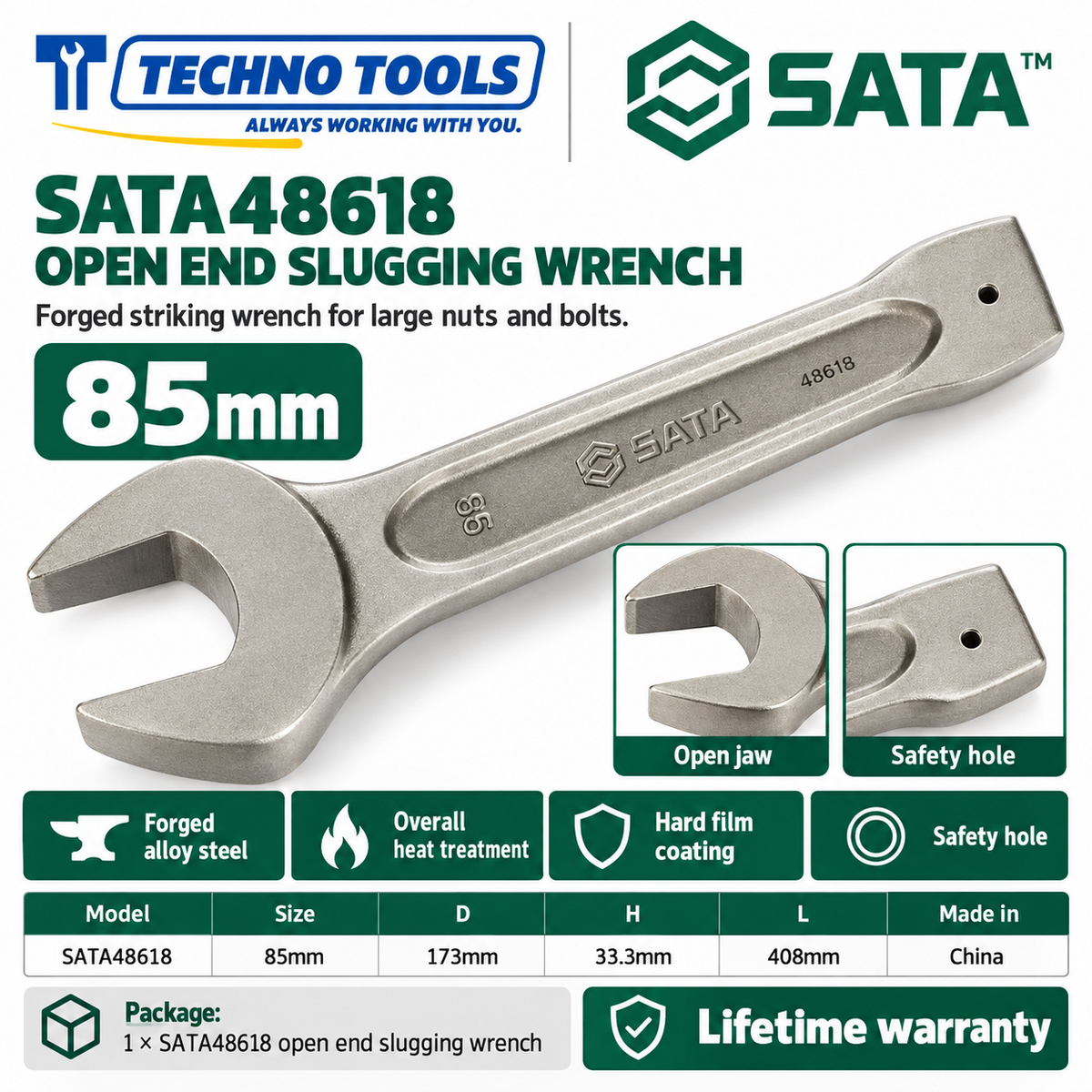

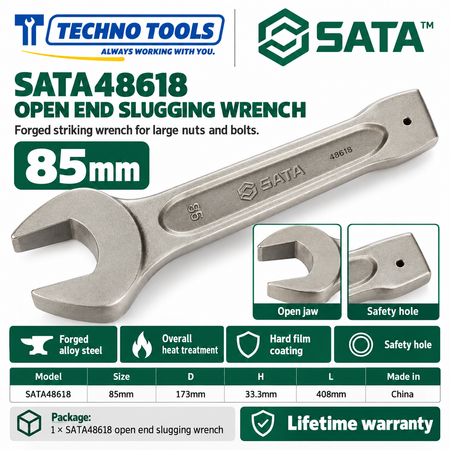

SATA48618	85	173	33.3	408

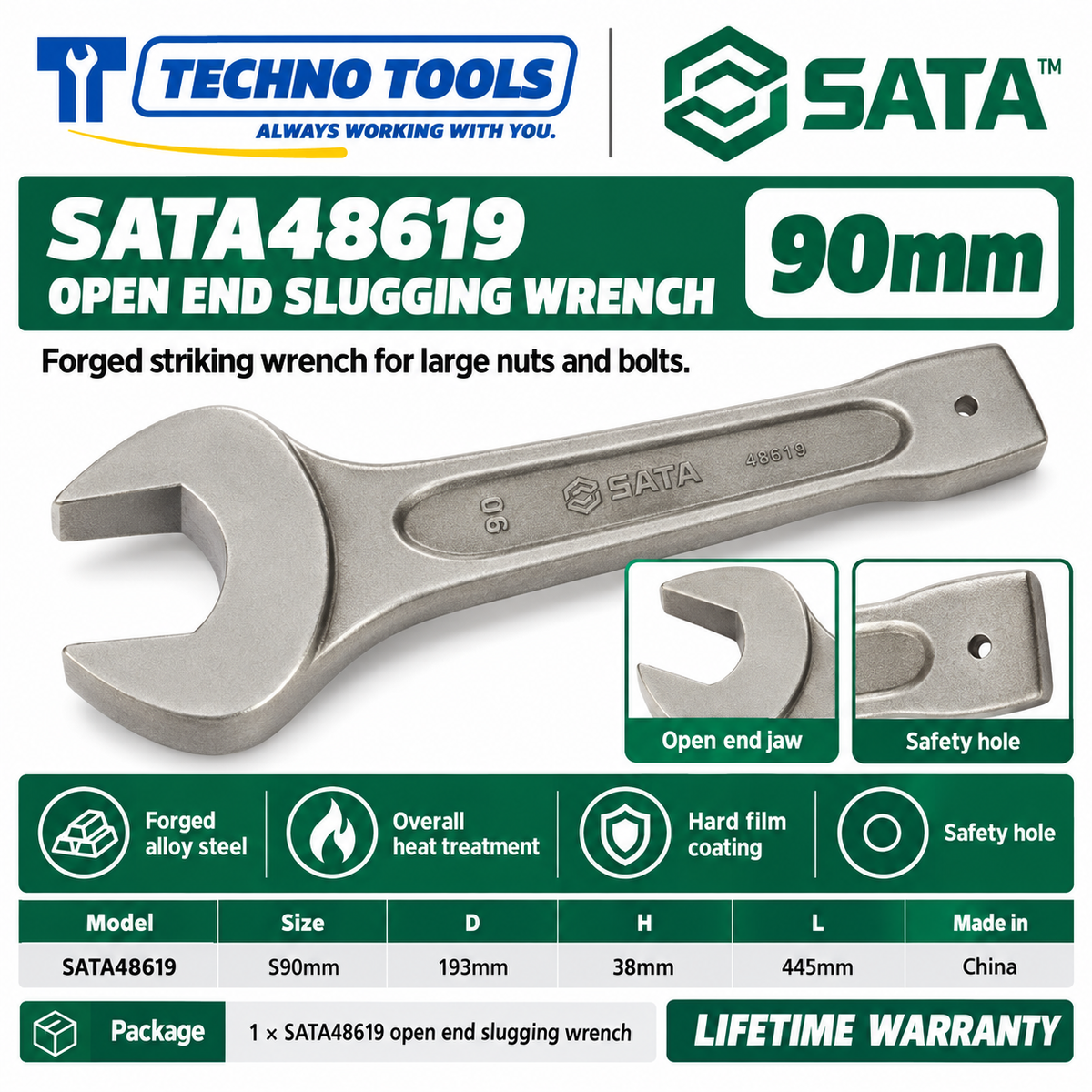

SATA48619	90	193	38	445

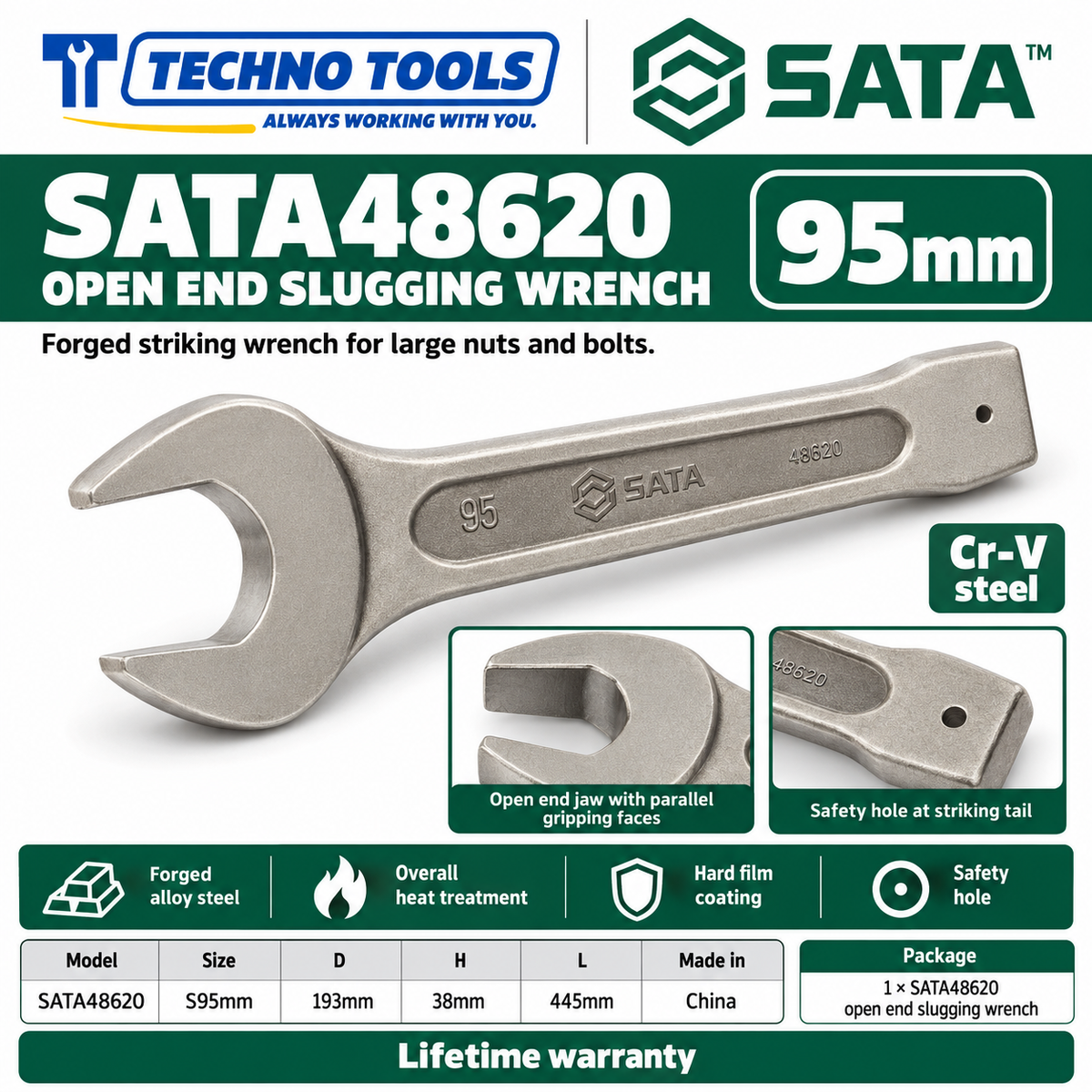

SATA48620	95	193	38	445

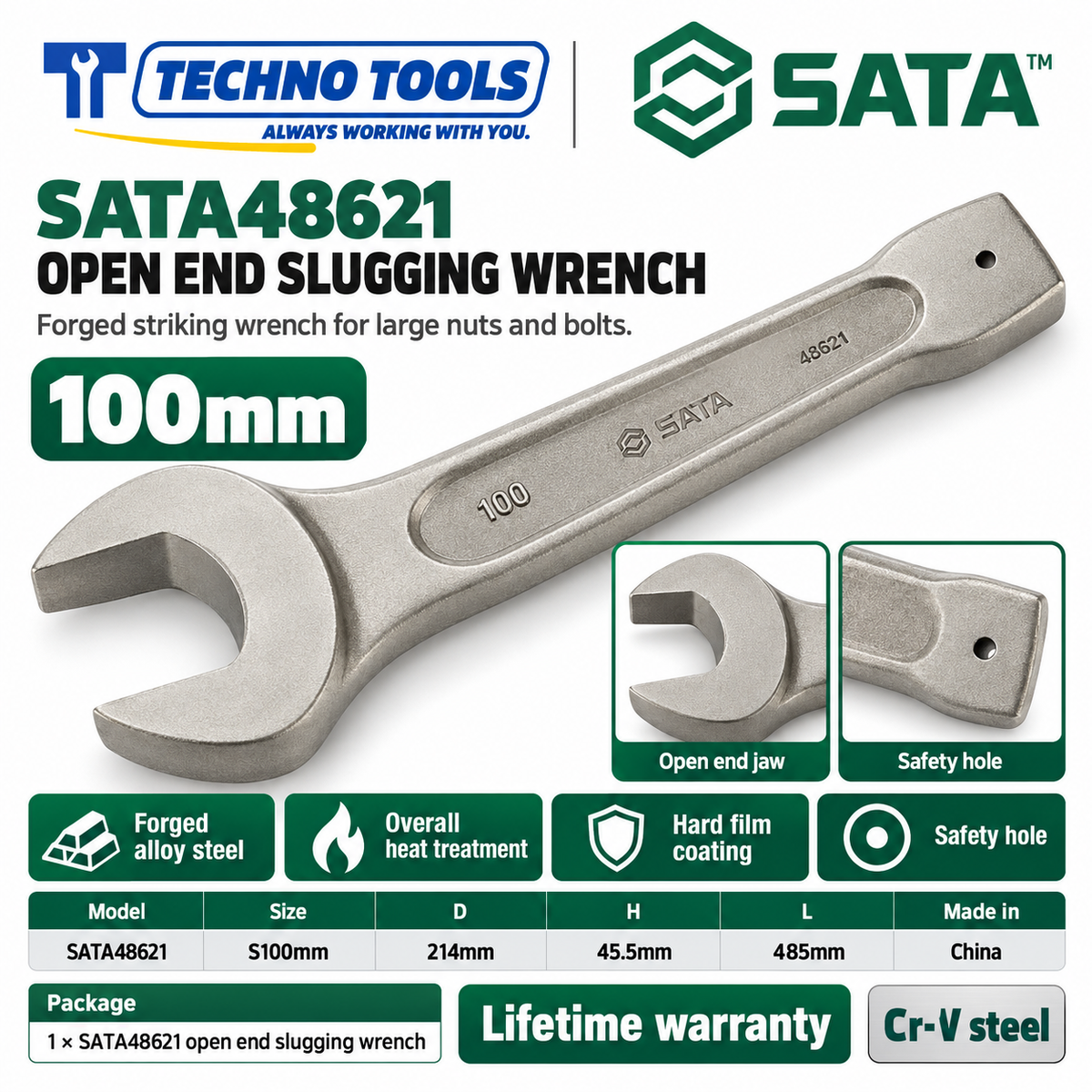

SATA48621	100	214	45.5	485

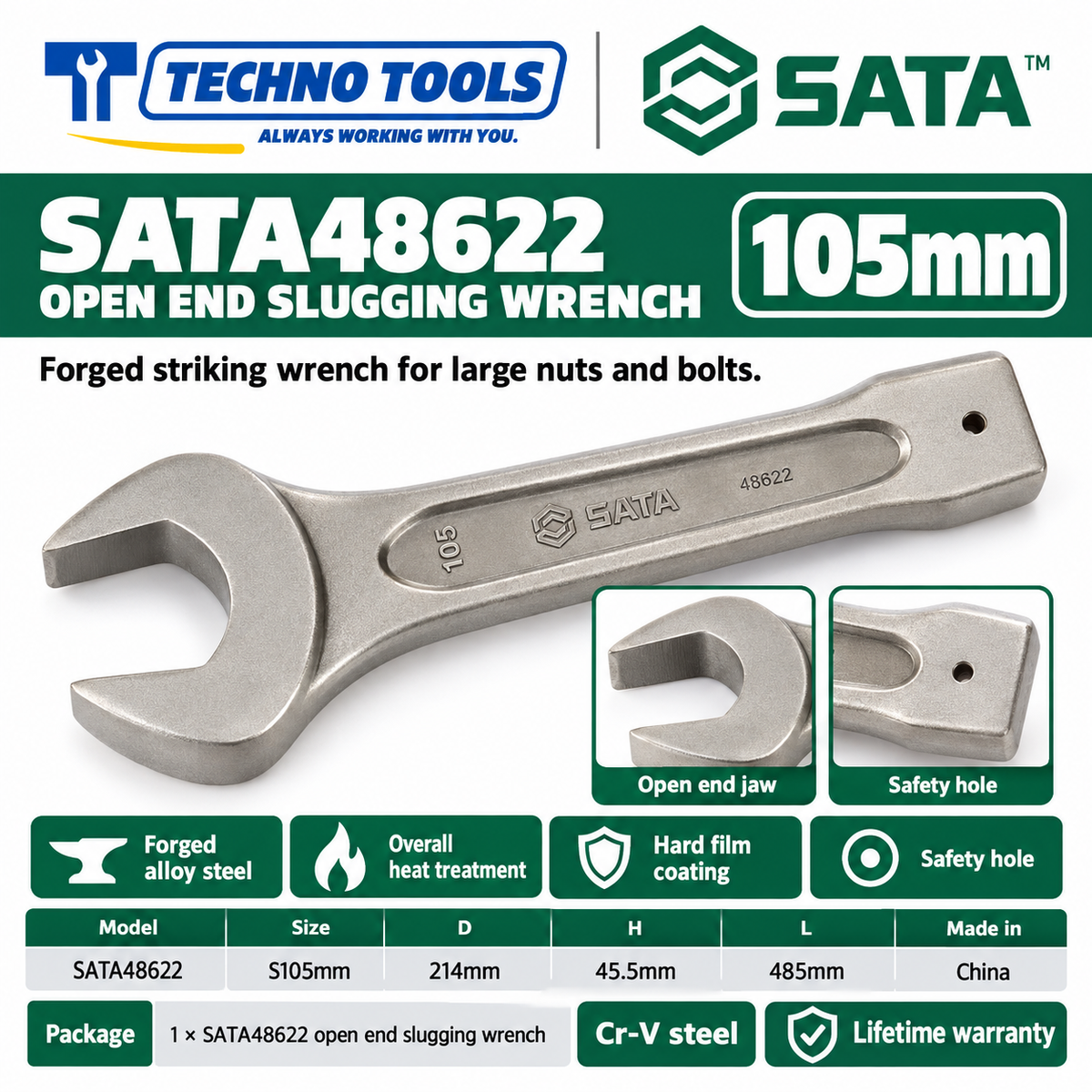

SATA48622	105	214	45.5	485

Type: Open End Slugging Wrench (metric) · Material: Forged alloy steel, overall heat treated · Surface: Hard film coating · Made in: China · Brand: SATA

Available Options

Choose your wrench by Size. Each size has its own SATA series number:

Size	SKU / Series No.	Product
27MM	SATA48603	SATA48603 Open End Slugging Wrench 27MM
30MM	SATA48604	SATA48604 Open End Slugging Wrench 30MM
32MM	SATA48605	SATA48605 Open End Slugging Wrench 32MM
36MM	SATA48607	SATA48607 Open End Slugging Wrench 36MM
41MM	SATA48609	SATA48609 Open End Slugging Wrench 41MM
46MM	SATA48610	SATA48610 Open End Slugging Wrench 46MM
50MM	SATA48611	SATA48611 Open End Slugging Wrench 50MM
55MM	SATA48612	SATA48612 Open End Slugging Wrench 55MM
60MM	SATA48613	SATA48613 Open End Slugging Wrench 60MM
65MM	SATA48614	SATA48614 Open End Slugging Wrench 65MM
70MM	SATA48615	SATA48615 Open End Slugging Wrench 70MM
75MM	SATA48616	SATA48616 Open End Slugging Wrench 75MM
80MM	SATA48617	SATA48617 Open End Slugging Wrench 80MM
85MM	SATA48618	SATA48618 Open End Slugging Wrench 85MM
90MM	SATA48619	SATA48619 Open End Slugging Wrench 90MM
95MM	SATA48620	SATA48620 Open End Slugging Wrench 95MM
100MM	SATA48621	SATA48621 Open End Slugging Wrench 100MM
105MM	SATA48622	SATA48622 Open End Slugging Wrench 105MM

Package Content

1 x SATA Open End Slugging Wrench (size as selected)

Warranty Terms

Warranty: Lifetime Warranty.

Why Choose SATA?

SATA is a professional hand tool brand trusted by technicians, mechanics and workshops for well-made, reliable tools. This open end slugging wrench is forged from alloy steel, heat treated for uniform hardness, protected by a hard film coating and fitted with a safety hole for tethering. It is backed by SATA's lifetime warranty, and 18 sizes from 27mm to 105mm let you match the nut you are working on.
