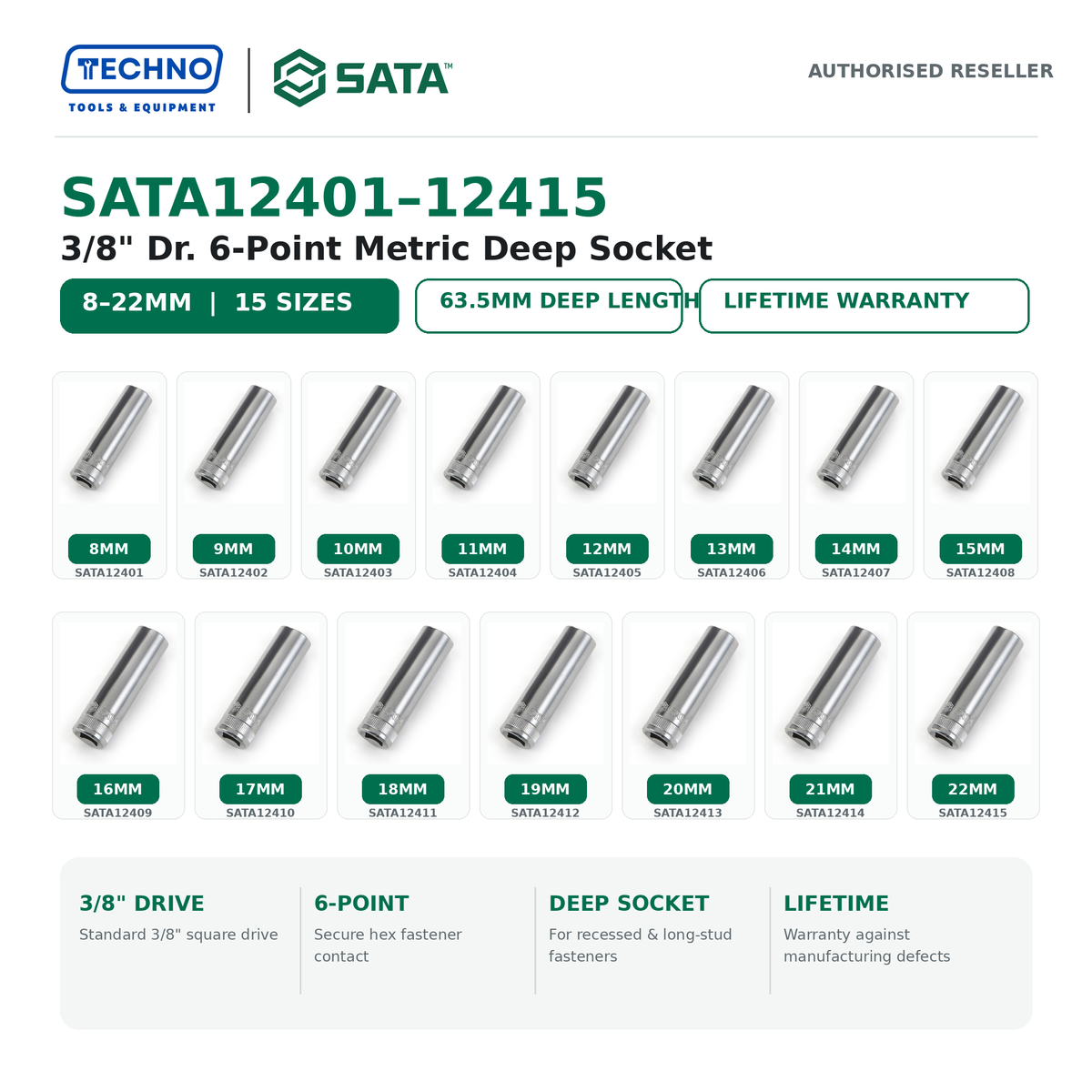

SATA 12401–12415 Metric Deep Socket 3/8" Drive 8–22mm 6-Point
Tidak dapat memuatkan ketersediaan pengambilan
Product Overview
The SATA 12401–12415 3/8" Dr. 6-Point Deep Socket is a precision-machined hand tool built to reach and turn metric fasteners that sit below the surface — long studs, suspension and exhaust hardware, and bolts recessed inside a housing. The 6-point hex opening maximises contact with the fastener head, reducing the risk of rounding compared to lower-point-count designs, and the extended 63.5mm body gets a full ratchet swing where a standard socket would bottom out. Each socket features a chrome finish over chrome vanadium steel, with sizing running from 8mm up to 22mm across fifteen individually numbered SKUs.
Important: These sockets are engineered for manual, hand-tool use only and should never be used on power drivers, pneumatic impact wrenches, or extenders, as this can cause damage or breakage.
Key Features
- 6-point (hex) socket opening — maximum contact surface for a secure grip and reduced fastener rounding
- Deep-length 63.5mm body — reaches recessed, extended-reach, and long-stud fasteners standard sockets can't
- 3/8" square drive — compatible with standard 3/8" ratchets, breaker bars, and extensions
- Metric sizing — covers common fastener sizes from 8mm to 22mm
- Chrome vanadium steel construction — heat-treated and corrosion-resistant with a polished, professional finish
- Precision-machined tolerances — consistent fit reduces slipping and fastener damage
- SATA lifetime warranty — backed by one of the most trusted names in professional hand tools
Specification Table
| SKU | Size (mm) | Overall Length C (mm) | Drive | Points | Head Width A (mm) | Drive-End Width B (mm) | Drive Depth D (mm) | Bore Depth E (mm) | Drive Square F | Pcs/Pack |
|---|---|---|---|---|---|---|---|---|---|---|
| SATA12401 | 8 | 63.5 | 3/8" | 6 | 16.8 | 12.0 | 6.2 | 15 | 3/8" (9.5mm) | 6 |
| SATA12402 | 9 | 63.5 | 3/8" | 6 | 16.8 | 12.9 | 7.2 | 15 | 3/8" (9.5mm) | 6 |
| SATA12403 | 10 | 63.5 | 3/8" | 6 | 16.8 | 14.5 | 8.0 | 19 | 3/8" (9.5mm) | 6 |
| SATA12404 | 11 | 63.5 | 3/8" | 6 | 16.8 | 15.8 | 9.0 | 23 | 3/8" (9.5mm) | 6 |
| SATA12405 | 12 | 63.5 | 3/8" | 6 | 16.8 | 16.8 | 10.0 | 23 | 3/8" (9.5mm) | 6 |
| SATA12406 | 13 | 63.5 | 3/8" | 6 | 18.8 | 18.8 | 10.0 | 23 | 3/8" (9.5mm) | 6 |
| SATA12407 | 14 | 63.5 | 3/8" | 6 | 19.5 | 19.5 | 12.0 | 23 | 3/8" (9.5mm) | 6 |
| SATA12408 | 15 | 63.5 | 3/8" | 6 | 20.8 | 20.8 | 13.0 | 23 | 3/8" (9.5mm) | 6 |
| SATA12409 | 16 | 63.5 | 3/8" | 6 | 22.0 | 22.0 | 15.0 | 20 | 3/8" (9.5mm) | 6 |
| SATA12410 | 17 | 63.5 | 3/8" | 6 | 23.8 | 23.8 | 15.0 | 23 | 3/8" (9.5mm) | 6 |
| SATA12411 | 18 | 63.5 | 3/8" | 6 | 23.8 | 23.8 | 15.0 | 20 | 3/8" (9.5mm) | 6 |

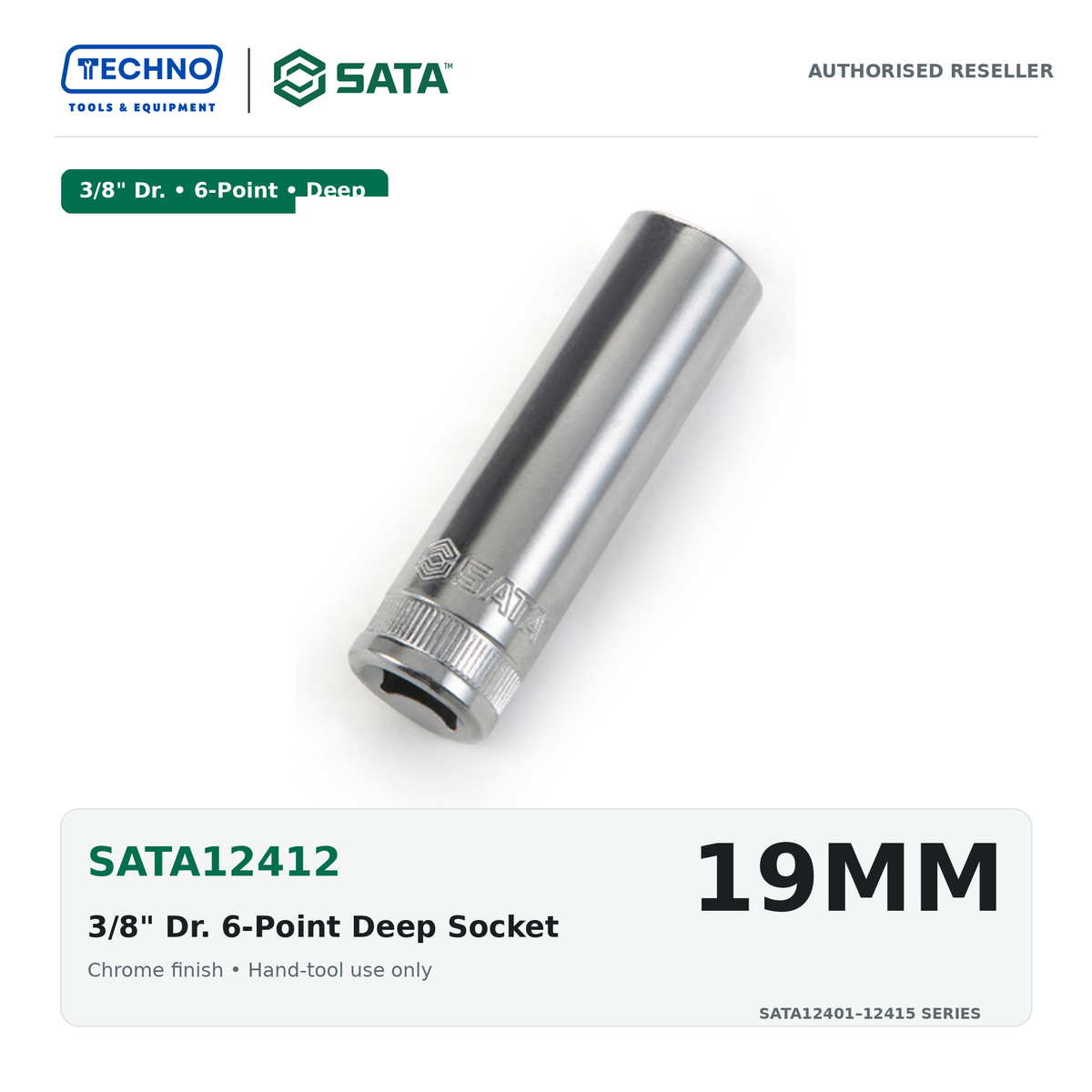

| SATA12412 | 19 | 63.5 | 3/8" | 6 | 25.5 | 25.5 | 17.0 | 20 | 3/8" (9.5mm) | 6 |
| SATA12413 | 20 | 63.5 | 3/8" | 6 | 27.0 | 27.0 | 18.0 | 23 | 3/8" (9.5mm) | 4 |
| SATA12414 | 21 | 63.5 | 3/8" | 6 | 27.8 | 27.8 | 19.0 | 23 | 3/8" (9.5mm) | 4 |
| SATA12415 | 22 | 63.5 | 3/8" | 6 | 29.5 | 29.5 | 20.0 | 23 | 3/8" (9.5mm) | 4 |
Warranty: Lifetime warranty
Made in China. Dimensions are approximate and may vary slightly within manufacturing tolerance.
Available Options (Variants)
Select your size from the dropdown:
| Option | SKU |
|---|---|
| 8mm | SATA12401 |
| 9mm | SATA12402 |
| 10mm | SATA12403 |
| 11mm | SATA12404 |
| 12mm | SATA12405 |
| 13mm | SATA12406 |
| 14mm | SATA12407 |
| 15mm | SATA12408 |
| 16mm | SATA12409 |
| 17mm | SATA12410 |
| 18mm | SATA12411 |
| 19mm | SATA12412 |
| 20mm | SATA12413 |
| 21mm | SATA12414 |
| 22mm | SATA12415 |
Package Contents
- 1 × SATA 3/8" Dr. 6-Point Deep Socket (size as selected)
Warranty Terms
Lifetime Warranty. This SATA socket is covered by SATA's lifetime warranty against manufacturing defects in materials and workmanship when used as intended (hand-tool applications only). The warranty does not cover damage from misuse, modification, use with power or pneumatic tools, normal wear and tear, or cosmetic wear such as scratches and plating loss.
SATA 3/8" Drive 6-Point Socket vs Deep Socket comparison
| Spec | SATA 12301–12318 Standard Socket | SATA 12401–12415 Deep Socket (this model) |
|---|---|---|
| Socket length | Standard | Deep |
| Overall length | 25mm (28mm on 20–24mm) | 63.5mm |
| Size range | 6–24mm | 8–22mm |
| Sizes available | 18 | 15 |
| Best for | Everyday nuts and bolts, especially where there is little clearance above the fastener | Nuts on long studs or threaded rod, and bolts recessed inside a housing |
Compatible Accessories
- SATA 12971 Quick-Release Teardrop Ratchet 3/8" – everyday 3/8" drive ratchet for this socket
- SATA 12972 Quick-Release Ratchet 3/8" with Grip – 200mm ratchet with comfort grip for extra leverage
- SATA 12903–12905 Wobble Extension Bar 3/8" – 3", 6" or 10" reach with a slight wobble angle
- SATA 12906–12908 Locking Extension Bar 3/8" – holds the socket securely in deep recesses
- SATA 12912 Universal Joint 3/8" – turns fasteners at an angle
- SATA 12913 / 12914 Socket Adaptor 3/8" – fit 1/4" or 1/2" sockets to a 3/8" ratchet
Why Choose SATA?
SATA has grown into one of the fastest-growing premium-quality mechanics' hand tool brands in the world over the past two decades. Trusted by automotive technicians and industrial professionals across more than 50 countries, SATA tools are manufactured in ISO 9001–certified facilities and meet or exceed ANSI and DIN standards. In 1999, SATA became the first hand tool manufacturer in China to offer a lifetime warranty on its products — a commitment to quality and durability that professionals rely on every day. As part of Apex Tool Group, SATA combines global manufacturing scale with a singular focus on performance, precision, and long-term reliability.
- ✅ ISO 9001–certified manufacturing
- ✅ Meets or exceeds ANSI / DIN standards
- ✅ Lifetime warranty on covered products
- ✅ Trusted by professional mechanics in 50+ countries
- ✅ Precision-engineered for consistent, reliable performance
Warranty Terms
All SATA products, unless otherwise stated, are warranted against manufacturing defects in materials and workmanship, subject to intended use and fair wear and tear.
| Product Category | Period |
|---|---|
| Hand Tools | Lifetime |
| Torque Products | Calibration: 90 days Tool: 1 year |
| Bits, Bit Holders, Bit Sockets, Extensions, Taps & Dies, Files & Cutting Tools | 30 days |
| Accessories, Cases, Pouches, Toolboxes & Consumables | 1 year |
Warranty periods start from the purchase date.
| Warranty period | Lifetime Warranty |
|---|---|
| Coverage | Free repair or replacement for functional faults arising during normal use. No time limit. |
| Not covered | Wear beyond the tool's normal service life; rust, plating wear, surface scratches or handle damage that does not affect function; parts marked as consumables in the SATA catalogue (e.g. coloured sleeves, brackets, power bars); packaging. |
| Warranty void if | Damage from misuse or abnormal operation (e.g. striking, prying, using hand sockets on impact tools, exceeding the tool's rated capacity); the product has been machined or modified, or parts have been replaced, lost or are incomplete. |
Bring the product to Techno Tools as an authorised SATA dealer. SATA repairs the product first and replaces it if repair is not possible.
