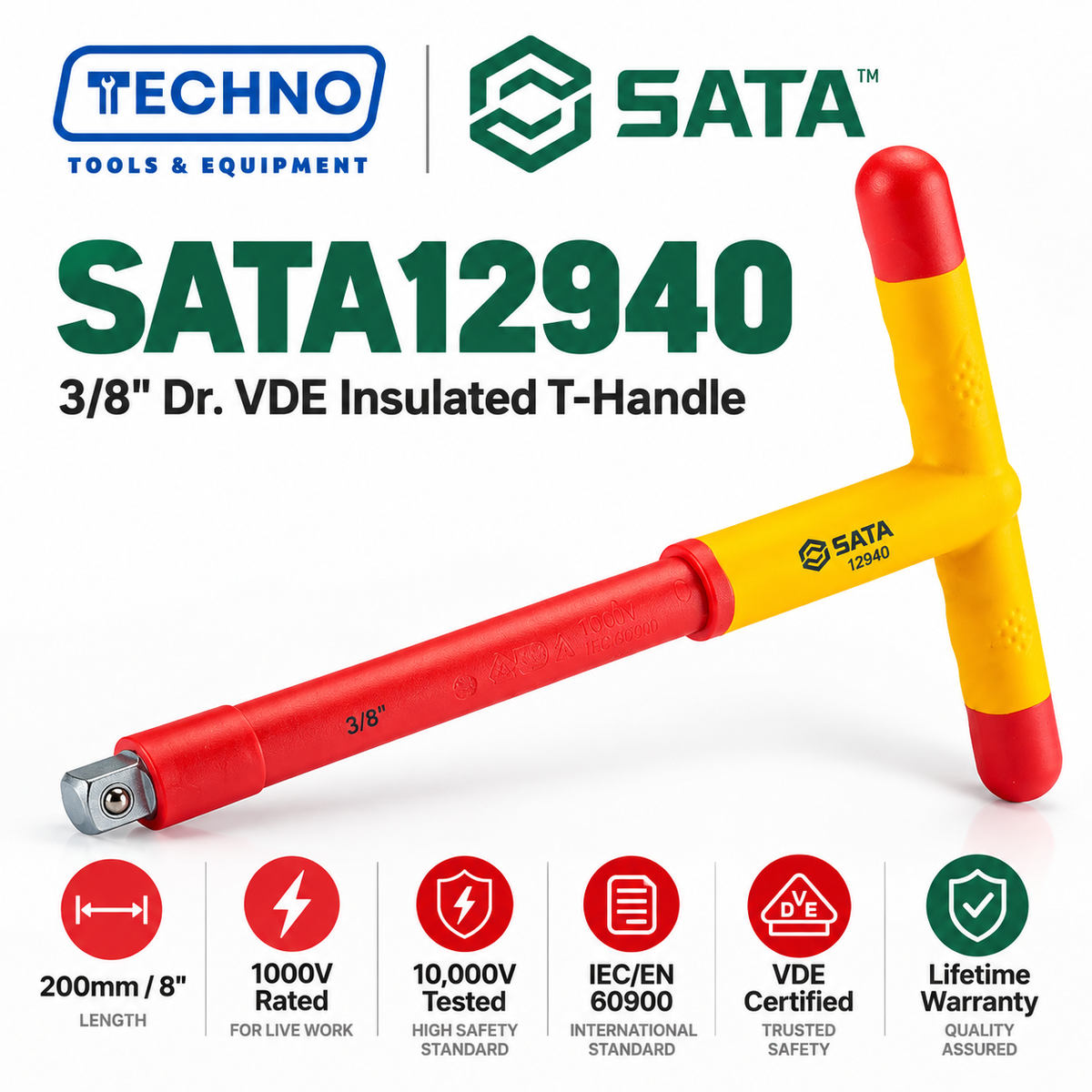

SATA12940 3/8" Dr. VDE Insulated T-Handle, 8" (200mm)
Tidak dapat memuatkan ketersediaan pengambilan
Product Overview
The SATA12940 is a 3/8" square-drive T-handle built for technicians who need to turn fasteners on or near live electrical systems. Its fully insulated grip is certified by German VDE, and every unit is individually tested to withstand 10,000V in accordance with IEC/EN 60900 — well above the 1000V AC rating it's certified for in service. The T-shape offers comfortable two-handed leverage and direct, gear-free force transmission through a heat-treated chrome vanadium (Cr-V) steel shaft, with a chrome-plated finish beneath the insulation to resist rust. At 200mm (about 8") overall, it's compact enough for tight enclosures while still giving real turning leverage.
Important: VDE-insulated tools are a safety-critical, PPE-adjacent tool. Inspect the insulation for cracks, nicks, or wear before every use, never use a tool with damaged insulation, and pair only with VDE-insulated sockets when working live. Insulation rating and certification apply to the tool as supplied — do not modify, grind, or re-plate.
Key Features
- VDE certified, tested to 10,000V — individually verified for insulation integrity and withstand voltage, per IEC/EN 60900
- 1000V-rated insulation — safe for use on or near live low-voltage electrical systems
- T-handle design — comfortable two-handed leverage with direct, gear-free force transmission
- Heat-treated Cr-V (chrome vanadium) steel — strong, durable shaft under repeated torque
- Chrome-plated surface finish — rust protection beneath the insulating jacket
- 3/8" square drive — pairs with SATA 3/8" VDE-insulated sockets
- SATA lifetime warranty — backed by one of the most trusted names in professional insulated tools

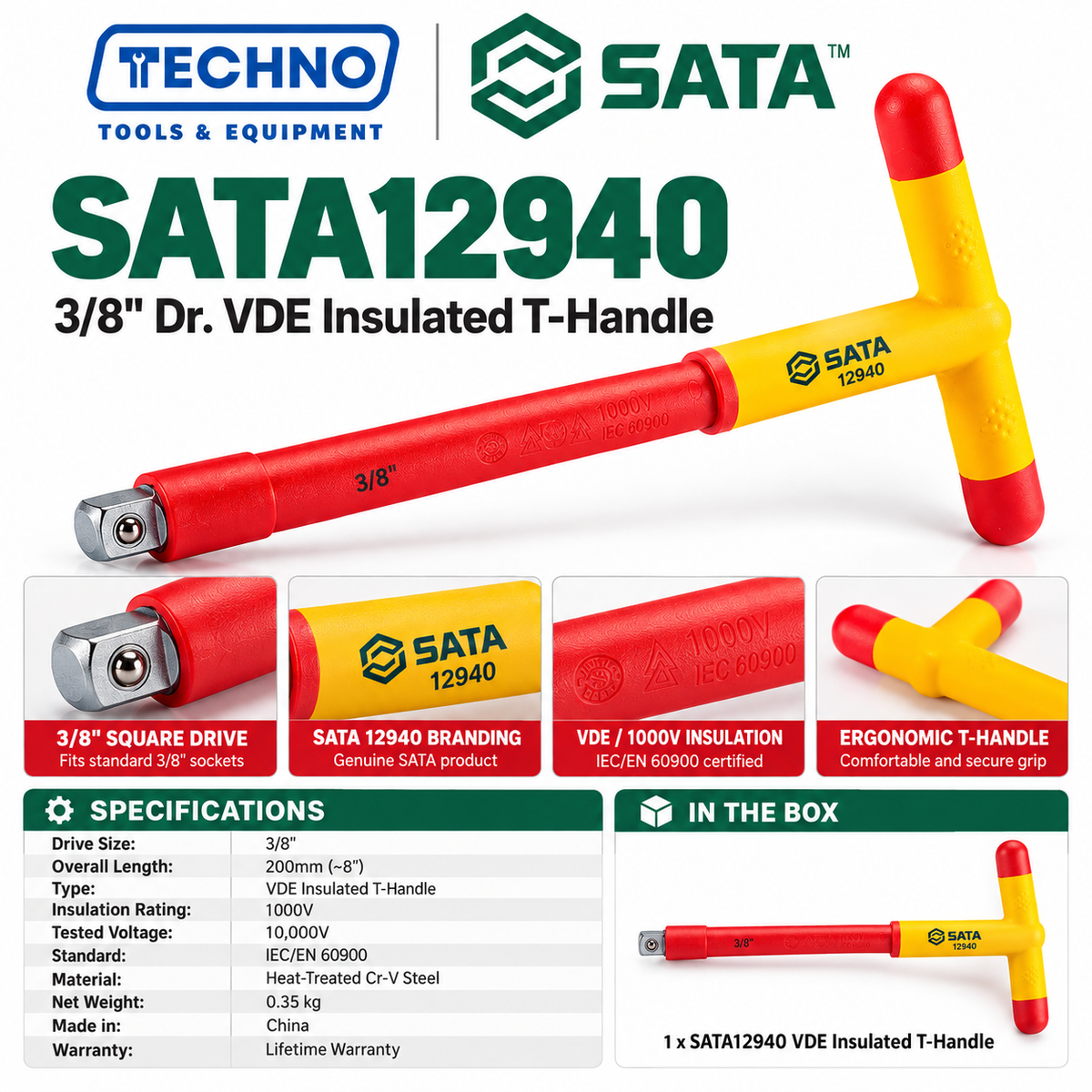

Specification Table
| Spec | Value |
|---|---|
| Product No. | SATA12940 |
| Drive size | 3/8" square drive |
| Type | VDE-insulated T-handle |
| Overall length (L) | 200mm (~8") |
| Insulation rating | 1000V |
| Tested withstand voltage | 10,000V |
| Standard | IEC/EN 60900, certified by German VDE |
| Material | Heat-treated Cr-V steel, chrome-plated |
| Net weight | 0.35 kg |
| Made in | China |
| Pcs / set | 4 |
Dimensions and weights are approximate and may vary within manufacturing tolerance.
Available Options (Variants)
This is a single SKU with no size, length, or configuration variants — SATA12940 is the only product number in this listing (3/8" drive, 200mm VDE insulated T-handle). No dropdown needed.
Package Contents
- 1 × SATA12940 — 3/8" Dr. VDE Insulated T-Handle
Warranty Terms
Lifetime Warranty. SATA12940's individual product page explicitly lists Lifetime Warranty, so the fallback exclusion clause wasn't needed. This SATA T-handle is covered against manufacturing defects in materials and workmanship when used as intended. The warranty does not cover damage from misuse, use with non-insulated or power/impact tools, cuts or abrasion to the insulating jacket, normal wear, or cosmetic wear.
Why Choose SATA?
SATA has grown into one of the fastest-growing premium-quality mechanics' hand tool brands in the world over the past two decades. Trusted by automotive technicians and industrial professionals across more than 50 countries, SATA tools are manufactured in ISO 9001–certified facilities and meet or exceed ANSI and DIN standards. In 1999, SATA became the first hand tool manufacturer in China to offer a lifetime warranty on its products. For insulated tools specifically, SATA's VDE certification and individual 10,000V testing give electricians and maintenance crews independently verified assurance the tool performs as rated, every time. As part of Apex Tool Group, SATA combines global manufacturing scale with a singular focus on performance, precision, and long-term reliability.
- ✅ VDE certified, IEC/EN 60900 compliant
- ✅ ISO 9001–certified manufacturing
- ✅ Lifetime warranty on covered products
- ✅ Trusted by professional electricians and mechanics in 50+ countries
- ✅ Precision-engineered for consistent, reliable, and safe performance
