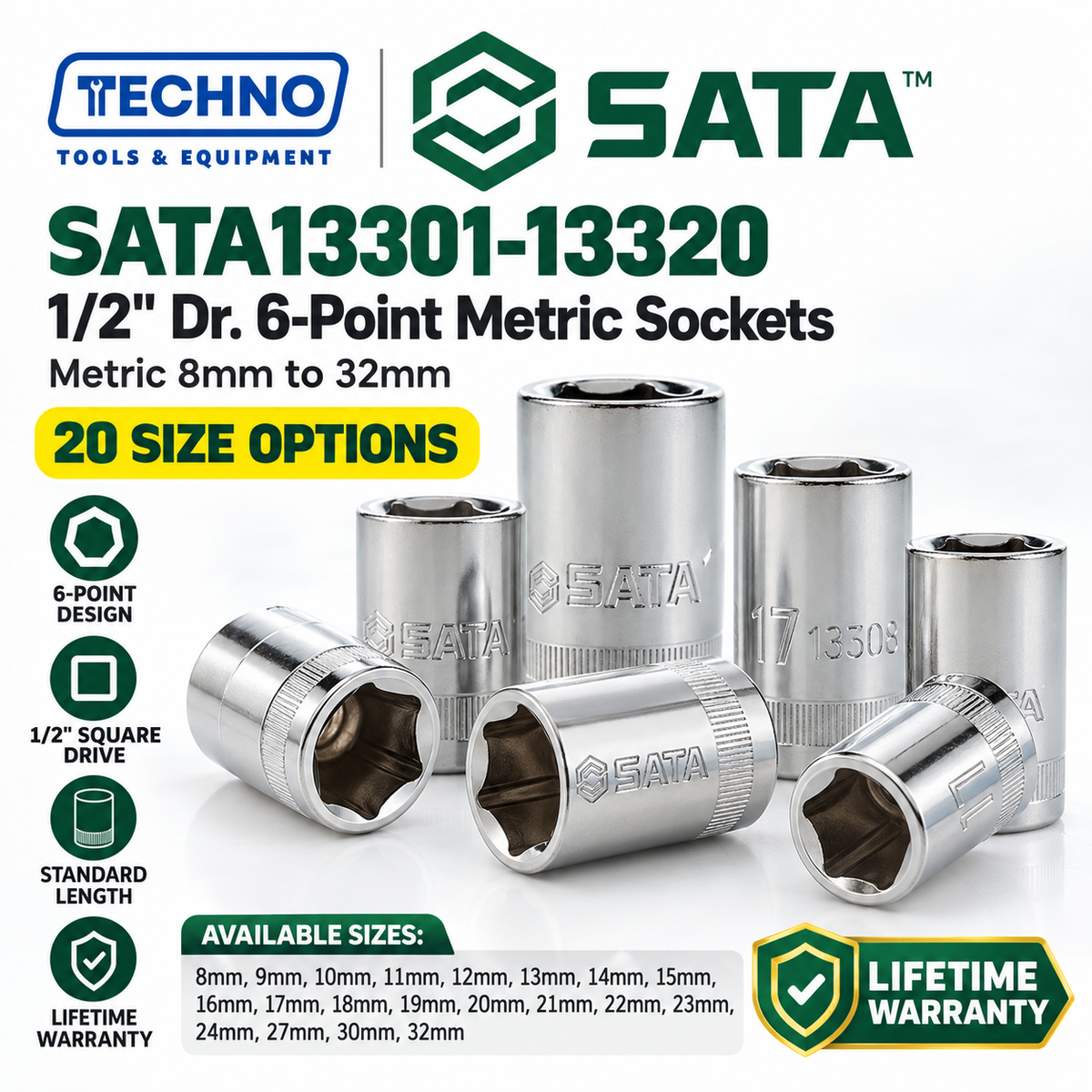

SATA13301-13320 1/2" Dr. 6-Point Sockets, Metric 8mm to 32mm

Product Overview

The SATA13301 to SATA13320 range is a set of 1/2" square-drive, 6-point metric sockets in 20 sizes, from 8mm up to 32mm. The 6-point design grips the flats of a hex fastener for a firm, secure fit. Each socket is a standard-length design with a square drive that fits any 1/2" drive ratchet, breaker bar or handle. Pick the size you need from the options below. For hand tool use only: these sockets should never be used on power drivers, pneumatic impact wrenches or extenders.

Key Features

6-point design: grips the flats of hex fasteners for a secure fit
1/2" square drive: compatible with standard 1/2" drive ratchets, breaker bars and handles
20 metric sizes: 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 21mm, 22mm, 23mm, 24mm, 27mm, 30mm and 32mm
Standard length: 38mm to 42mm overall, depending on size
Hand tool use only: not for power drivers, pneumatic impact wrenches or extenders
SATA lifetime warranty: backed by one of the most trusted names in professional hand tools

Specification Table

Spec	Value
Product name	1/2" Dr. 6Pt. Socket
Drive size	1/2" square drive
Socket type	6-point, standard length
Measurement system	Metric (mm)
Size range	8mm to 32mm
Usage	Hand tools only; not for power drivers, pneumatic impact wrenches or extenders
Made in	China
Warranty	Lifetime

Dimensions by size

Size	Product No.	Outer dia. drive end (mm)	Outer dia. socket end (mm)	Overall length (mm)	Pcs / pack
8mm	SATA13319	22.2	13.3	38	6

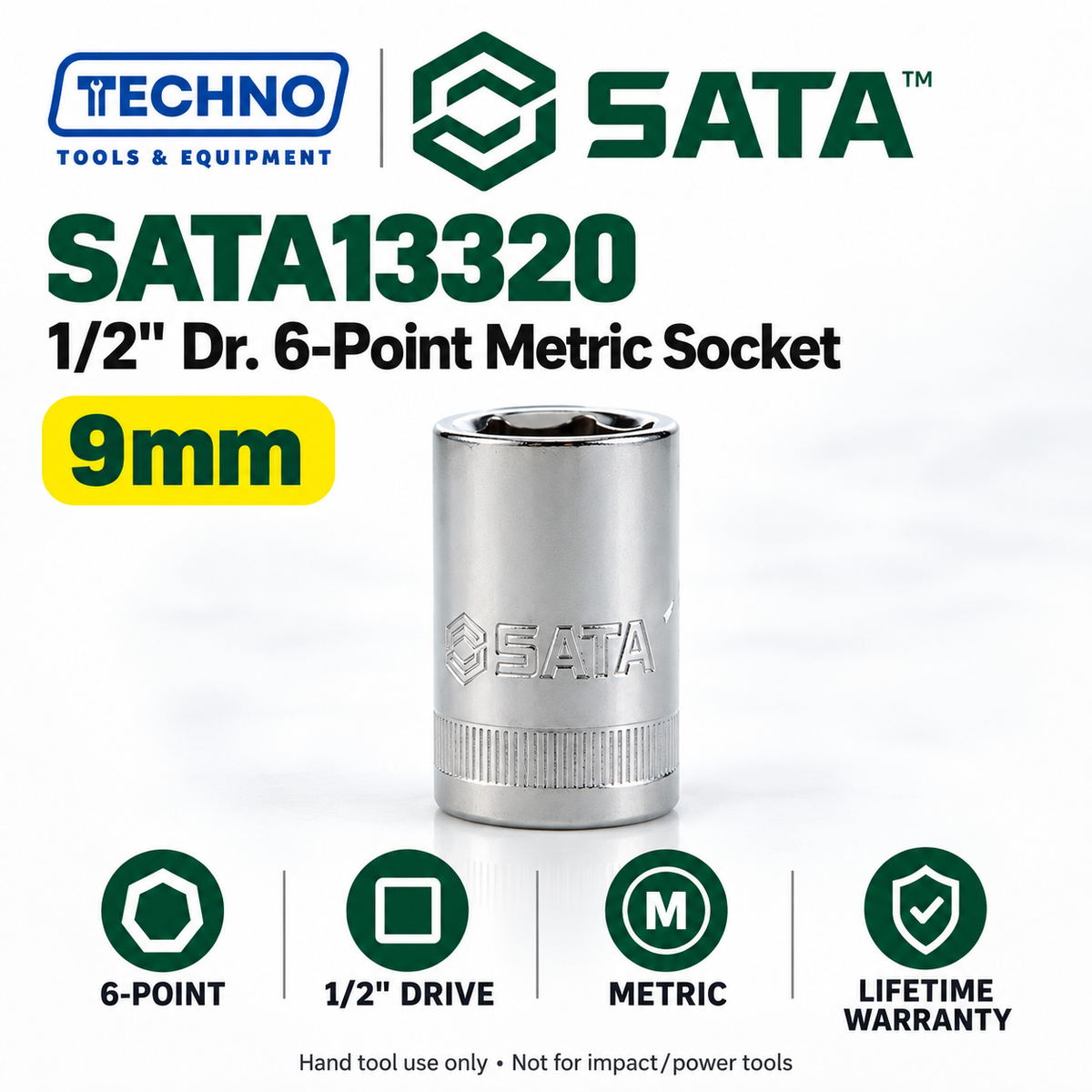

9mm	SATA13320	22.2	14.3	38	6
10mm	SATA13301	22.2	15.3	38	6

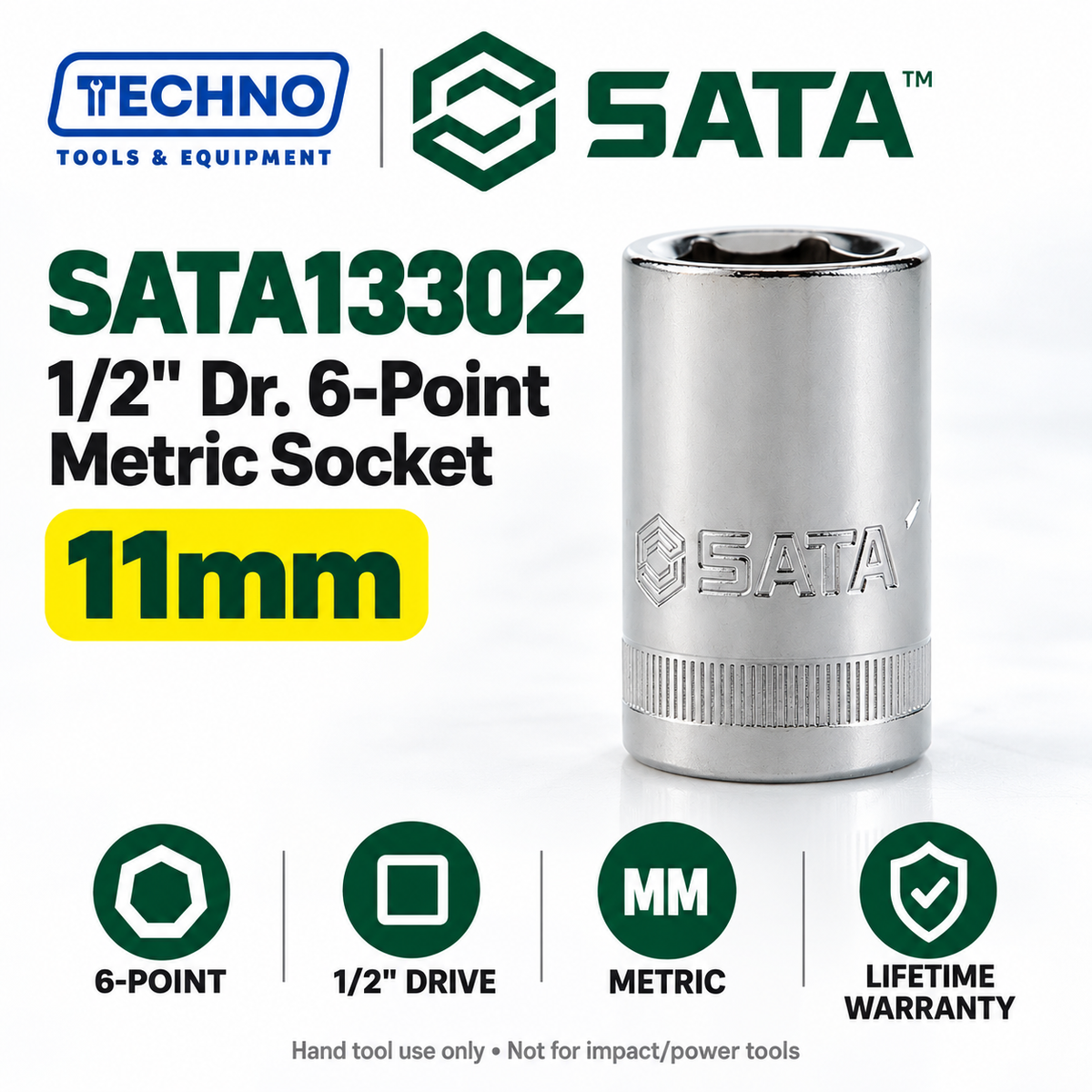

11mm	SATA13302	22.2	16.5	38	6

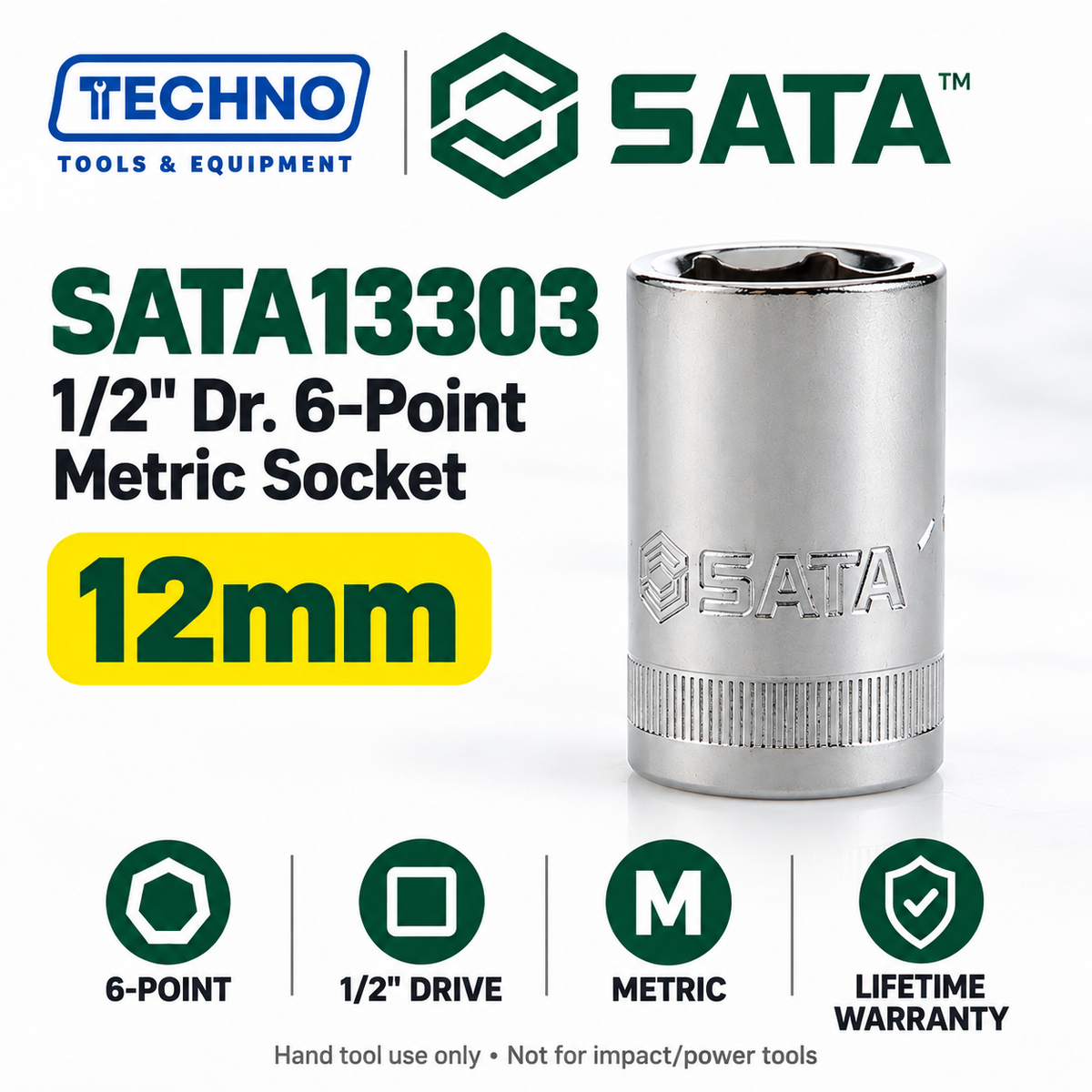

12mm	SATA13303	22.2	17.8	38	6
13mm	SATA13304	22.2	19	38	6

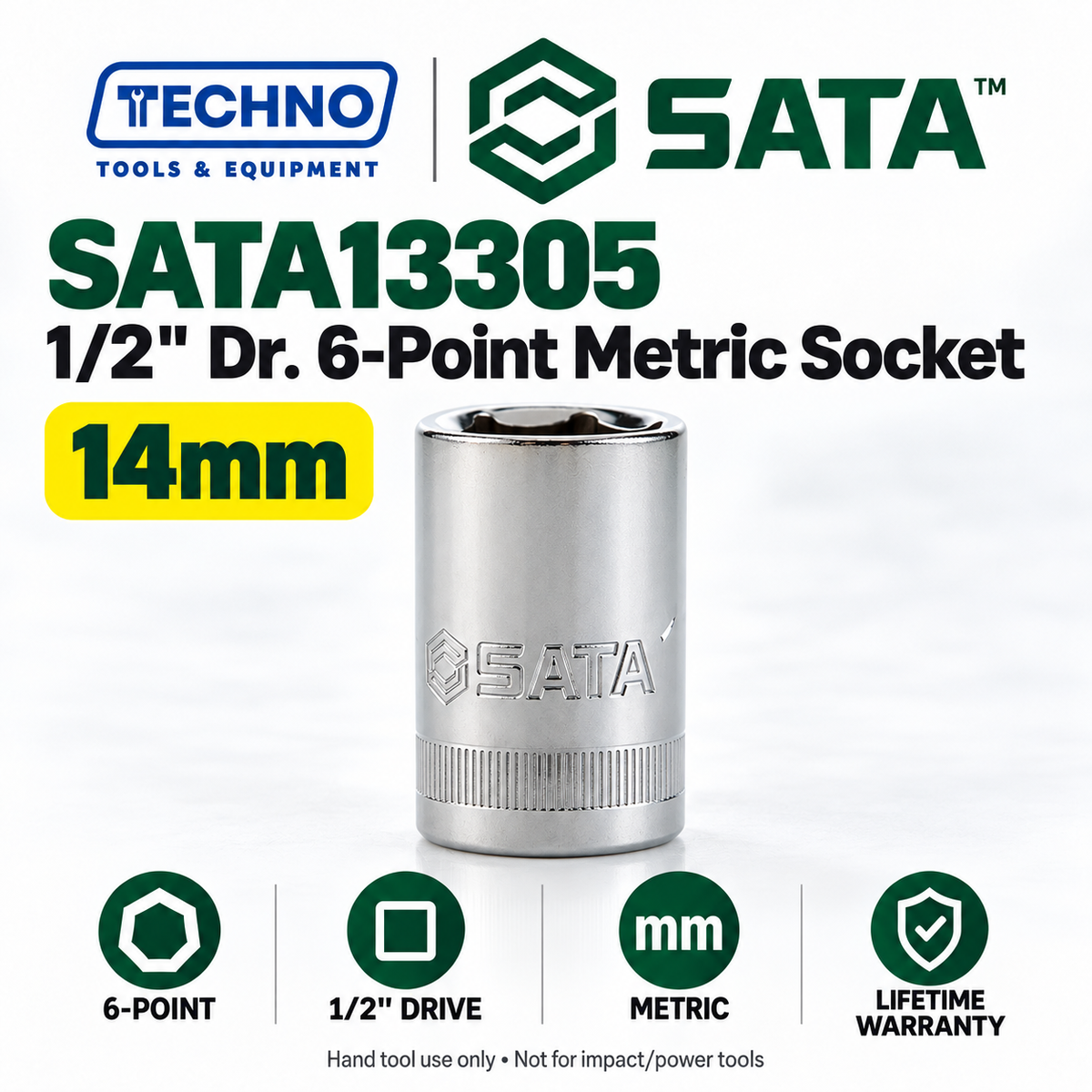

14mm	SATA13305	22.2	20.3	38	6

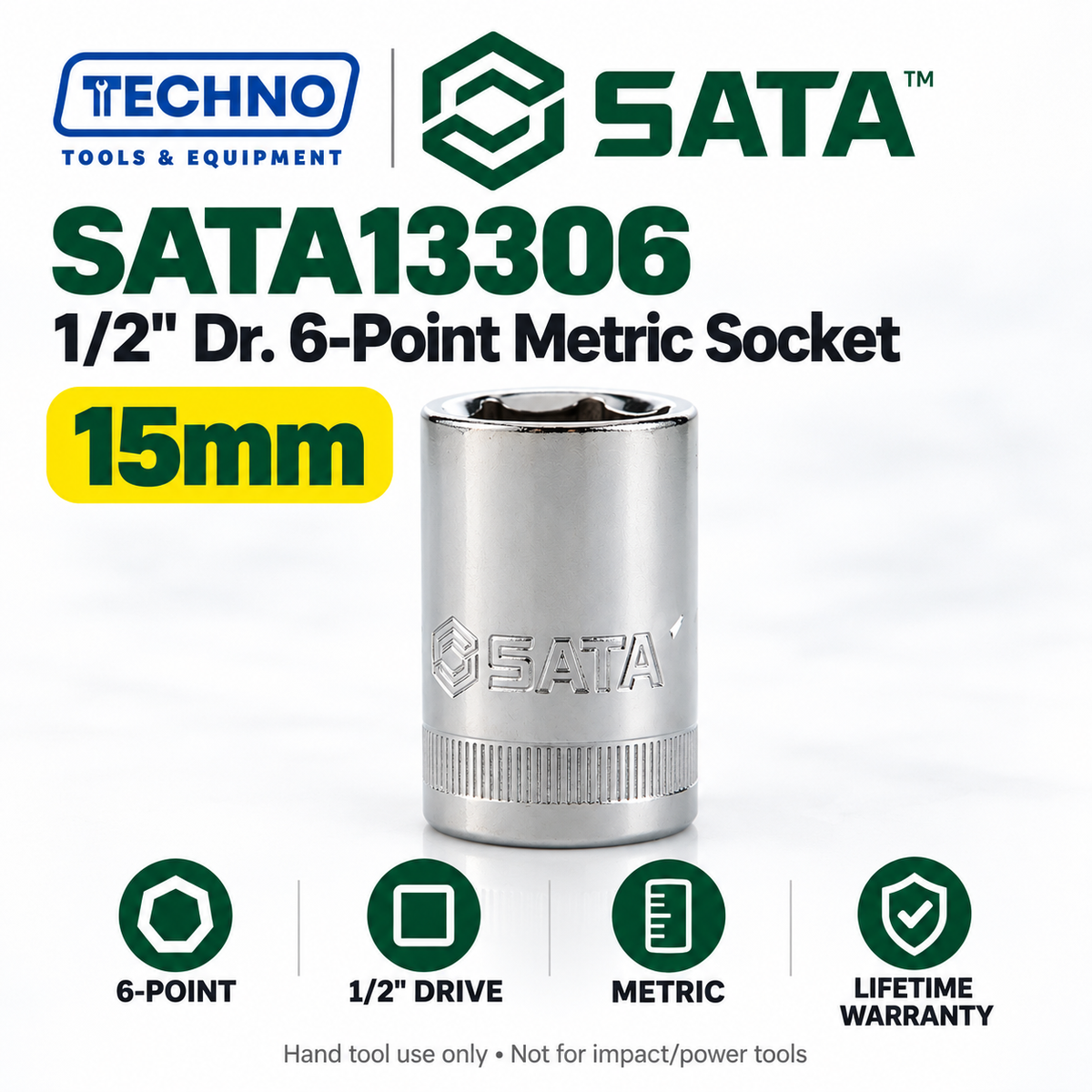

15mm	SATA13306	22.2	22.2	38	6

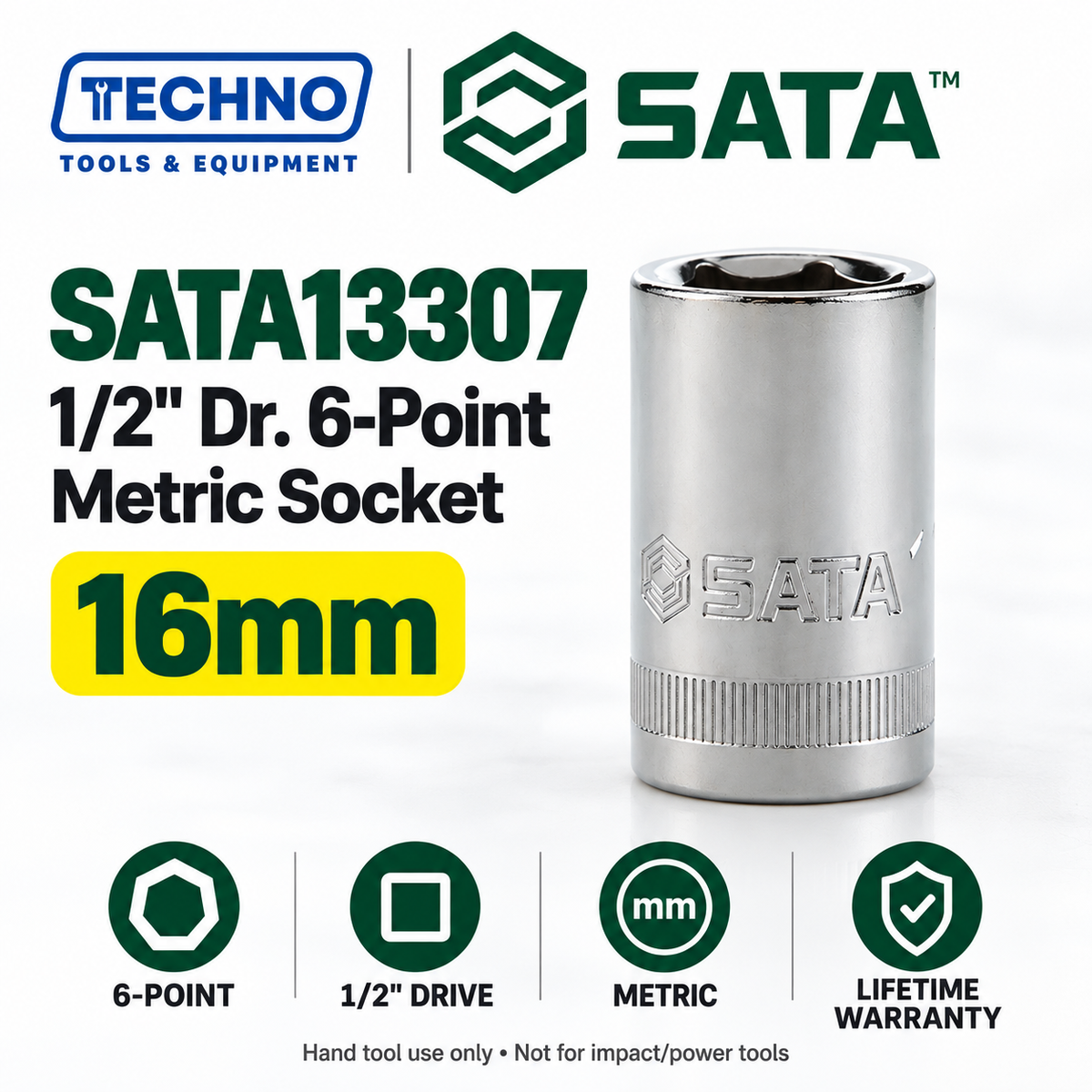

16mm	SATA13307	22.2	22.2	38	6
17mm	SATA13308	23.9	23.9	38	6

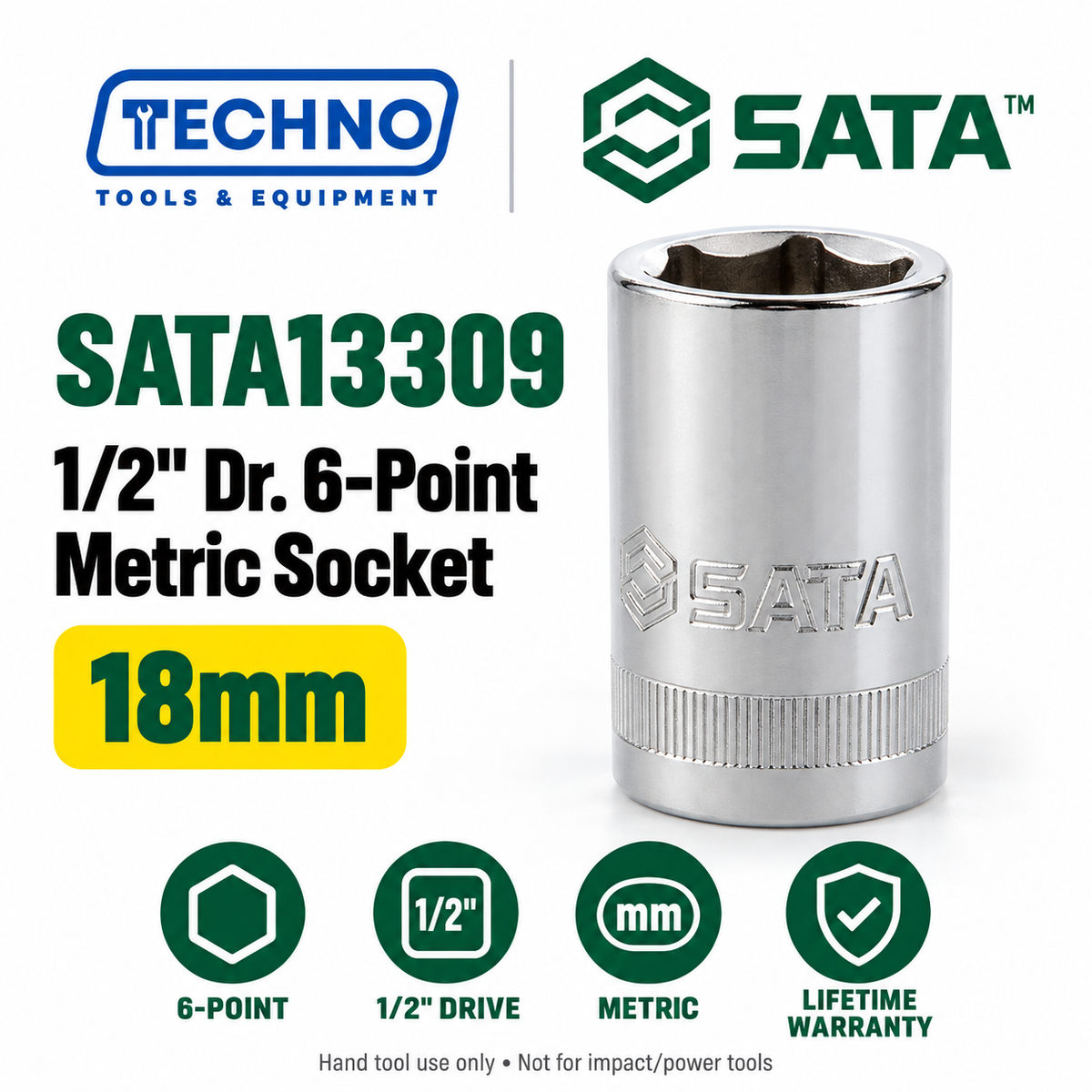

18mm	SATA13309	24.9	24.9	38	6

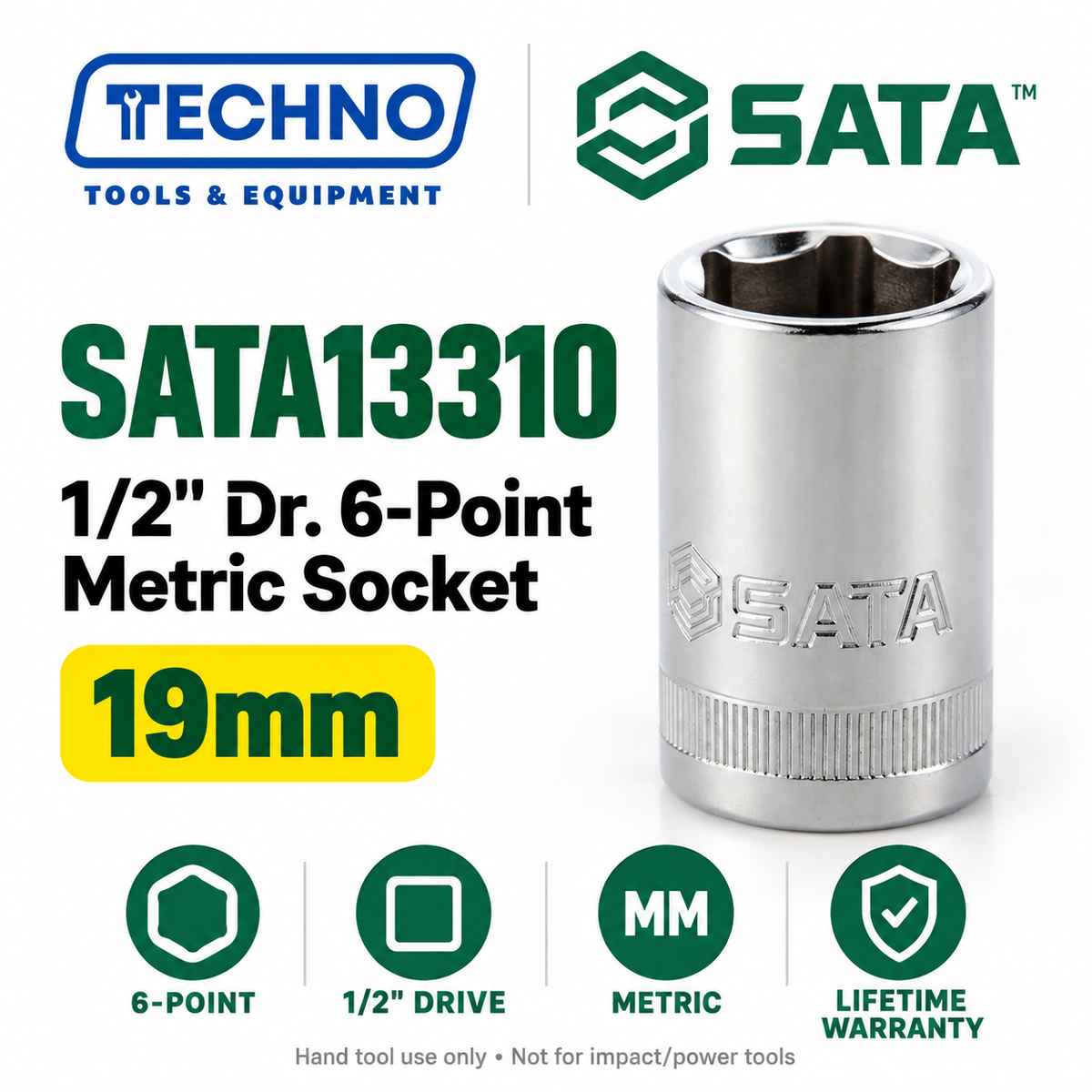

19mm	SATA13310	25.9	25.9	38	6

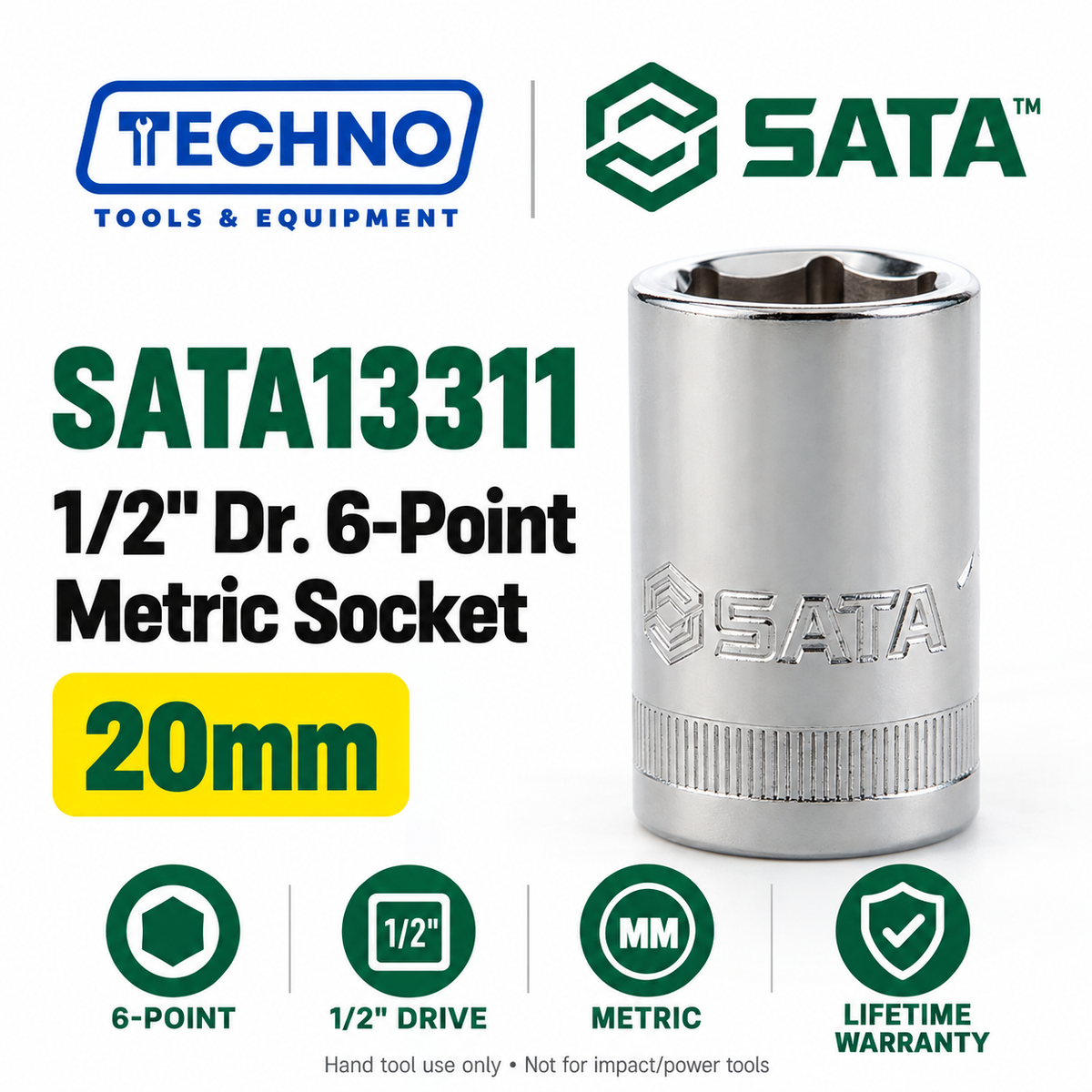

20mm	SATA13311	27.8	27.8	38	4

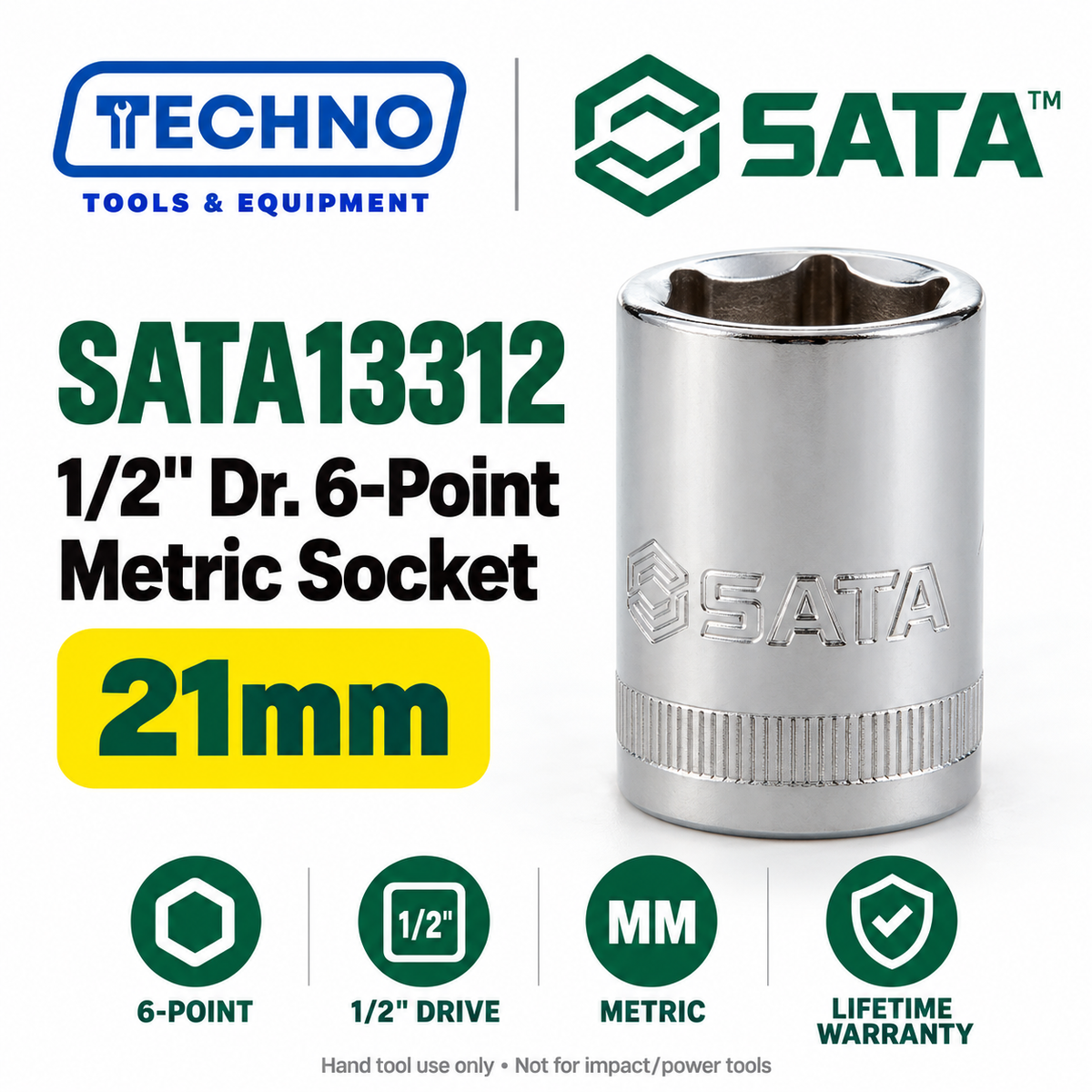

21mm	SATA13312	27.9	27.9	38	4

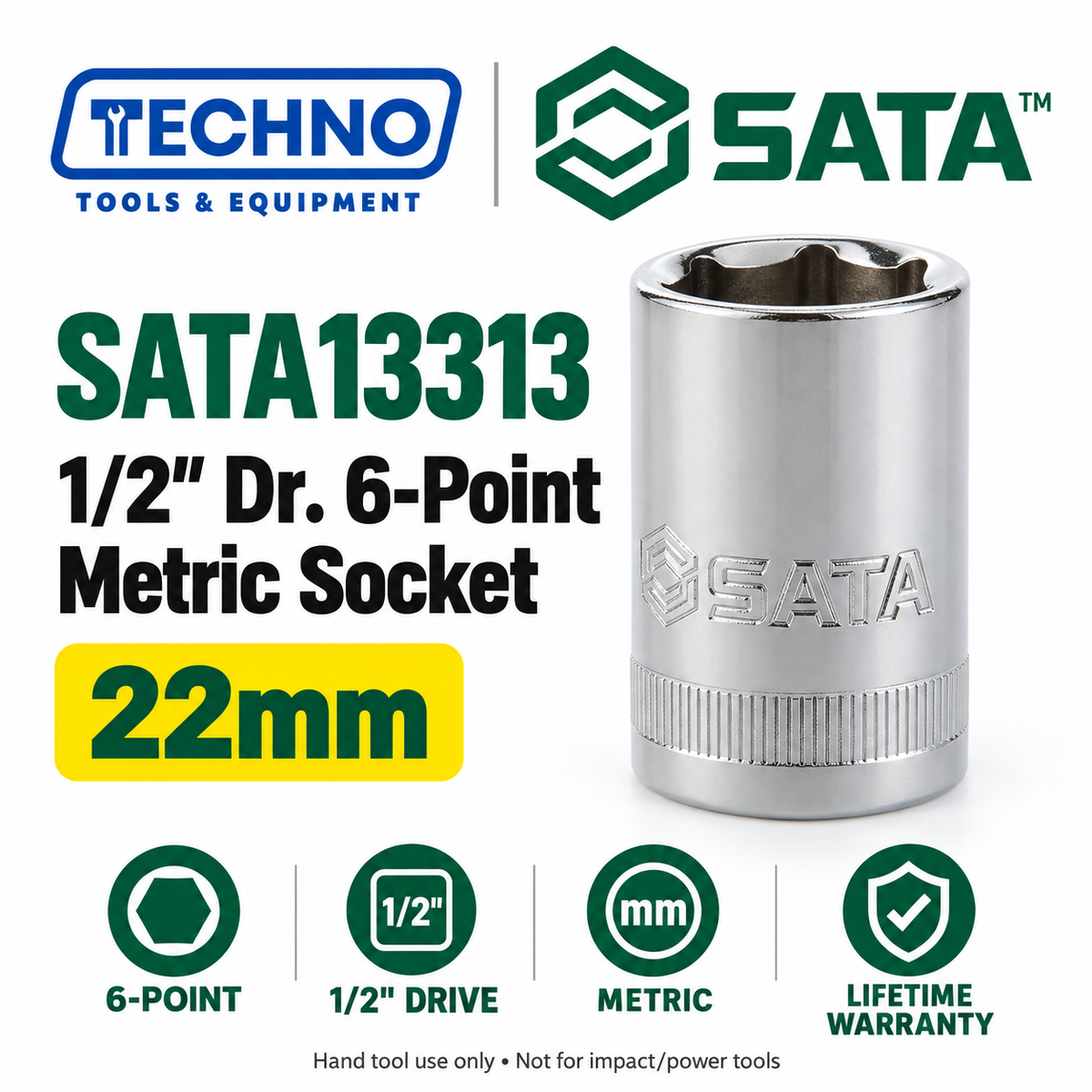

22mm	SATA13313	29.9	29.9	38	4

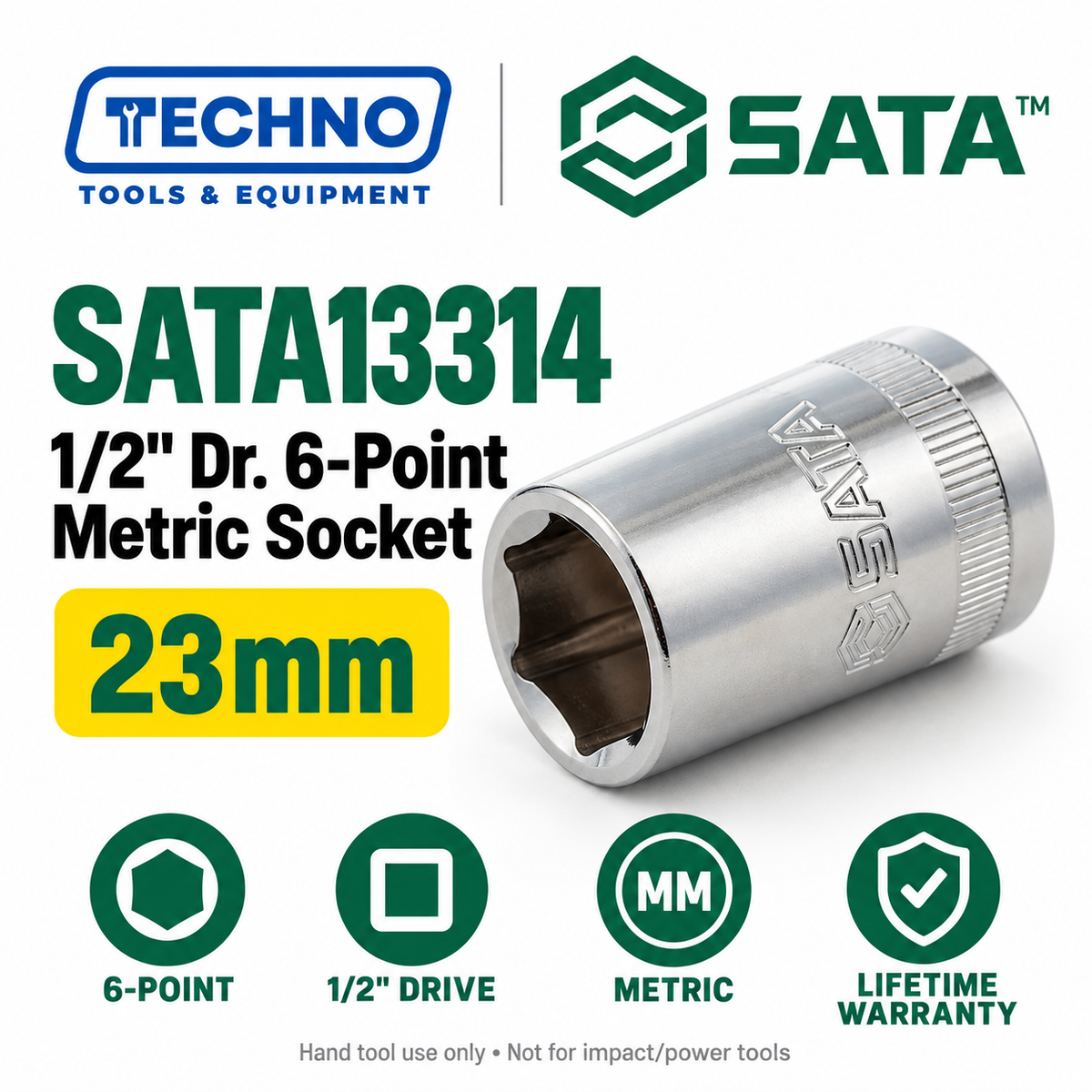

23mm	SATA13314	31.9	31.9	38	4

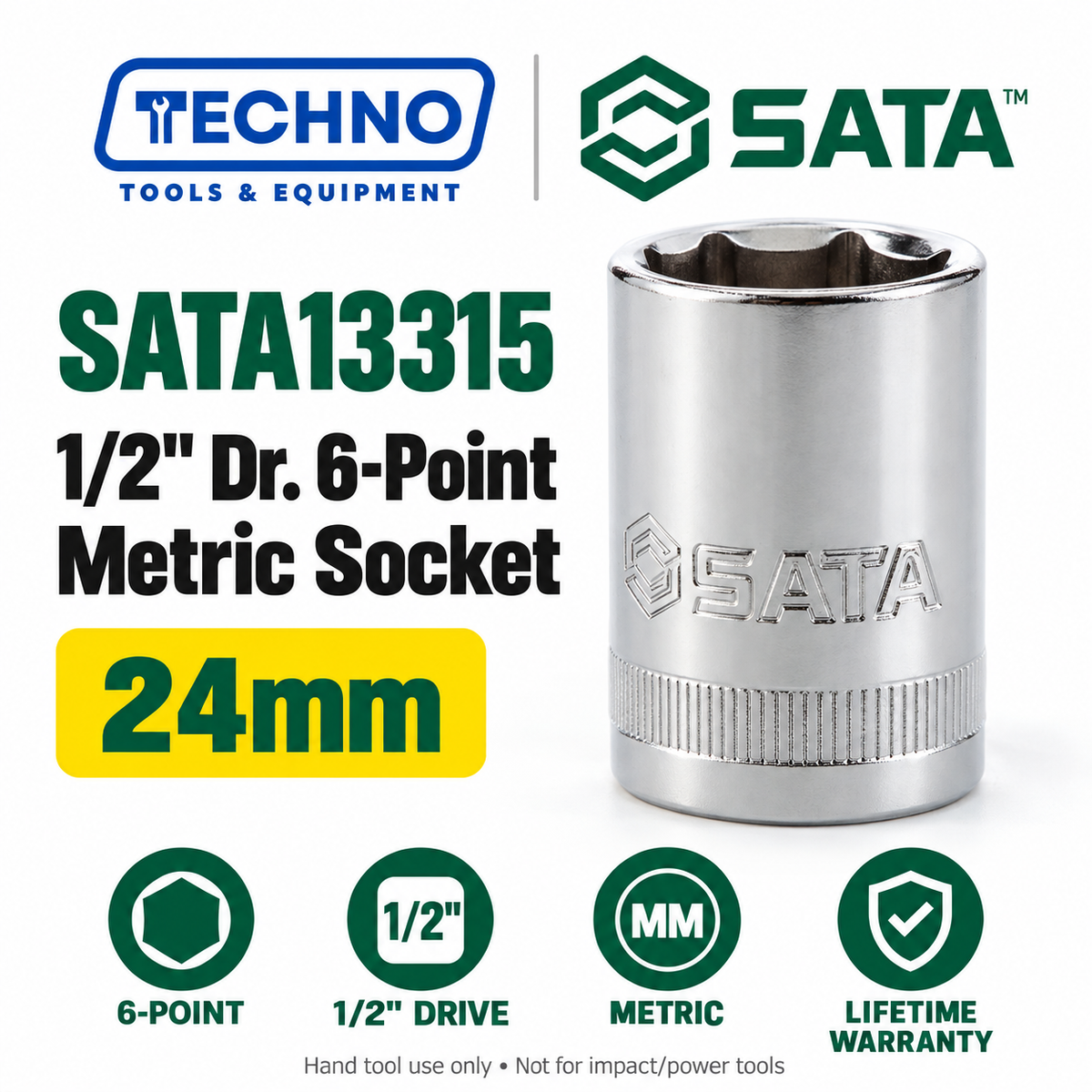

24mm	SATA13315	31.9	31.9	38	4

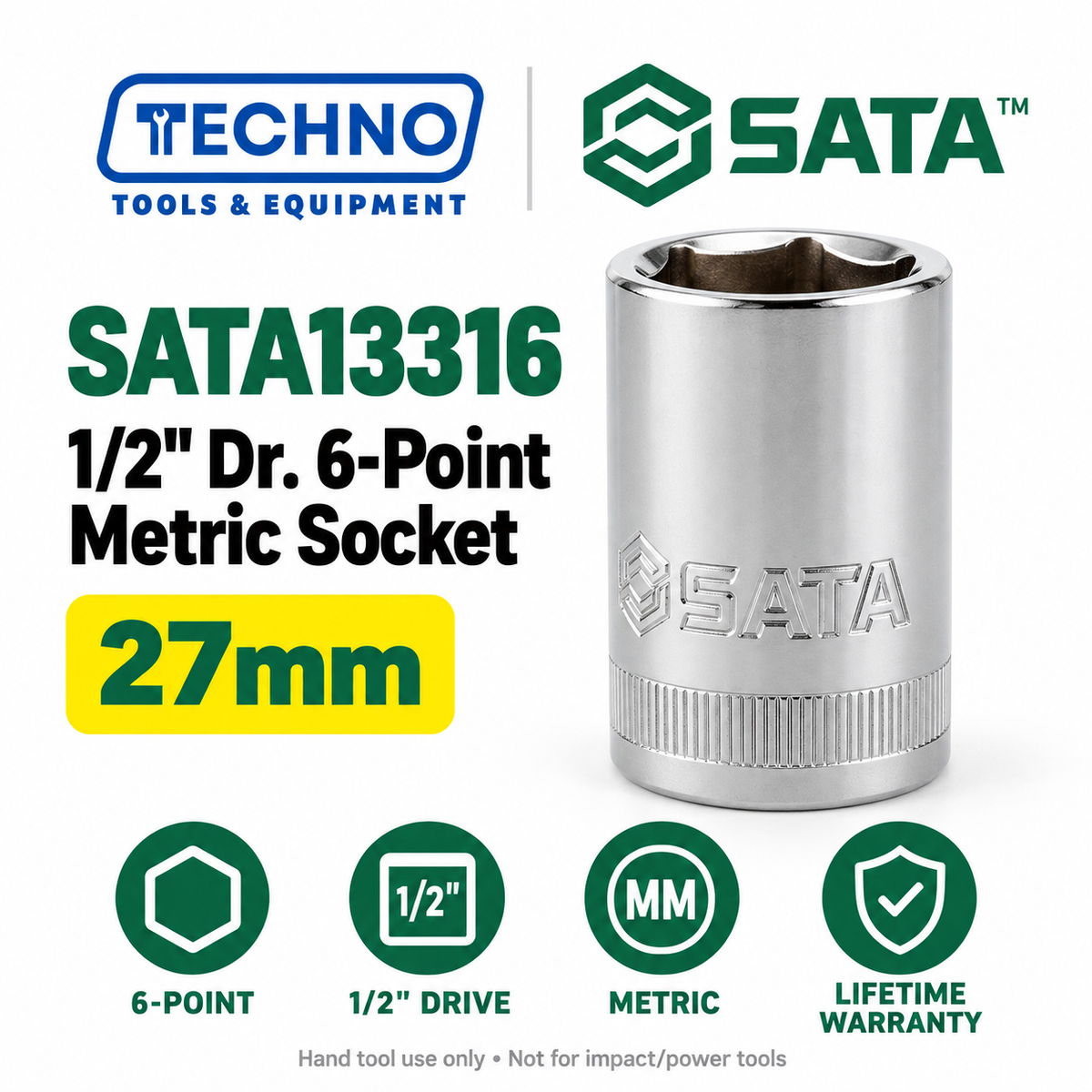

27mm	SATA13316	35.9	35.9	40	4

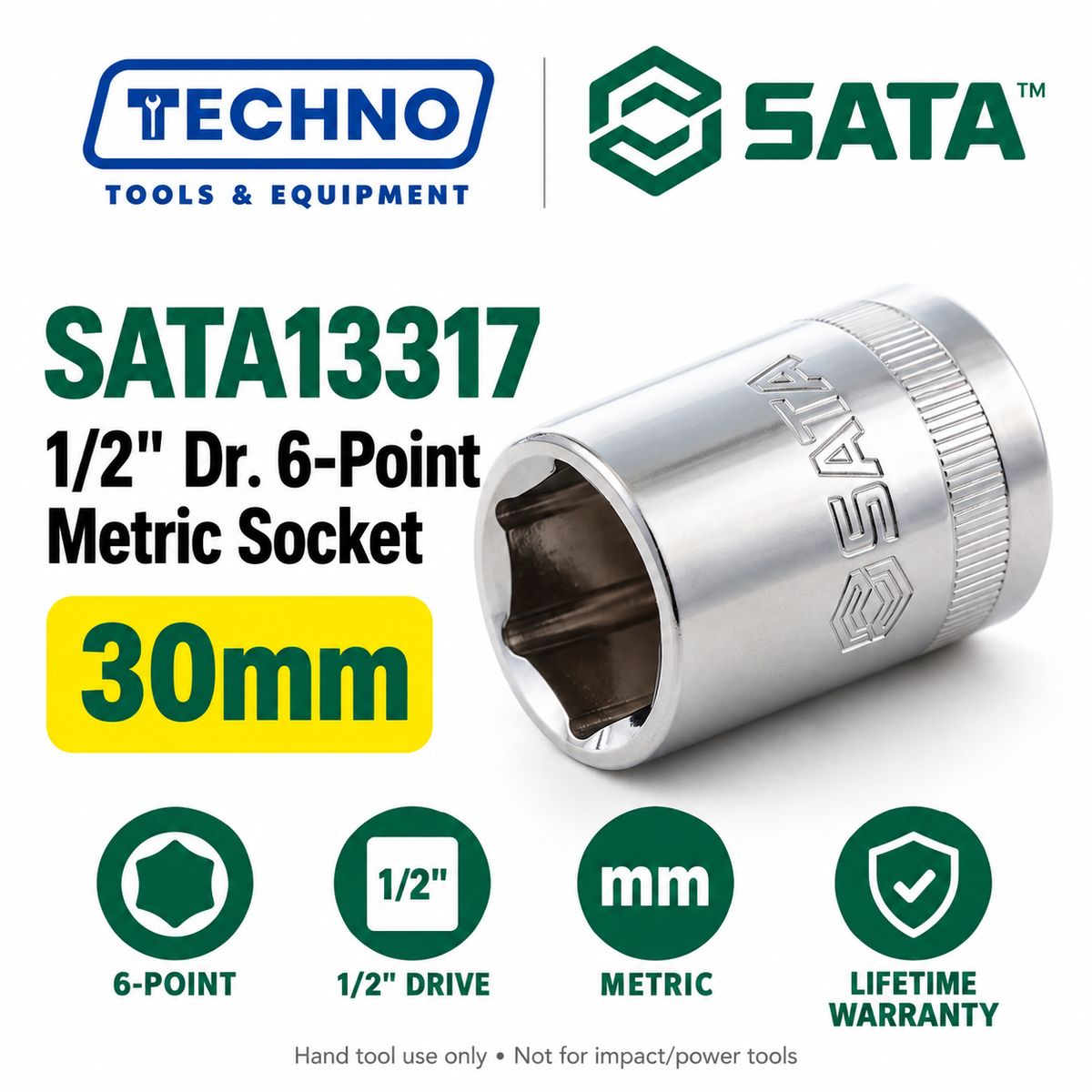

30mm	SATA13317	39.9	39.9	42	2

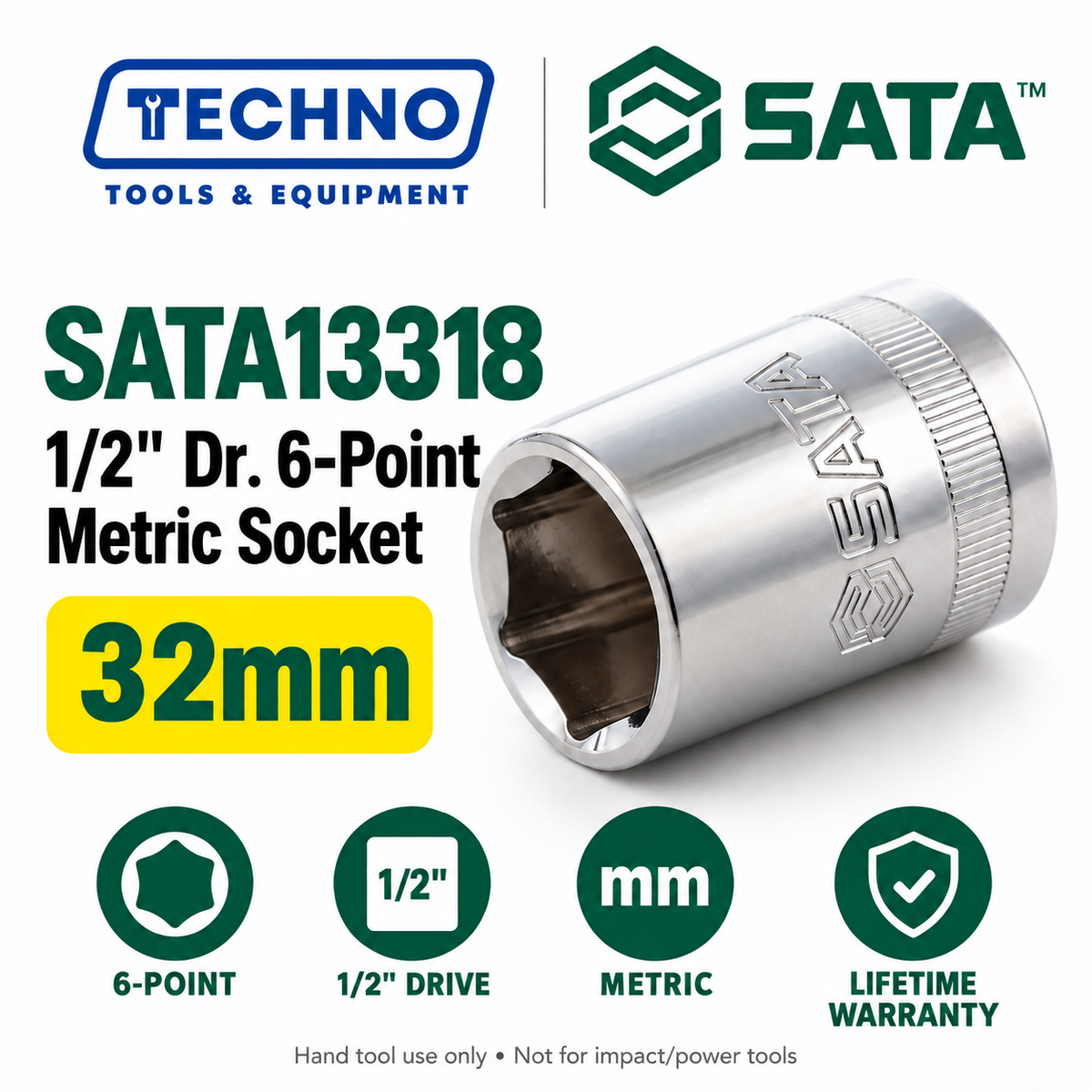

32mm	SATA13318	41.9	41.9	42	2

Available Options (Variants)

This listing has one option: Size, with 20 variants:

Size (option value)	SKU

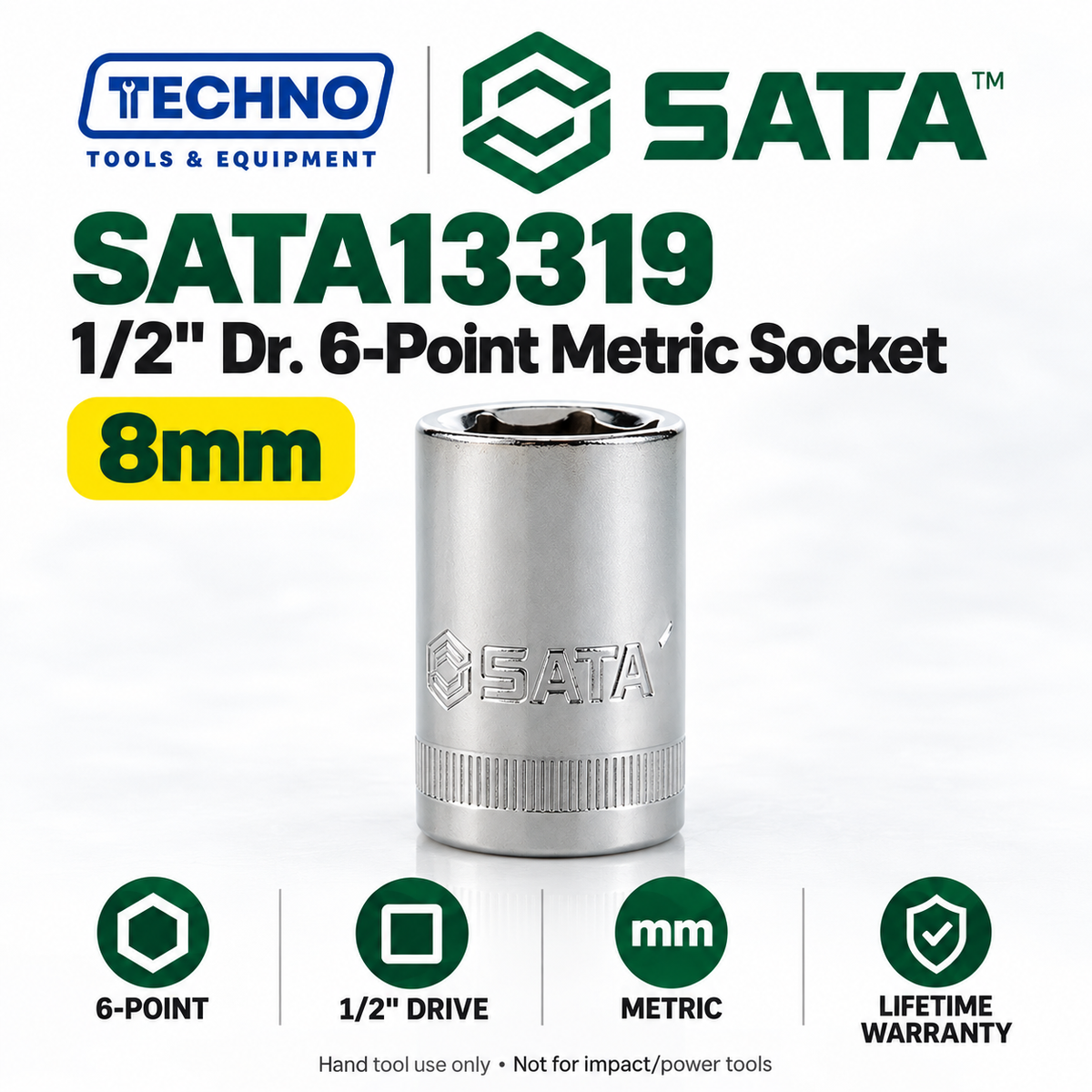

8mm	SATA13319
9mm	SATA13320

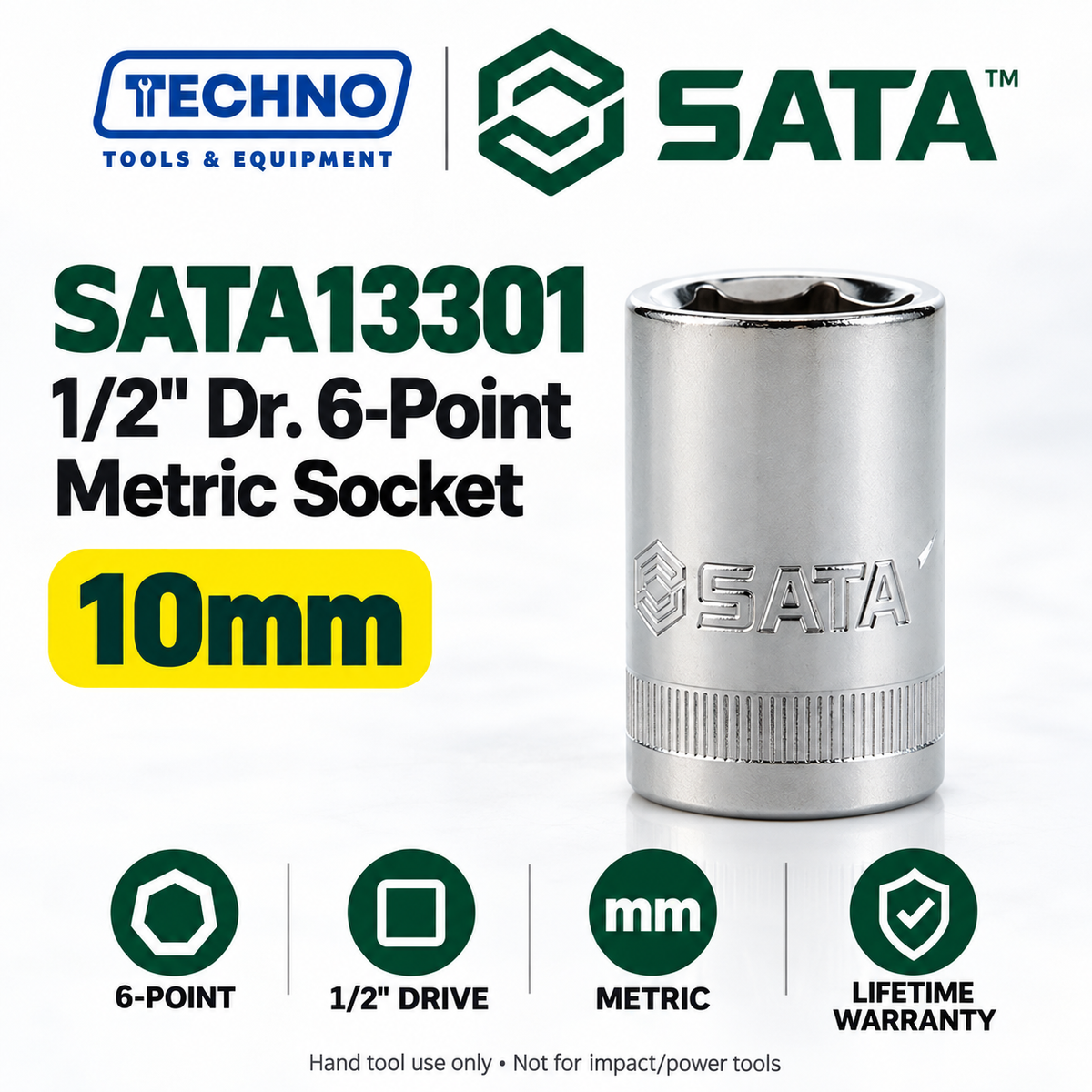

10mm	SATA13301
11mm	SATA13302
12mm	SATA13303

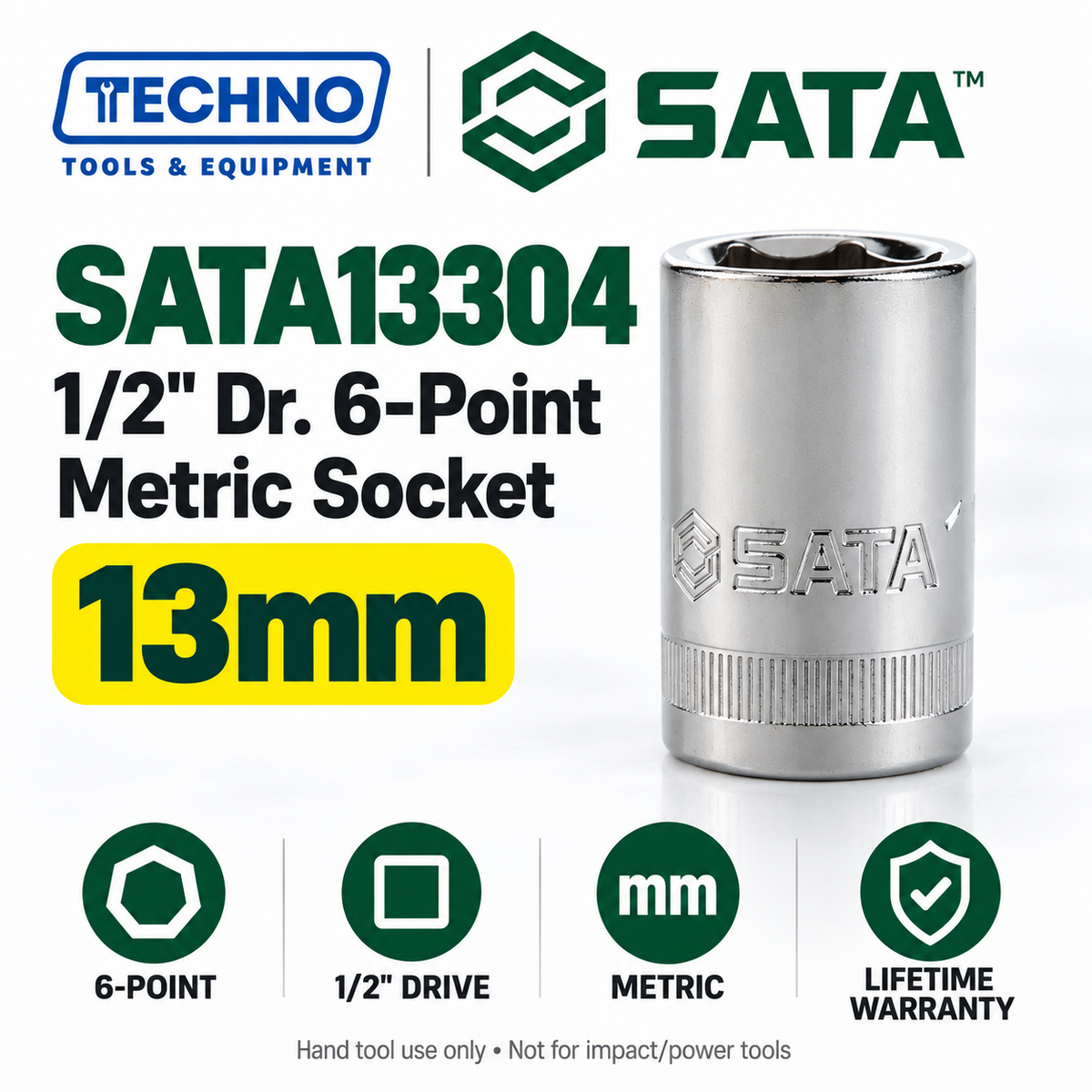

13mm	SATA13304
14mm	SATA13305
15mm	SATA13306
16mm	SATA13307

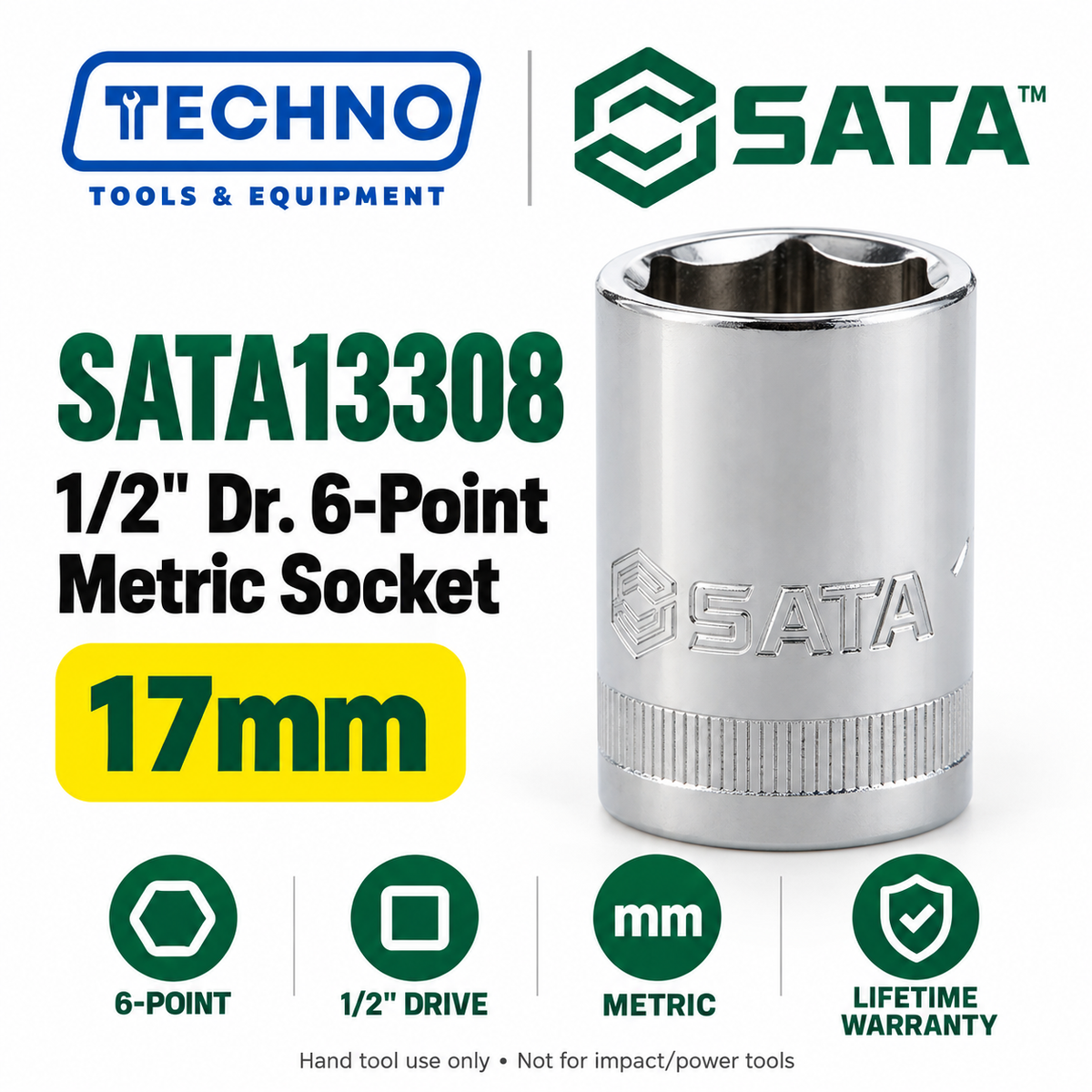

17mm	SATA13308
18mm	SATA13309
19mm	SATA13310
20mm	SATA13311
21mm	SATA13312
22mm	SATA13313
23mm	SATA13314
24mm	SATA13315
27mm	SATA13316
30mm	SATA13317
32mm	SATA13318

Package Contents

1 × SATA 1/2" Dr. 6-Point Socket in your selected size

Warranty Terms

Lifetime Warranty. The SATA13301 to SATA13320 product pages list a lifetime warranty. Coverage applies to manufacturing defects in materials and workmanship when the tool is used as intended. It does not cover misuse, including use on power drivers, pneumatic impact wrenches or extenders, or overloading, impact damage, or normal cosmetic wear.
