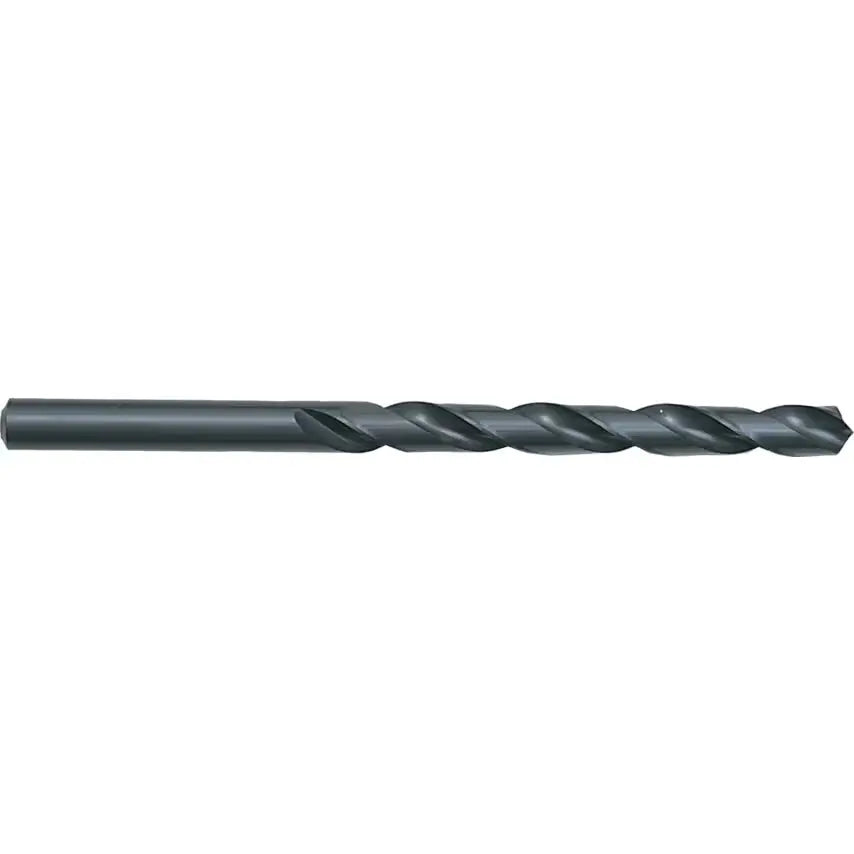

SHERWOOD 1.70mm HSS Long Series Drill Bit SHR0251427H for Metal
Tidak dapat memuatkan ketersediaan pengambilan
Overview Summary
The SHERWOOD SHR0251427H 1.70mm HSS Long Series Drill is built for precision drilling where additional reach is required. Manufactured from high-speed steel (HSS), it provides excellent durability, heat resistance, and consistent cutting performance. The long series design allows deeper drilling and easier access to confined or difficult areas, making it suitable for metalworking, engineering, fabrication, and maintenance tasks.
Key Features
-
1.70mm Precision Diameter – Suitable for accurate small-hole drilling.
-
High Speed Steel (HSS) – Ensures strength, wear resistance, and long service life.
-
Long Series Drill Design – Ideal for deeper drilling and extended reach applications.
-
Effective on Steel & Stainless Steel – Reliable drilling performance across metals.
-
Precision Ground Flutes – Helps smooth cutting and efficient chip removal.
-
Professional Grade Tool – Suitable for workshops, machinists, and industrial users.
Specifications
Attribute |
Value |
|---|---|
|
Brand |
Sherwood |
|
Coolant Delivery |
External |
|
Cutting Direction |
Right Hand |
|
Drill Diameter Metric |
1.7 |
|
Drill Diameter Tolerance |
h8 |
|
Drill Length Type |
Long Series |
|
EAN |
5036140171497 |
|
ECLASS Code |
21010101 |
|
Finish/Coating |
Steam Tempered |
|
Flute Construction |
Ground Flute |
|
Flute Length |
50mm |
|
Flute Type |
Spiral |
|
Helix Angle |
30° |
|
Helix Type |
Normal Helix |
|
Individual or Set |
Individual |
|
Material |
High Speed Steel |
|
Number of Flutes |
2 |
|
Number of Pieces |
1 |
|
Overall Length |
76mm |
|
Point Angle |
118° |
|
Point Type |
Split Point |
|
Series |
L100 |
|
Shank Diameter Tolerance |
f11 |
|
Shank Type |
Straight |
|
Standards Met |
BS 328 DIN 340 ISO 494 |
|
System of Measurement |
Metric |
|
UNSPSC Code |
23241605 |
|
Web Thickness |
Standard |
Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
- Manufactured from HSS for improved toughness
- Black oxide coating for greater heat and wear resistance
- Ideal for general purpose drilling
Typical Applications
- Drilling
- Steels
- Grey cast iron
- Malleable cast iron
- Nickel brass
- Graphite
Standards
- Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Package Content
-
1 x SHERWOOD SHR0251427H 1.70mm HSS Long Series Drill Bit
Warranty
Covered by SHERWOOD manufacturing defect warranty according to the brand’s standard warranty policy.
Why SHERWOOD
SHERWOOD tools are trusted by professionals for their precision engineering and durability. Designed for demanding workshop and industrial applications, SHERWOOD drill bits deliver reliable performance, accurate drilling, and long-lasting cutting efficiency.
