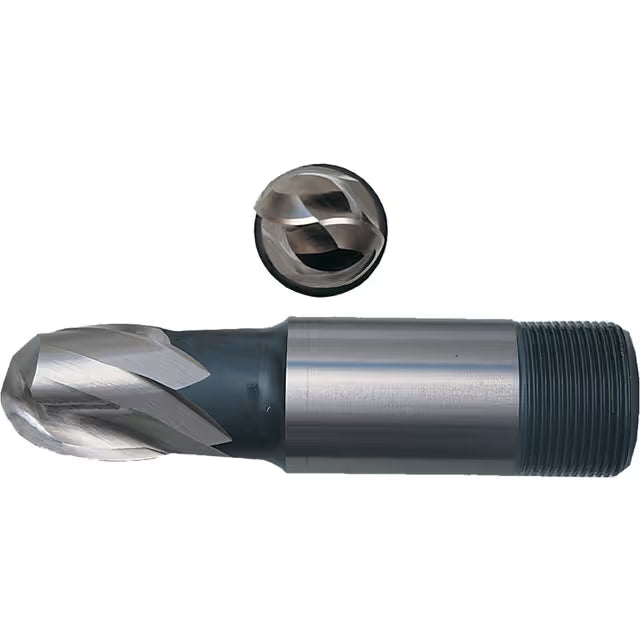

SHERWOOD HSS Ball Nose Slot Drill Short Series Metric B210T
Tidak dapat memuatkan ketersediaan pengambilan
Overview
The SHERWOOD B210T Metric Short Series Ball Nose Slot Drills are precision cutting tools designed for die sinking, slot milling, and profile machining applications. Manufactured from high-quality High Speed Steel (HSS), these cutters provide excellent durability, wear resistance, and consistent cutting performance.
Featuring a ball nose profile and 2-flute design, they are ideal for producing smooth contours and complex 3D surfaces. The 30° helix angle ensures efficient chip evacuation and improved surface finish, while the short series design offers enhanced rigidity and stability for accurate machining.
Finished with a bright coating for corrosion resistance, SHERWOOD slot drills are suitable for a wide range of engineering and precision machining tasks.
Key Features
- High quality High Speed Steel (HSS) construction
- Ball nose design for 3D contouring and profiling
- Short series for improved rigidity and control
- 2 flute configuration for smooth cutting performance
- 30° helix angle for efficient chip removal
- Bright finish for corrosion resistance
- Ideal for die sinking and precision milling
- Manufactured to BS 122: Part 4: 1980
Multi-Variation Specification Table
| Model No. | Cutter Diameter | Overall Length | Flute Length |
|---|---|---|---|
| SHR0615950A | 2mm | 49mm | 3mm |
| SHR0615952C | 3mm | 51mm | 7mm |
| SHR0615953D | 4mm | 52mm | 9.5mm |
| SHR0615955F | 6mm | 56mm | 11mm |
| SHR0615957H | 8mm | 58mm | 12.5mm |
| SHR0615959K | 10mm | 60mm | 14.5mm |
| SHR0615961M | 12mm | 66mm | 19mm |
| SHR0615962N | 13mm | 66mm | 19mm |
| SHR0615965R | 16mm | 72mm | 22mm |
General Technical Specifications
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Series | B210T |
| Material | High Speed Steel (HSS) |
| Finish | Bright |
| Cutter Style | Ball Nose |
| Flute Type | Spiral |
| Helix Angle | 30° |
| Number of Flutes | 2 |
| Length Type | Short Series |
| Milling Cutter Type | Slot Drill |
| Coolant Delivery | External |
| Shank Type | Threaded |
| System of Measurement | Metric |
| Standards | BS 122: Part 4: 1980 |
Typical Applications
- Die sinking
- Profile and contour milling
- 3D surface machining
- Slot milling
Metric Tolerances (BS122 Reference)
- Up to 3.00mm: +0.013 / -0.033
- 3.00 to 6.00mm: +0.020 / -0.038
-
6.00 to 10.00mm: +0.025 / -0.046
-
10.00 to 18.00mm: +0.033 / -0.058
-
18.00 to 30.00mm: +0.041 / -0.071
- Above 30.00mm: +0.051 / -0.089
Package Content
- 1 x SHERWOOD HSS Ball Nose Slot Drill (selected size)
Warranty
- Manufacturer’s standard warranty against defects in material and workmanship
Why Choose SHERWOOD
SHERWOOD cutting tools are trusted by professionals for their precision engineering and reliability. Designed to meet strict industry standards, SHERWOOD tools deliver consistent machining performance, long tool life, and excellent accuracy across a wide range of applications.
