Overview Summary

The SHERWOOD HSS Straight Shank Stub Drills – Bright Finish (Metric) are precision-engineered tools designed for reliable general-purpose drilling across a wide range of industrial and workshop applications. Manufactured from premium high-speed steel (HSS), these drills deliver outstanding durability, cutting accuracy, and long service life.

Featuring a shortened stub length design, these drills offer enhanced rigidity and reduced deflection compared to standard jobber drills. This makes them especially suitable for automatic machines, turret lathes, and precision drilling operations where stability is critical.

Manufactured to BS 328 Part 1: 1986 and DIN 1897 standards, SHERWOOD stub drills ensure consistent dimensional accuracy and dependable performance. The bright finish supports efficient chip evacuation and smooth cutting action when drilling steels, cast iron, alloy steel, and malleable cast iron.

Key Features

Premium High-Speed Steel (HSS) construction
Bright finish for improved chip flow
Stub drill design for higher rigidity
118° point angle for general-purpose drilling
Normal helix spiral flute design
Right-hand cutting direction
Suitable for steel, cast iron, alloy steel, and malleable cast iron
Manufactured to BS 328 Part 1: 1986 / DIN 1897
Precision tolerances:
- Diameter tolerance: h8
- Shank tolerance: f11
External coolant compatible
Designed for industrial and engineering applications

Multi-Variation Specification Table

Model No.	Drill Diameter (mm)	Flute Length (mm)	Overall Length (mm)
SHR0254923B	2.50	14	43
SHR0254924C	3.00	16	46
SHR0254925D	3.20	18	49
SHR0254926E	3.30	18	49
SHR0254927F	3.50	20	52
SHR0254928G	4.00	22	55
SHR0254929H	4.20	22	55
SHR0254930J	5.00	26	62
SHR0254931K	6.00	28	66
SHR0254932L	8.00	37	79
SHR0254933M	10.00	43	89
SHR0254934N	12.00	51	102

General Technical Specifications

Specification	Details
Brand	SHERWOOD
Drill Type	Straight Shank Stub Drill
Material	High-Speed Steel (HSS)
Finish	Bright Finish
Flute Type	Spiral
Helix Type	Normal Helix
Helix Angle	10°–20°
Number of Flutes	2
Point Angle	118°
Cutting Direction	Right Hand
Web Thickness	Standard
Coolant Delivery	External
Diameter Tolerance	h8
Shank Tolerance	f11
Standards	BS 328 Part 1: 1986 / DIN 1897
System of Measurement	Metric
Application	Steel, Cast Iron, Alloy Steel

Package Content

1 × SHERWOOD HSS Bright Stub Drill (Selected Size Variant)

Warranty Term

Manufacturer's standard warranty against manufacturing defects

Why Choose SHERWOOD

SHERWOOD tools are trusted by professionals in machining, engineering, and metalworking industries worldwide. Designed to meet strict international manufacturing standards, SHERWOOD stub drills deliver excellent accuracy, durability, and consistent cutting performance.

With reliable material quality and precision engineering, SHERWOOD tools help improve productivity, reduce tool wear, and ensure dependable results across demanding drilling applications.

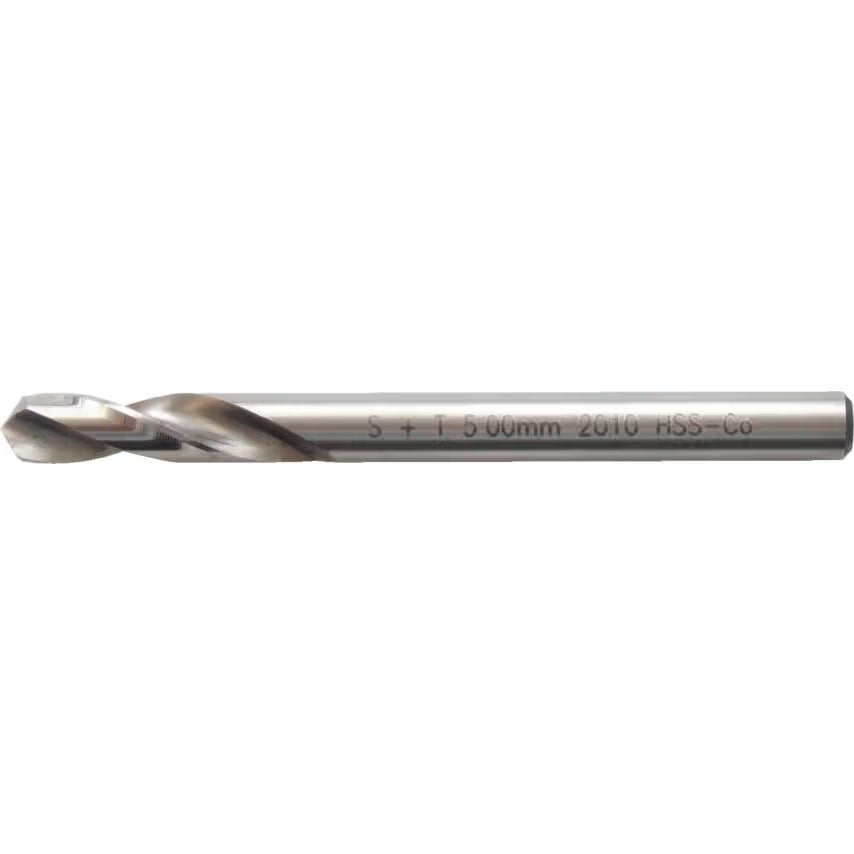

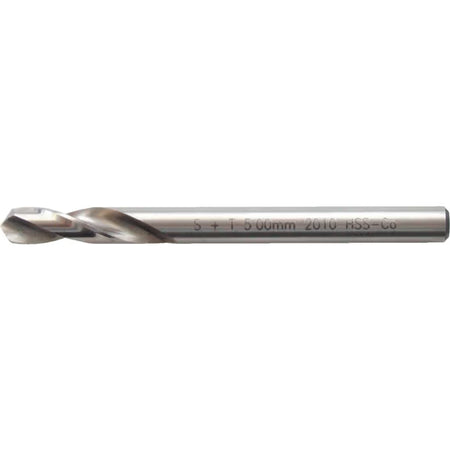

SHERWOOD HSS Bright Stub Drill Metric 2.50–12.00mm DIN1897
