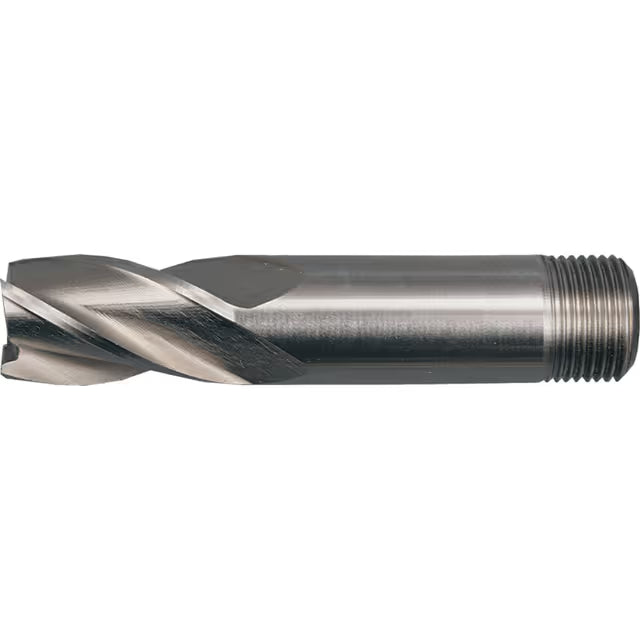

SHERWOOD HSS Inch Short Series 4 Flute End Mill E410T
Tidak dapat memuatkan ketersediaan pengambilan
Overview Summary
The SHERWOOD HSS Short Series Inch End Mill E410T is designed for precision profile milling and open slot machining across a wide range of metalworking applications. Manufactured from high-quality M2 high speed steel, these cutters provide dependable cutting performance, durability, and long tool life.
Featuring a 30° helix angle and 4 flute helical design, these end mills ensure efficient chip evacuation and smooth cutting action. The bright finish enhances cutting efficiency while maintaining dimensional accuracy. Manufactured to BS 122 Part 4:1980 standards, the E410T series delivers consistent quality and reliable machining results.
The short series design provides improved rigidity and stability, making these cutters suitable for machining tasks requiring precise control and reliable performance in professional workshop environments.
Key Features
- Manufactured from M2 high speed steel for durability and wear resistance
- Short Series E410T design for improved rigidity and stability
- 4 flute helical cutting edges for efficient material removal
- 30° helix angle improves chip evacuation and surface finish
- Bright finish supports consistent cutting performance
- Designed for profile milling and open slot machining
- Square end cutter style for versatile machining applications
- External coolant compatible
- Manufactured to BS 122 Part 4:1980 standard
- Suitable for professional and industrial machining environments
Multi-Variation Specification Table
| Model No | Cutting Diameter | Overall Length | Flute Length |
|---|---|---|---|
| SHR0615002B | 3/32" | 1-29/32" | 1/4" |
| SHR0615003C | 1/8" | 2" | 3/8" |
| SHR0615004D | 5/32" | 2-1/8" | 1/2" |
| SHR0615005E | 3/16" | 2-1/4" | 1/2" |
| SHR0615007G | 1/4" | 2-3/8" | 5/8" |
| SHR0615008H | 9/32" | 2-3/8" | 2-3/8" |
| SHR0615009J | 5/16" | 2-3/8" | 23/32" |
| SHR0615011L | 3/8" | 2-5/8" | 27/32" |
| SHR0615013N | 7/16" | 2-5/8" | 3/4" |
| SHR0615015Q | 1/2" | 2-3/4" | 15/16" |
| SHR0615017S | 9/16" | 2-7/8" | 1-1/8" |
| SHR0615019V | 5/8" | 3-1/32" | 1-1/16" |
| SHR0615023N | 3/4" | 3-9/32" | 1-1/2" |
| SHR0615026C | 7/8" | 3-7/8" | 1-5/8" |
| SHR0615028E | 1" | 4" | 3-7/8" |
General Technical Specifications
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Product Type | End Mill |
| Series | E410T |
| Cutter Style | Square End |
| Flute Type | Helical |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Length Type | Short Series |
| Material | High Speed Steel |
| Material Grade | M2 |
| Finish / Coating | Bright Finish |
| Cutter Diameter Tolerance | k10 |
| Plunge Type | Non-centre Cutting |
| Coolant Delivery | External |
| Shank Type | Threaded |
| Shank Diameter Tolerance | h6 |
| Standard Compliance | BS 122 Part 4:1980 |
| Measurement System | Inch |
| Application | Profile milling and open slot production |
Inch Tolerance Information
- Up to 1/2" Diameter: +0.0025" / -0.0005"
- Over 1/2" Diameter: +0.0050" / -0.0000"
Package Content
- 1 × SHERWOOD HSS Short Series End Mill E410T
(Selected size based on chosen model number)
Warranty Term
Manufacturer’s Warranty:
Covered against manufacturing defects under standard SHERWOOD warranty policy.
Why Choose SHERWOOD
SHERWOOD cutting tools are engineered for precision, durability, and dependable machining performance. Manufactured using premium-grade materials and strict quality standards, SHERWOOD tools are trusted by machinists and engineers worldwide. Their consistent performance and long service life make them an ideal choice for professional metalworking applications requiring accuracy and reliability.
