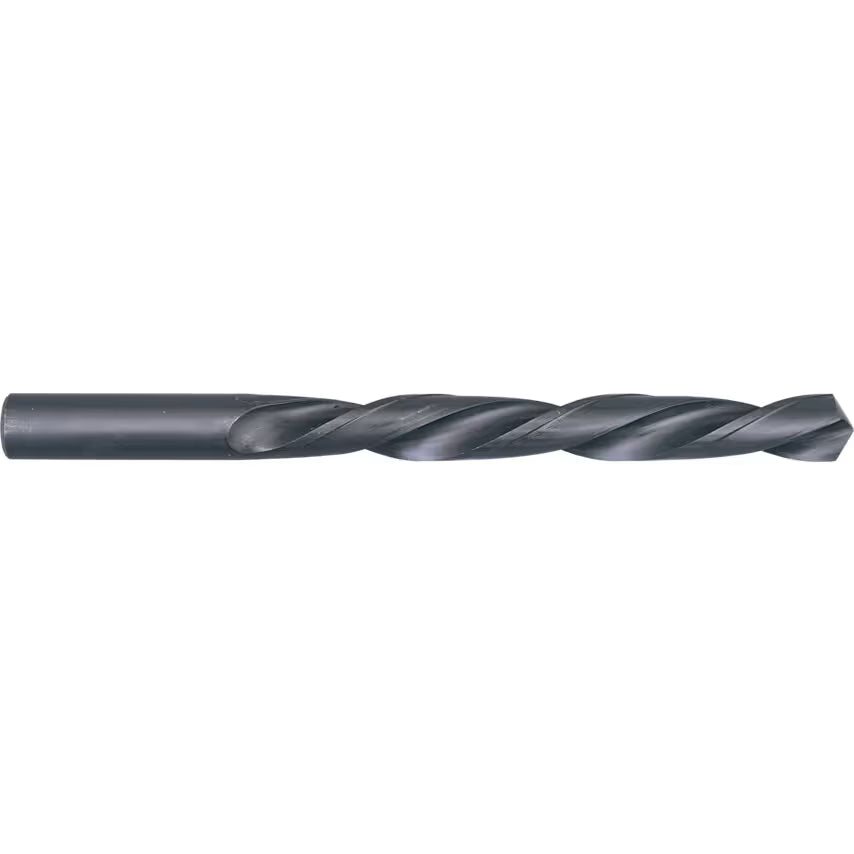

SHERWOOD HSS Roll Forged Jobber Drill Metric 1.0–14.0mm DIN338 -

Product Overview Summary

The SHERWOOD HSS Roll Forged Jobber Drills (Metric Series) are versatile, general-purpose drilling tools designed for accurate performance in wood, plastics, carbon steel, and plain steel materials. Manufactured from high-speed steel using roll-forging technology, these drills feature a dense and consistent grain structure that enhances durability and rigidity.

Each drill includes precision-ground cutting tips to ensure efficient cutting action, while the black oxide finish improves wear resistance and protects against corrosion. Featuring a reliable 118° point angle, these drills deliver consistent drilling results across a wide range of workshop, maintenance, and fabrication applications. Manufactured to DIN 338 Type N standards, they provide dependable performance trusted by professionals and DIY users alike.

Key Features

Manufactured from high-speed steel (HSS) for durability
Roll-forged construction ensures strong grain structure
Precision-ground tips for smooth cutting performance
Black oxide coating improves corrosion resistance
118° point angle supports general-purpose drilling
Suitable for wood, plastics, carbon steel, and plain steel
Straight shank design fits standard drill chucks
Produced to DIN 338 Type N standard
Ideal for professional workshops and general maintenance

Multi-Variation Specification Table

Model No	Drill Diameter	Overall Length	Flute Length
SHR0256543E	1.00mm	34 mm	12 mm
SHR0256543F	1.50mm	40 mm	18 mm
SHR0256543G	2.00mm	49 mm	24 mm
SHR0256543H	2.50mm	57 mm	30 mm
SHR0256543J	2.80mm	61 mm	33 mm
SHR0256543K	3.00mm	61 mm	33 mm
SHR0256543L	3.20mm	65 mm	36 mm
SHR0256543M	3.30mm	65 mm	36 mm
SHR0256543N	3.50mm	70 mm	39 mm
SHR0256543Q	3.80mm	75 mm	43 mm
SHR0256543R	4.00mm	75 mm	43 mm
SHR0256543T	4.20mm	75 mm	43 mm
SHR0256543U	4.50mm	80 mm	47 mm
SHR0256543V	4.80mm	86 mm	52 mm
SHR0256543X	5.00mm	86 mm	52 mm
SHR0256543Y	5.20mm	86 mm	52 mm
SHR0256543Z	5.50mm	93 mm	57 mm
SHR0256544A	6.00mm	93 mm	57 mm
SHR0256544B	6.20mm	101 mm	63 mm
SHR0256544C	6.50mm	101 mm	63 mm
SHR0256544D	6.80mm	109 mm	69 mm
SHR0256544E	7.00mm	109 mm	69 mm
SHR0256544F	7.50mm	109 mm	69 mm
SHR0256544G	8.00mm	117 mm	75 mm
SHR0256544H	8.50mm	117 mm	75 mm
SHR0256544J	9.00mm	125 mm	81 mm
SHR0256544K	9.50mm	125 mm	81 mm
SHR0256544L	10.00mm	133 mm	87 mm
SHR0256544M	10.20mm	133 mm	87 mm
SHR0256544N	10.50mm	133 mm	87 mm
SHR0256544P	11.00mm	142 mm	94 mm
SHR0256544Q	11.50mm	142 mm	94 mm
SHR0256544R	12.00mm	151 mm	101 mm
SHR0256544T	12.50mm	151 mm	101 mm
SHR0256544U	13.00mm	151 mm	101 mm
SHR0256544V	14.00mm	160 mm	108 mm

General Technical Specifications

Attribute	Value
Brand	SHERWOOD
Product Type	Metric Jobber Drill
Material	High Speed Steel (HSS)
Flute Construction	Roll Forged
Flute Type	Spiral
Helix Type	Normal Helix
Point Angle	118°
Shank Type	Straight Shank
Cutting Direction	Right Hand
Finish / Coating	Black Oxide
Number of Flutes	2
Coolant Delivery	External
Standard	DIN 338 Type N
Application Materials	Wood, Plastic, Carbon Steel, Plain Steel
Individual or Set	Individual

Package Content

1 × SHERWOOD HSS Roll Forged Jobber Drill
(Supplied as individual drill per selected size)

Warranty Term

Manufacturers Warranty Coverage

SHERWOOD tools are produced under strict manufacturing quality control and are covered against material and manufacturing defects under normal working conditions.

Why Choose SHERWOOD

Reliable Engineering for Professional Performance

SHERWOOD cutting tools are trusted for delivering dependable and consistent drilling results across industrial, workshop, and maintenance environments. Their roll-forged HSS drills combine toughness, precision, and longevity, making them an excellent choice for both professional tradespeople and DIY users.

Manufactured according to international DIN standards, SHERWOOD tools provide consistent quality and long-term reliability for demanding drilling tasks.
