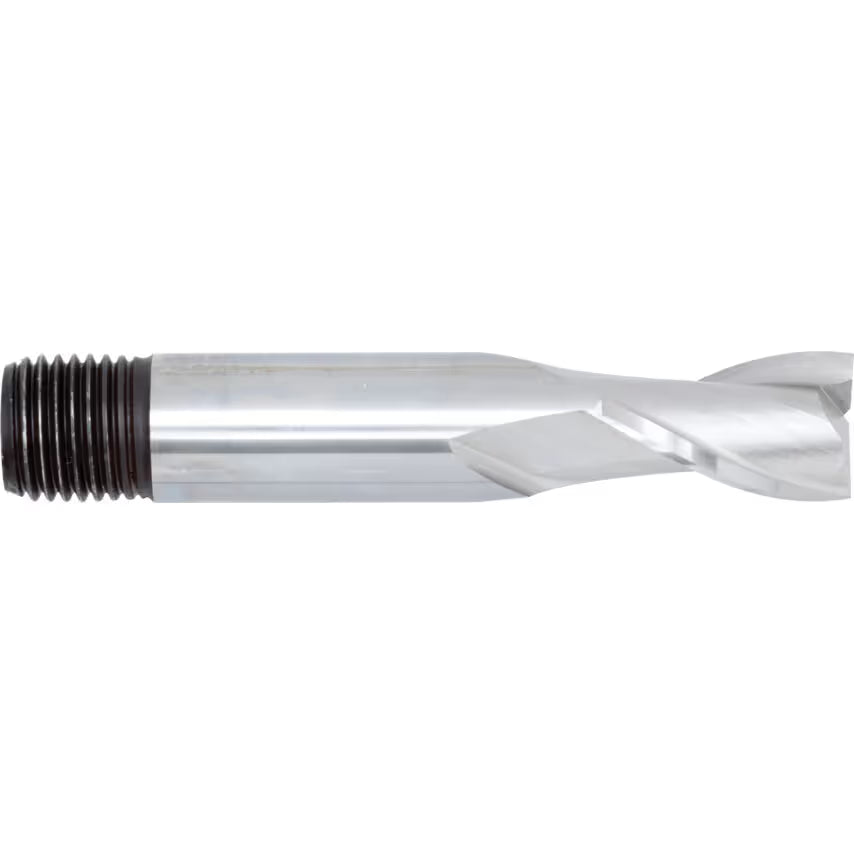

SHERWOOD HSS SC/SH Slot Drill Short Series S210T Bright
Tidak dapat memuatkan ketersediaan pengambilan
Overview Summary
The SHERWOOD HSS SC/SH Slot Drill – Short Series S210T is designed for precision milling applications, particularly for producing accurate keyways and slots. Manufactured from high-quality M2 High Speed Steel, this slot drill delivers dependable cutting performance and long tool life in professional machining environments.
Featuring a 30° helix spiral flute design and bright finish, the cutter provides smooth cutting action and efficient chip evacuation. Its short series design improves rigidity and stability, making it ideal for controlled slotting operations where precision is critical.
Manufactured to BS 122 : Part 4 : 1980 standards, the SHERWOOD slot drill ensures consistent dimensional accuracy and reliable results across a wide range of milling tasks.
Key Features
- Short Series S210T design for improved rigidity
- Manufactured from M2 High Speed Steel (HSS)
- Designed for keyway and slot milling applications
- 2-flute slot drill for efficient chip removal
- 30° helix spiral flute for smooth cutting
- Bright finish reduces cutting friction
- Manufactured to BS 122 : Part 4 : 1980
- Threaded shank design
- External coolant compatible
- Available in a wide range of inch sizes
- Suitable for workshop, fabrication, and industrial machining
Multi-Variation Specification Table
| Model No | Cutter Diameter (Inch) | Overall Length (Inch) | Flute Length (Inch) |
|---|---|---|---|
| SHR0615500A | 1/16 | 1-29/32" | 3/32" |
| SHR0615504E | 1/8 | 9/32" | 9/32" |
| SHR0615506G | 5/32 | 2-1/16" | 3/8" |
| SHR0615508J | 3/16 | 2-1/16" | 3/8" |
| SHR0615512N | 1/4 | 2-7/32" | 7/16" |
| SHR0615516S | 5/16 | 2-11/32" | 1/2" |
| SHR0615518V | 11/32 | — | 9/16" |
| SHR0615522Z | 13/32 | 2-3/8" | 5/8" |
| SHR0615525B | 7/16 | 2-9/16' | 11/16" |
| SHR0615529F | 1/2 | 2-5/8" | 3/4" |
| SHR0615530G | 17/32 | 2-11/16" | 7/8" |
| SHR0615531H | 9/16 | 2-23/32" | 27/32" |
| SHR0615533K | 5/8 | 2-27/32" | 7/8" |
| SHR0615535M | 11/16 | 2-29/32" | 2-27/32" |
| SHR0615541T | 7/8 | 3-15/16" | 1" |
| SHR0615544X | 1 | 3-3/4" | 1-1/16" |
General Technical Specifications
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Product Type | Slot Drill |
| Series | Short Series S210T |
| Cutter Type | SC/SH Slot Drill |
| Material | High Speed Steel (HSS) |
| Material Grade | M2 |
| Finish | Bright Finish |
| Flute Type | Spiral |
| Helix Angle | 30° |
| Number of Flutes | 2 |
| Length Type | Short |
| Coolant Delivery | External |
| Shank Type | Threaded |
| System of Measurement | Inch |
| Standards Met | BS 122 : Part 4 : 1980 |
| Application | Milling Keyways and Slots |
Inch Tolerances
| Diameter Range | Tolerance |
|---|---|
| Up to 1/2" | +0.0630 / -0.0013 |
| Over 1/2" | +0.1250 / -0.0015 |
Package Content
- 1 × SHERWOOD HSS SC/SH Slot Drill
(Selected size based on chosen model variation)
Warranty Term
All SHERWOOD cutting tools are manufactured under strict industrial quality control standards. Warranty covers manufacturing defects only, subject to SHERWOOD warranty terms and conditions.
Why Choose SHERWOOD
SHERWOOD tooling products are trusted by professionals for delivering reliable machining precision and consistent performance across demanding metalworking applications.
Choosing SHERWOOD means:
- Industrial-grade tool quality
- Reliable precision cutting performance
- Long-lasting durability
- Consistent manufacturing standards
- Trusted professional engineering brand
