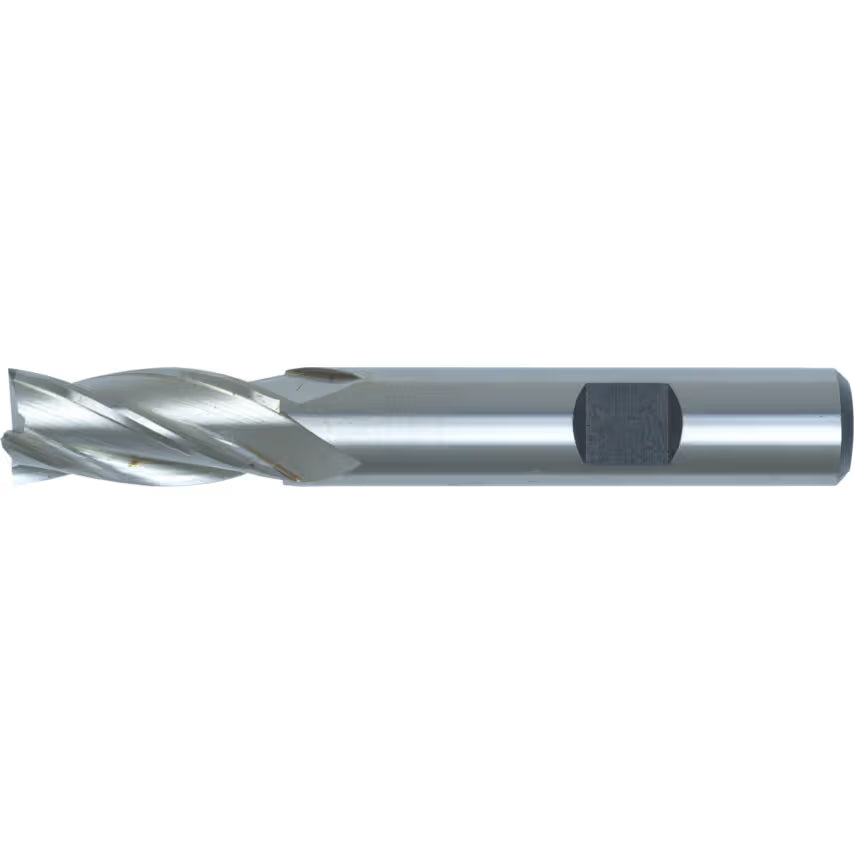

SHERWOOD HSSE 4 Flute Weldon End Mill Metric DIN844 M42
Tidak dapat memuatkan ketersediaan pengambilan
OVERVIEW SUMMARY
The SHERWOOD HSSE 4 Flute Weldon End Mill is designed for general production machining of steel. Manufactured from M42 cobalt high speed steel, it offers superior wear resistance and durability. Featuring a centre-cutting design and Weldon flat shank for secure clamping, it is ideal for profile milling, slotting, and keyway applications with high precision and stability.
KEY FEATURES
- M42 Cobalt High Speed Steel (HSSE) for enhanced durability
- 4 flute design for improved surface finish and feed rates
- Centre cutting for plunging capability
- Weldon flat shank for secure and precise clamping
- Suitable for profile milling, slotting, and keyways
- Uncoated finish for general-purpose machining
- Manufactured to DIN 844 and DIN 1835B standards
- Tested for consistent quality and performance
MULTI-VARIATION SPECIFICATION TABLE
| Model No | Cutter Diameter | Overall Length | Flute Length |
|---|---|---|---|
| SHR0618001A | 3mm | 52mm | 8mm |
| SHR0618001C | 5mm | 57mm | 13mm |
| SHR0618001F | 8mm | 69mm | 19mm |
| SHR0618001H | 10mm | 72mm | 22mm |
| SHR0618001M | 14mm | 83mm | 26mm |
| SHR0618001N | 15mm | 83mm | 26mm |
| SHR0618001P | 16mm | 92mm | 32mm |
| SHR0618001T | 19mm | 92mm | 32mm |
| SHR0618001U | 20mm | 104mm | 38mm |
GENERAL TECHNICAL SPECIFICATIONS
| Attribute | Value |
|---|---|
| Brand | SHERWOOD |
| Material | Cobalt High Speed Steel (M42) |
| Milling Cutter Type | End Mill |
| Series | Series 9 |
| Cutter Style | Square End |
| Number of Flutes | 4 |
| Flute Type | Helical |
| Finish / Coating | Uncoated |
| Length Type | Regular |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Shank Diameter Tolerance | h6 |
| System of Measurement | Metric |
| Standards | DIN 844, DIN 1835B |
APPLICATION
- General steel machining
- Profile milling
- Slotting and keyway cutting
- Precision industrial machining
PACKAGE CONTENT
- 1 × SHERWOOD HSSE 4 Flute Weldon End Mill (Selected Size)
WARRANTY
- 6 Months Manufacturer Warranty
- Covers manufacturing defects only
- Excludes wear, misuse, or improper application
WHY SHERWOOD
SHERWOOD is a trusted industrial tooling brand known for precision engineering and consistent performance. Manufactured to international standards, SHERWOOD tools deliver durability, accuracy, and reliability for professional machining applications.
