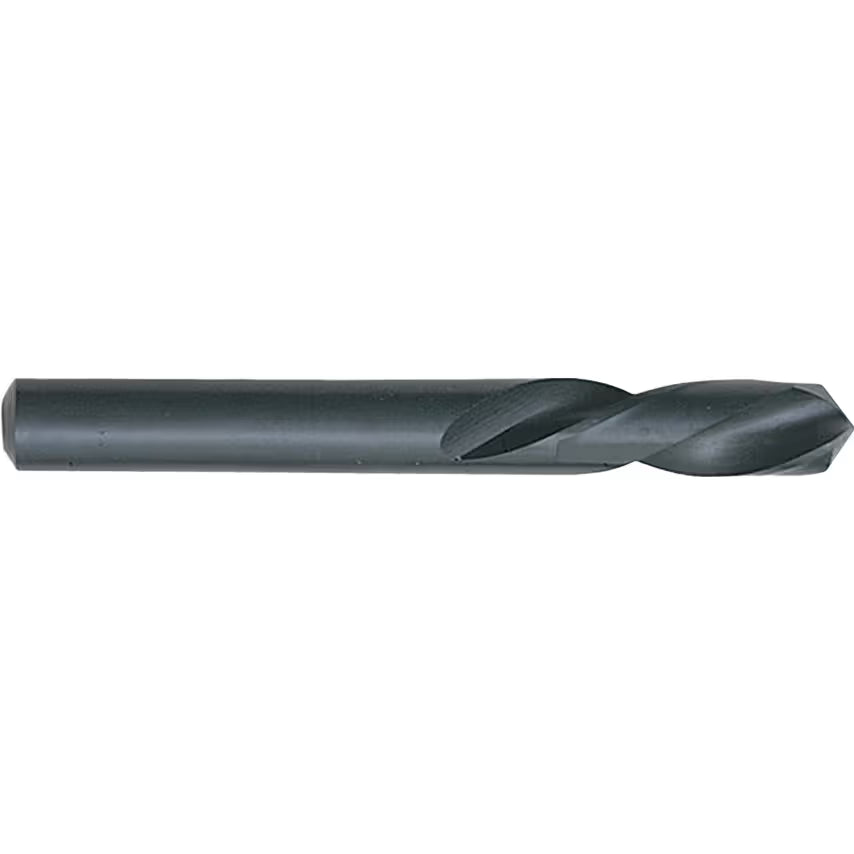

SHERWOOD S100 Metric HSS Black Oxide Stub Drill Set 1–13mm - Techno

Overview Summary

The SHERWOOD Series S100 Metric HSS Straight Shank Stub Drill range is designed for precision drilling in steels, cast iron, alloy steel and malleable cast iron. Manufactured from high speed steel (HSS) and finished with a protective black oxide coating, these stub drills provide excellent strength, rigidity and heat resistance during machining.

Stub drills feature shorter flute and overall lengths than standard jobber drills, improving rigidity and reducing deflection. This makes them especially suitable for use on automatic and turret lathes where precision and stability are critical.

Manufactured to DIN 1897 and BS 328 Part 1 standards, SHERWOOD S100 metric stub drills deliver consistent and reliable industrial performance.

Key Features

Manufactured from High Speed Steel (HSS)
Black oxide coating improves wear and heat resistance
Short stub design increases rigidity and drilling accuracy
118° point angle for general-purpose drilling
Right-hand cutting direction
Spiral flute with normal helix design
Designed for automatic and turret lathes
Manufactured to DIN 1897 and BS 328 standards
Suitable for metric drilling applications
Ideal for steels, cast iron and alloy materials

Typical Applications

General purpose drilling
Steel machining
Cast iron drilling
Alloy steel work
Malleable cast iron
Automatic lathe operations
Turret lathe drilling
Precision engineering work

Multi-Variation Specification Table

Model No	Drill Diameter	Overall Length (mm)	Flute Length (mm)
SHR0254964A	1.00mm	26	6
SHR0254965B	1.50mm	32	9
SHR0254966C	2.00mm	38	12
SHR0254967D	2.20mm	40	13
SHR0254968E	2.30mm	40	13
SHR0254969F	2.50mm	43	14
SHR0254970G	2.60mm	43	14
SHR0254971H	2.70mm	46	16
SHR0254972J	2.80mm	46	16
SHR0254973K	3.00mm	46	16
SHR0254974L	3.10mm	49	18
SHR0254975M	3.20mm	49	18
SHR0254976N	3.30mm	49	18
SHR0254977P	3.40mm	52	20
SHR0254978Q	3.50mm	52	20
SHR0254979R	3.60mm	52	20
SHR0254980S	4.00mm	55	22
SHR0254981T	4.10mm	55	22
SHR0254982V	4.20mm	55	22
SHR0254983W	4.30mm	58	24
SHR0254984X	4.40mm	58	24
SHR0254985Y	4.50mm	58	24
SHR0254986Z	4.80mm	62	26
SHR0254987A	4.90mm	62	26
SHR0254988B	5.00mm	62	26
SHR0254989C	5.10mm	62	26
SHR0254990D	5.20mm	62	26
SHR0254991E	5.30mm	62	26
SHR0254992F	5.50mm	62	26
SHR0254993G	5.90mm	66	28
SHR0254994H	6.00mm	66	28
SHR0254995J	6.10mm	70	31
SHR0254996K	6.20mm	70	31
SHR0254997L	6.30mm	70	31
SHR0254998M	6.40mm	70	31
SHR0254999N	6.50mm	70	31
SHR0255000P	6.60mm	70	31
SHR0255001Q	6.70mm	70	31
SHR0255002R	6.80mm	74	34
SHR0255003S	6.90mm	74	34
SHR0255004T	7.00mm	74	34
SHR0255006W	7.20mm	74	34
SHR0255007X	7.30mm	74	34
SHR0255008Y	7.40mm	74	34
SHR0255009Z	7.50mm	74	34
SHR0255010A	7.80mm	79	37
SHR0255011B	8.00mm	79	37
SHR0255012C	8.10mm	79	37
SHR0255013D	8.20mm	79	37
SHR0255014E	8.40mm	79	37
SHR0255015F	8.50mm	79	37
SHR0255016G	8.60mm	84	40
SHR0255017H	8.80mm	84	40
SHR0255018J	9.00mm	84	40
SHR0255019K	9.10mm	84	40
SHR0255020L	9.20mm	84	40
SHR0255021M	9.40mm	84	40
SHR0255022N	9.50mm	84	40
SHR0255023P	9.60mm	89	43
SHR0255024Q	9.70mm	89	43
SHR0255025R	10.00mm	89	43
SHR0255026S	10.20mm	89	43
SHR0255028V	10.50mm	89	43
SHR0255029W	11.00mm	95	47
SHR0255030X	11.50mm	95	47
SHR0255031Y	12.00mm	102	51
SHR0255032Z	12.50mm	102	51
SHR0255033A	13.00mm	102	51

General Technical Specifications

Attribute	Value
Brand	SHERWOOD
Series	S100
Product Type	Straight Shank Stub Drill
Material	High Speed Steel (HSS)
Finish / Coating	Black Oxide
System of Measurement	Metric
Shank Type	Straight Shank
Cutting Direction	Right Hand
Flute Type	Spiral
Number of Flutes	2
Helix Type	Normal Helix
Helix Angle	10° – 20°
Point Angle	118°
Web Thickness	Standard
Coolant Delivery	External
Drill Diameter Tolerance	h8
Shank Diameter Tolerance	f11
Individual or Set	Individual
Typical Applications	Steel, Cast Iron, Alloy Steel, Malleable Cast Iron
Standards Met	DIN 1897
Additional Standard	BS 328 Part 1
ECLASS Code	21010101
UNSPSC Code	23241605

Package Content

1 Piece SHERWOOD S100 HSS Black Oxide Stub Drill
Individually packed
Protective packaging supplied

Warranty Term

SHERWOOD manufacturer warranty coverage
Covers manufacturing defects
Excludes misuse, improper handling and wear

Why Choose SHERWOOD

SHERWOOD tools are engineered for consistent performance in professional machining environments. Manufactured from premium high speed steel and produced to internationally recognized DIN and BS standards, SHERWOOD drills deliver reliable cutting accuracy and extended tool life.

With precision manufacturing and durable surface finishing, SHERWOOD stub drills provide excellent rigidity, improved drilling stability and dependable results across a wide range of industrial applications.
