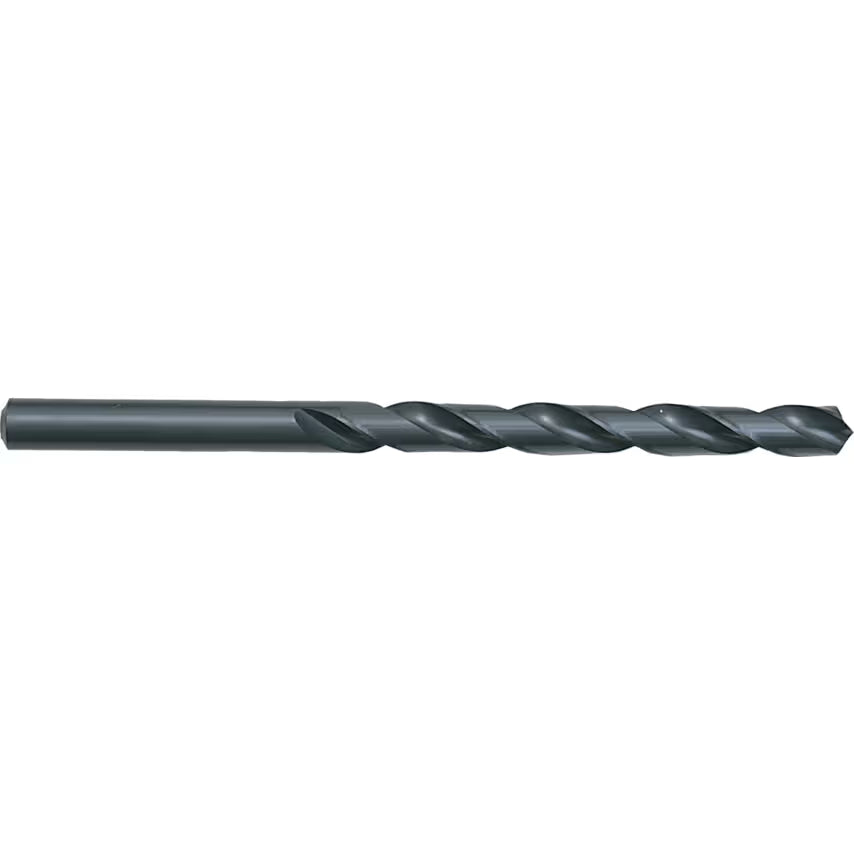

SHERWOOD 5.40mm HSS Long Series Drill Bit SHR0251482S Precision
Tidak dapat memuatkan ketersediaan pengambilan
Overview Summary
The SHERWOOD SHR0251482S 5.40mm HSS Long Series Drill Bit is engineered for accurate drilling where extra reach is required. Made from premium High Speed Steel (HSS), this drill bit provides excellent hardness, wear resistance, and long service life in demanding environments.
Its long series design allows operators to drill deeper holes and access confined areas with improved stability and precision. Suitable for professional metalworking, fabrication, and engineering tasks, this drill delivers reliable performance across a variety of materials including steel and non-ferrous metals.
Key Features
-
High Speed Steel (HSS) Material – Strong, durable, and heat resistant
-
Long Series Drill Design – Ideal for deep-hole and extended reach drilling
-
Precision Ground Cutting Edges – Ensures accurate drilling and smooth performance
-
5.40mm Diameter – Consistent hole size for precise applications
-
Professional Quality – Suitable for workshops, fabrication, and industrial use
Specifications
Attribute |
Value |
|---|---|
|
Brand |
Sherwood |
|
Coolant Delivery |
External |
|
Cutting Direction |
Right Hand |
|
Drill Diameter Metric |
5.4 |
|
Drill Diameter Tolerance |
h8 |
|
Drill Length Type |
Long Series |
|
EAN |
5036140171916 |
|
ECLASS Code |
21010101 |
|
Finish/Coating |
Steam Tempered |
|
Flute Construction |
Ground Flute |
|
Flute Length |
91 |
|
Flute Type |
Spiral |
|
Helix Angle |
30° |
|
Helix Type |
Normal Helix |
|
Individual or Set |
Individual |
|
Material |
High Speed Steel |
|
Number of Flutes |
2 |
|
Number of Pieces |
1 |
|
Overall Length |
139mm |
|
Point Angle |
118° |
|
Point Type |
Split Point |
|
Series |
L100 |
|
Shank Diameter Tolerance |
f11 |
|
Shank Type |
Straight |
|
Standards Met |
BS 328 DIN 340 ISO 494 |
|
System of Measurement |
Metric |
|
UNSPSC Code |
23241605 |
|
Web Thickness |
Standard |
Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
- Manufactured from HSS for improved toughness
- Black oxide coating for greater heat and wear resistance
- Ideal for general purpose drilling
Typical Applications
- Drilling
- Steels
- Grey cast iron
- Malleable cast iron
- Nickel brass
- Graphite
Standards
- Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Package Content
-
1 × SHERWOOD SHR0251482S 5.40mm HSS Long Series Drill Bit
Warranty Term
Covered against manufacturing defects under SHERWOOD quality assurance. Warranty does not cover normal wear, improper use, or accidental damage.
Why Choose SHERWOOD
SHERWOOD is trusted by professionals worldwide for delivering precision tools built for durability and performance. With high manufacturing standards and reliable engineering, SHERWOOD drill bits provide consistent results and dependable quality for demanding drilling applications.
