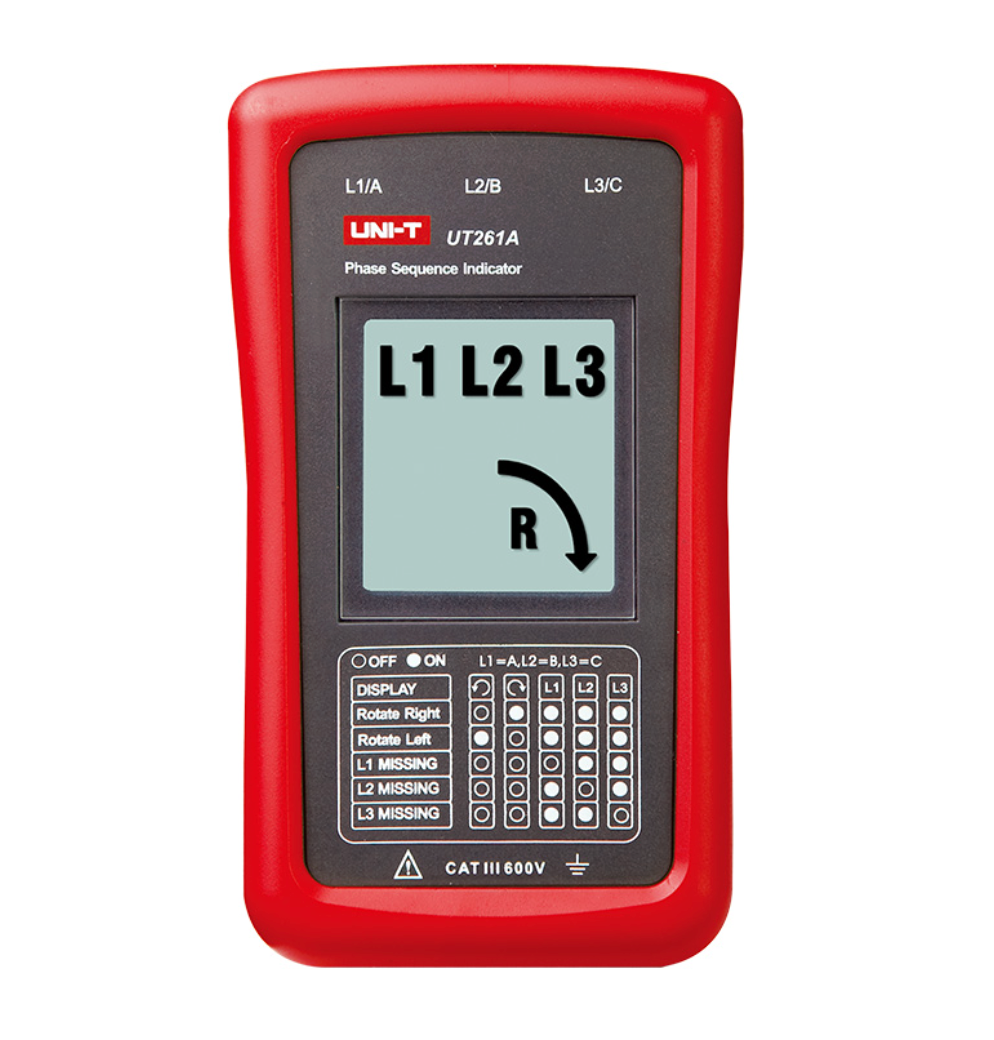

UNI-T UT261A Phase Sequence Indicator
Product Overview of UT261A
The UNI-T UT261A Phase Sequence Indicator is a professional electrical testing device designed to identify phase sequence and detect missing phases in three-phase power systems.
It is commonly used by electricians, maintenance technicians, and industrial installers to verify the correct phase order before connecting motors, pumps, compressors, and other three-phase equipment.
The UT261A operates across a wide AC voltage range of 40V to 690V and supports a frequency range from 15Hz to 400Hz, making it suitable for most industrial electrical systems.
Built with a durable impact-resistant housing, the device can withstand drops from up to 2 meters, ensuring reliable performance in demanding job-site environments.
Key Features of UT261A
• Phase Sequence Detection – Identifies correct phase order in three-phase systems
• Missing Phase Indication – Quickly detects phase loss or wiring issues
• Wide Voltage Range – Supports 40V to 690V AC testing
• Wide Frequency Range – Operates between 15Hz to 400Hz
• Durable Construction – Withstands impacts from up to 2 meters
• Clear LCD Display – Provides easy phase indication results
Technical Specifications of UT261A
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT261A |
| Product Type | Phase Sequence Indicator |
| Voltage Range | 40V – 690V AC |
| Frequency Range | 15Hz – 400Hz |
| Working Current | < 1mA |
| Phase Sequence Indication | LCD Display |
| Missing Phase Indication | LCD Display |
| Motor Rotation Test | Not Available (UT261B only) |
| Power Supply | No Battery Required |
| Product Dimensions | 123mm × 71mm × 29mm |
| Net Weight | 160g |
| Product Color | Red & Grey |
Comparison within UT261 Series
| Model | Voltage Range | Phase Sequence | Missing Phase | Motor Rotation | Display |
|---|---|---|---|---|---|
| UT261A | 40V–690V | Yes | Yes | No | LCD |

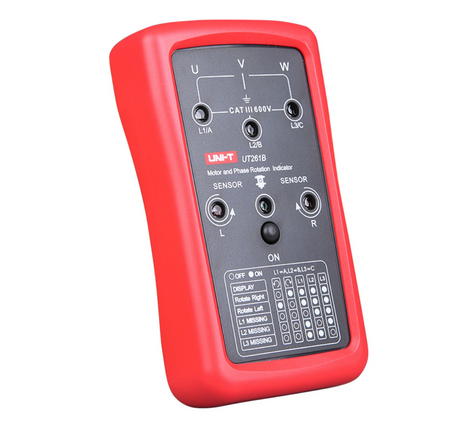

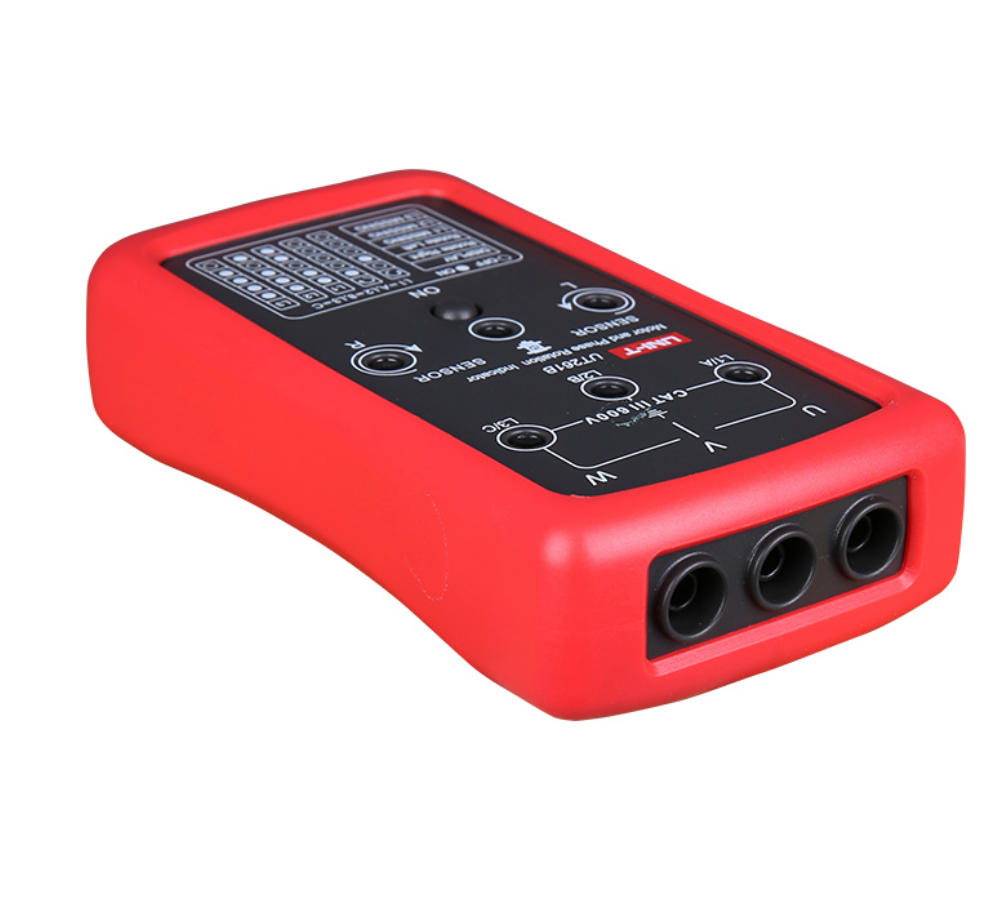

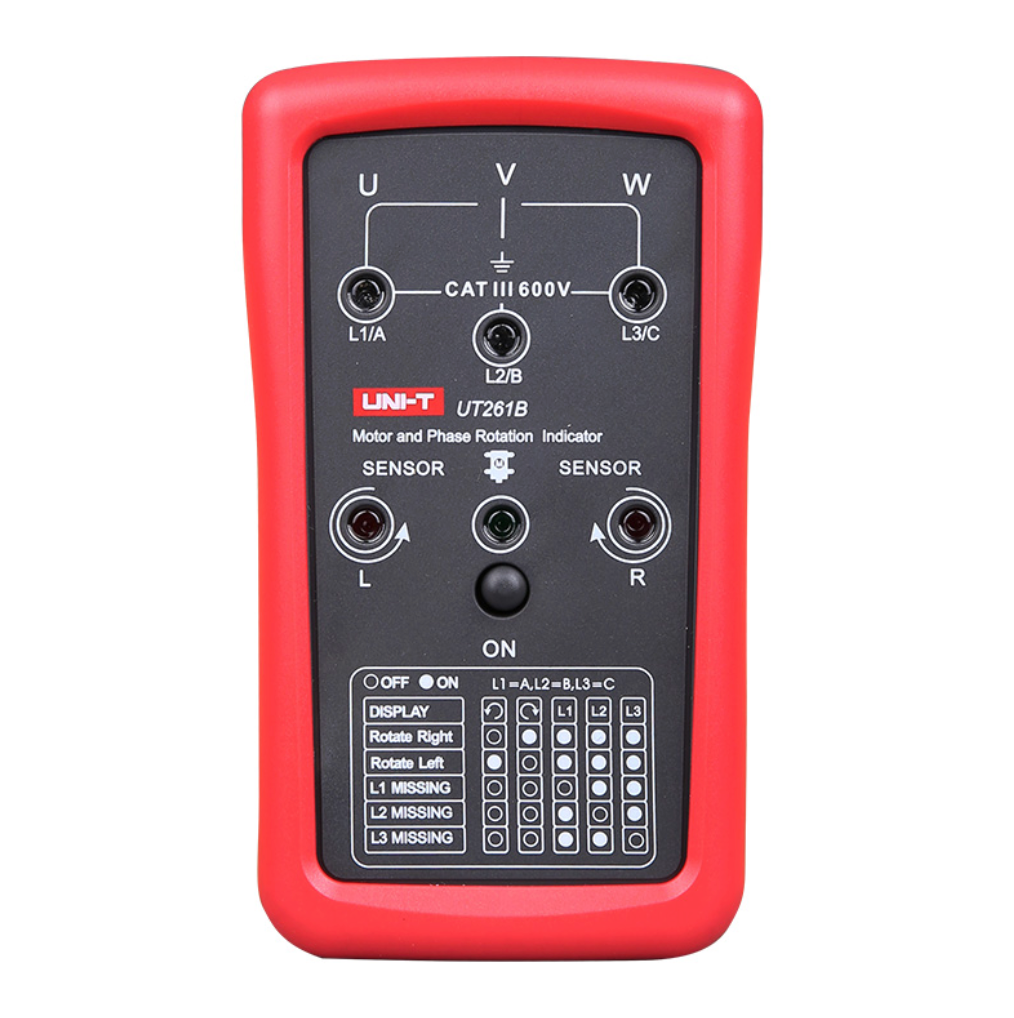

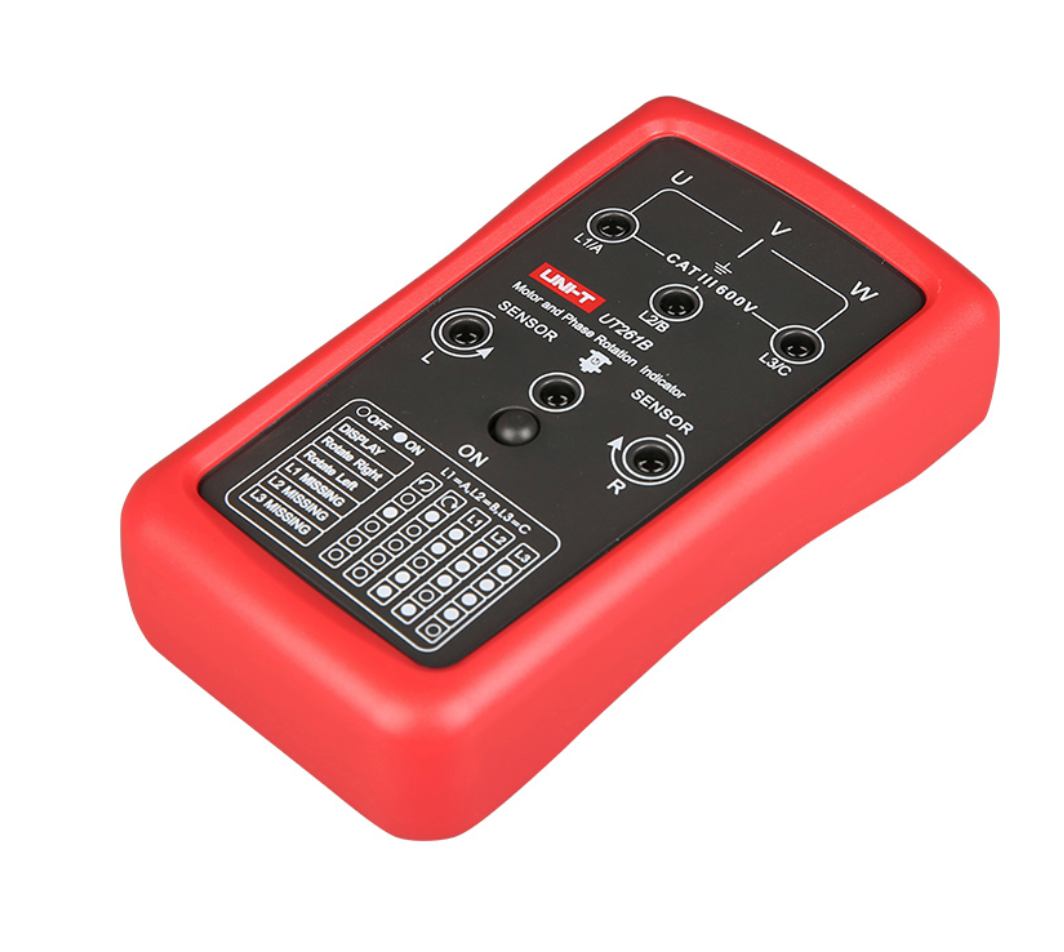

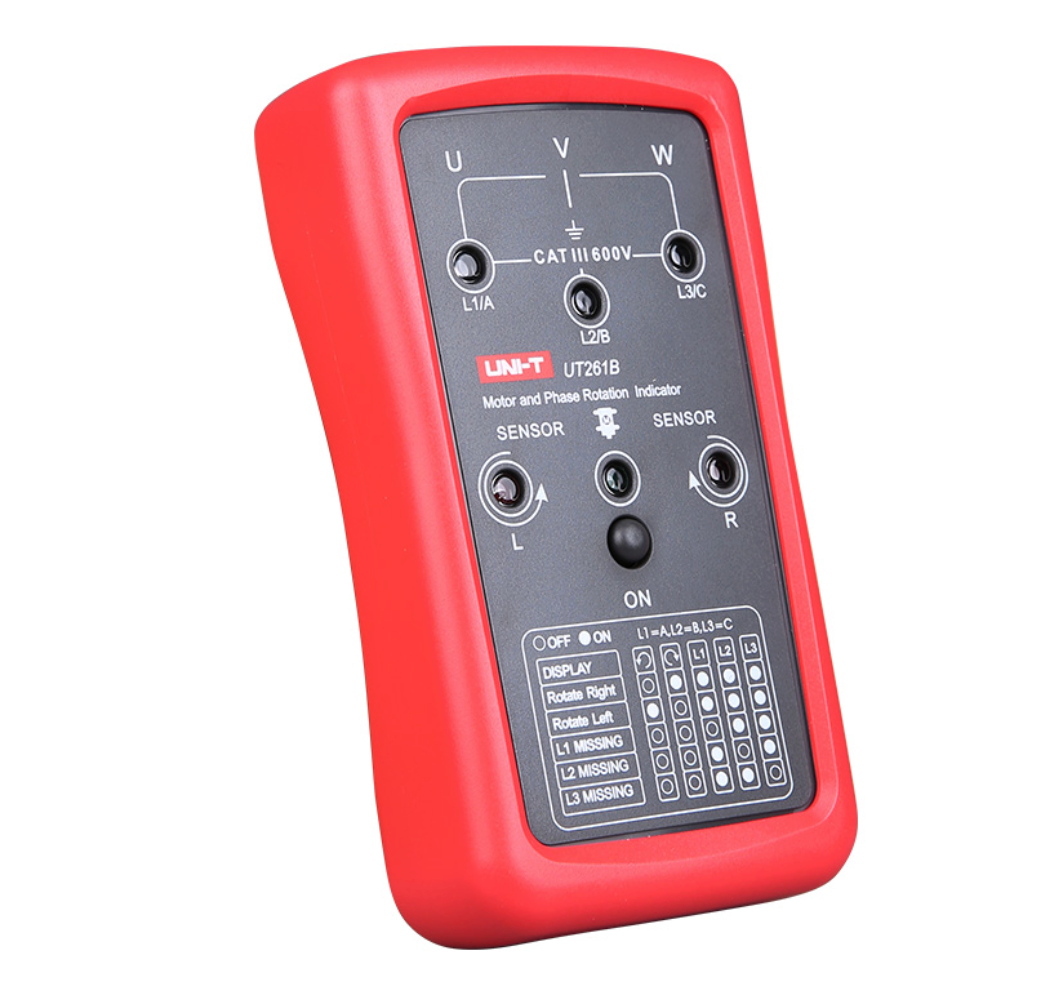

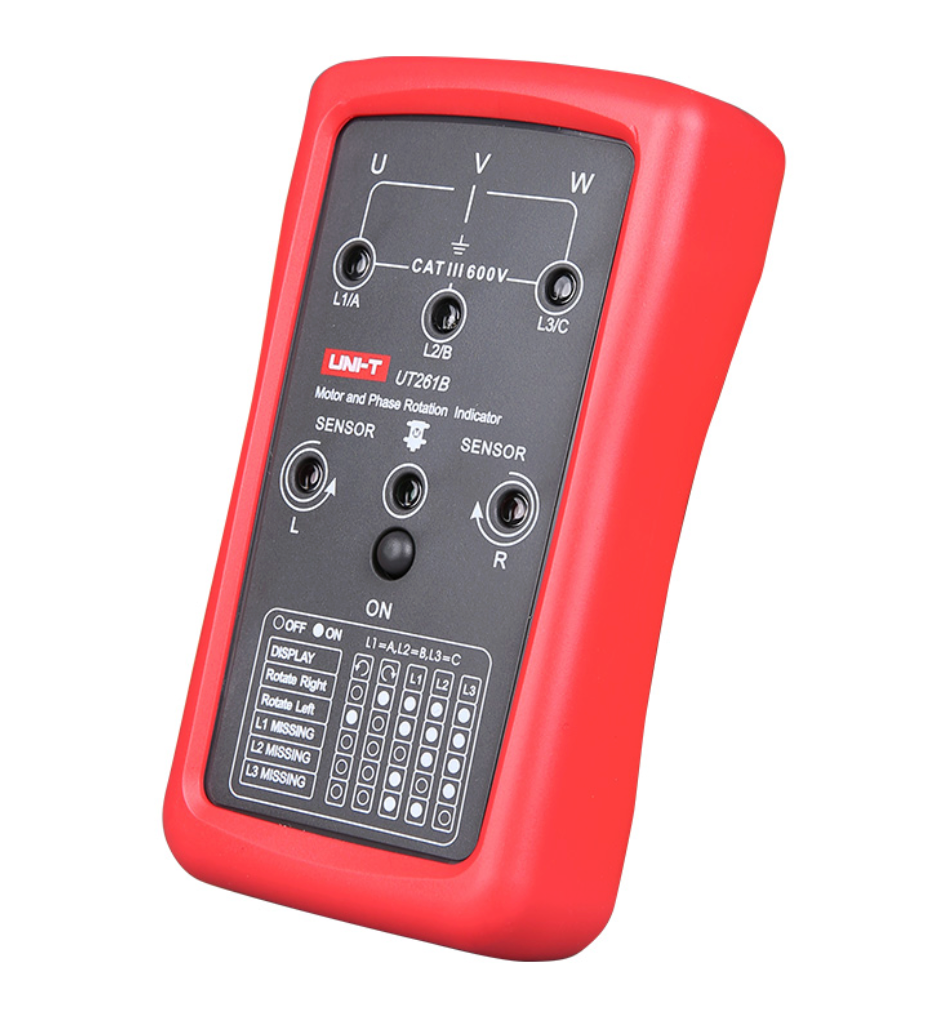

| UT261B | 90V–600V | Yes | Yes | Yes | LED |
Typical Applications
The UNI-T UT261A Phase Sequence Indicator is commonly used for:
• Electrical installation and maintenance
• Industrial motor installation
• HVAC system wiring verification
• Generator and power distribution testing
• Troubleshooting three-phase power systems
Package Includes
1 × UNI-T UT261A Phase Sequence Indicator
3 × Test Leads with Alligator Clips
1 × Carrying Bag
1 × User Manual
Certifications
The UT261 Series complies with international safety standards including:
• CE
• UKCA
• cETLus
Why Choose the UNI-T UT261A?
✔ Reliable testing tool from UNI-T
✔ Wide 40V–690V testing capability
✔ No battery required, ready to use anytime
✔ Durable 2-meter drop resistance
✔ Ideal for electricians and industrial maintenance
FAQs
What does the UNI-T UT261A measure?
The UT261A determines the phase sequence and detects missing phases in three-phase electrical systems.
Can the UT261A test motor rotation direction?
No. Motor rotation testing is available on the UT261B model, not UT261A.
Does the UT261A require a battery?
No. The device operates directly from the tested circuit and does not require a battery.
What voltage range can the UT261A test?
The tester supports 40V to 690V AC three-phase systems.
