Uni-T UT207B 1000A AC/DC True RMS Digital Clamp Meter | NCV & Inrush

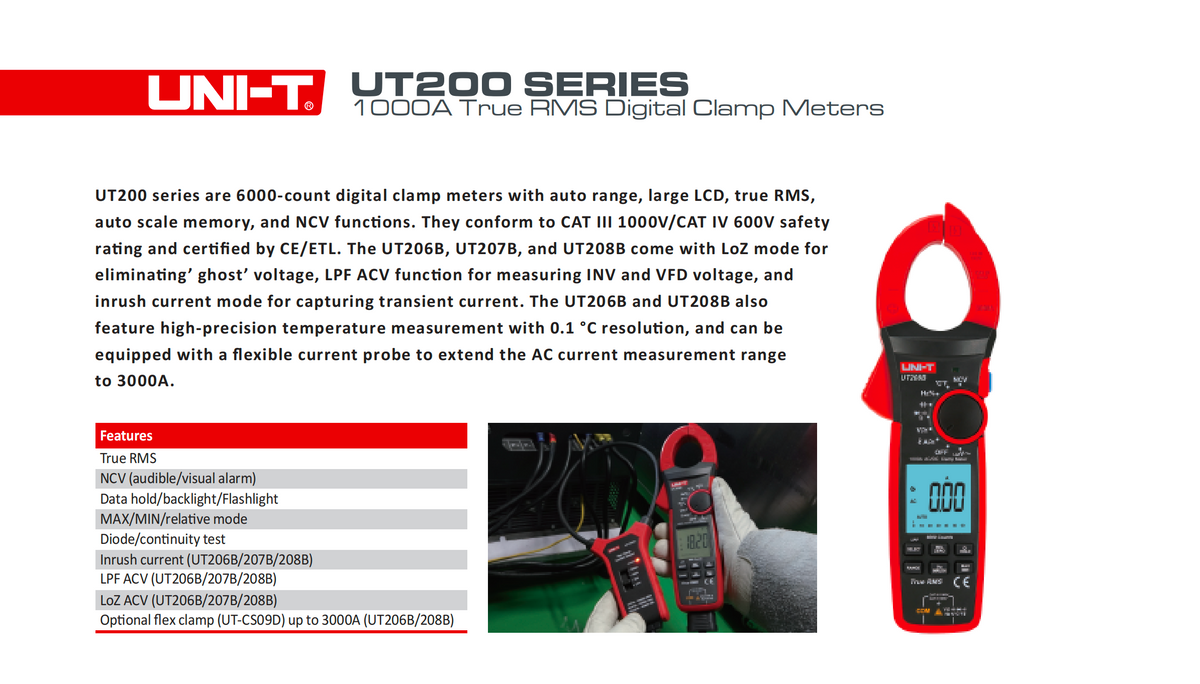

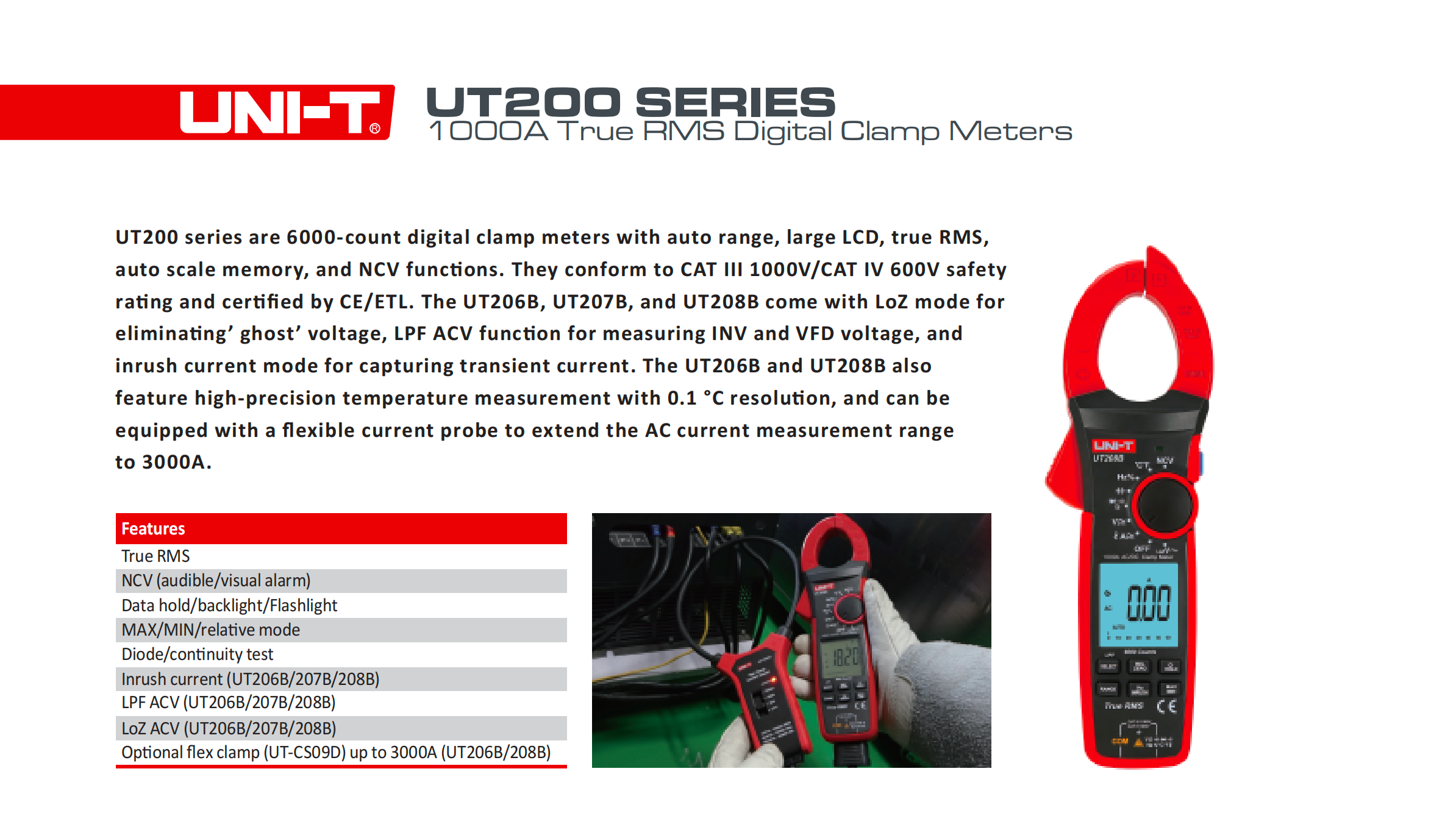

Professional High-Current Precision: Uni-T UT207B 1000A Clamp Meter
The Uni-T UT207B is a rugged, industrial-grade 6000-count digital clamp meter designed for electricians and engineers who demand accuracy in high-voltage environments. With a massive 1000A AC/DC range and True RMS technology, this tool provides reliable readings even on non-linear loads and complex electrical systems.
Advanced Diagnostic Features for Industrial Power
The UT207B goes beyond basic measurement, offering specialized modes to troubleshoot modern electrical drive systems and sensitive electronic circuits.
Specialized Measurement Modes
-
Inrush Current Capture: Perfect for motor maintenance, this mode captures the transient "surge" current during equipment startup.
- LoZ Low Impedance Mode: Eliminates "ghost voltages" caused by capacitive coupling, ensuring you only measure real energized circuits.
- LPF (Low Pass Filter): Accurately measure voltage on Variable Frequency Drives (VFDs) and Inverters by filtering out high-frequency noise.
- Non-Contact Voltage (NCV): Features a multi-segment visual and audio alarm for safe, contact-free voltage detection.
Built for the Field
-
High Safety Rating: Certified to CAT III 1000V / CAT IV 600V standards for use in utility and heavy industrial panels.
-
Superior Visibility: Equipped with a large LCD screen featuring an Auto Backlight and an integrated Flashlight for working in dark enclosures.
- Professional Build: A wide 42mm jaw opening accommodates large cables and busbars easily.

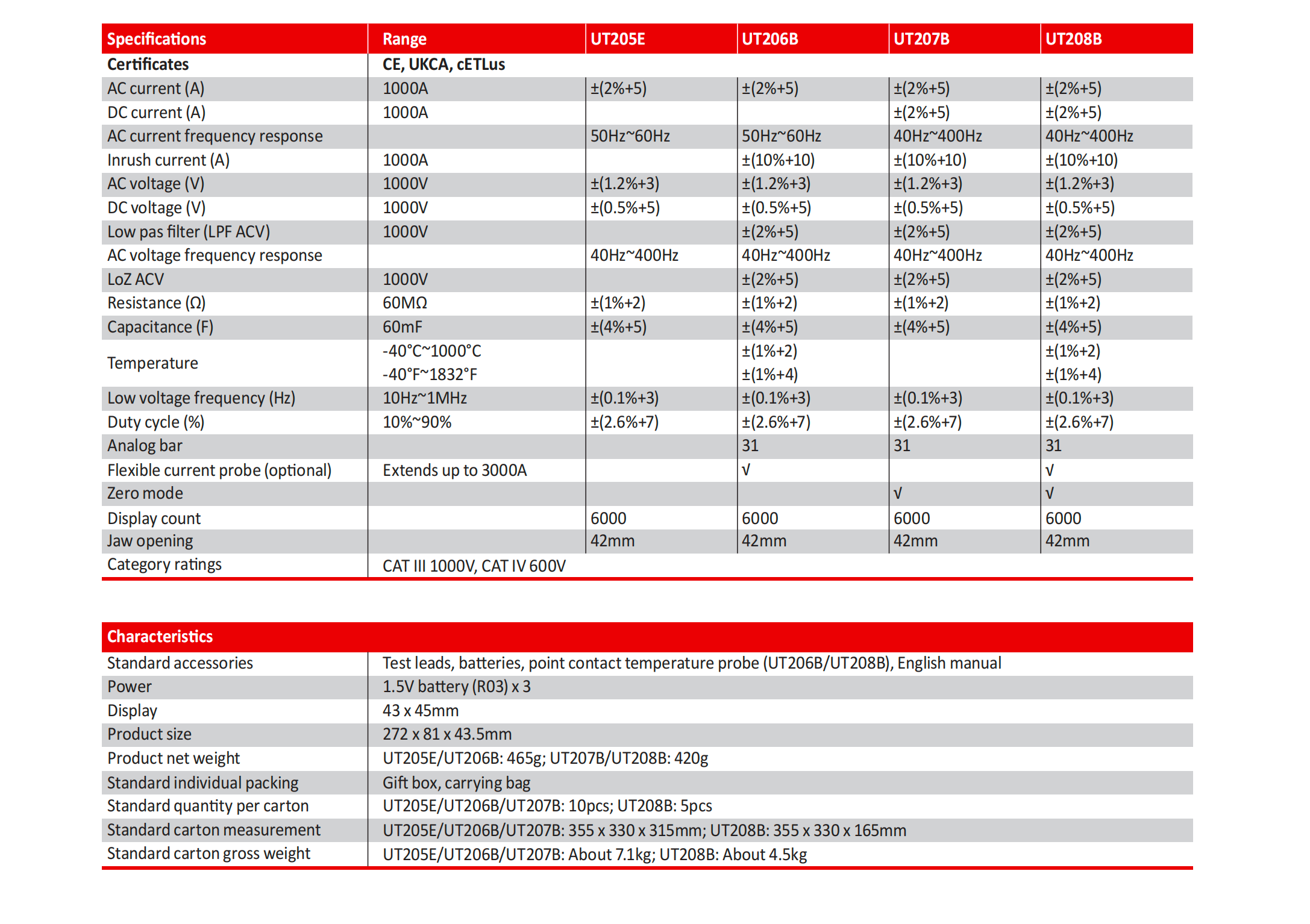

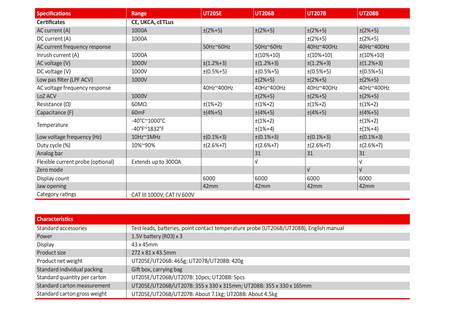

Technical Specifications
| Feature | Specification |
| Brand | Uni-T |
| Model | UT207B |
| AC/DC Current | 1000A ±(2%+5) |
| AC/DC Voltage | 1000V |
| Measurement Type | True RMS |
| Inrush Current | 1000A ±(10%+10) |
| Jaw Opening | 42 mm |
| Resistance | 60MΩ |
| Capacitance | 60mF |
| Frequency Response | 40Hz ~ 400Hz |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| Display Count | 6000 Count with Analog Bar |
| Power Source | 1.5V Battery (R03) x 3 |
| Weight | 420g |
Smart Functions for Efficiency
-
Auto Range & Auto Scale Memory: Saves time by automatically selecting the best resolution for your measurement.
-
Duty Cycle & Frequency: Supports low voltage frequency testing from 10Hz to 1MHz.
-
Zero Mode: Allows for precise DC current measurements by removing any residual magnetic interference.
- Audio/Visual Alarms: Instant feedback for NCV and continuity testing ensures safety in loud industrial environments.
What’s in the Box?
Each Uni-T UT207B comes ready for work with professional-grade test leads, a set of batteries, a comprehensive English manual, and a durable carrying bag for on-site protection.
Don't compromise on electrical safety or accuracy. Add the Uni-T UT207B True RMS Clamp Meter to your toolkit today for pro-level diagnostics!
