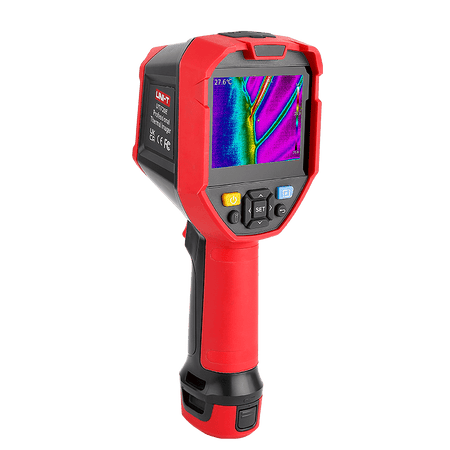

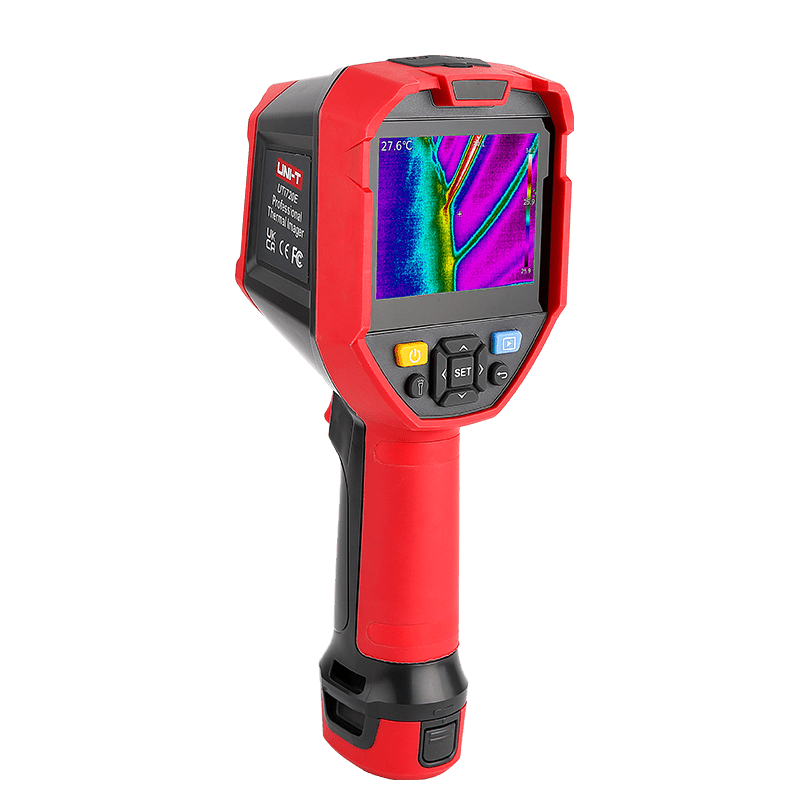

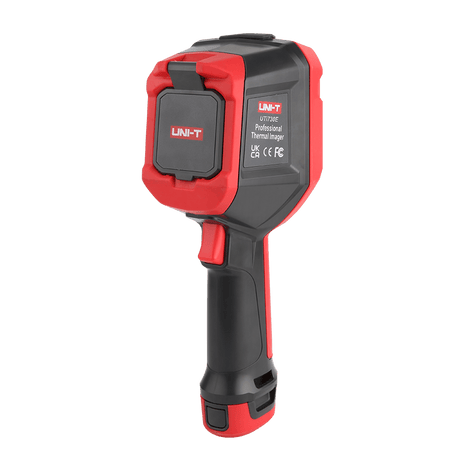

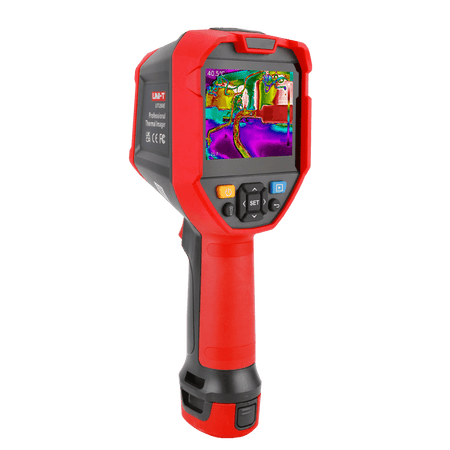

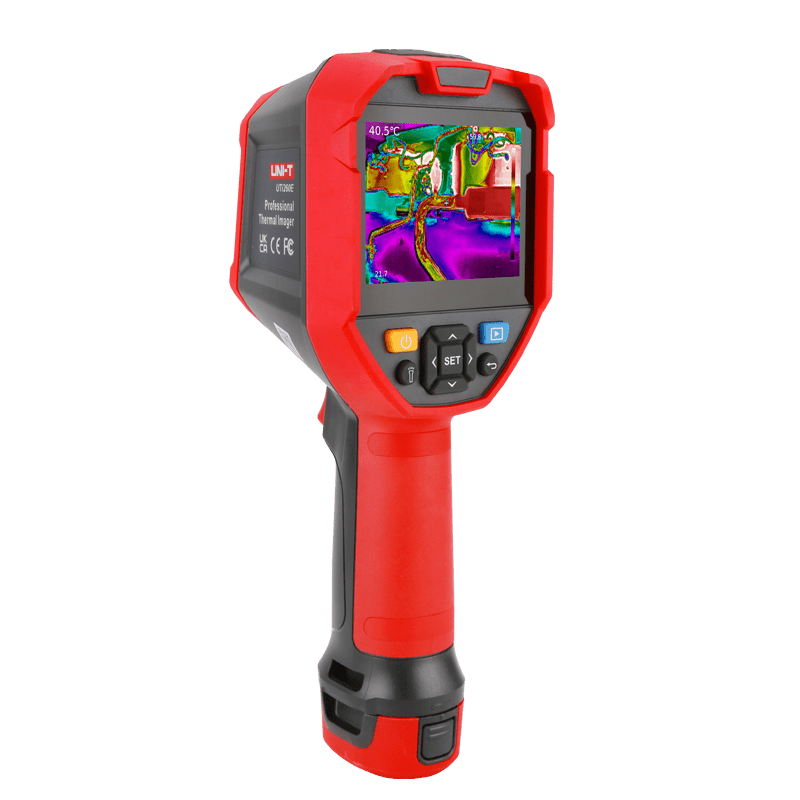

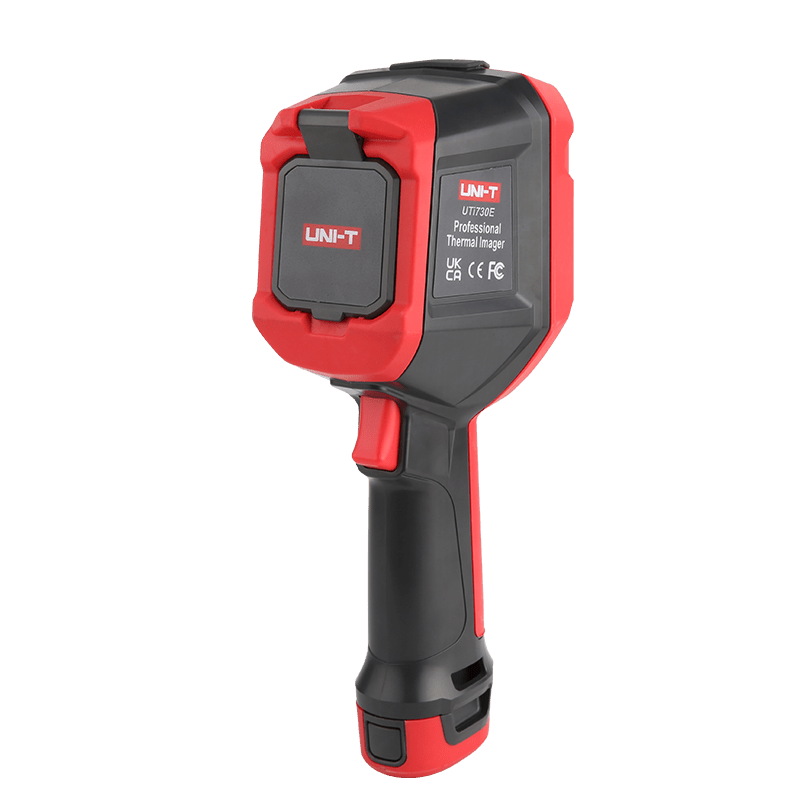

UTi720E Enhanced Thermal Camera – High-Res Handheld Imaging

The UNI-T UTi720E Handheld Thermal Camera delivers high-resolution infrared imaging in a compact, easy-to-use design. With a powerful 256×192 thermal resolution and a wide temperature range (-20°C to 550°C), this device is perfect for professionals in electrical, HVAC, mechanical, and building inspection industries.

It features a 3.5” TFT LCD display, Wi-Fi connectivity, and real-time image transfer, allowing for efficient data sharing and analysis. The UTi720E supports multiple color palettes, image fusion, and video recording, making it an ideal choice for detailed diagnostics and predictive maintenance.

Built for rugged field use, this thermal camera ensures accurate temperature detection, fast response, and clear thermal visibility in challenging environments.

Features :

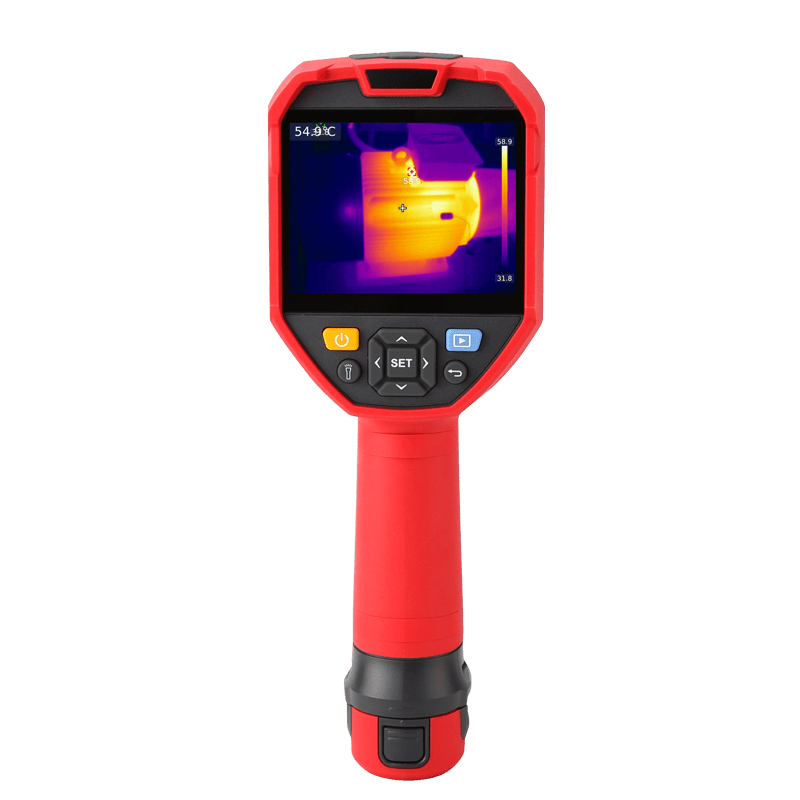

• 3.5” IPS display screen (640×480 Pixels)
• IR resolution: 256×192
• Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
• Auto alarm for high/low temperature
• Auto tracking for hot spot/cold spot
• On screen analyzer : 5 Points/1 Line/3 Rectangles/3 Circles
• Image capture
• Digital camera resolution: 2MP
• Digital zoom: 2x, 4x
• Image modes: Thermal,Visual image,Fusion,PIP
• Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
• Isotherm (Auto/Ratio/Below/Above/Section/Manual)
• LED flashlight
• Wi-Fi connection through Mobile App
• QR Code – photo management
• PC software: analysis and real-time image projection
• 5200mAh replaceable battery pack (Type-C rechargeable)

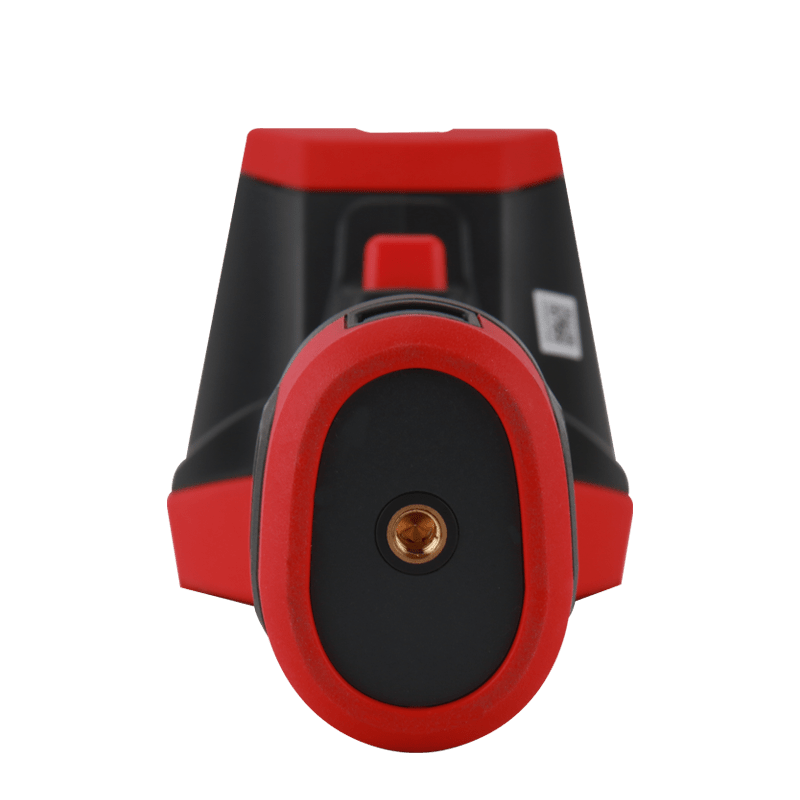

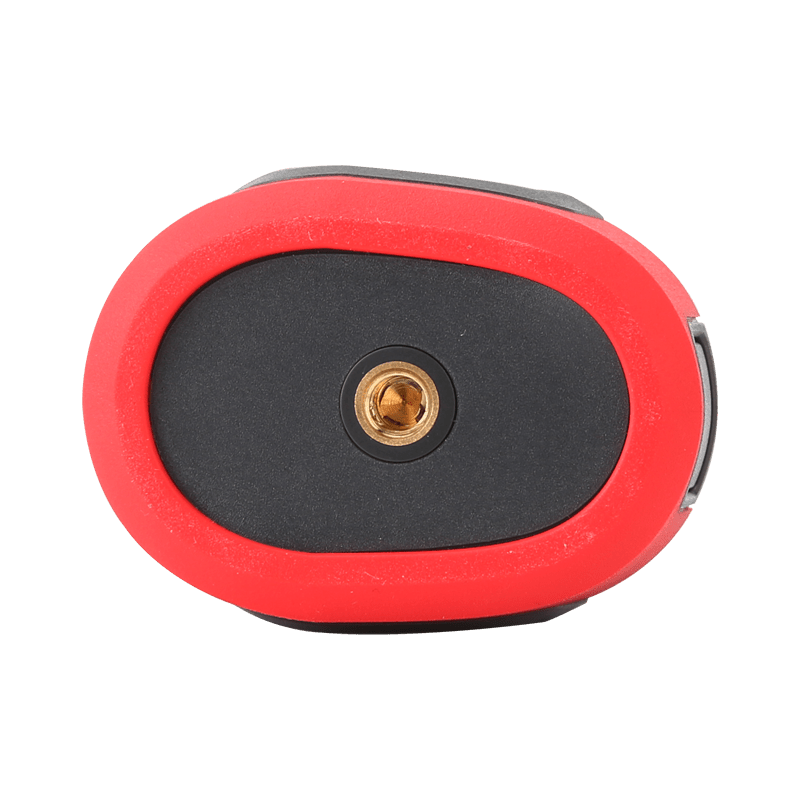

• 1/4”tripod mounting hole
• IP54
• 2m drop proof

Product Specifications of UTi720E

Technical Data
Display	3.5″ IPS (640×480)
IR resolution(Pixels)	256×192
Spectral range	8~14µm
Pixel size	12µm
Frame rate	≤25Hz
Thermal sensitivity(NETD)	≤50mK
Focus	Focus Free
Field of view(FOV)	56°(H) × 42.2°(V)
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Functions
Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes	Thermal, Visual image, Fusion, PIP
On screen analyzer	5 Points/1 Line/3 Rectangles/3 Circles
Isotherm	Auto/Ratio/Below/Above/Section/Manual
Hi/Lo temperature alarm	LCD animation & LED flashlight
Hi/Lo temperature tracking	√
Digital camera resolution	2MP
Digital zoom	2x, 4x
Wi-Fi	√
LED lighting	√
Analysis software	PC+APP
General Characteristics
Battery	5200mAh detachable Li-ion battery pack (UT-M17)
Operating time	≥3 hours (with Wi-Fi off)

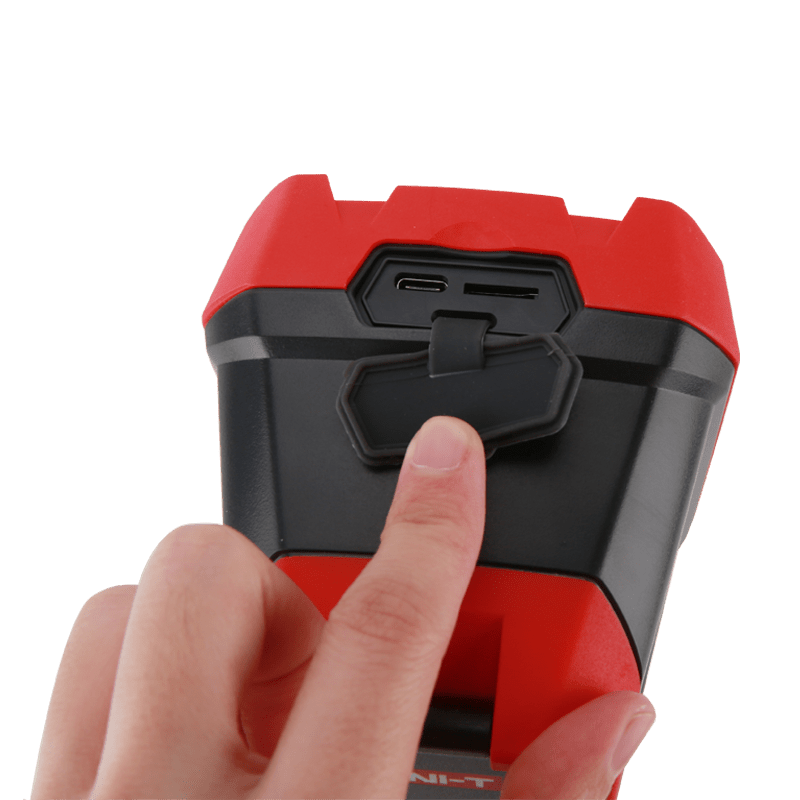

USB	Type-C
Storage	32GB Micro SD card
Image storage format	JPG
Protection	IP54 & 2m drop proof
Certificates	CE, UKCA, FCC, RoHS
Languages	EN, FR, DE, ES, RU
Weight	654g
Dimension	260mm×97mm×99mm
Packing Details
Standard accessories	Type-C USB cable, Micro SD card, Li-ion battery pack, English Manual, Documents Download Operation Guide

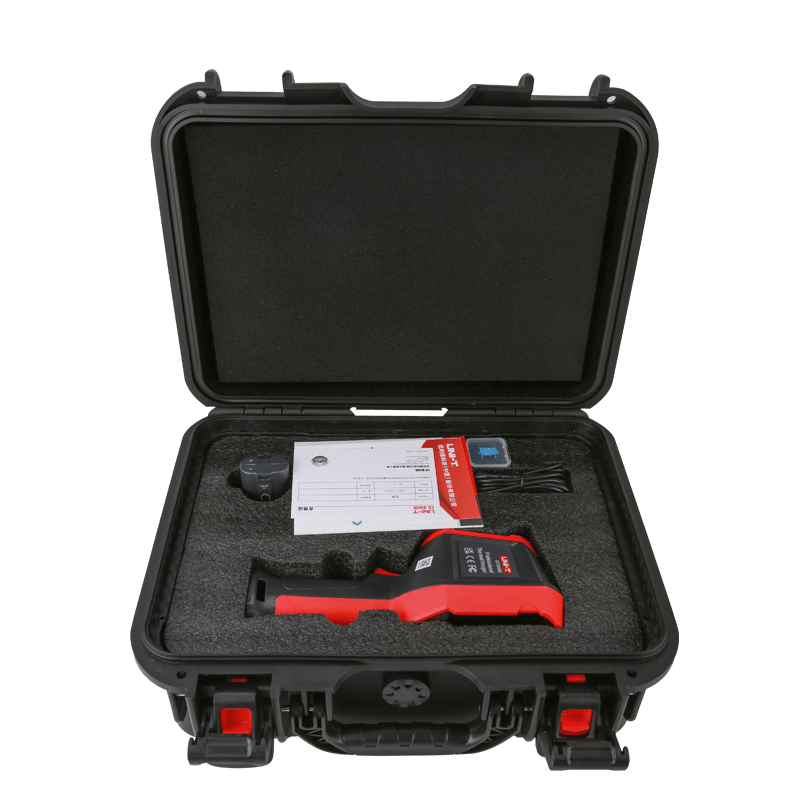

Standard individual packing	Toolbox & Gift box
Standard Qty per carton	1pcs
Standard carton size	400mm×185mm×345mm
Standard carton G.W.	3.7kg

Applications of UTi720E

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.



                  Electric power tower inspection



Pipeline Inspection



Solar panel inspection



HVAC inspection
